| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_016T01_9000002152_14617cztM0_level2.evt | modeM0/AS1A04_016T01_9000002152_14617cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,965,760 | 90,380,160 |
| Size | 493.0 MB | 86.2 MB |
| Events in quadrant A | 3,513,863 | 580,328 |
| Events in quadrant B | 3,475,858 | 585,112 |
| Events in quadrant C | 3,777,765 | 574,620 |
| Events in quadrant D | 4,456,011 | 551,560 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14717 | 3 |
| B | 0 | 14500 | 2 |
| C | 0 | 15273 | 2 |
| D | 0 | 17425 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6388 | 77 | 1.205385% |
| B | 6388 | 96 | 1.502818% |
| C | 6388 | 73 | 1.142768% |
| D | 6388 | 455 | 7.122730% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8789 | 6390 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8789 | 6390 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8789 | 6390 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8789 | 6389 | 266 | 266 | 3.03% | 4.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 95068 | 541.24 | 859 | 842 | 174.1 |
| A | 1 | 178 | 37797 | 212.27 | 859 | 842 | 174.1 |
| A | 1 | 161 | 33498 | 187.58 | 859 | 842 | 174.1 |
| B | 0 | 229 | 33535 | 201.62 | 858 | 837 | 162.2 |
| B | 0 | 189 | 33259 | 199.92 | 858 | 837 | 162.2 |
| B | 0 | 214 | 20881 | 123.59 | 858 | 837 | 162.2 |
| C | 3 | 233 | 480366 | 2469.78 | 845 | 851 | 194.2 |
| C | 13 | 61 | 5951 | 26.27 | 845 | 851 | 194.2 |
| C | 10 | 22 | 5063 | 21.69 | 845 | 851 | 194.2 |
| D | 10 | 199 | 864675 | 4569.25 | 809 | 791 | 189.1 |
| D | 12 | 110 | 351119 | 1852.95 | 809 | 791 | 189.1 |
| D | 10 | 70 | 155528 | 818.43 | 809 | 791 | 189.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

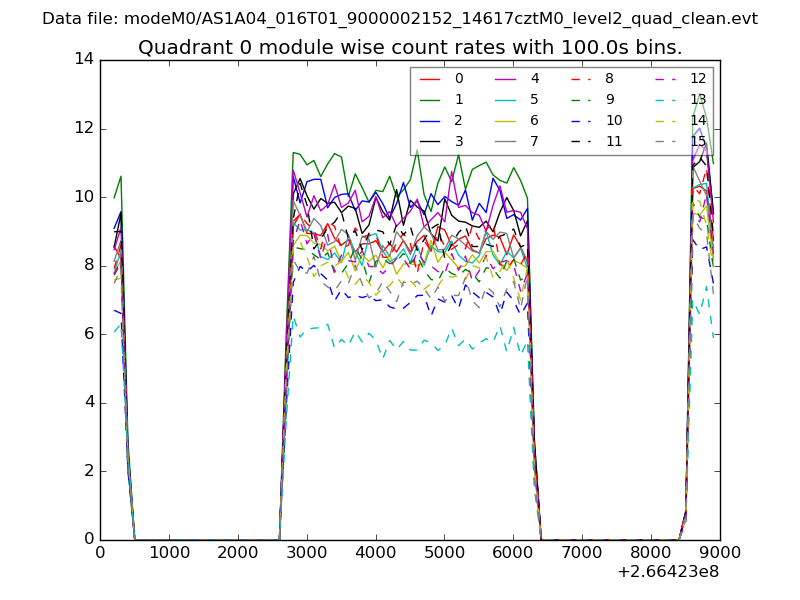

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

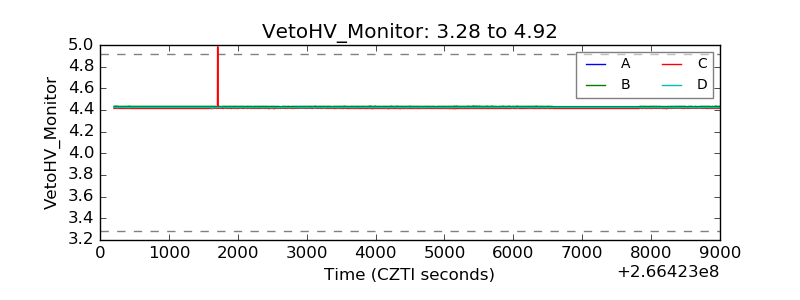

| Veto HV Monitor |  |
| Veto LLD |  |

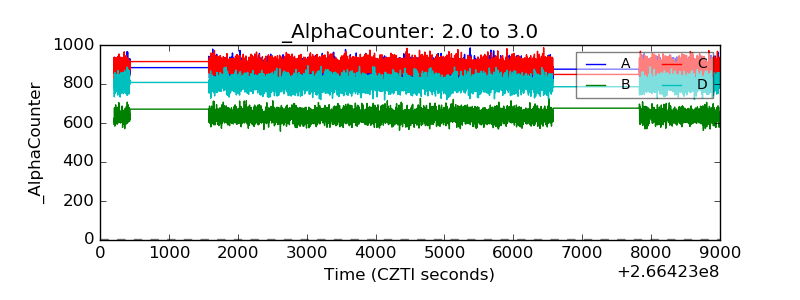

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

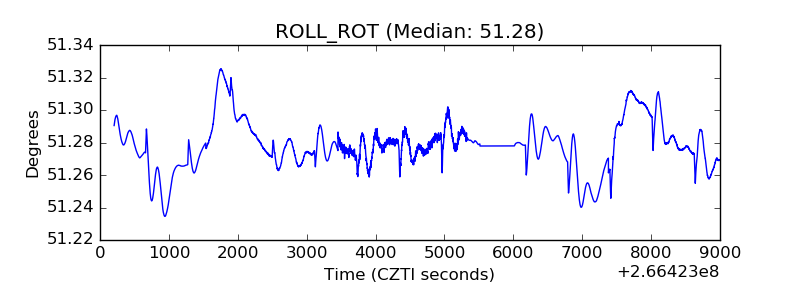

| _ROLL_ROT |  |
| _Roll_DEC |  |

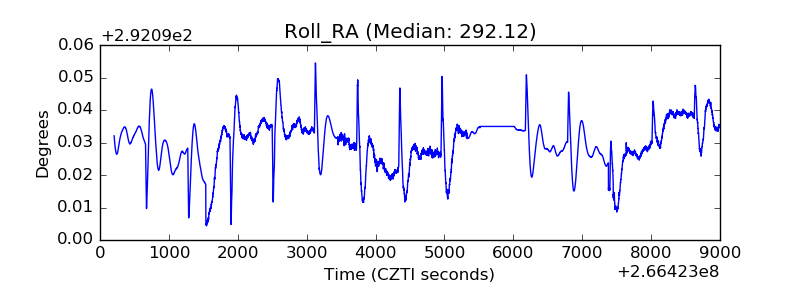

| _Roll_RA |  |
| Veto Counter |  |
