| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_016T01_9000002152_14618cztM0_level2.evt | modeM0/AS1A04_016T01_9000002152_14618cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,673,280 | 107,231,040 |
| Size | 542.3 MB | 102.3 MB |
| Events in quadrant A | 3,762,538 | 697,703 |
| Events in quadrant B | 3,699,362 | 712,125 |
| Events in quadrant C | 4,165,196 | 699,451 |
| Events in quadrant D | 5,136,130 | 665,774 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15466 | 3 |
| B | 0 | 15298 | 2 |
| C | 0 | 17093 | 2 |
| D | 0 | 19793 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6785 | 79 | 1.164333% |
| B | 6785 | 109 | 1.606485% |
| C | 6785 | 90 | 1.326455% |
| D | 6785 | 392 | 5.777450% |

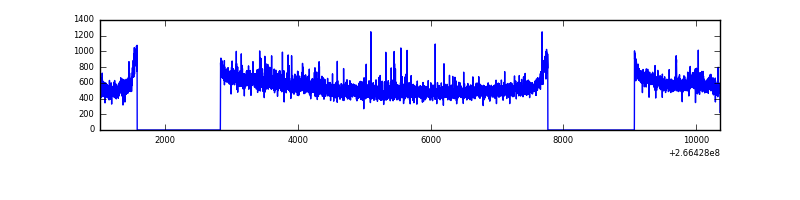

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9346 | 6788 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9346 | 6788 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9346 | 6787 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9346 | 6787 | 242 | 242 | 2.59% | 3.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 100762 | 539.19 | 921 | 905 | 185.2 |
| A | 1 | 178 | 39175 | 206.64 | 921 | 905 | 185.2 |
| A | 1 | 161 | 34454 | 181.15 | 921 | 905 | 185.2 |
| B | 0 | 189 | 38739 | 217.55 | 923 | 900 | 173.9 |
| B | 12 | 111 | 20258 | 111.29 | 923 | 900 | 173.9 |
| B | 0 | 214 | 19750 | 108.37 | 923 | 900 | 173.9 |
| C | 3 | 233 | 597908 | 2852.59 | 912 | 919 | 209.3 |
| C | 10 | 22 | 7392 | 30.93 | 912 | 919 | 209.3 |
| C | 13 | 61 | 6523 | 26.78 | 912 | 919 | 209.3 |
| D | 12 | 110 | 993519 | 4849.26 | 879 | 863 | 204.7 |
| D | 10 | 199 | 698283 | 3406.99 | 879 | 863 | 204.7 |
| D | 10 | 70 | 50836 | 244.12 | 879 | 863 | 204.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

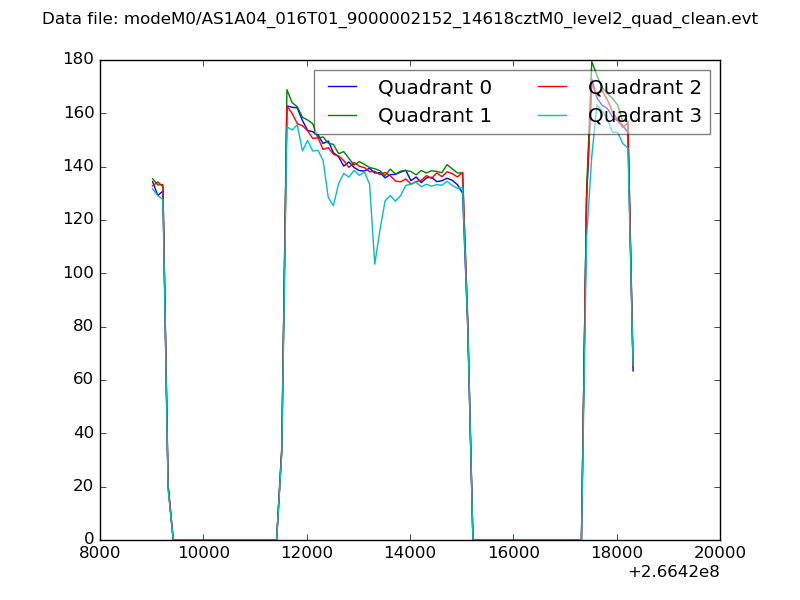

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

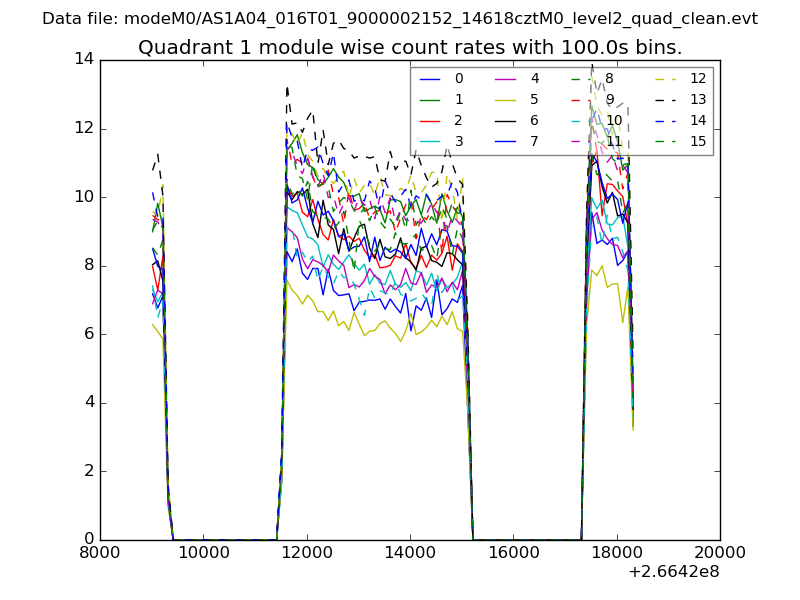

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

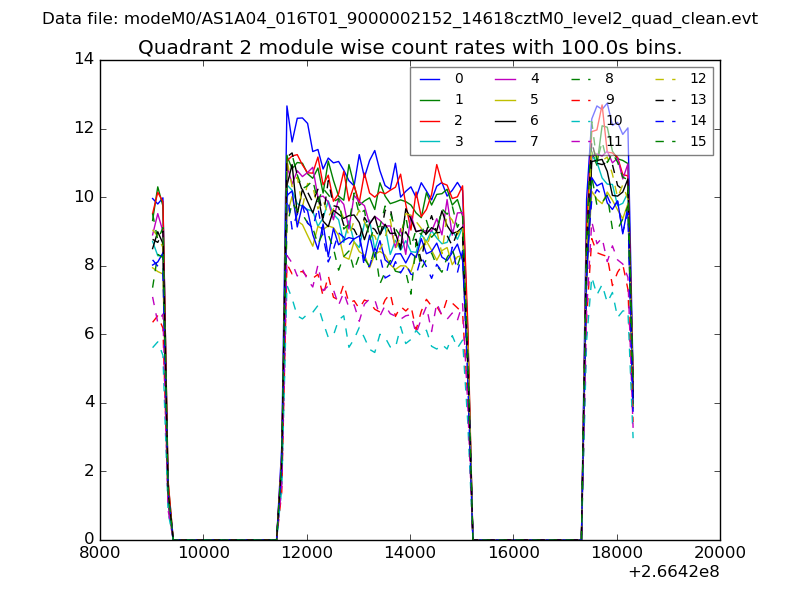

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

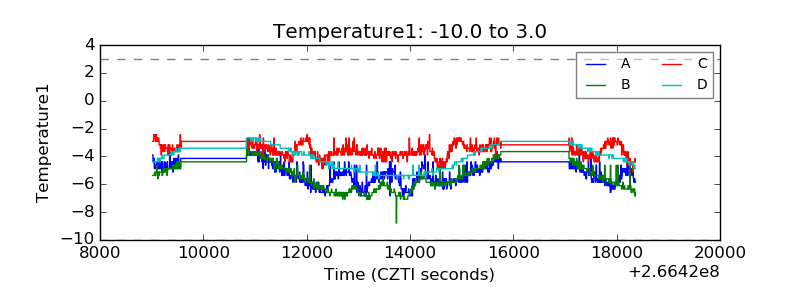

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

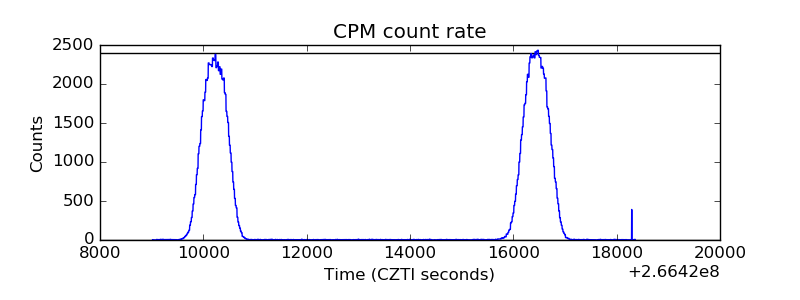

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

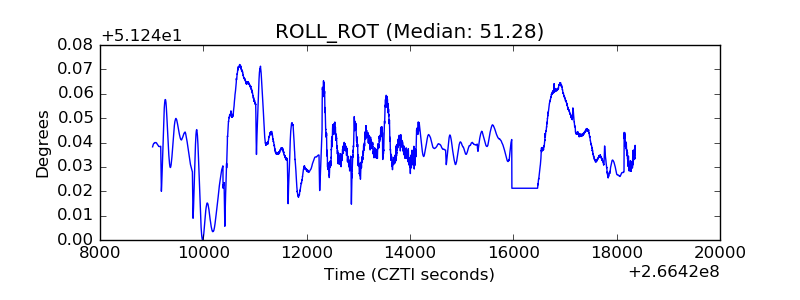

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

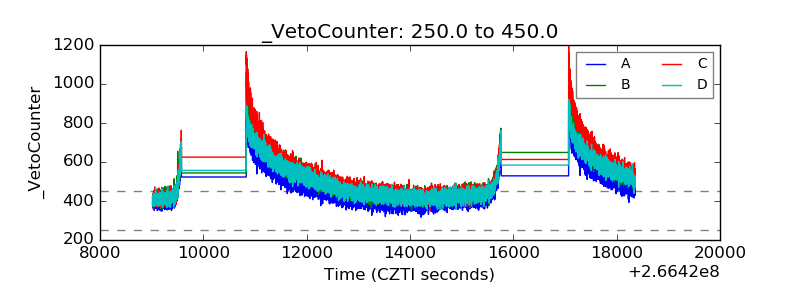

| Veto Counter |  |
