| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_026T01_9000002154_14624cztM0_level2.evt | modeM0/AS1G08_026T01_9000002154_14624cztM0_level2_quad_clean.evt |
| Size (bytes) | 652,452,480 | 116,040,960 |
| Size | 622.2 MB | 110.7 MB |
| Events in quadrant A | 4,315,446 | 751,050 |
| Events in quadrant B | 4,044,351 | 752,670 |
| Events in quadrant C | 5,976,260 | 729,086 |
| Events in quadrant D | 4,872,055 | 715,197 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18082 | 3 |
| B | 0 | 17414 | 2 |
| C | 0 | 23625 | 2 |
| D | 0 | 20218 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8148 | 145 | 1.779578% |
| B | 8148 | 164 | 2.012764% |
| C | 8148 | 147 | 1.804124% |
| D | 8148 | 402 | 4.933726% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

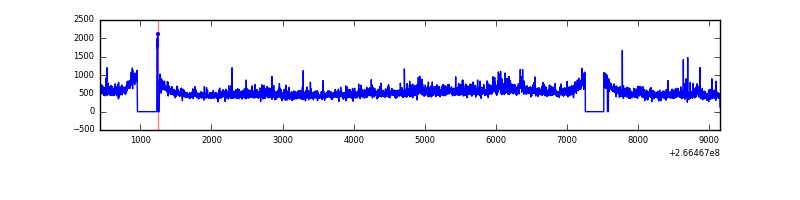

| A | 8719 | 8153 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8719 | 8151 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8719 | 8153 | 0 | 0 | 0.00% | 0.00% |  |

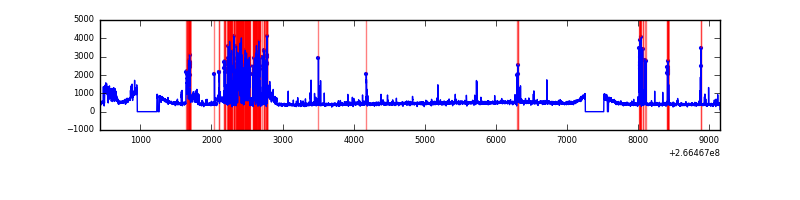

| D | 8719 | 8153 | 283 | 283 | 3.25% | 3.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 169109 | 833.09 | 986 | 964 | 201.8 |
| A | 1 | 178 | 80691 | 395.01 | 986 | 964 | 201.8 |
| A | 1 | 161 | 70247 | 343.27 | 986 | 964 | 201.8 |
| B | 0 | 189 | 73352 | 375.31 | 988 | 961 | 192.9 |
| B | 0 | 229 | 24955 | 124.39 | 988 | 961 | 192.9 |
| B | 0 | 214 | 23817 | 118.49 | 988 | 961 | 192.9 |
| C | 3 | 233 | 2231151 | 10021.96 | 957 | 961 | 222.5 |
| C | 3 | 234 | 7836 | 30.89 | 957 | 961 | 222.5 |
| C | 13 | 61 | 6958 | 26.95 | 957 | 961 | 222.5 |
| D | 10 | 199 | 870859 | 3871.49 | 944 | 920 | 224.7 |
| D | 12 | 110 | 330304 | 1465.86 | 944 | 920 | 224.7 |
| D | 15 | 145 | 36746 | 159.44 | 944 | 920 | 224.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

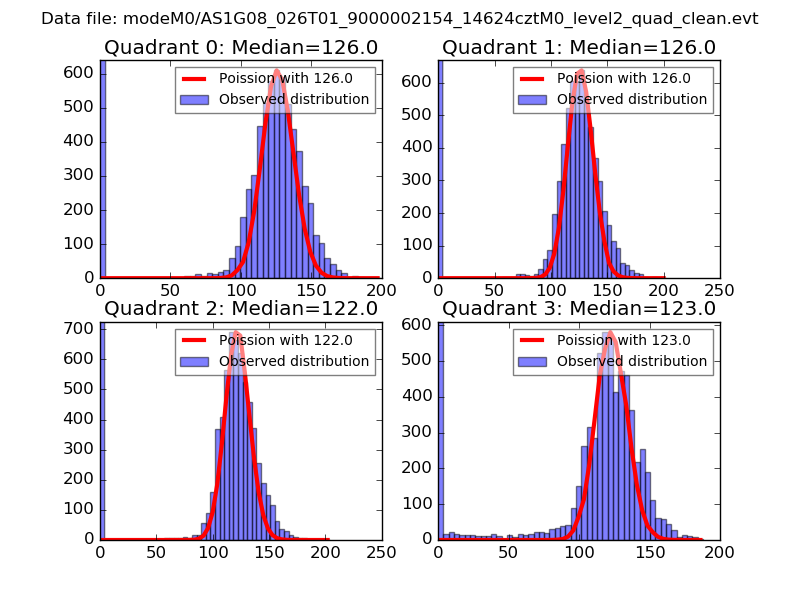

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

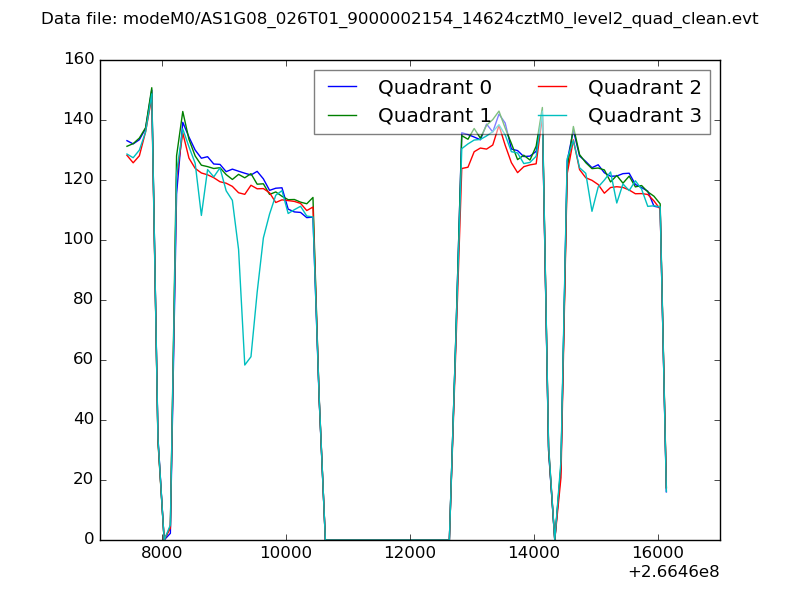

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

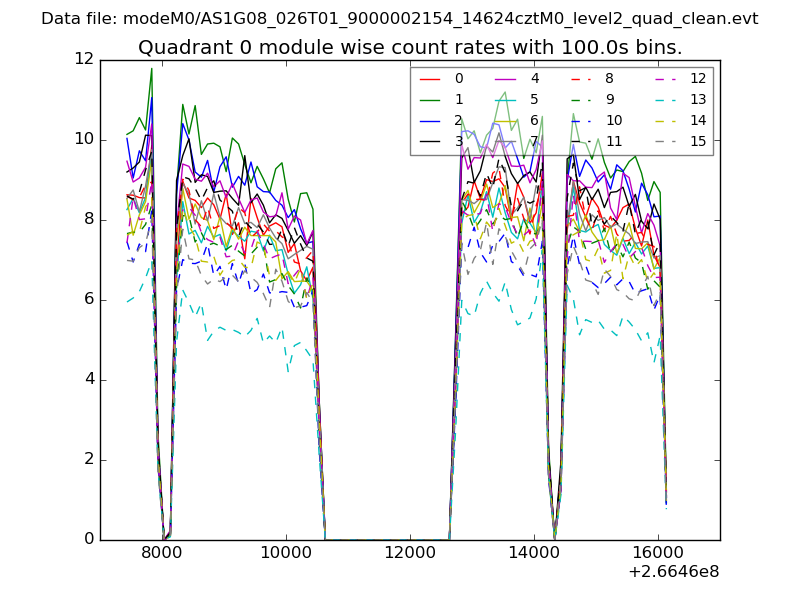

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

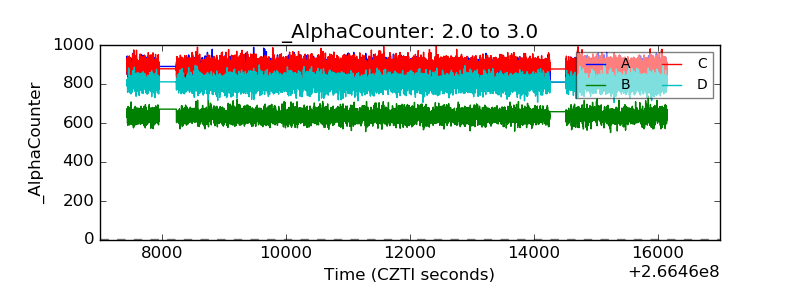

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

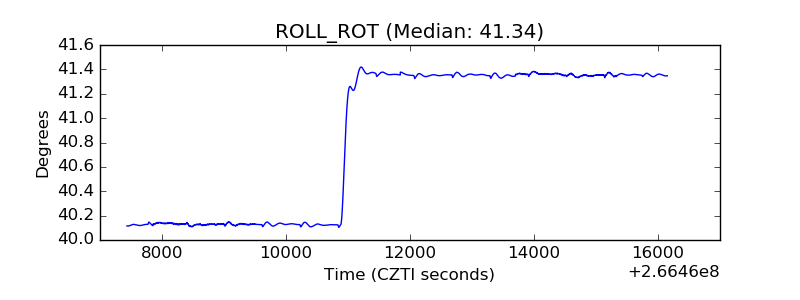

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

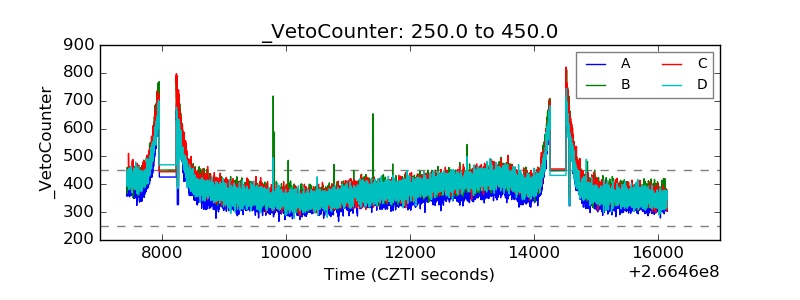

| Veto Counter |  |
