| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_026T01_9000002154_14631cztM0_level2.evt | modeM0/AS1G08_026T01_9000002154_14631cztM0_level2_quad_clean.evt |
| Size (bytes) | 572,932,800 | 72,622,080 |
| Size | 546.4 MB | 69.3 MB |
| Events in quadrant A | 3,552,181 | 447,831 |
| Events in quadrant B | 3,467,382 | 443,801 |
| Events in quadrant C | 6,151,799 | 425,541 |
| Events in quadrant D | 3,747,584 | 435,698 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14799 | 3 |
| B | 0 | 14349 | 2 |
| C | 0 | 22868 | 2 |
| D | 0 | 15583 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6392 | 69 | 1.079474% |
| B | 6392 | 85 | 1.329787% |
| C | 6392 | 135 | 2.112015% |
| D | 6392 | 78 | 1.220275% |

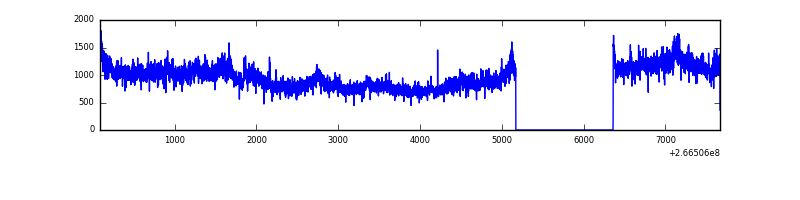

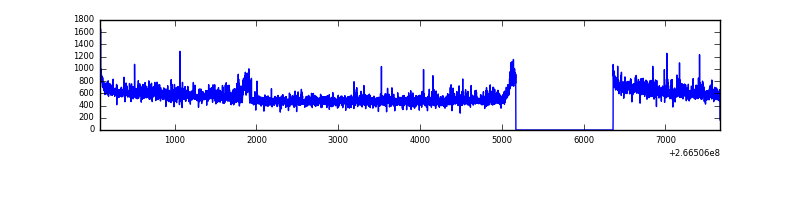

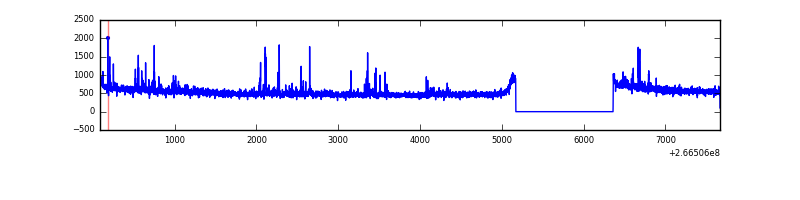

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7583 | 6393 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7583 | 6393 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7583 | 6393 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7583 | 6393 | 19 | 19 | 0.25% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 88179 | 505.2 | 855 | 837 | 172.9 |
| A | 0 | 23 | 48869 | 277.82 | 855 | 837 | 172.9 |
| A | 1 | 178 | 36418 | 205.8 | 855 | 837 | 172.9 |
| B | 0 | 189 | 65565 | 402.7 | 848 | 828 | 160.8 |
| B | 0 | 205 | 33158 | 201.11 | 848 | 828 | 160.8 |
| B | 4 | 173 | 31707 | 192.09 | 848 | 828 | 160.8 |
| C | 3 | 233 | 2930868 | 15634.34 | 821 | 827 | 187.4 |
| C | 3 | 234 | 12674 | 63.21 | 821 | 827 | 187.4 |
| C | 13 | 61 | 5926 | 27.2 | 821 | 827 | 187.4 |
| D | 12 | 110 | 281877 | 1432.62 | 833 | 816 | 196.2 |
| D | 13 | 122 | 124566 | 630.78 | 833 | 816 | 196.2 |
| D | 10 | 70 | 76562 | 386.09 | 833 | 816 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

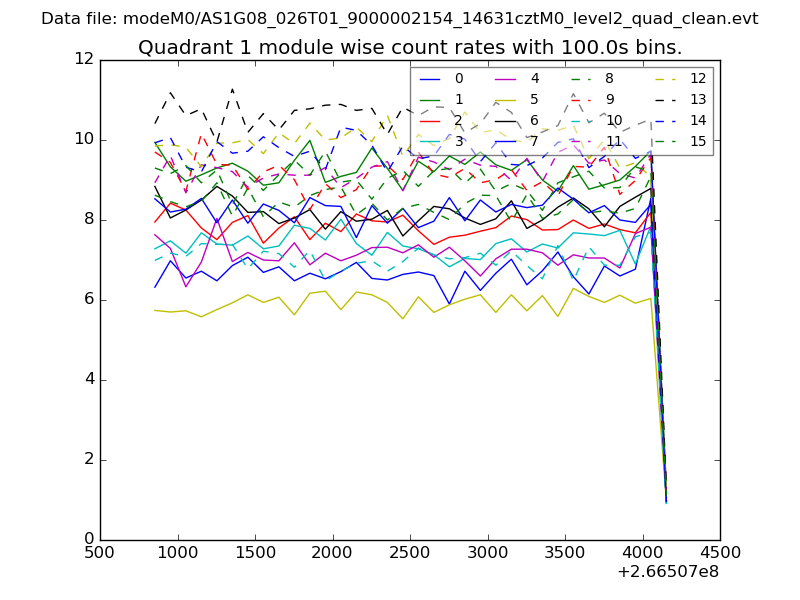

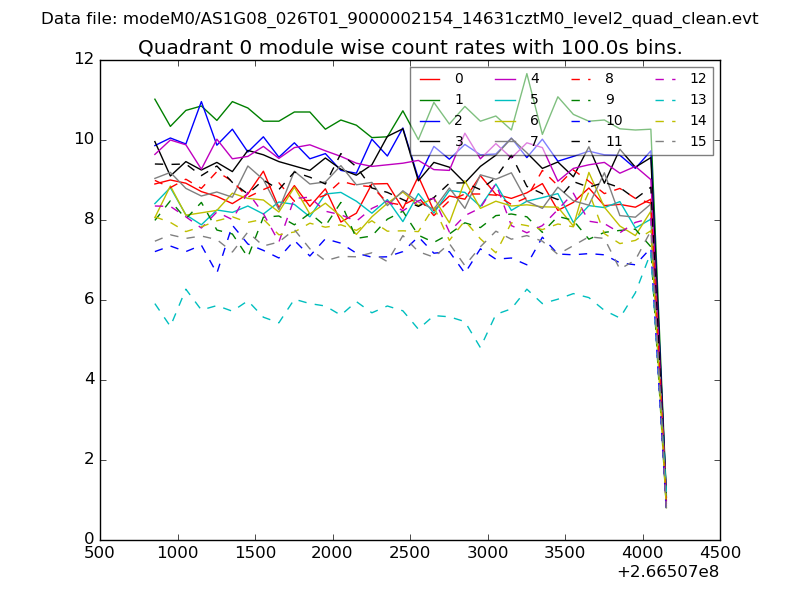

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

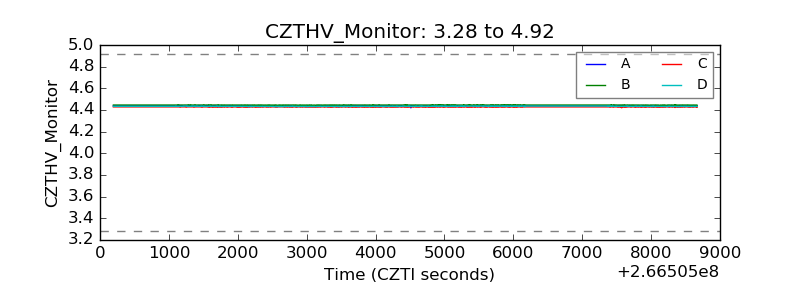

| CZT HV Monitor |  |
| D_VDD |  |

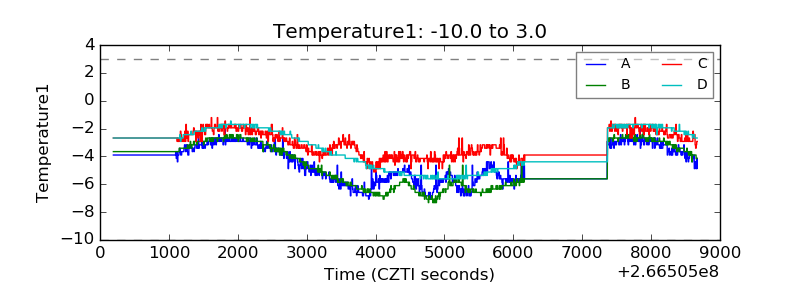

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

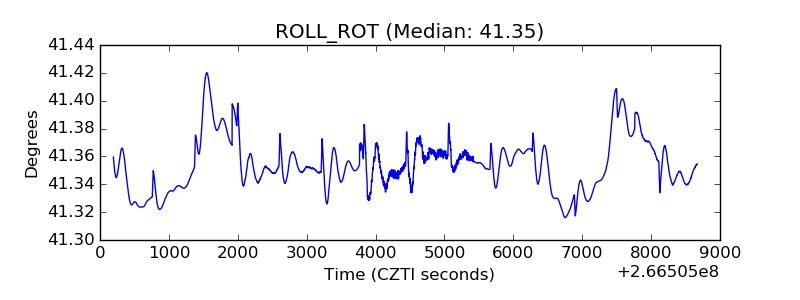

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
