| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_043T01_9000002156_14635cztM0_level2.evt | modeM0/AS1A04_043T01_9000002156_14635cztM0_level2_quad_clean.evt |
| Size (bytes) | 636,315,840 | 106,260,480 |
| Size | 606.8 MB | 101.3 MB |
| Events in quadrant A | 3,712,871 | 704,458 |
| Events in quadrant B | 3,791,779 | 706,445 |
| Events in quadrant C | 5,883,219 | 691,293 |
| Events in quadrant D | 5,426,191 | 645,111 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15419 | 3 |
| B | 0 | 15837 | 2 |
| C | 0 | 22446 | 2 |
| D | 0 | 20860 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6748 | 84 | 1.244813% |
| B | 6748 | 139 | 2.059870% |
| C | 6748 | 233 | 3.452875% |
| D | 6748 | 1137 | 16.849437% |

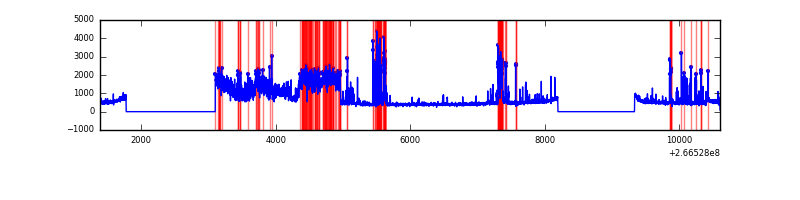

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9214 | 6751 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9214 | 6751 | 15 | 15 | 0.16% | 0.22% |  |
| C | 9214 | 6751 | 3 | 3 | 0.03% | 0.04% |  |
| D | 9214 | 6751 | 241 | 241 | 2.62% | 3.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 161973 | 962.05 | 836 | 823 | 167.5 |
| A | 1 | 178 | 66348 | 391.18 | 836 | 823 | 167.5 |
| A | 1 | 161 | 58244 | 342.8 | 836 | 823 | 167.5 |
| B | 0 | 189 | 243991 | 1557.63 | 838 | 818 | 156.1 |
| B | 0 | 230 | 74593 | 472.56 | 838 | 818 | 156.1 |
| B | 4 | 173 | 37218 | 233.16 | 838 | 818 | 156.1 |
| C | 3 | 233 | 2681300 | 14332.36 | 816 | 820 | 187.0 |
| C | 3 | 234 | 9379 | 45.76 | 816 | 820 | 187.0 |
| C | 13 | 61 | 5873 | 27.02 | 816 | 820 | 187.0 |
| D | 13 | 122 | 1640871 | 8370.21 | 783 | 763 | 195.9 |
| D | 10 | 199 | 368788 | 1878.2 | 783 | 763 | 195.9 |
| D | 12 | 110 | 174716 | 887.76 | 783 | 763 | 195.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

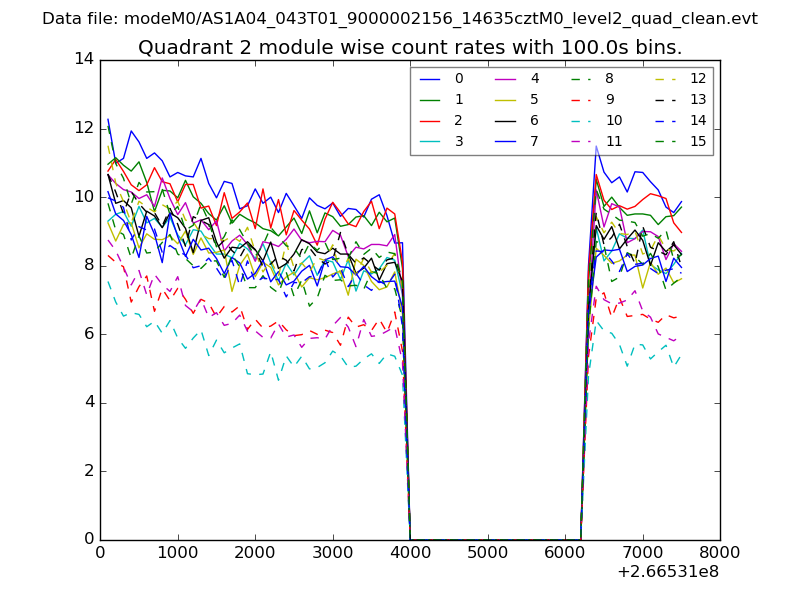

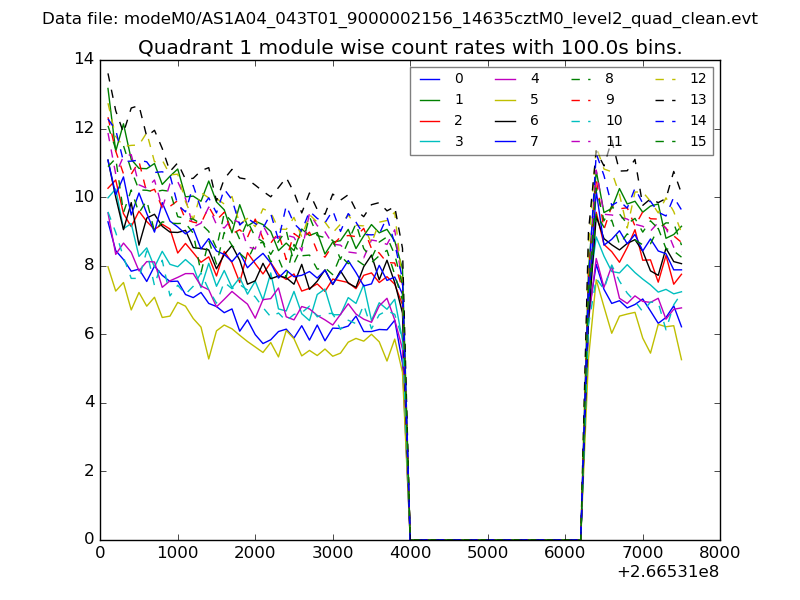

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

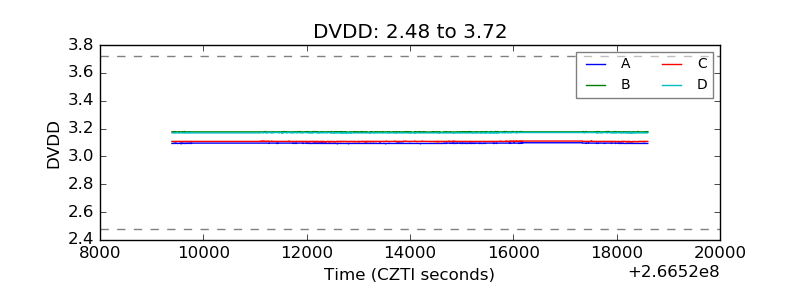

| D_VDD |  |

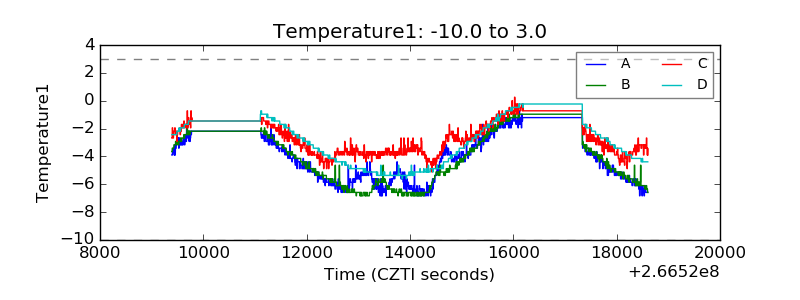

| Temperature 1 |  |

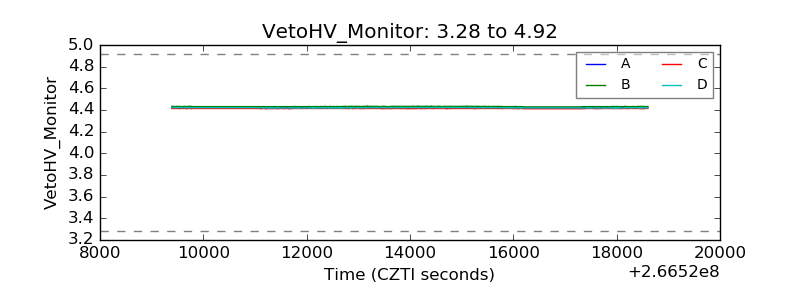

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

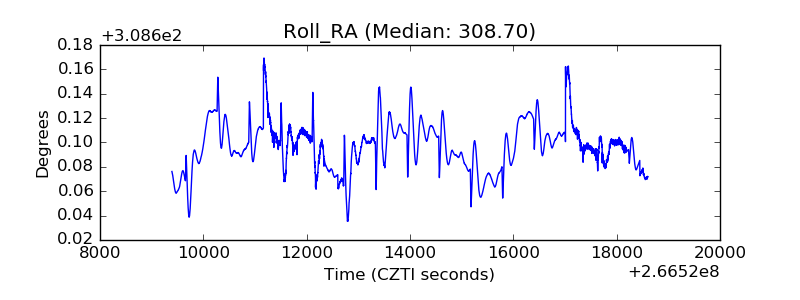

| _Roll_RA |  |
| Veto Counter |  |
