| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_076T02_9000002164_14648cztM0_level2.evt | modeM0/AS1G08_076T02_9000002164_14648cztM0_level2_quad_clean.evt |
| Size (bytes) | 264,654,720 | 37,762,560 |
| Size | 252.4 MB | 36.0 MB |
| Events in quadrant A | 2,644,064 | 234,179 |
| Events in quadrant B | 1,666,282 | 240,612 |
| Events in quadrant C | 1,930,189 | 231,539 |
| Events in quadrant D | 1,573,487 | 226,771 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62 | 0 |
| B | 0 | 62 | 0 |
| C | 0 | 62 | 0 |
| D | 0 | 62 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9989 | 4 |
| B | 0 | 6672 | 1 |
| C | 0 | 7949 | 1 |
| D | 0 | 6419 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2937 | 253 | 8.614232% |
| B | 2938 | 74 | 2.518720% |
| C | 2938 | 44 | 1.497617% |
| D | 2938 | 37 | 1.259360% |

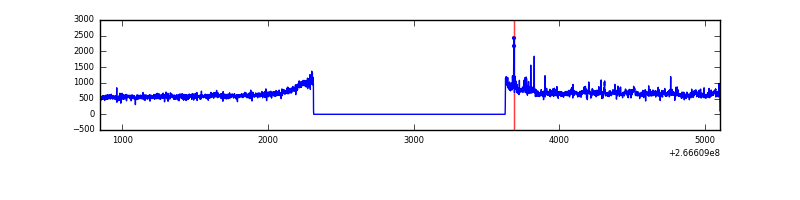

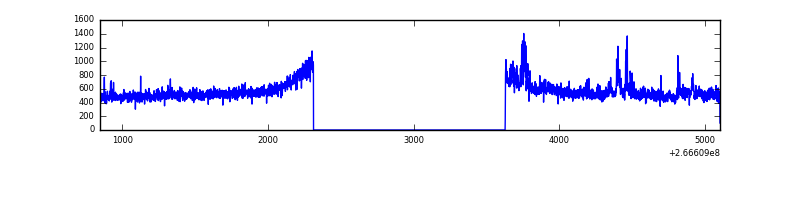

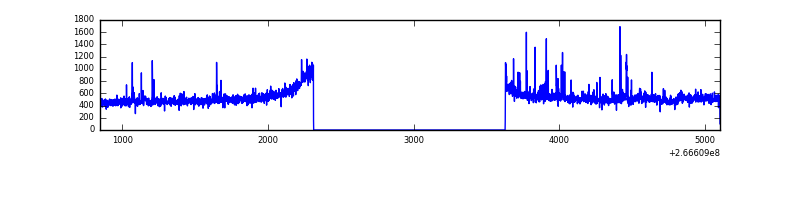

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4254 | 2939 | 99 | 99 | 2.33% | 3.37% |  |
| B | 4254 | 2939 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4254 | 2940 | 2 | 2 | 0.05% | 0.07% |  |
| D | 4254 | 2940 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 938570 | 11357.74 | 397 | 389 | 82.6 |
| A | 1 | 162 | 53260 | 640.06 | 397 | 389 | 82.6 |
| A | 0 | 23 | 42437 | 509.04 | 397 | 389 | 82.6 |
| B | 0 | 189 | 71298 | 901.89 | 403 | 393 | 78.6 |
| B | 0 | 190 | 15176 | 188.04 | 403 | 393 | 78.6 |
| B | 12 | 111 | 8271 | 100.21 | 403 | 393 | 78.6 |
| C | 3 | 233 | 380468 | 4152.45 | 390 | 392 | 91.5 |
| C | 5 | 223 | 19589 | 209.73 | 390 | 392 | 91.5 |
| C | 0 | 207 | 5185 | 52.37 | 390 | 392 | 91.5 |
| D | 13 | 122 | 38007 | 371.51 | 389 | 380 | 101.3 |
| D | 15 | 0 | 22721 | 220.58 | 389 | 380 | 101.3 |
| D | 10 | 199 | 15418 | 148.48 | 389 | 380 | 101.3 |

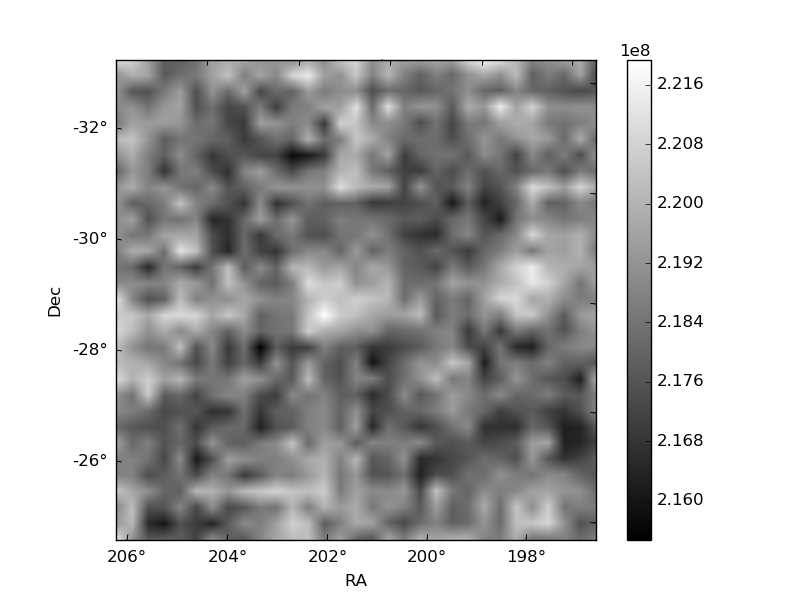

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

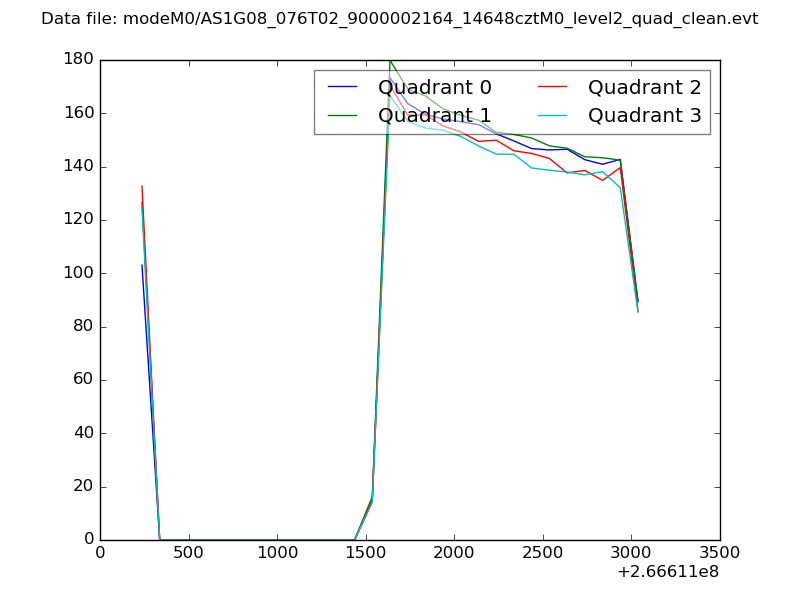

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

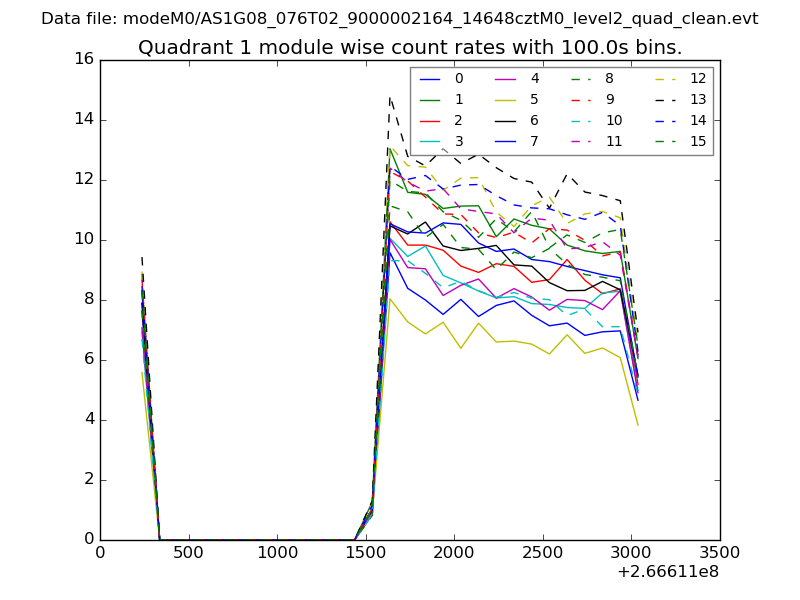

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

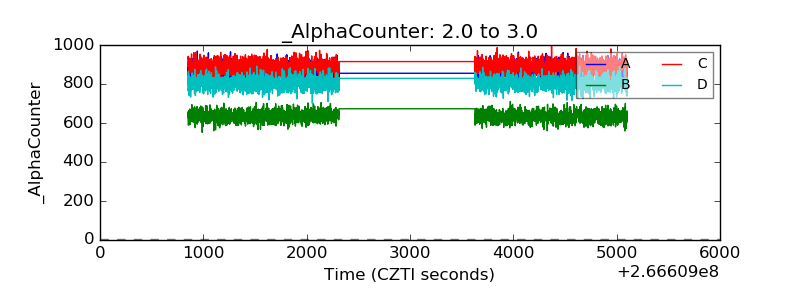

| Alpha Counter |  |

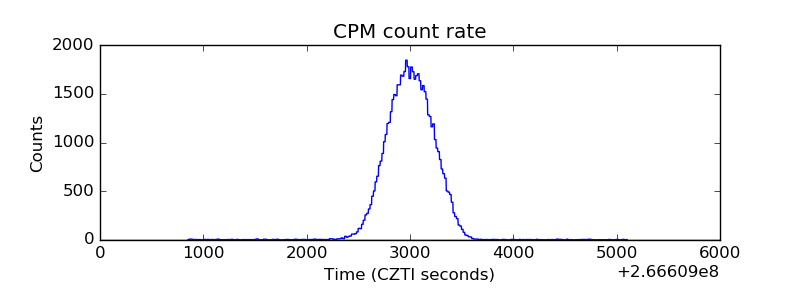

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
