| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_076T02_9000002164_14653cztM0_level2.evt | modeM0/AS1G08_076T02_9000002164_14653cztM0_level2_quad_clean.evt |
| Size (bytes) | 634,216,320 | 72,642,240 |
| Size | 604.8 MB | 69.3 MB |
| Events in quadrant A | 8,707,444 | 383,822 |
| Events in quadrant B | 2,864,953 | 482,072 |
| Events in quadrant C | 3,688,403 | 467,917 |
| Events in quadrant D | 3,548,752 | 453,799 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29947 | 1 |
| B | 0 | 12319 | 1 |
| C | 0 | 14948 | 1 |
| D | 0 | 14562 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5895 | 1268 | 21.509754% |
| B | 5895 | 34 | 0.576760% |
| C | 5895 | 48 | 0.814249% |
| D | 5895 | 186 | 3.155216% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6271 | 5896 | 1107 | 1107 | 17.65% | 18.78% |  |
| B | 6271 | 5897 | 3 | 3 | 0.05% | 0.05% |  |
| C | 6271 | 5897 | 20 | 20 | 0.32% | 0.34% |  |
| D | 6271 | 5897 | 160 | 160 | 2.55% | 2.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 3037405 | 23450.38 | 629 | 616 | 129.5 |
| A | 0 | 253 | 2988455 | 23072.39 | 629 | 616 | 129.5 |
| A | 0 | 226 | 194890 | 1500.2 | 629 | 616 | 129.5 |
| B | 0 | 190 | 29950 | 214.39 | 704 | 688 | 136.5 |
| B | 12 | 111 | 15673 | 109.79 | 704 | 688 | 136.5 |
| B | 15 | 201 | 15558 | 108.95 | 704 | 688 | 136.5 |
| C | 3 | 233 | 942190 | 5922.82 | 676 | 679 | 159.0 |
| C | 0 | 207 | 99592 | 622.24 | 676 | 679 | 159.0 |
| C | 3 | 234 | 8215 | 47.41 | 676 | 679 | 159.0 |
| D | 10 | 199 | 398893 | 2194.7 | 668 | 654 | 181.5 |
| D | 12 | 110 | 391147 | 2152.01 | 668 | 654 | 181.5 |
| D | 15 | 0 | 44254 | 240.28 | 668 | 654 | 181.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

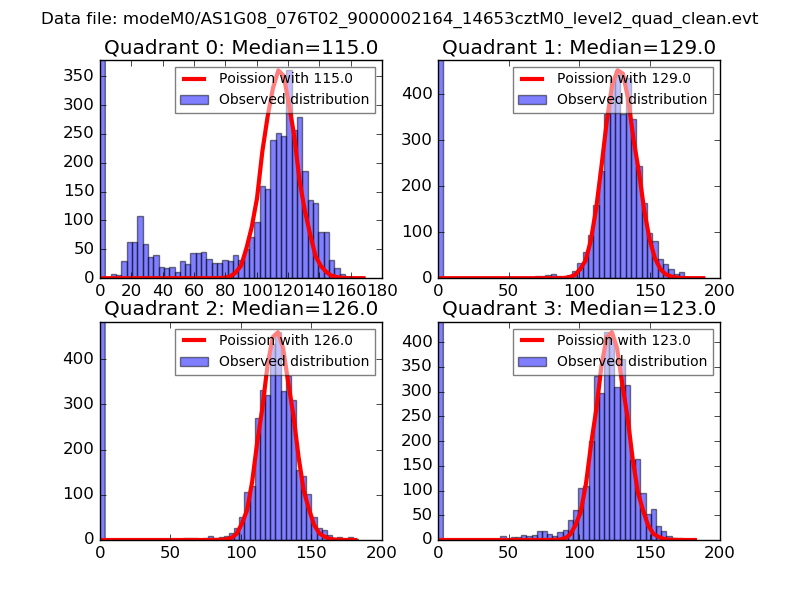

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

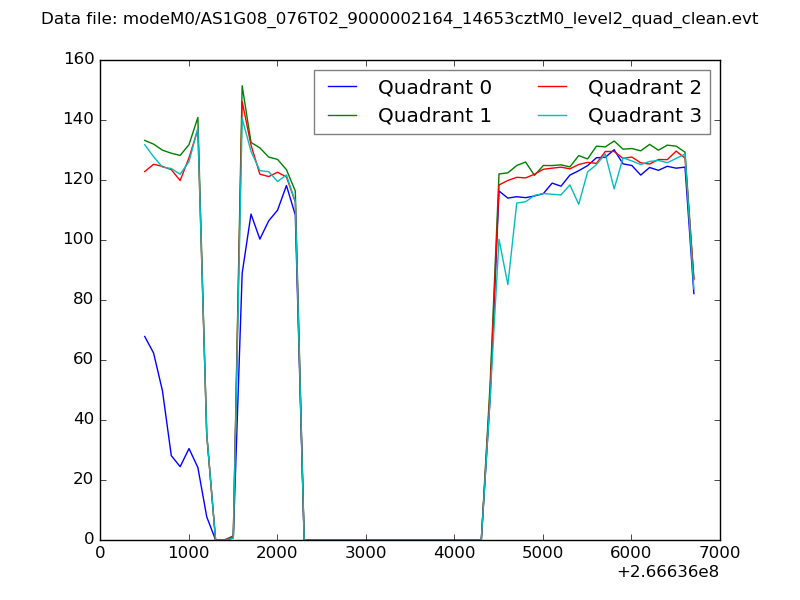

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

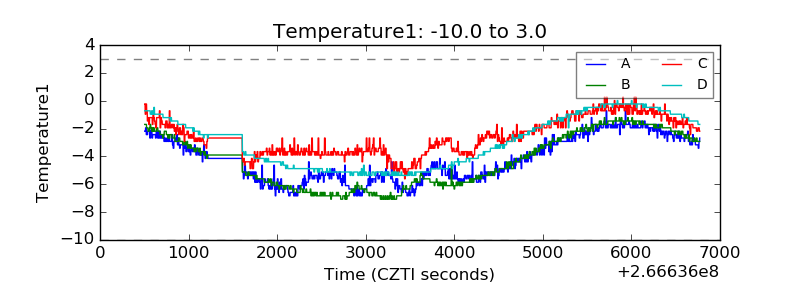

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
