| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_019T01_9000002166_14657cztM0_level2.evt | modeM0/AS1G08_019T01_9000002166_14657cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,857,920 | 72,668,160 |
| Size | 512.0 MB | 69.3 MB |
| Events in quadrant A | 3,511,155 | 443,318 |
| Events in quadrant B | 3,338,584 | 439,514 |
| Events in quadrant C | 5,470,709 | 423,112 |
| Events in quadrant D | 3,486,892 | 429,633 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14437 | 3 |
| B | 0 | 13984 | 2 |
| C | 0 | 21195 | 2 |
| D | 0 | 14747 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6670 | 78 | 1.169415% |
| B | 6670 | 80 | 1.199400% |
| C | 6670 | 89 | 1.334333% |
| D | 6670 | 72 | 1.079460% |

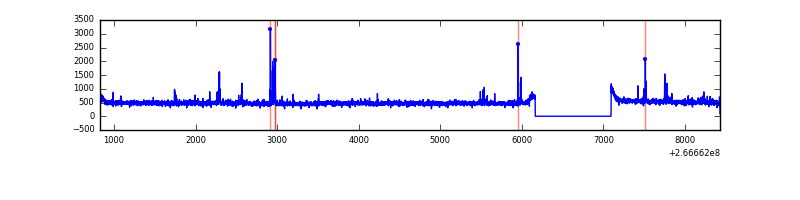

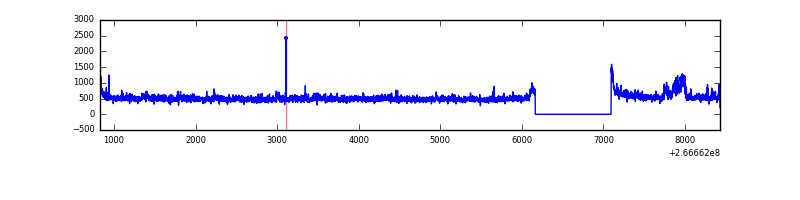

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7601 | 6671 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7601 | 6671 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7601 | 6671 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7601 | 6671 | 22 | 22 | 0.29% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 133311 | 786.54 | 826 | 806 | 168.5 |
| A | 1 | 162 | 60167 | 352.36 | 826 | 806 | 168.5 |
| A | 8 | 15 | 53640 | 313.62 | 826 | 806 | 168.5 |
| B | 4 | 142 | 40000 | 245.87 | 820 | 799 | 159.4 |
| B | 0 | 205 | 24117 | 146.25 | 820 | 799 | 159.4 |
| B | 4 | 173 | 22675 | 137.2 | 820 | 799 | 159.4 |
| C | 3 | 233 | 2384892 | 13037.55 | 788 | 792 | 182.9 |
| C | 3 | 234 | 15148 | 78.51 | 788 | 792 | 182.9 |
| C | 13 | 61 | 5615 | 26.37 | 788 | 792 | 182.9 |
| D | 12 | 110 | 289631 | 1389.53 | 795 | 777 | 207.9 |
| D | 5 | 222 | 51286 | 242.97 | 795 | 777 | 207.9 |
| D | 10 | 199 | 24135 | 112.36 | 795 | 777 | 207.9 |

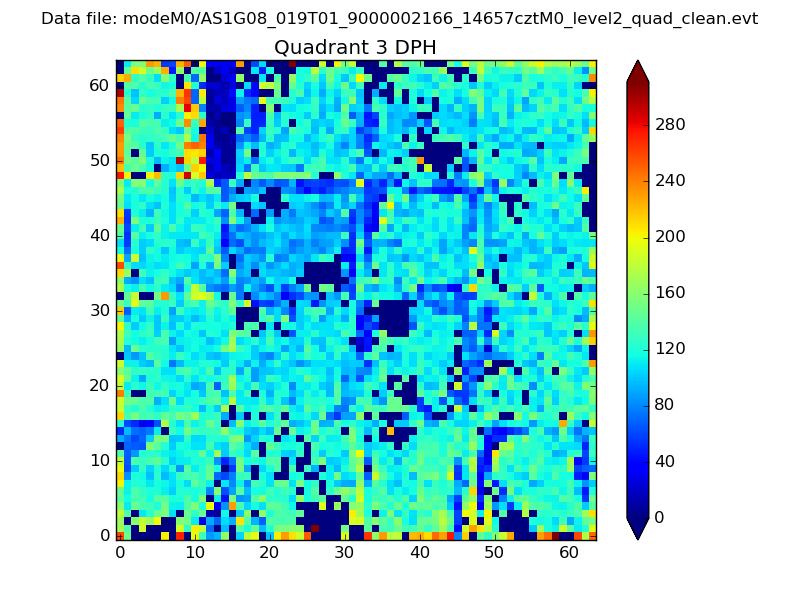

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

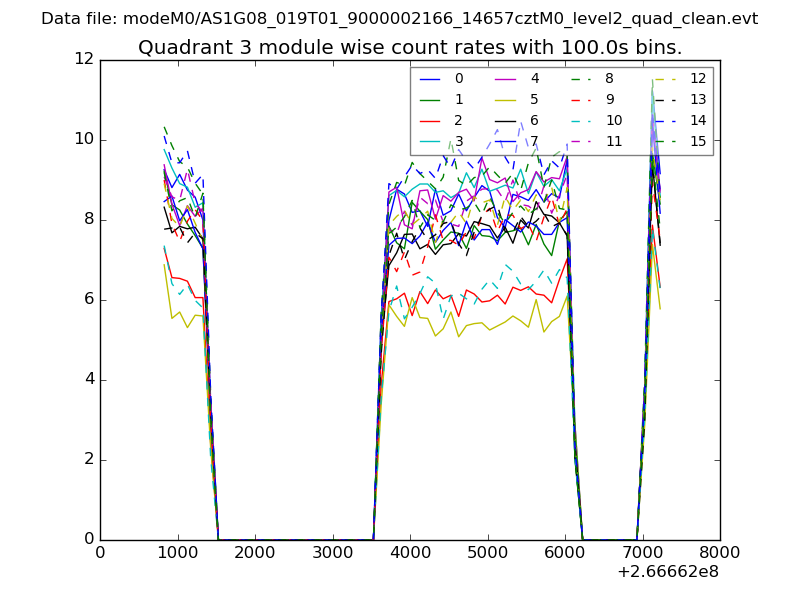

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

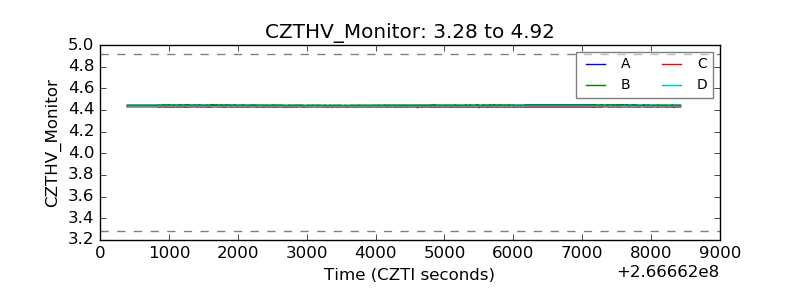

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

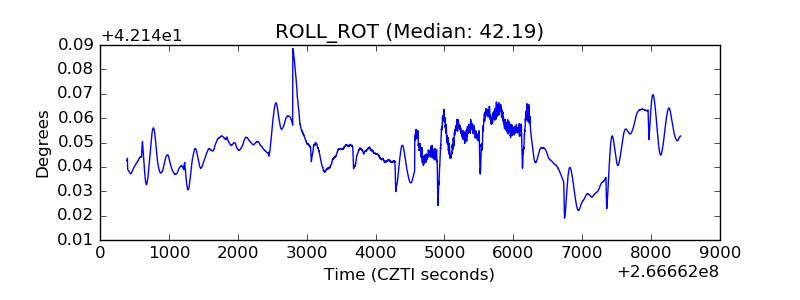

| _ROLL_ROT |  |

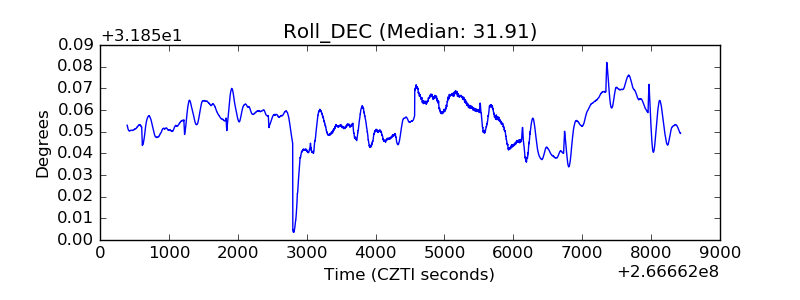

| _Roll_DEC |  |
| _Roll_RA |  |

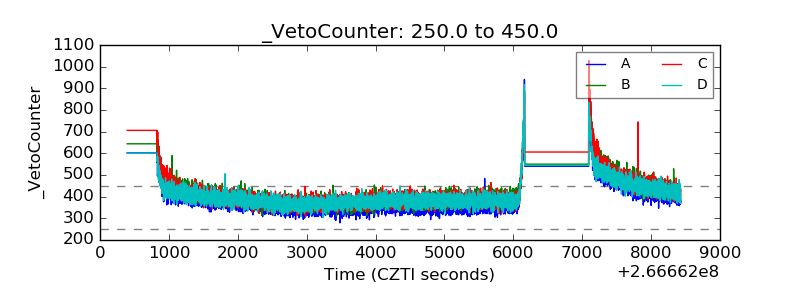

| Veto Counter |  |
