| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_020T01_9000002168_14661cztM0_level2.evt | modeM0/AS1G08_020T01_9000002168_14661cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,356,800 | 82,143,360 |
| Size | 485.8 MB | 78.3 MB |
| Events in quadrant A | 3,427,751 | 523,503 |
| Events in quadrant B | 3,572,369 | 518,989 |
| Events in quadrant C | 4,133,325 | 504,363 |
| Events in quadrant D | 3,864,687 | 500,213 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14289 | 3 |
| B | 0 | 14865 | 2 |
| C | 0 | 17140 | 2 |
| D | 0 | 15753 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6311 | 84 | 1.331009% |
| B | 6311 | 114 | 1.806370% |
| C | 6311 | 84 | 1.331009% |
| D | 6311 | 193 | 3.058152% |

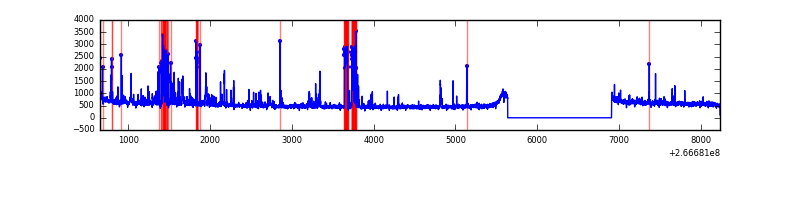

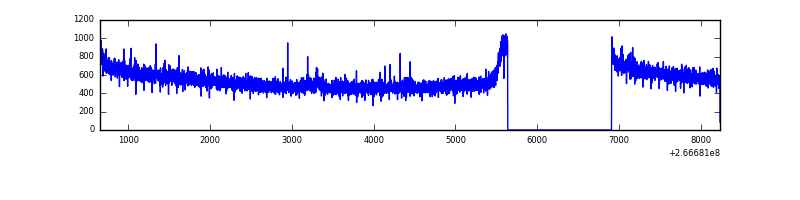

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 6312 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7582 | 6312 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7582 | 6312 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7582 | 6312 | 114 | 114 | 1.50% | 1.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 24783 | 135.76 | 875 | 858 | 176.2 |
| A | 1 | 162 | 16994 | 91.56 | 875 | 858 | 176.2 |
| A | 8 | 15 | 9810 | 50.8 | 875 | 858 | 176.2 |
| B | 4 | 142 | 54456 | 332.34 | 867 | 847 | 161.3 |
| B | 0 | 197 | 27259 | 163.73 | 867 | 847 | 161.3 |
| B | 0 | 205 | 26792 | 160.84 | 867 | 847 | 161.3 |
| C | 3 | 233 | 819332 | 4216.18 | 849 | 855 | 194.1 |
| C | 13 | 61 | 6138 | 27.21 | 849 | 855 | 194.1 |
| C | 3 | 234 | 3812 | 15.23 | 849 | 855 | 194.1 |
| D | 10 | 199 | 219328 | 1089.59 | 850 | 830 | 200.5 |
| D | 5 | 222 | 199374 | 990.08 | 850 | 830 | 200.5 |
| D | 12 | 110 | 87111 | 430.26 | 850 | 830 | 200.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

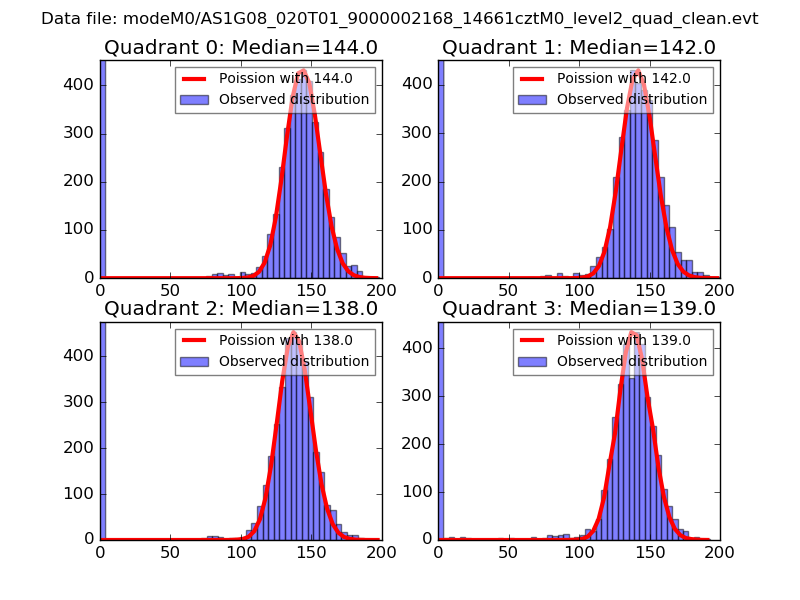

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

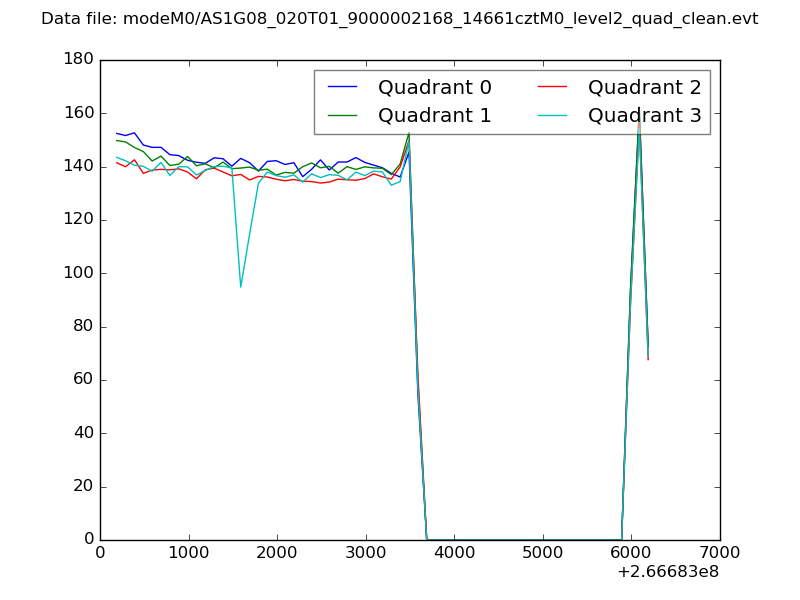

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

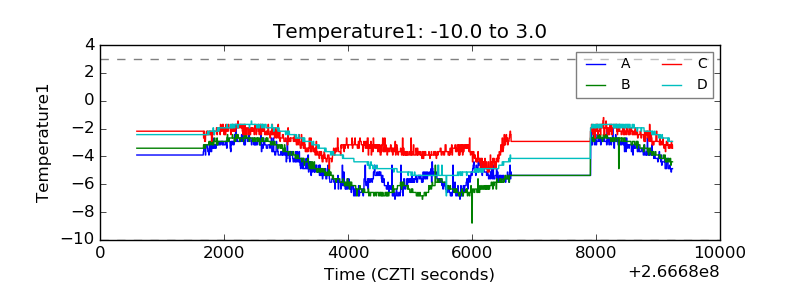

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

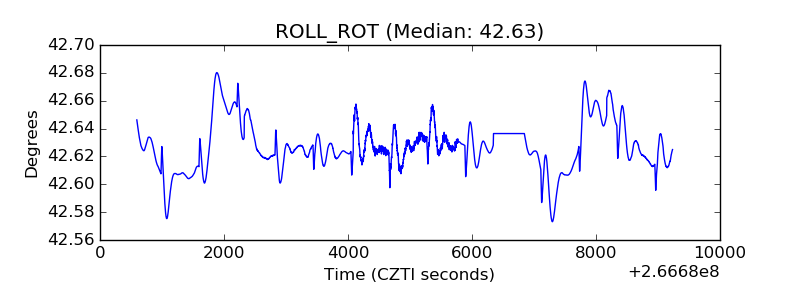

| _ROLL_ROT |  |
| _Roll_DEC |  |

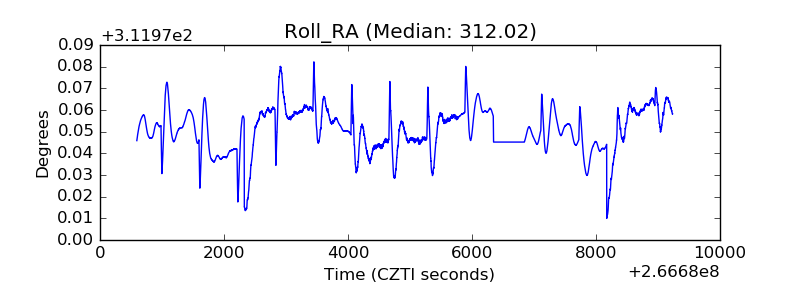

| _Roll_RA |  |
| Veto Counter |  |
