| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_020T01_9000002168_14662cztM0_level2.evt | modeM0/AS1G08_020T01_9000002168_14662cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,717,120 | 92,983,680 |
| Size | 455.6 MB | 88.7 MB |
| Events in quadrant A | 3,384,469 | 603,203 |
| Events in quadrant B | 3,376,453 | 604,107 |
| Events in quadrant C | 3,958,892 | 591,547 |
| Events in quadrant D | 3,334,132 | 591,165 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14034 | 3 |
| B | 0 | 13985 | 2 |
| C | 0 | 16512 | 2 |
| D | 0 | 13924 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6099 | 80 | 1.311690% |
| B | 6099 | 94 | 1.541236% |
| C | 6099 | 87 | 1.426463% |
| D | 6099 | 80 | 1.311690% |

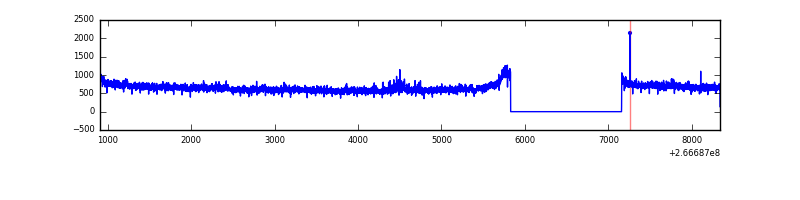

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7430 | 6100 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7430 | 6100 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7430 | 6100 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7430 | 6100 | 10 | 10 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 56568 | 330.11 | 842 | 825 | 168.9 |
| A | 0 | 23 | 22570 | 128.78 | 842 | 825 | 168.9 |
| A | 8 | 15 | 21952 | 125.12 | 842 | 825 | 168.9 |
| B | 0 | 219 | 28313 | 176.81 | 840 | 822 | 155.5 |
| B | 12 | 111 | 17544 | 107.55 | 840 | 822 | 155.5 |
| B | 0 | 214 | 16118 | 98.38 | 840 | 822 | 155.5 |
| C | 3 | 233 | 728290 | 3862.47 | 827 | 835 | 188.3 |
| C | 13 | 61 | 5935 | 27.08 | 827 | 835 | 188.3 |
| C | 3 | 234 | 5183 | 23.09 | 827 | 835 | 188.3 |
| D | 5 | 222 | 74824 | 380.91 | 828 | 811 | 194.3 |
| D | 10 | 70 | 45150 | 228.19 | 828 | 811 | 194.3 |
| D | 13 | 172 | 35282 | 177.41 | 828 | 811 | 194.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

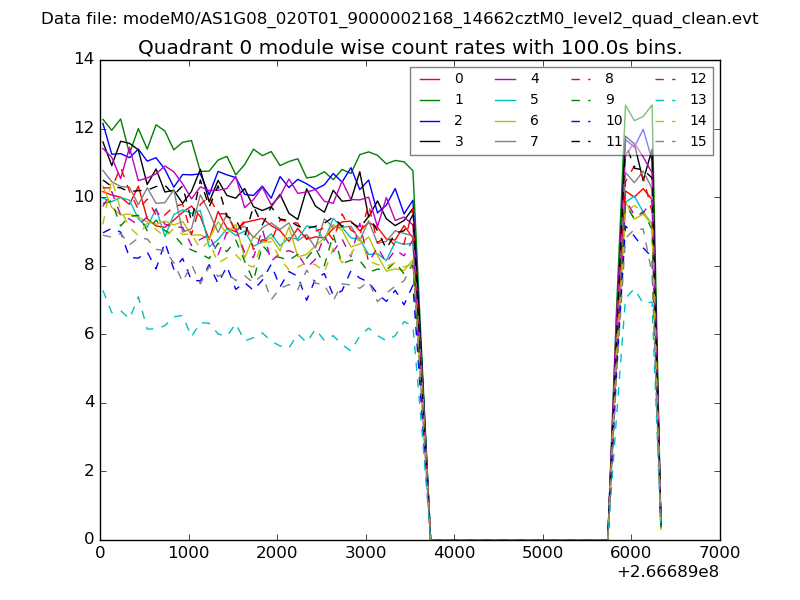

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

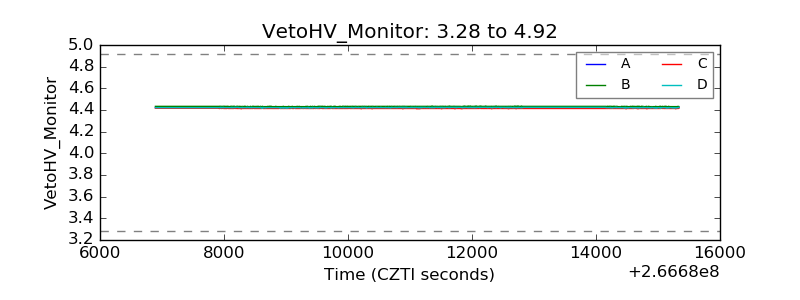

| Veto HV Monitor |  |

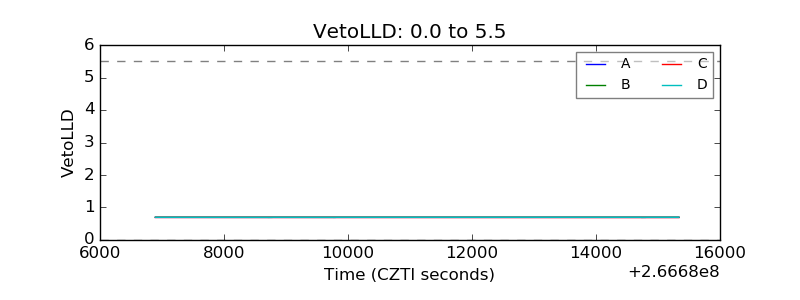

| Veto LLD |  |

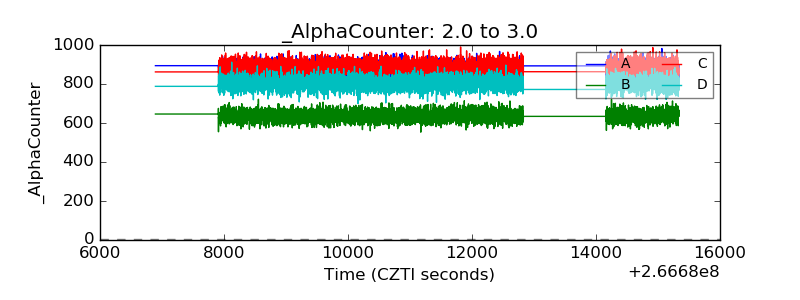

| Alpha Counter |  |
| _CPM_Rate |  |

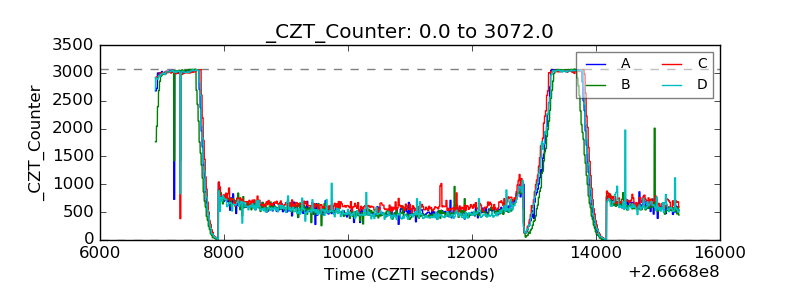

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

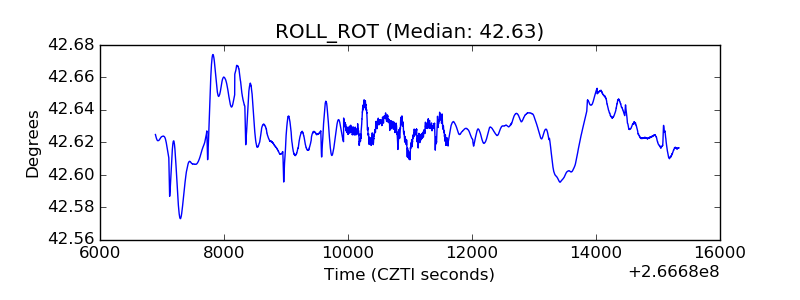

| _ROLL_ROT |  |
| _Roll_DEC |  |

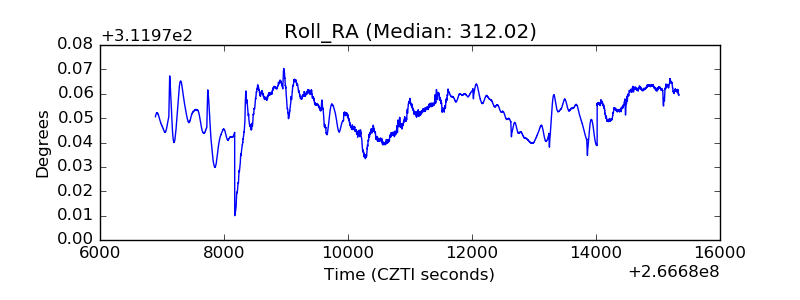

| _Roll_RA |  |
| Veto Counter |  |
