| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_020T01_9000002168_14667cztM0_level2.evt | modeM0/AS1G08_020T01_9000002168_14667cztM0_level2_quad_clean.evt |
| Size (bytes) | 190,252,800 | 54,158,400 |
| Size | 181.4 MB | 51.6 MB |
| Events in quadrant A | 1,366,402 | 362,774 |
| Events in quadrant B | 1,373,259 | 361,347 |
| Events in quadrant C | 1,525,630 | 354,962 |
| Events in quadrant D | 1,298,358 | 355,167 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6163 | 1 |
| B | 0 | 6230 | 1 |
| C | 0 | 6375 | 1 |
| D | 0 | 6136 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2886 | 42 | 1.455301% |
| B | 2886 | 68 | 2.356202% |
| C | 2886 | 48 | 1.663202% |
| D | 2886 | 22 | 0.762301% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3272 | 2887 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3272 | 2887 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3272 | 2888 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3272 | 2888 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 34625 | 481.11 | 341 | 334 | 71.3 |
| A | 1 | 162 | 11068 | 150.6 | 341 | 334 | 71.3 |
| A | 1 | 178 | 3074 | 38.44 | 341 | 334 | 71.3 |
| B | 4 | 173 | 15953 | 227.36 | 342 | 333 | 68.7 |
| B | 12 | 111 | 8161 | 113.94 | 342 | 333 | 68.7 |
| B | 11 | 111 | 6832 | 94.6 | 342 | 333 | 68.7 |
| C | 3 | 233 | 213991 | 2654.04 | 335 | 337 | 80.5 |
| C | 0 | 207 | 5072 | 58.81 | 335 | 337 | 80.5 |
| C | 13 | 61 | 2371 | 25.26 | 335 | 337 | 80.5 |
| D | 5 | 222 | 20855 | 240.92 | 333 | 323 | 85.2 |
| D | 2 | 234 | 10346 | 117.61 | 333 | 323 | 85.2 |
| D | 15 | 145 | 7793 | 87.65 | 333 | 323 | 85.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

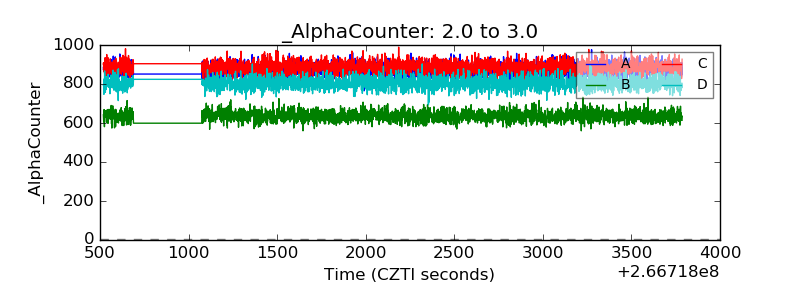

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

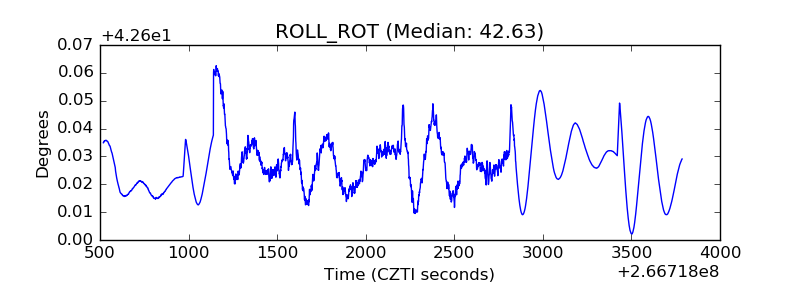

| _ROLL_ROT |  |

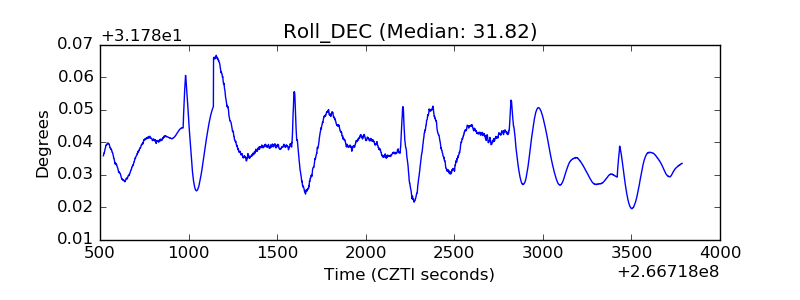

| _Roll_DEC |  |

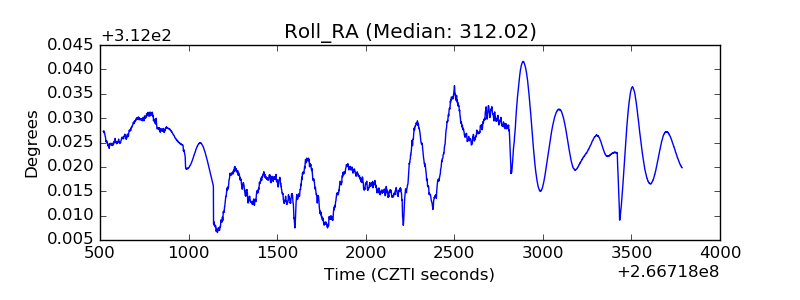

| _Roll_RA |  |
| Veto Counter |  |
