| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_101T01_9000002170_14673cztM0_level2.evt | modeM0/AS1A04_101T01_9000002170_14673cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,049,280 | 98,956,800 |
| Size | 484.5 MB | 94.4 MB |
| Events in quadrant A | 3,734,869 | 640,494 |
| Events in quadrant B | 3,528,763 | 636,452 |
| Events in quadrant C | 4,227,442 | 627,574 |
| Events in quadrant D | 3,437,750 | 622,313 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15229 | 3 |
| B | 0 | 14665 | 2 |
| C | 0 | 17204 | 2 |
| D | 0 | 14435 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6742 | 88 | 1.305251% |
| B | 6742 | 93 | 1.379413% |
| C | 6742 | 75 | 1.112430% |
| D | 6742 | 63 | 0.934441% |

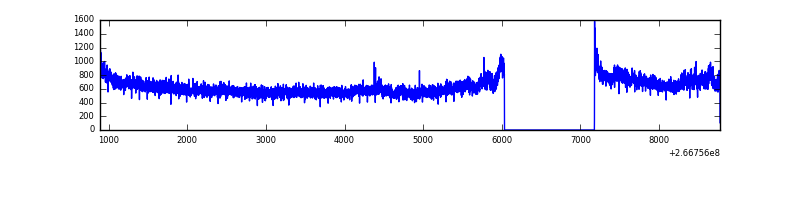

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7888 | 6743 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7888 | 6743 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7888 | 6743 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7888 | 6743 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 144338 | 797.83 | 891 | 875 | 179.8 |
| A | 8 | 15 | 132645 | 732.8 | 891 | 875 | 179.8 |
| A | 12 | 189 | 21769 | 116.2 | 891 | 875 | 179.8 |
| B | 0 | 214 | 33547 | 196.27 | 875 | 856 | 166.6 |
| B | 0 | 205 | 23080 | 133.43 | 875 | 856 | 166.6 |
| B | 12 | 111 | 19589 | 112.47 | 875 | 856 | 166.6 |
| C | 3 | 233 | 880819 | 4485.37 | 855 | 860 | 196.2 |
| C | 3 | 234 | 9468 | 43.88 | 855 | 860 | 196.2 |
| C | 13 | 61 | 6116 | 26.79 | 855 | 860 | 196.2 |
| D | 2 | 152 | 64880 | 306.77 | 864 | 842 | 208.8 |
| D | 12 | 110 | 53307 | 251.33 | 864 | 842 | 208.8 |
| D | 2 | 234 | 23715 | 109.57 | 864 | 842 | 208.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

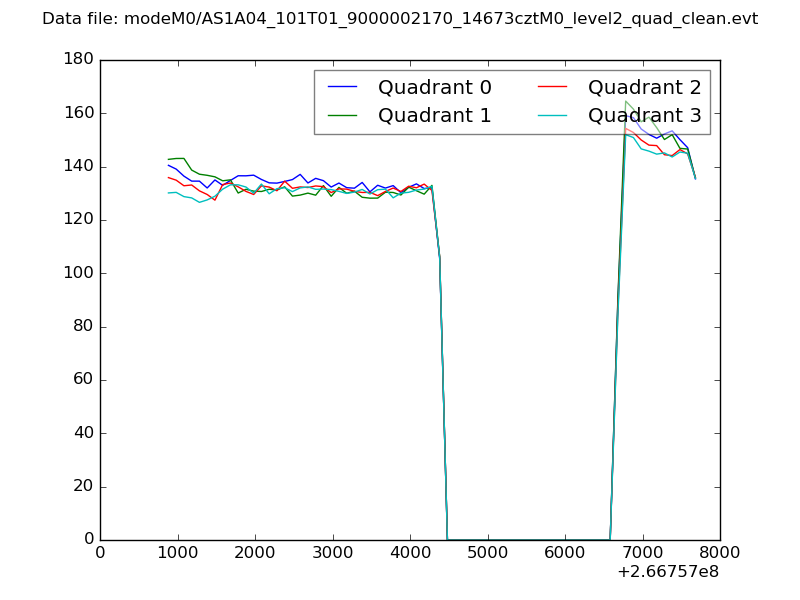

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

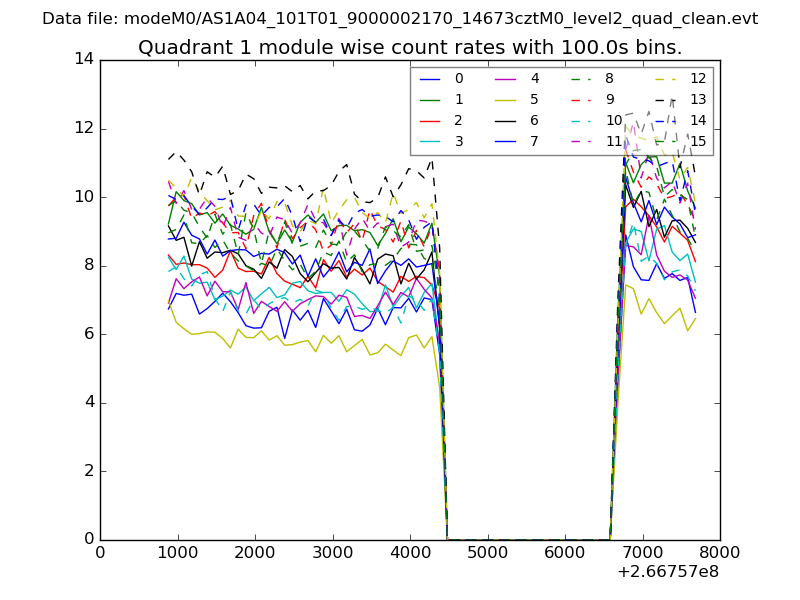

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

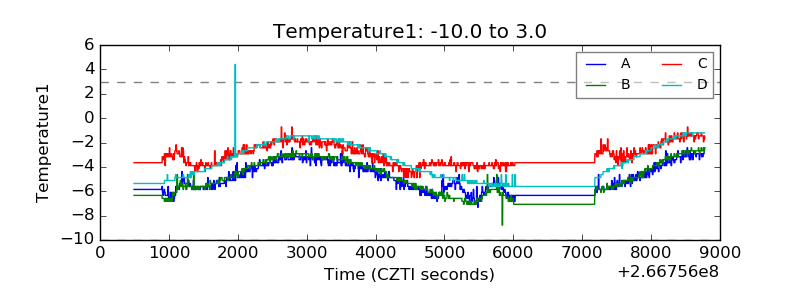

| Temperature 1 |  |

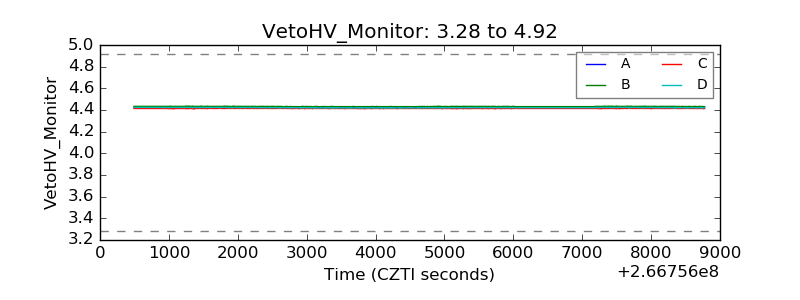

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

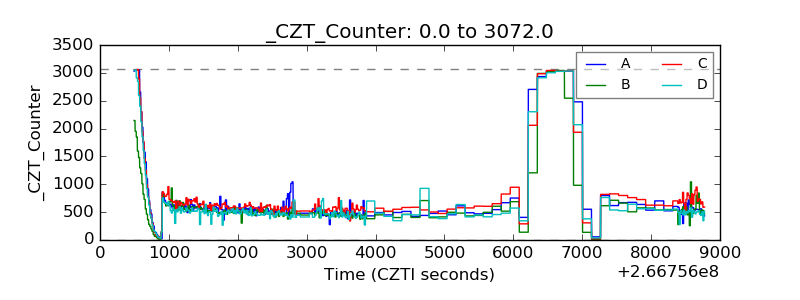

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

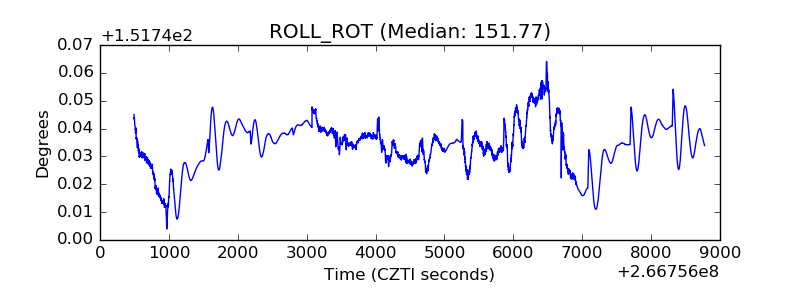

| _ROLL_ROT |  |
| _Roll_DEC |  |

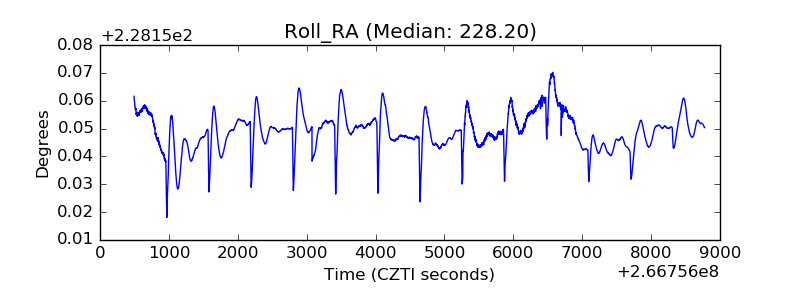

| _Roll_RA |  |
| Veto Counter |  |
