| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_101T01_9000002170_14677cztM0_level2.evt | modeM0/AS1A04_101T01_9000002170_14677cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,783,680 | 106,369,920 |
| Size | 528.1 MB | 101.4 MB |
| Events in quadrant A | 4,346,190 | 716,109 |
| Events in quadrant B | 4,929,297 | 666,381 |
| Events in quadrant C | 3,822,439 | 703,514 |
| Events in quadrant D | 3,246,790 | 695,792 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17232 | 2 |
| B | 0 | 18687 | 1 |
| C | 0 | 15765 | 1 |
| D | 0 | 13748 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6297 | 160 | 2.540892% |
| B | 6297 | 704 | 11.179927% |
| C | 6297 | 71 | 1.127521% |
| D | 6297 | 83 | 1.318088% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

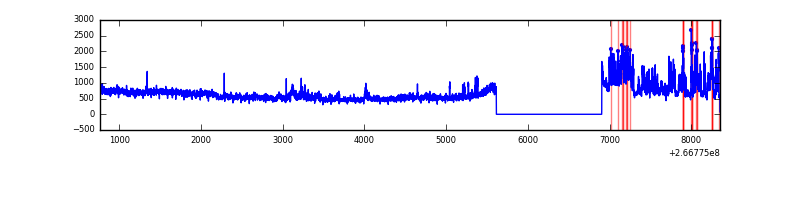

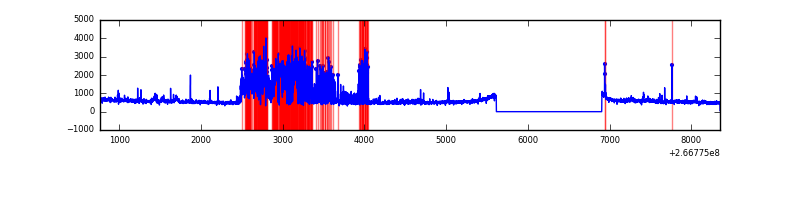

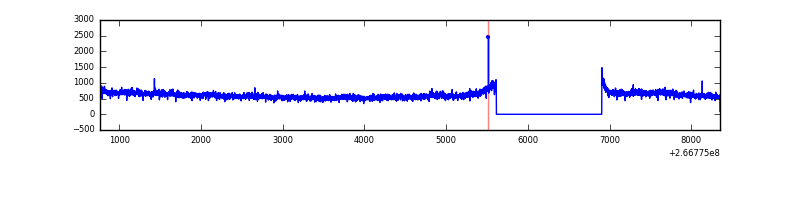

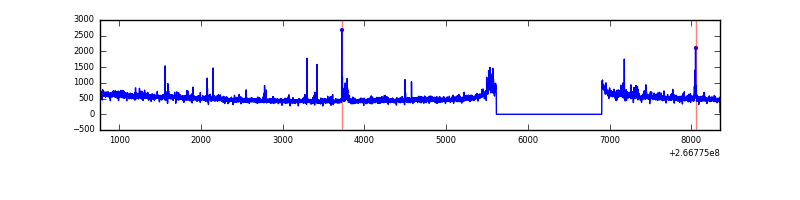

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7588 | 6298 | 25 | 25 | 0.33% | 0.40% |  |
| B | 7588 | 6298 | 444 | 444 | 5.85% | 7.05% |  |
| C | 7588 | 6298 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7588 | 6298 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 791132 | 4672.95 | 845 | 829 | 169.1 |
| A | 0 | 253 | 248631 | 1465.22 | 845 | 829 | 169.1 |
| A | 1 | 162 | 33191 | 191.35 | 845 | 829 | 169.1 |
| B | 10 | 16 | 1699305 | 11201.1 | 798 | 779 | 151.6 |
| B | 0 | 219 | 41414 | 267.97 | 798 | 779 | 151.6 |
| B | 0 | 205 | 30254 | 194.37 | 798 | 779 | 151.6 |
| C | 3 | 233 | 664826 | 3591.56 | 808 | 816 | 184.9 |
| C | 13 | 61 | 5823 | 27.08 | 808 | 816 | 184.9 |
| C | 14 | 234 | 3911 | 16.74 | 808 | 816 | 184.9 |
| D | 2 | 152 | 35592 | 160.41 | 815 | 802 | 216.9 |
| D | 12 | 2 | 33344 | 150.05 | 815 | 802 | 216.9 |
| D | 2 | 234 | 26105 | 116.67 | 815 | 802 | 216.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

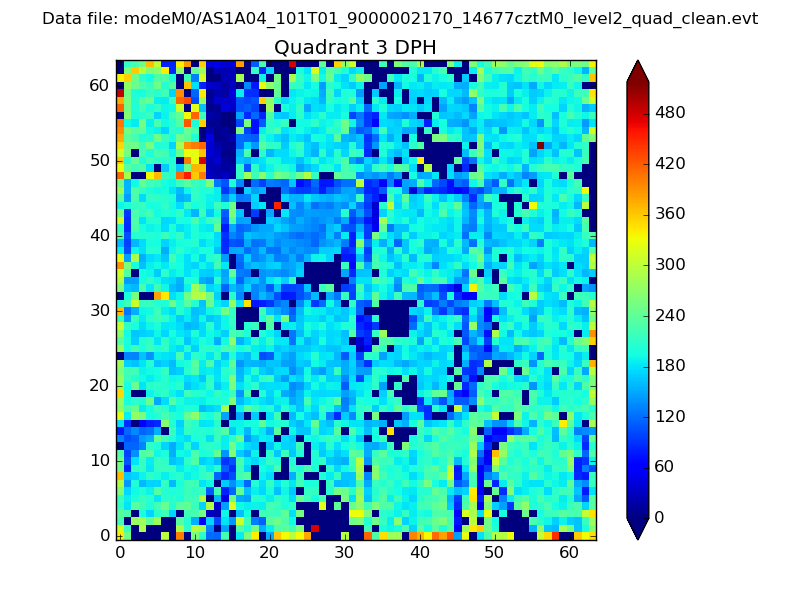

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

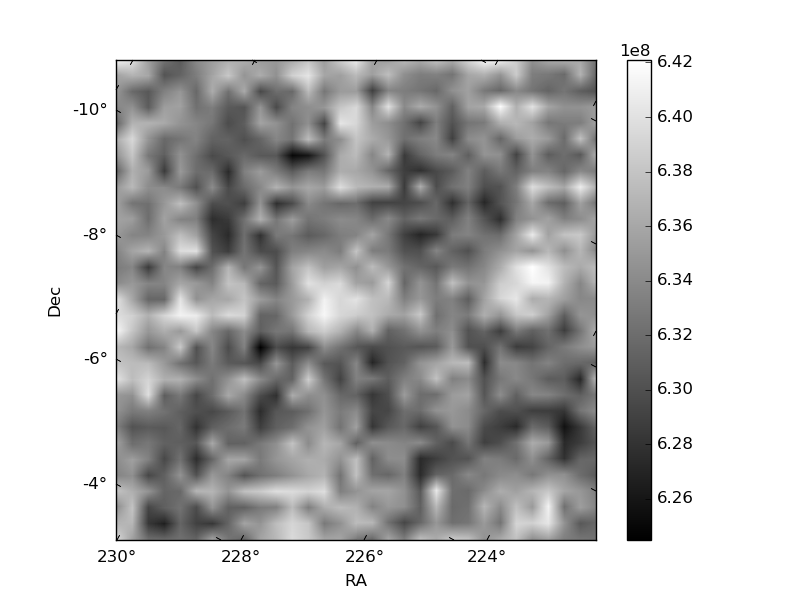

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

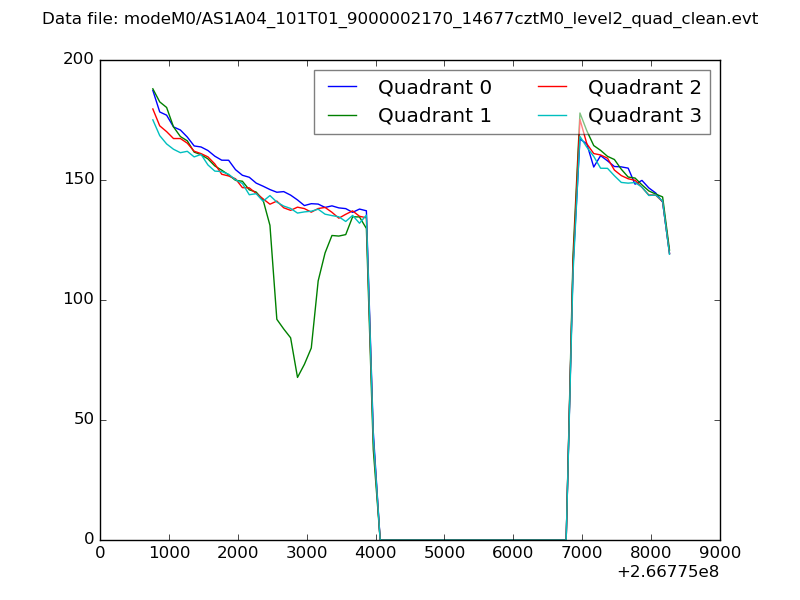

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

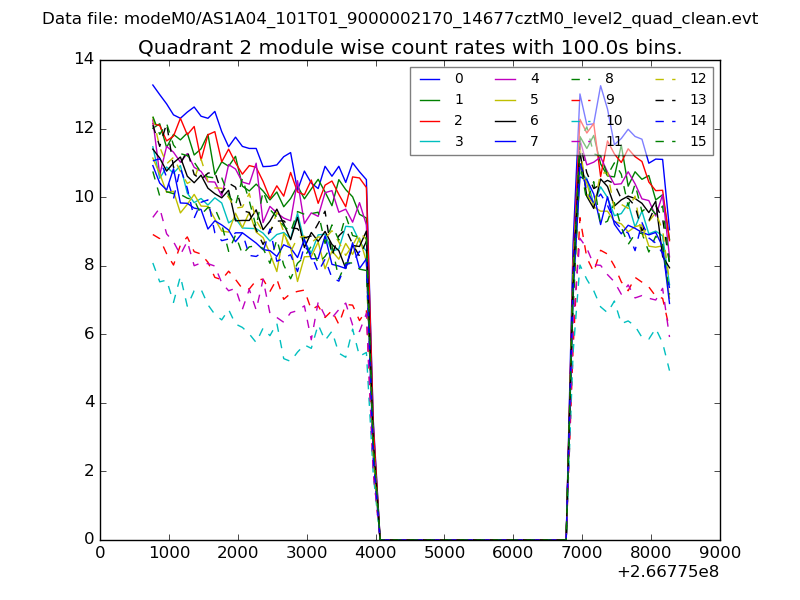

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

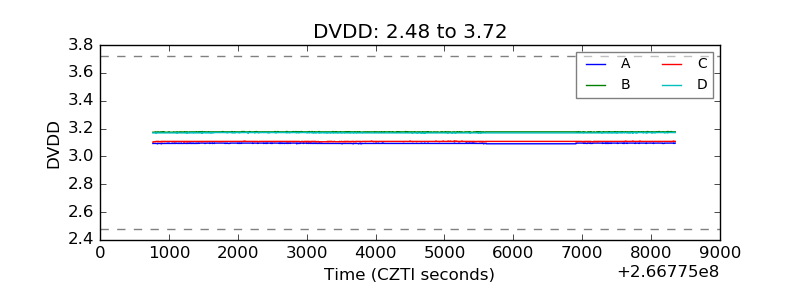

| D_VDD |  |

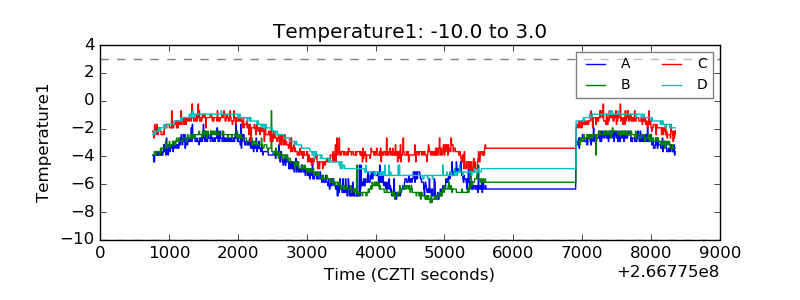

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

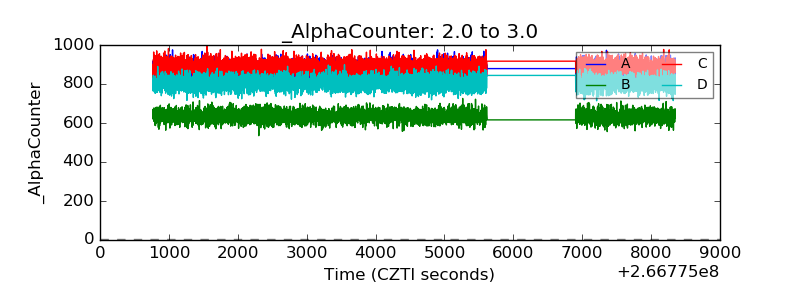

| Alpha Counter |  |

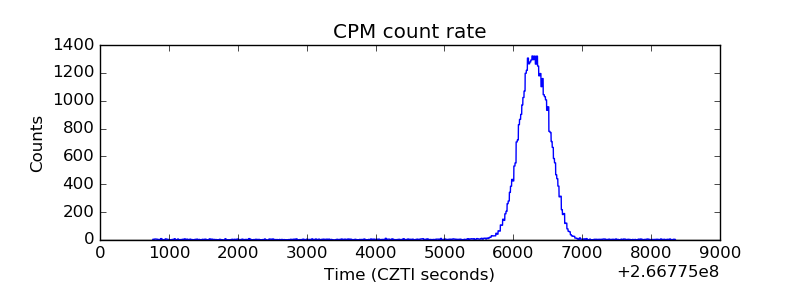

| _CPM_Rate |  |

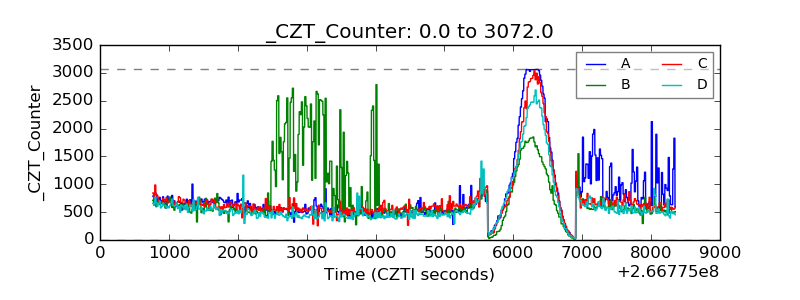

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

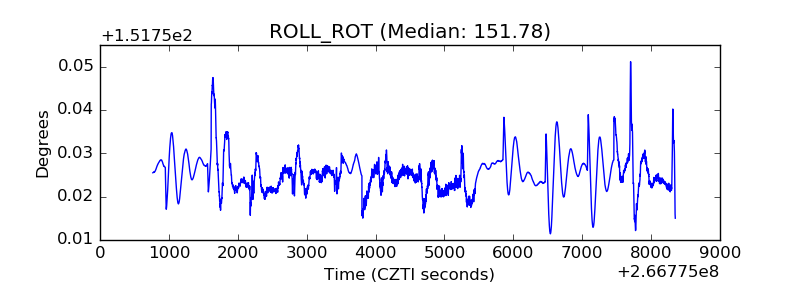

| _ROLL_ROT |  |
| _Roll_DEC |  |

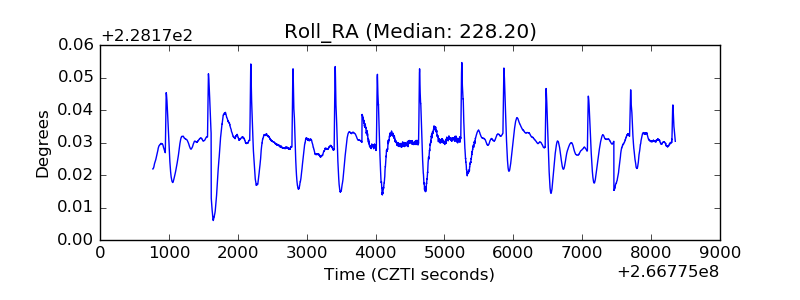

| _Roll_RA |  |

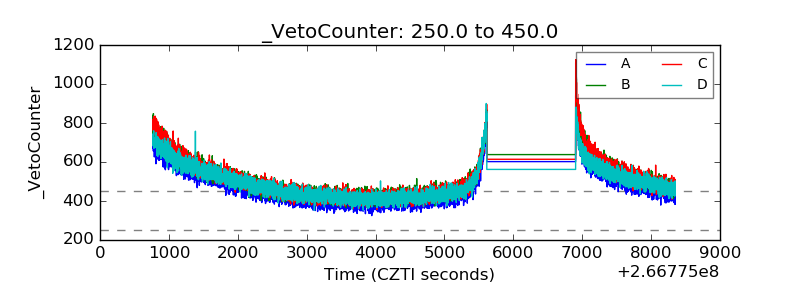

| Veto Counter |  |
