| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_101T01_9000002170_14680cztM0_level2.evt | modeM0/AS1A04_101T01_9000002170_14680cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,156,160 | 99,374,400 |
| Size | 488.4 MB | 94.8 MB |
| Events in quadrant A | 4,422,215 | 635,657 |
| Events in quadrant B | 3,460,894 | 630,640 |
| Events in quadrant C | 3,815,102 | 630,837 |
| Events in quadrant D | 3,333,226 | 620,506 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17964 | 3 |
| B | 0 | 14956 | 2 |
| C | 0 | 15684 | 2 |
| D | 0 | 14844 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7061 | 67 | 0.948874% |
| B | 7061 | 49 | 0.693953% |
| C | 7061 | 18 | 0.254921% |
| D | 7061 | 24 | 0.339895% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 7063 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7637 | 7062 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7637 | 7063 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7637 | 7063 | 9 | 9 | 0.12% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1089919 | 6255.43 | 861 | 841 | 174.1 |
| A | 9 | 143 | 15683 | 85.25 | 861 | 841 | 174.1 |
| A | 0 | 226 | 7798 | 39.96 | 861 | 841 | 174.1 |
| B | 10 | 16 | 53128 | 316.72 | 856 | 835 | 165.1 |
| B | 0 | 219 | 28840 | 169.62 | 856 | 835 | 165.1 |
| B | 0 | 205 | 24802 | 145.16 | 856 | 835 | 165.1 |
| C | 3 | 233 | 549201 | 2804.88 | 834 | 838 | 195.5 |
| C | 7 | 247 | 7708 | 35.14 | 834 | 838 | 195.5 |
| C | 13 | 61 | 5910 | 25.94 | 834 | 838 | 195.5 |
| D | 5 | 222 | 29358 | 128.14 | 829 | 812 | 222.8 |
| D | 2 | 120 | 29249 | 127.66 | 829 | 812 | 222.8 |
| D | 2 | 152 | 27817 | 121.23 | 829 | 812 | 222.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

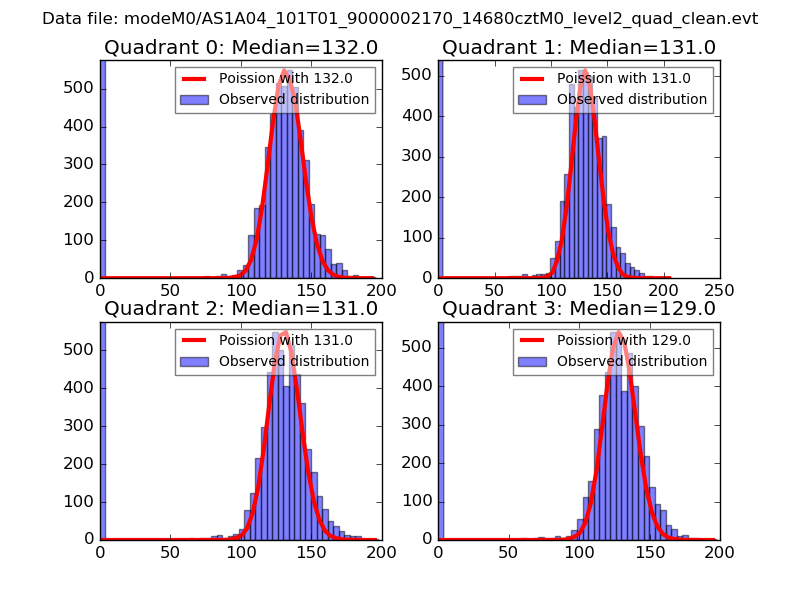

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

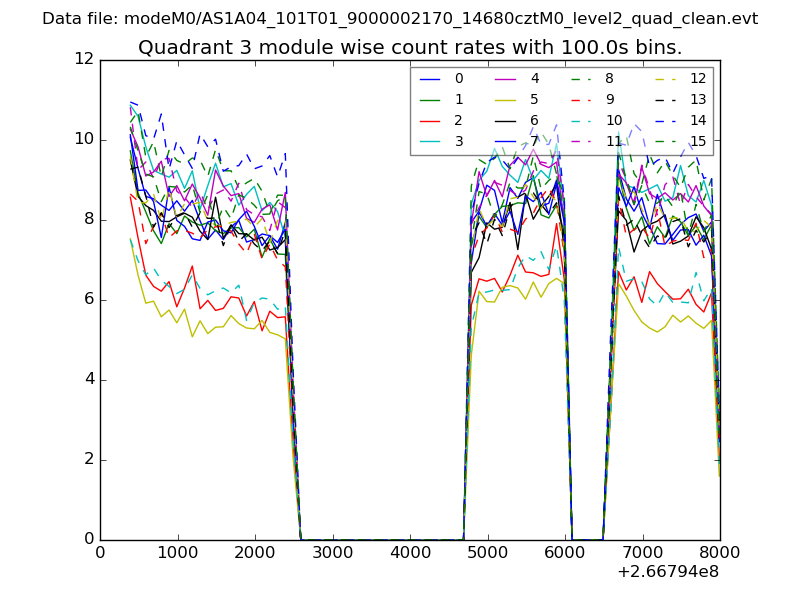

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

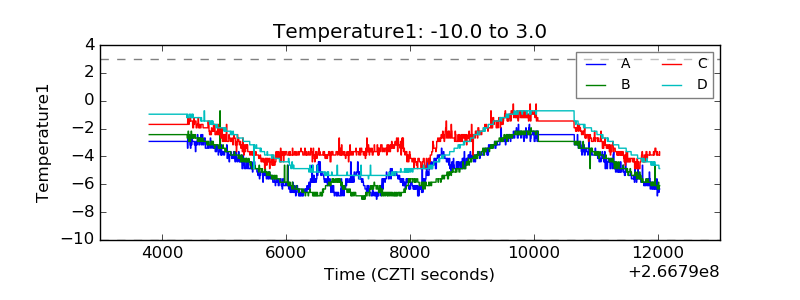

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

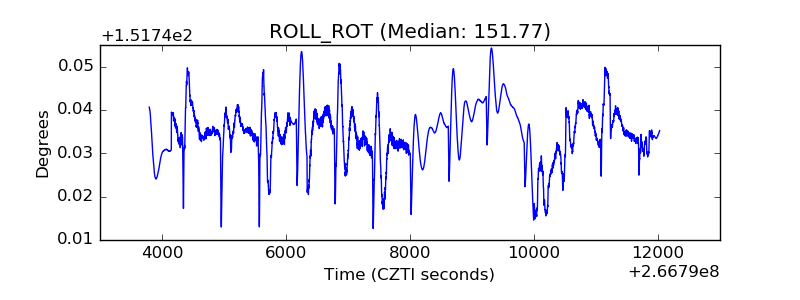

| _ROLL_ROT |  |

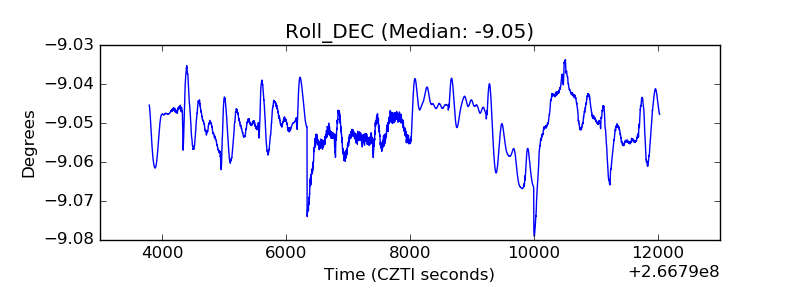

| _Roll_DEC |  |
| _Roll_RA |  |

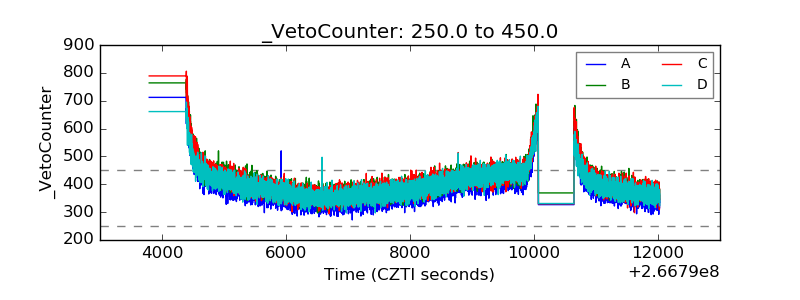

| Veto Counter |  |
