| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_101T01_9000002170_14681cztM0_level2.evt | modeM0/AS1A04_101T01_9000002170_14681cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,516,800 | 112,492,800 |
| Size | 565.1 MB | 107.3 MB |
| Events in quadrant A | 4,582,968 | 725,939 |
| Events in quadrant B | 4,307,146 | 704,471 |
| Events in quadrant C | 4,376,958 | 719,859 |
| Events in quadrant D | 4,144,132 | 709,374 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18583 | 3 |
| B | 0 | 18035 | 2 |
| C | 0 | 17894 | 2 |
| D | 0 | 17789 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7875 | 64 | 0.812698% |
| B | 7875 | 211 | 2.679365% |
| C | 7875 | 16 | 0.203175% |
| D | 7875 | 69 | 0.876190% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

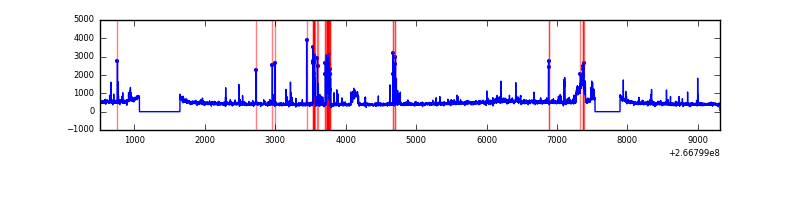

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8806 | 7878 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8806 | 7877 | 129 | 129 | 1.46% | 1.64% |  |
| C | 8806 | 7878 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8806 | 7878 | 59 | 59 | 0.67% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 831289 | 4201.13 | 964 | 941 | 197.6 |
| A | 12 | 189 | 31749 | 155.87 | 964 | 941 | 197.6 |
| A | 9 | 143 | 9081 | 41.18 | 964 | 941 | 197.6 |
| B | 10 | 16 | 523717 | 2853.3 | 945 | 920 | 183.2 |
| B | 0 | 205 | 46732 | 250.03 | 945 | 920 | 183.2 |
| B | 12 | 111 | 21579 | 112.75 | 945 | 920 | 183.2 |
| C | 3 | 233 | 716611 | 3293.2 | 932 | 937 | 217.3 |
| C | 8 | 128 | 12143 | 51.56 | 932 | 937 | 217.3 |
| C | 13 | 61 | 6589 | 26.01 | 932 | 937 | 217.3 |
| D | 12 | 110 | 234321 | 947.05 | 930 | 912 | 246.5 |
| D | 10 | 199 | 176872 | 713.96 | 930 | 912 | 246.5 |
| D | 5 | 222 | 61919 | 247.54 | 930 | 912 | 246.5 |

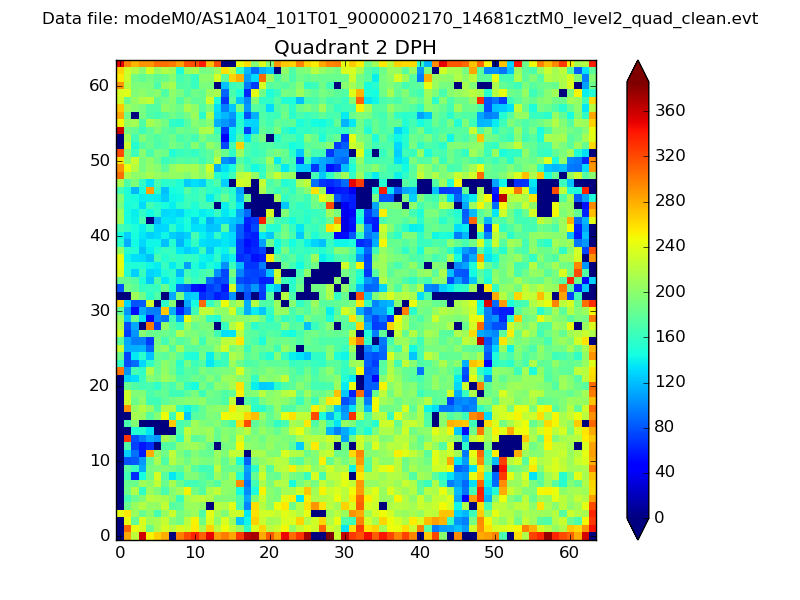

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

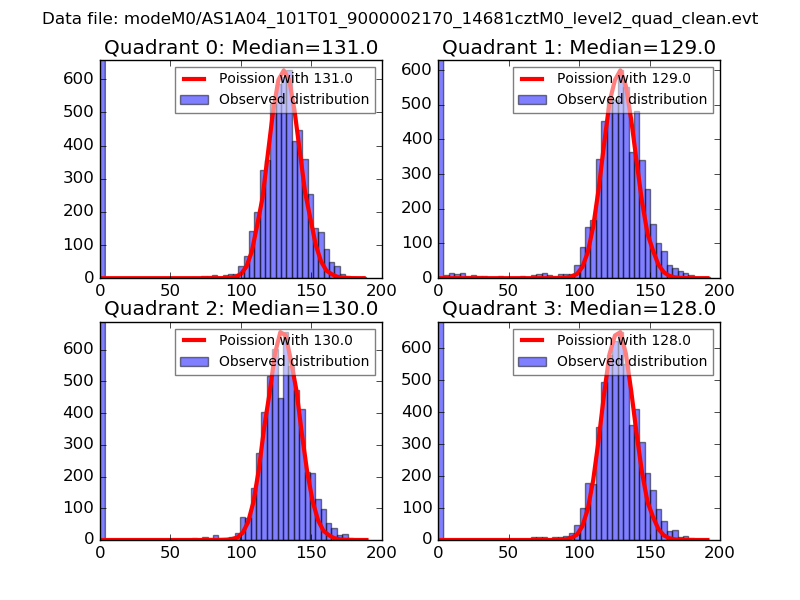

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

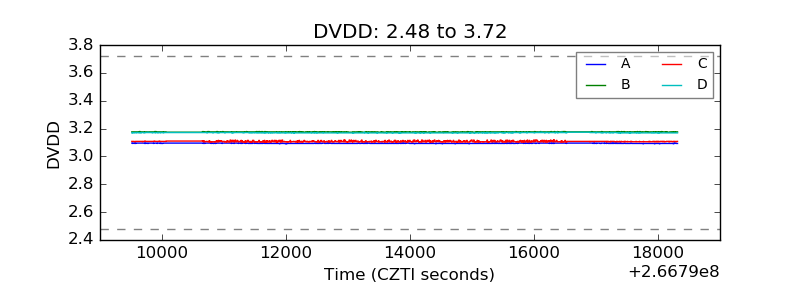

| D_VDD |  |

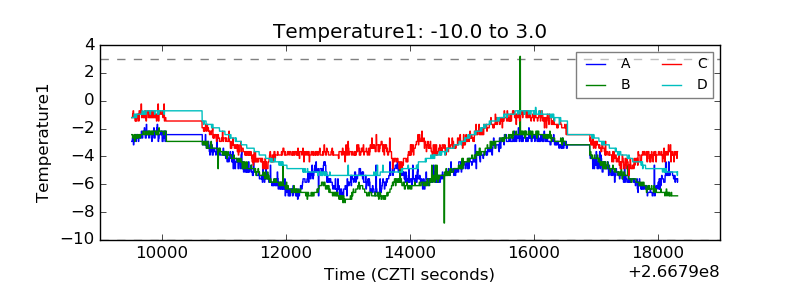

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

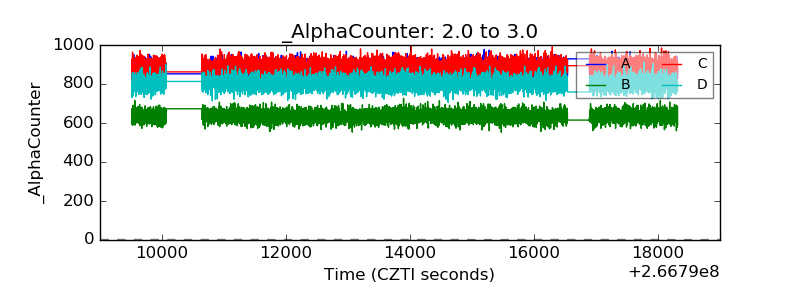

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

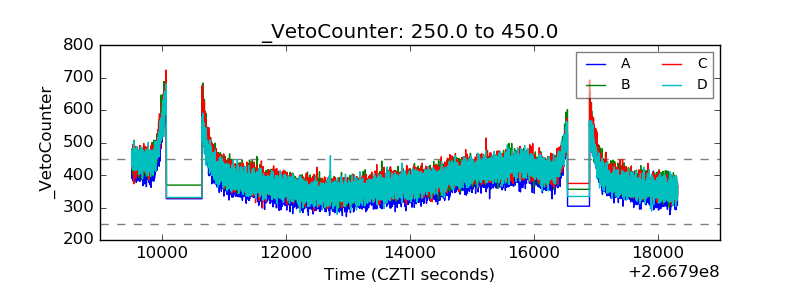

| Veto Counter |  |
