| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_011T07_9000002172_14697cztM0_level2.evt | modeM0/AS1A04_011T07_9000002172_14697cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,972,800 | 110,661,120 |
| Size | 542.6 MB | 105.5 MB |
| Events in quadrant A | 4,011,538 | 719,295 |
| Events in quadrant B | 3,776,004 | 712,972 |
| Events in quadrant C | 5,167,107 | 691,103 |
| Events in quadrant D | 3,756,951 | 694,715 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16838 | 2 |
| B | 0 | 16160 | 2 |
| C | 0 | 20717 | 2 |
| D | 0 | 16499 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7666 | 85 | 1.108792% |
| B | 7666 | 63 | 0.821811% |
| C | 7666 | 151 | 1.969736% |
| D | 7666 | 63 | 0.821811% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8317 | 7670 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8317 | 7668 | 3 | 3 | 0.04% | 0.04% |  |
| C | 8317 | 7669 | 37 | 37 | 0.44% | 0.48% |  |
| D | 8317 | 7670 | 32 | 32 | 0.38% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 203318 | 1054.39 | 943 | 924 | 192.0 |
| A | 12 | 189 | 104970 | 542.04 | 943 | 924 | 192.0 |
| A | 1 | 162 | 31786 | 160.78 | 943 | 924 | 192.0 |
| B | 4 | 142 | 26553 | 142.34 | 935 | 911 | 180.1 |
| B | 0 | 190 | 26488 | 141.98 | 935 | 911 | 180.1 |
| B | 10 | 16 | 22535 | 120.04 | 935 | 911 | 180.1 |
| C | 3 | 233 | 1457547 | 6971.49 | 896 | 902 | 208.9 |
| C | 0 | 207 | 195283 | 930.31 | 896 | 902 | 208.9 |
| C | 3 | 234 | 11978 | 53.01 | 896 | 902 | 208.9 |
| D | 12 | 110 | 128497 | 539.21 | 907 | 886 | 236.7 |
| D | 1 | 52 | 89538 | 374.59 | 907 | 886 | 236.7 |
| D | 2 | 234 | 32589 | 133.96 | 907 | 886 | 236.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

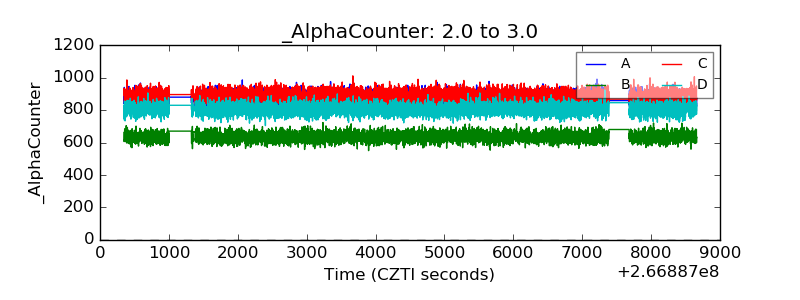

| Alpha Counter |  |

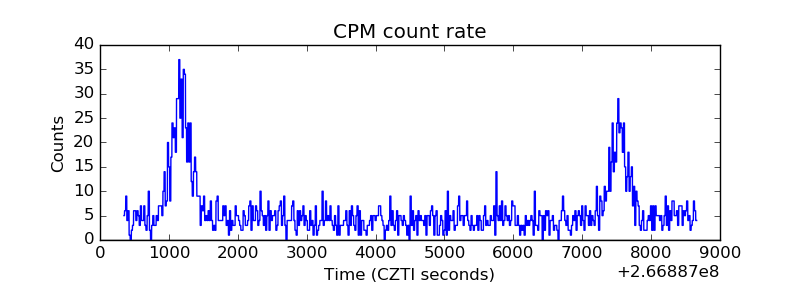

| _CPM_Rate |  |

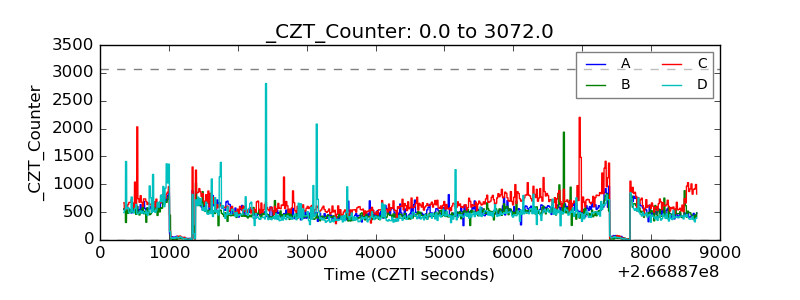

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

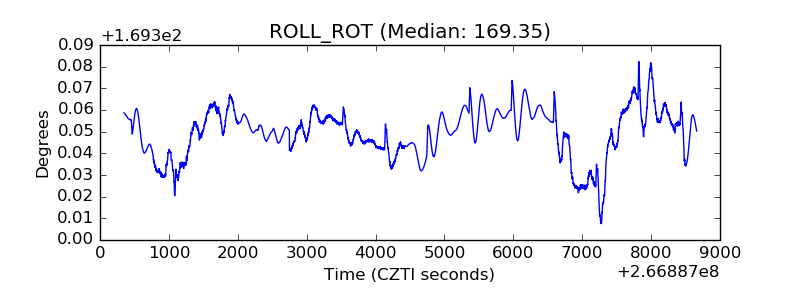

| _ROLL_ROT |  |
| _Roll_DEC |  |

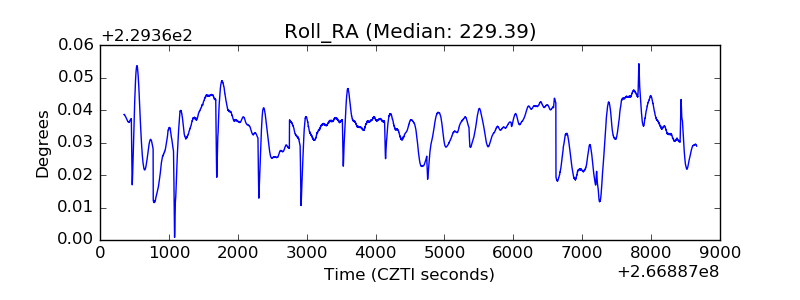

| _Roll_RA |  |
| Veto Counter |  |
