| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_057T09_9000002174_14706cztM0_level2.evt | modeM0/AS1G08_057T09_9000002174_14706cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,042,560 | 105,255,360 |
| Size | 413.0 MB | 100.4 MB |
| Events in quadrant A | 3,009,822 | 705,817 |
| Events in quadrant B | 2,958,304 | 697,733 |
| Events in quadrant C | 3,790,618 | 694,424 |
| Events in quadrant D | 2,964,665 | 687,290 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12578 | 2 |
| B | 0 | 12433 | 1 |
| C | 0 | 15463 | 1 |
| D | 0 | 12472 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5763 | 94 | 1.631095% |
| B | 5763 | 103 | 1.787264% |
| C | 5763 | 92 | 1.596391% |
| D | 5763 | 81 | 1.405518% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7059 | 5764 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7059 | 5764 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7059 | 5764 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7059 | 5764 | 11 | 11 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 38148 | 248.76 | 757 | 741 | 150.4 |
| A | 12 | 189 | 28556 | 184.97 | 757 | 741 | 150.4 |
| A | 9 | 143 | 19132 | 122.3 | 757 | 741 | 150.4 |
| B | 0 | 205 | 18223 | 126.47 | 745 | 730 | 138.3 |
| B | 12 | 111 | 15602 | 107.52 | 745 | 730 | 138.3 |
| B | 11 | 111 | 13292 | 90.82 | 745 | 730 | 138.3 |
| C | 3 | 233 | 890825 | 5266.53 | 742 | 748 | 169.0 |
| C | 13 | 61 | 5336 | 27.15 | 742 | 748 | 169.0 |
| C | 14 | 234 | 3384 | 15.6 | 742 | 748 | 169.0 |
| D | 9 | 1 | 39732 | 213.58 | 745 | 731 | 182.6 |
| D | 1 | 255 | 26403 | 140.59 | 745 | 731 | 182.6 |
| D | 2 | 152 | 23707 | 125.82 | 745 | 731 | 182.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

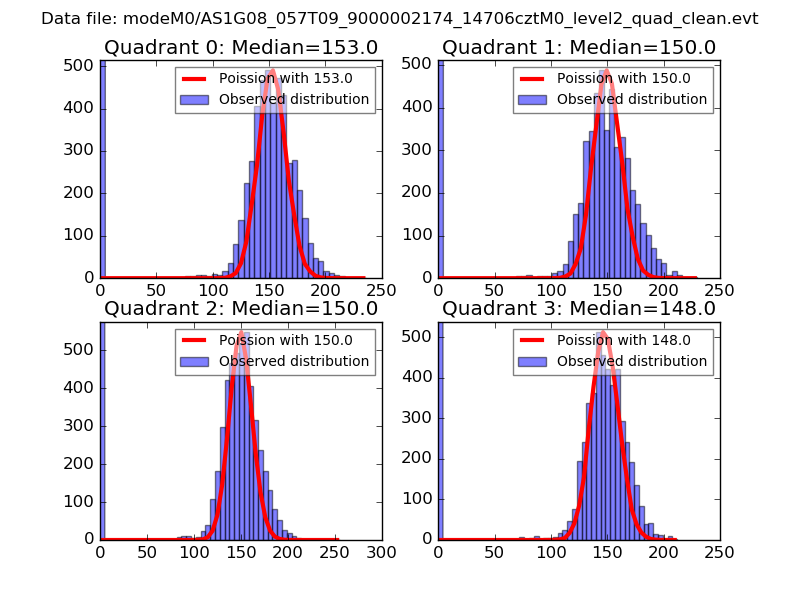

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
