| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000002176_14714cztM0_level2.evt | modeM0/AS1A04_048T01_9000002176_14714cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,298,027,520 | 240,638,400 |
| Size | 1.2 GB | 229.5 MB |
| Events in quadrant A | 9,416,074 | 1,528,097 |
| Events in quadrant B | 9,175,066 | 1,515,116 |
| Events in quadrant C | 10,662,148 | 1,493,072 |
| Events in quadrant D | 8,810,209 | 1,480,206 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40048 | 5 |
| B | 0 | 39241 | 4 |
| C | 0 | 42640 | 4 |
| D | 0 | 39337 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18462 | 140 | 0.758314% |
| B | 18462 | 204 | 1.104972% |
| C | 18462 | 184 | 0.996642% |
| D | 18462 | 185 | 1.002058% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20468 | 18464 | 3 | 3 | 0.01% | 0.02% |  |
| B | 20468 | 18464 | 18 | 18 | 0.09% | 0.10% |  |
| C | 20468 | 18464 | 34 | 34 | 0.17% | 0.18% |  |
| D | 20468 | 18465 | 65 | 65 | 0.32% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 354731 | 768.87 | 2249 | 2206 | 458.5 |
| A | 12 | 189 | 262678 | 568.1 | 2249 | 2206 | 458.5 |
| A | 11 | 29 | 118548 | 253.75 | 2249 | 2206 | 458.5 |
| B | 0 | 85 | 280284 | 660.76 | 2216 | 2164 | 420.9 |
| B | 0 | 205 | 69798 | 160.68 | 2216 | 2164 | 420.9 |
| B | 4 | 142 | 58868 | 134.72 | 2216 | 2164 | 420.9 |
| C | 3 | 233 | 1964836 | 3875.85 | 2166 | 2175 | 506.4 |
| C | 0 | 207 | 184877 | 360.8 | 2166 | 2175 | 506.4 |
| C | 6 | 96 | 60372 | 114.93 | 2166 | 2175 | 506.4 |
| D | 5 | 184 | 151490 | 285.79 | 2180 | 2131 | 522.6 |
| D | 9 | 1 | 143666 | 270.82 | 2180 | 2131 | 522.6 |
| D | 2 | 234 | 69636 | 129.17 | 2180 | 2131 | 522.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

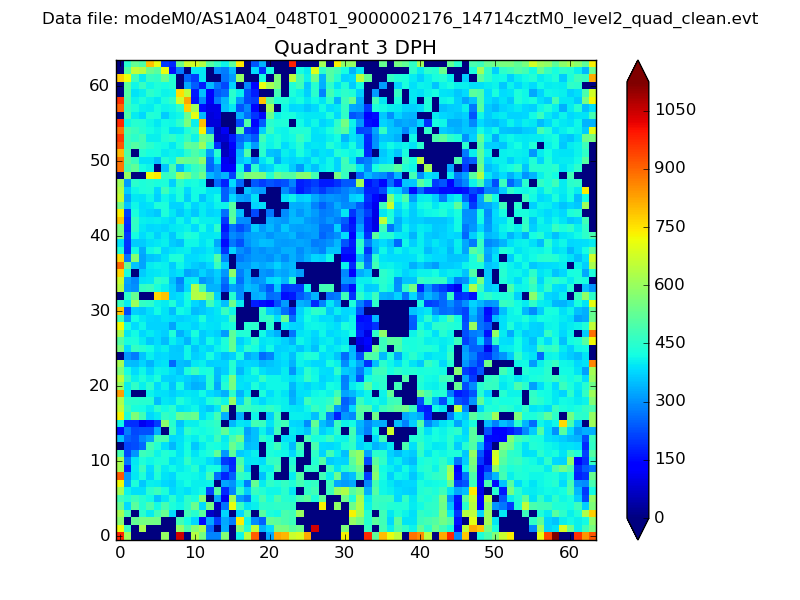

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

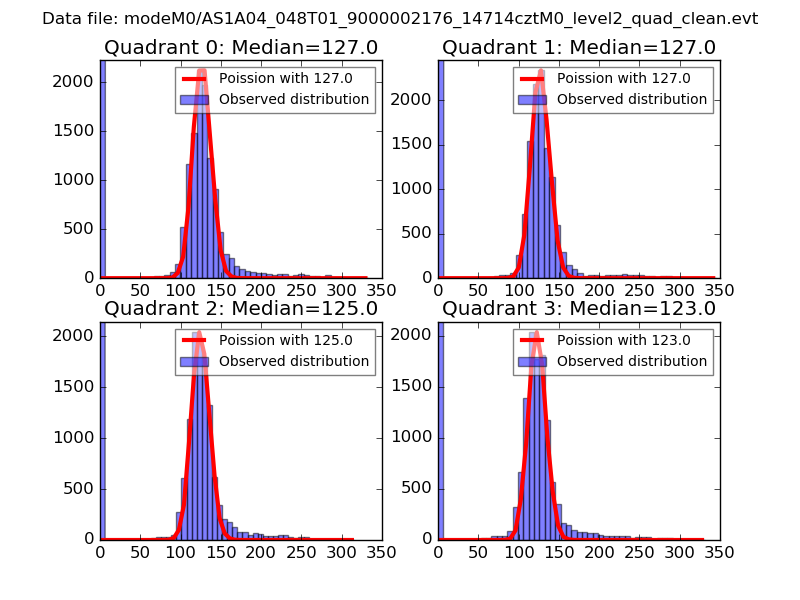

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

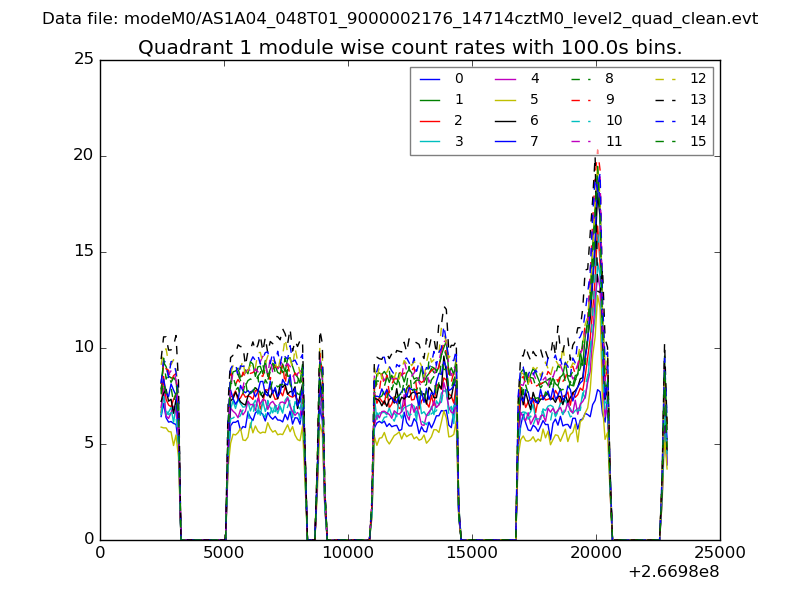

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

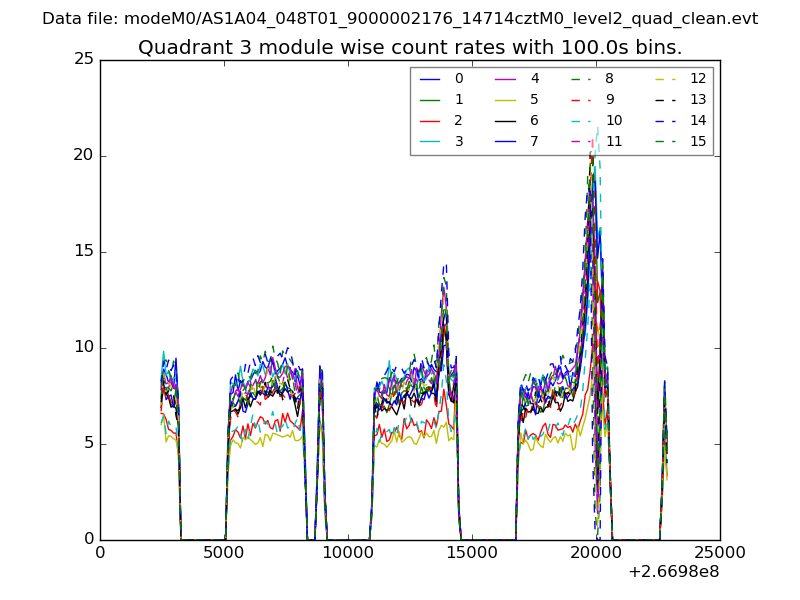

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

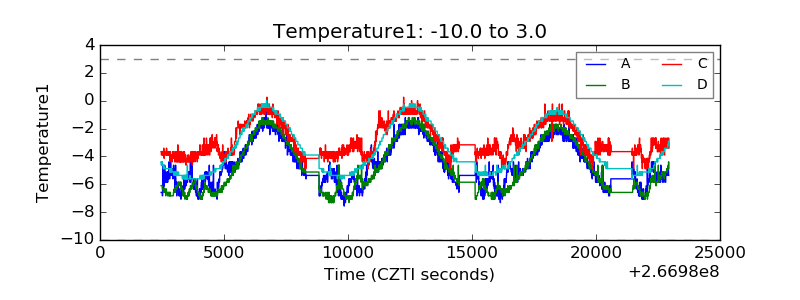

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

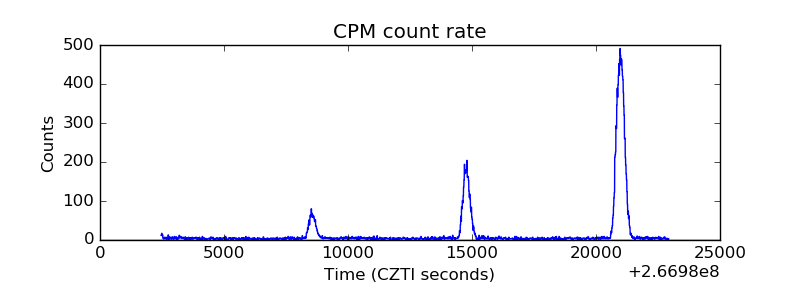

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

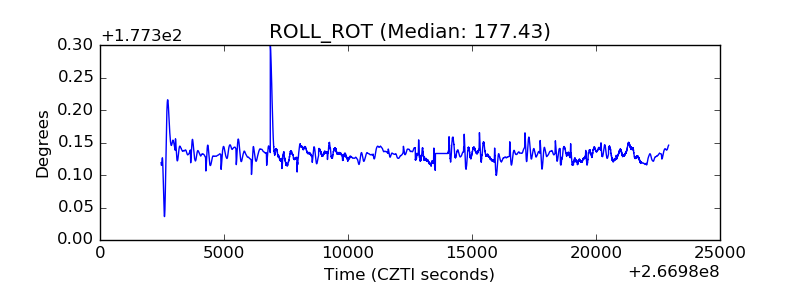

| _ROLL_ROT |  |

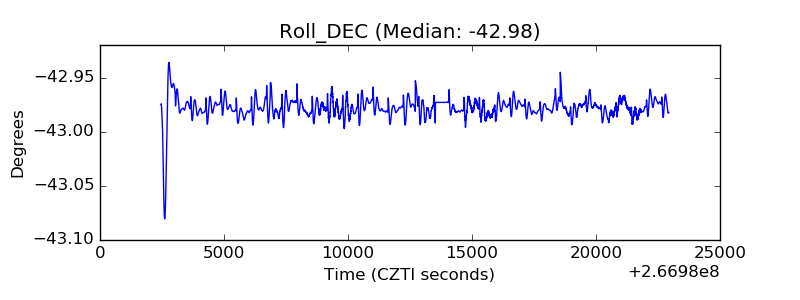

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
