| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000002176_14719cztM0_level2.evt | modeM0/AS1A04_048T01_9000002176_14719cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,150,400 | 122,293,440 |
| Size | 462.7 MB | 116.6 MB |
| Events in quadrant A | 3,492,618 | 834,922 |
| Events in quadrant B | 3,535,156 | 830,160 |
| Events in quadrant C | 3,891,230 | 796,242 |
| Events in quadrant D | 3,339,148 | 795,850 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14485 | 3 |
| B | 0 | 14719 | 2 |
| C | 0 | 16051 | 2 |
| D | 0 | 14263 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6406 | 95 | 1.482985% |
| B | 6406 | 83 | 1.295660% |
| C | 6406 | 60 | 0.936622% |
| D | 6406 | 78 | 1.217608% |

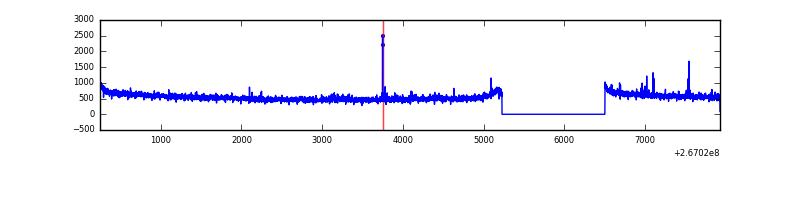

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7682 | 6407 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7682 | 6407 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7682 | 6407 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7682 | 6407 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 54417 | 307.14 | 874 | 859 | 174.4 |
| A | 12 | 189 | 51938 | 292.92 | 874 | 859 | 174.4 |
| A | 9 | 143 | 19488 | 106.83 | 874 | 859 | 174.4 |
| B | 10 | 16 | 58739 | 363.74 | 855 | 837 | 159.2 |
| B | 4 | 142 | 31677 | 193.73 | 855 | 837 | 159.2 |
| B | 0 | 205 | 30492 | 186.29 | 855 | 837 | 159.2 |
| C | 3 | 233 | 589540 | 3155.61 | 819 | 826 | 186.6 |
| C | 0 | 207 | 101919 | 541.88 | 819 | 826 | 186.6 |
| C | 13 | 61 | 5813 | 26.73 | 819 | 826 | 186.6 |
| D | 10 | 199 | 51929 | 254.37 | 840 | 822 | 200.9 |
| D | 2 | 234 | 26237 | 126.5 | 840 | 822 | 200.9 |
| D | 13 | 172 | 23362 | 112.19 | 840 | 822 | 200.9 |

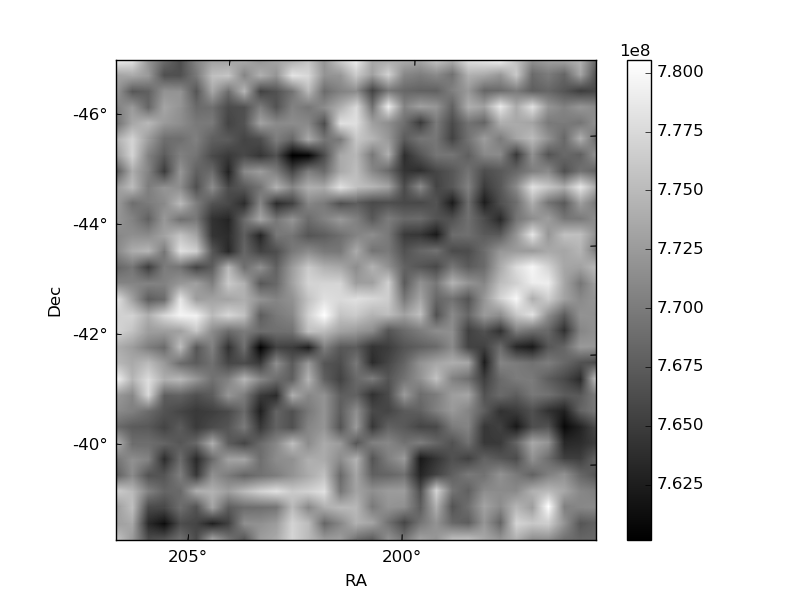

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

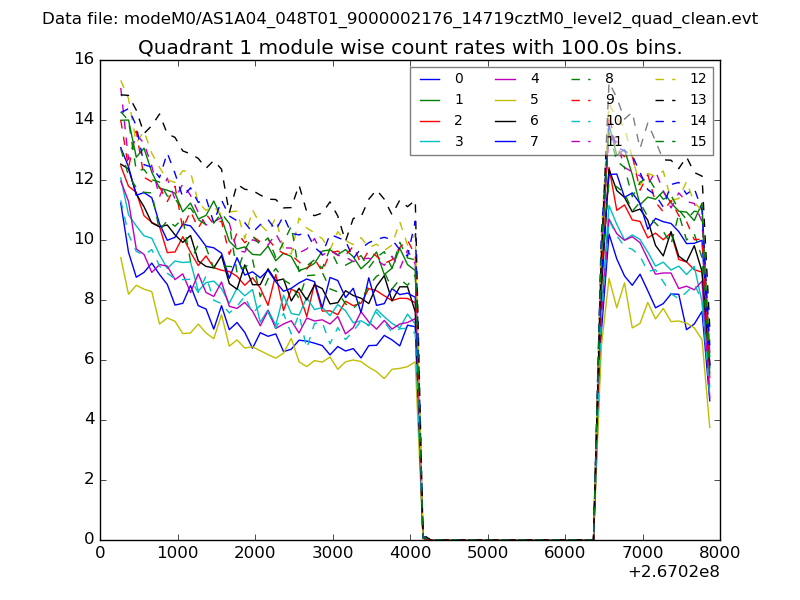

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

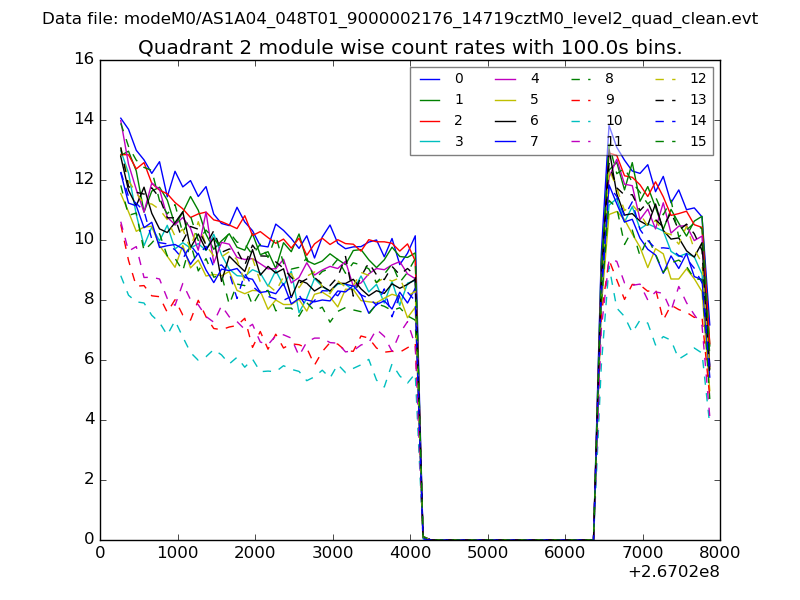

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

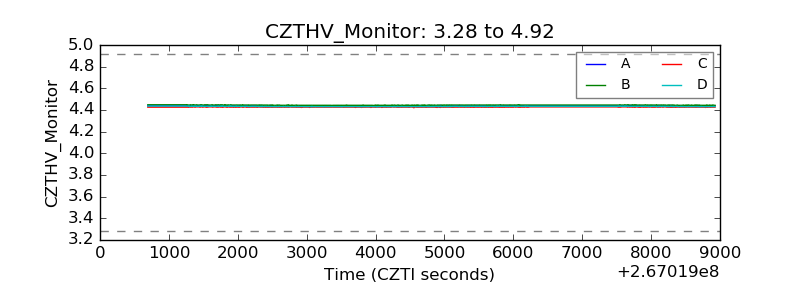

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

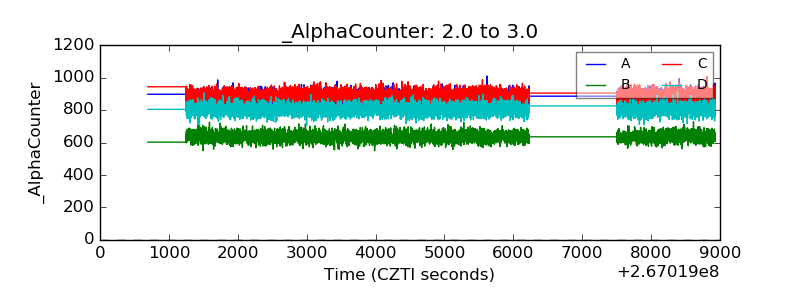

| Alpha Counter |  |

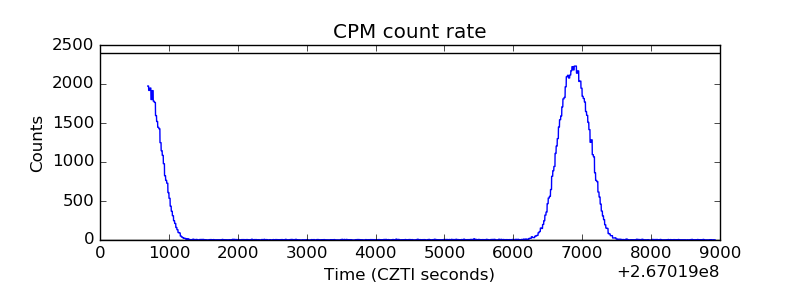

| _CPM_Rate |  |

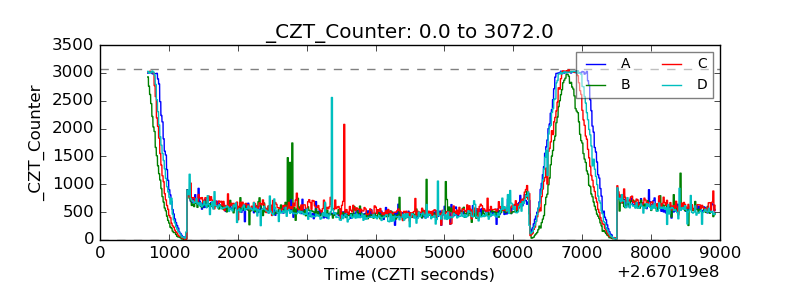

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
