| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000002176_14720cztM0_level2.evt | modeM0/AS1A04_048T01_9000002176_14720cztM0_level2_quad_clean.evt |
| Size (bytes) | 420,773,760 | 98,922,240 |
| Size | 401.3 MB | 94.3 MB |
| Events in quadrant A | 3,033,255 | 668,366 |
| Events in quadrant B | 3,119,354 | 658,656 |
| Events in quadrant C | 3,337,533 | 629,688 |
| Events in quadrant D | 2,859,735 | 634,672 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12678 | 2 |
| B | 0 | 12906 | 1 |
| C | 0 | 13691 | 1 |
| D | 0 | 12294 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5785 | 91 | 1.573034% |
| B | 5785 | 100 | 1.728608% |
| C | 5785 | 66 | 1.140882% |
| D | 5785 | 77 | 1.331029% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

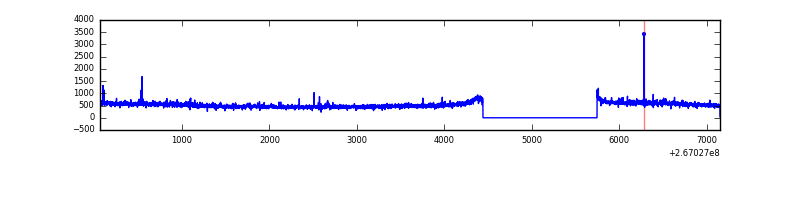

| A | 7091 | 5786 | 1 | 1 | 0.01% | 0.02% |  |

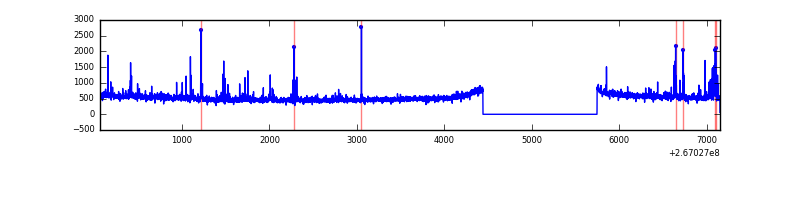

| B | 7091 | 5786 | 7 | 7 | 0.10% | 0.12% |  |
| C | 7091 | 5786 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7091 | 5786 | 8 | 8 | 0.11% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 49782 | 318.72 | 761 | 746 | 153.9 |
| A | 12 | 189 | 28170 | 178.25 | 761 | 746 | 153.9 |
| A | 9 | 143 | 15144 | 93.58 | 761 | 746 | 153.9 |
| B | 4 | 142 | 79628 | 564.31 | 745 | 730 | 139.8 |
| B | 0 | 219 | 28989 | 202.12 | 745 | 730 | 139.8 |
| B | 0 | 228 | 25788 | 179.23 | 745 | 730 | 139.8 |
| C | 3 | 233 | 508275 | 3125.44 | 711 | 717 | 162.4 |
| C | 0 | 207 | 40449 | 244.66 | 711 | 717 | 162.4 |
| C | 6 | 96 | 9730 | 55.5 | 711 | 717 | 162.4 |
| D | 2 | 234 | 31203 | 174.66 | 726 | 709 | 174.6 |
| D | 13 | 172 | 25692 | 143.1 | 726 | 709 | 174.6 |
| D | 2 | 120 | 23068 | 128.07 | 726 | 709 | 174.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

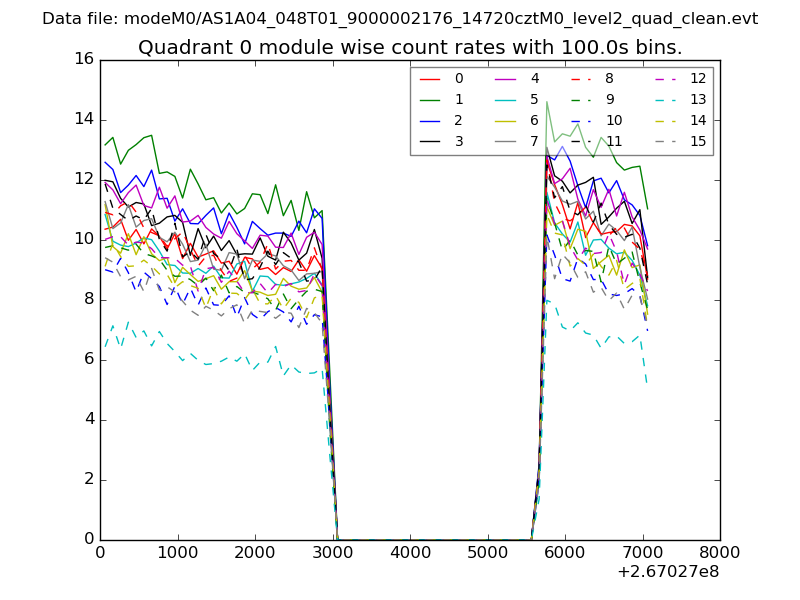

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

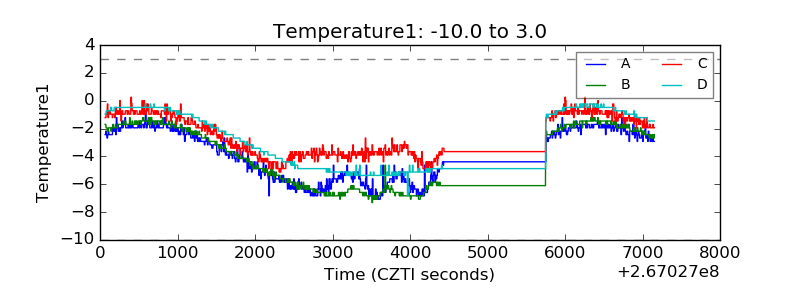

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

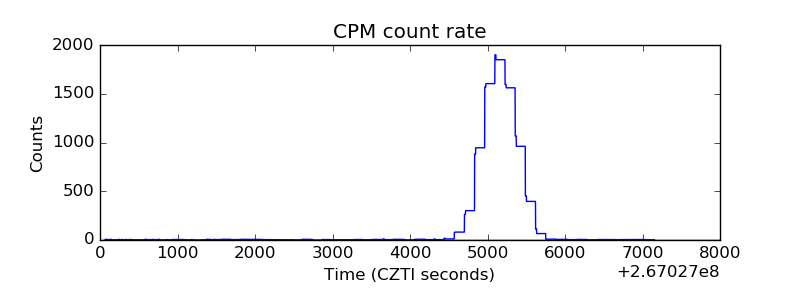

| _CPM_Rate |  |

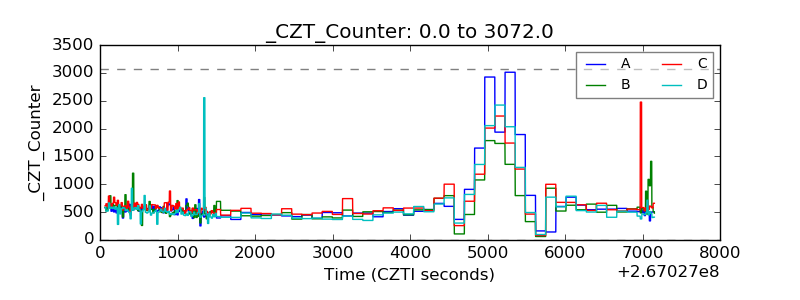

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

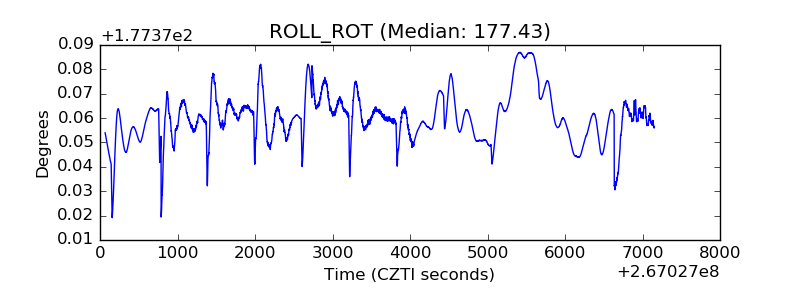

| _ROLL_ROT |  |
| _Roll_DEC |  |

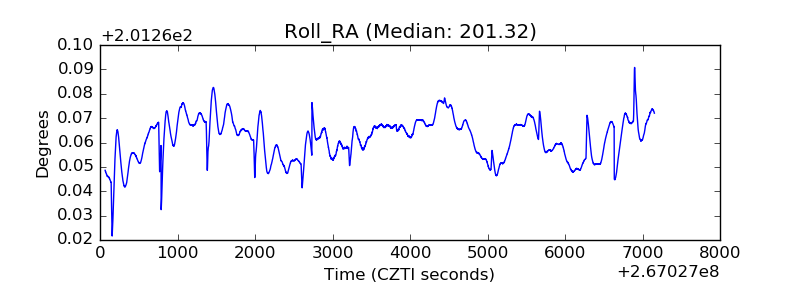

| _Roll_RA |  |
| Veto Counter |  |
