| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000002176_14722cztM0_level2.evt | modeM0/AS1A04_048T01_9000002176_14722cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,083,840 | 93,957,120 |
| Size | 458.8 MB | 89.6 MB |
| Events in quadrant A | 3,105,803 | 624,914 |
| Events in quadrant B | 3,375,943 | 616,891 |
| Events in quadrant C | 3,837,994 | 592,434 |
| Events in quadrant D | 3,815,023 | 564,281 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13390 | 3 |
| B | 0 | 14146 | 2 |
| C | 0 | 15539 | 2 |
| D | 0 | 15836 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6405 | 30 | 0.468384% |
| B | 6405 | 64 | 0.999219% |
| C | 6405 | 45 | 0.702576% |
| D | 6405 | 309 | 4.824356% |

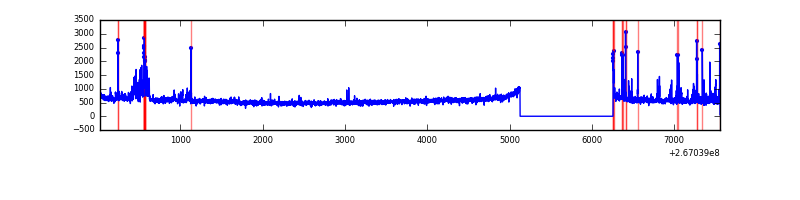

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7536 | 6407 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7536 | 6407 | 27 | 27 | 0.36% | 0.42% |  |
| C | 7536 | 6407 | 29 | 29 | 0.38% | 0.45% |  |
| D | 7536 | 6407 | 297 | 297 | 3.94% | 4.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 28168 | 167.89 | 794 | 780 | 163.1 |
| A | 8 | 15 | 10881 | 61.92 | 794 | 780 | 163.1 |
| A | 3 | 1 | 9408 | 52.89 | 794 | 780 | 163.1 |
| B | 0 | 228 | 131130 | 869.59 | 785 | 765 | 149.9 |
| B | 10 | 16 | 65959 | 434.87 | 785 | 765 | 149.9 |
| B | 0 | 205 | 19664 | 126.06 | 785 | 765 | 149.9 |
| C | 3 | 233 | 650709 | 3788.89 | 745 | 750 | 171.5 |
| C | 0 | 207 | 153400 | 889.86 | 745 | 750 | 171.5 |
| C | 4 | 254 | 110044 | 637.12 | 745 | 750 | 171.5 |
| D | 15 | 0 | 757704 | 4185.12 | 734 | 715 | 180.9 |
| D | 13 | 61 | 69275 | 379.04 | 734 | 715 | 180.9 |
| D | 12 | 16 | 38708 | 210.05 | 734 | 715 | 180.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

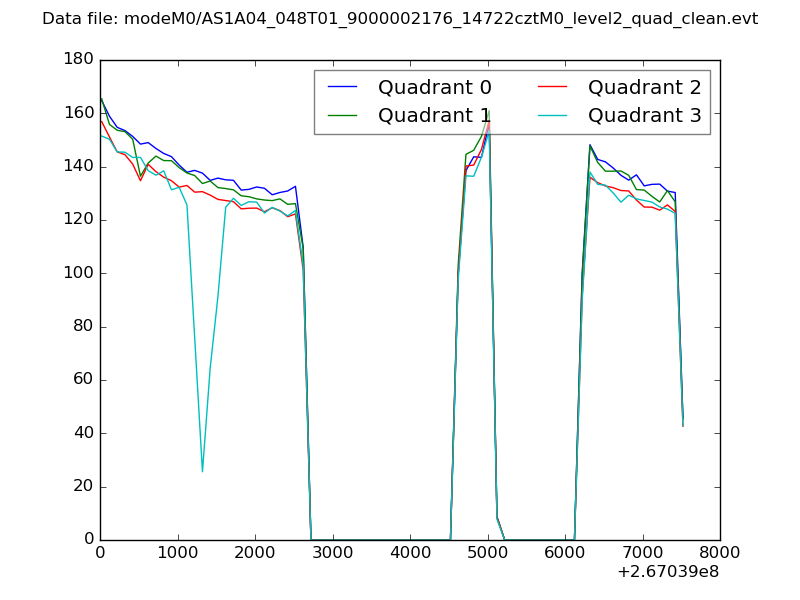

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

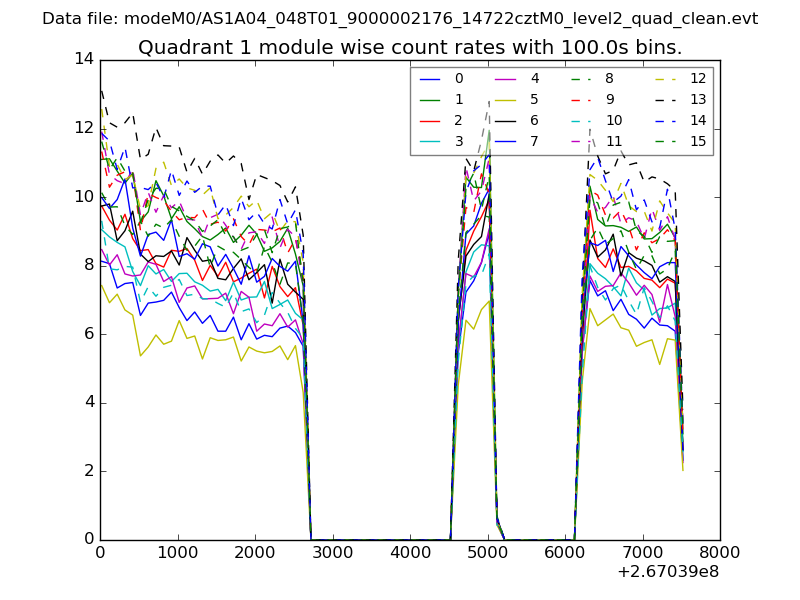

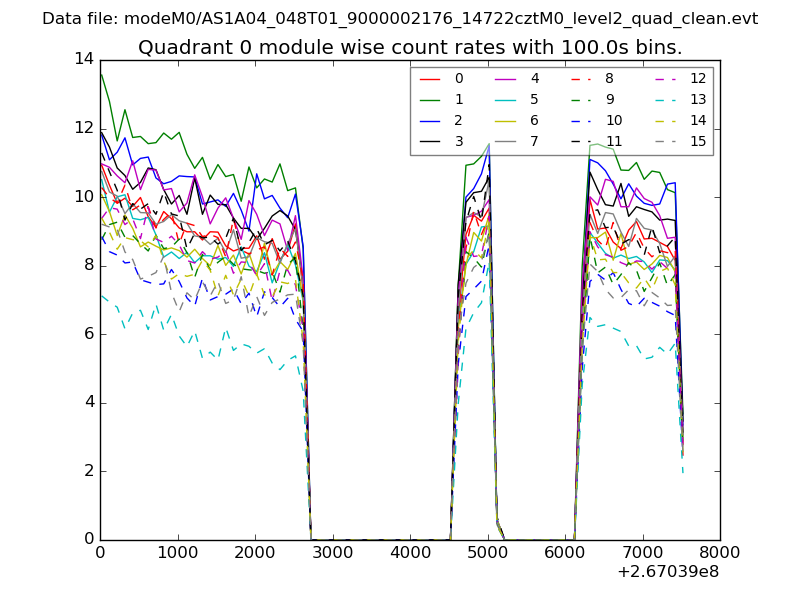

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

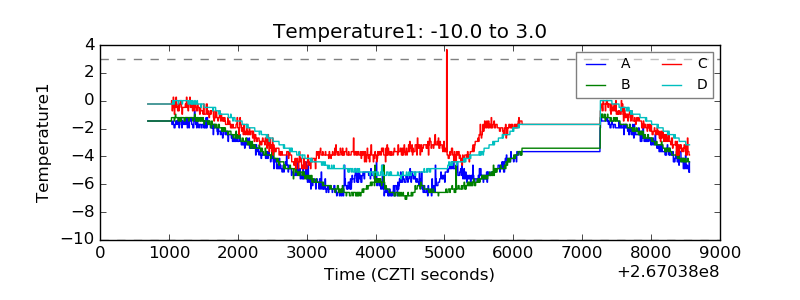

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

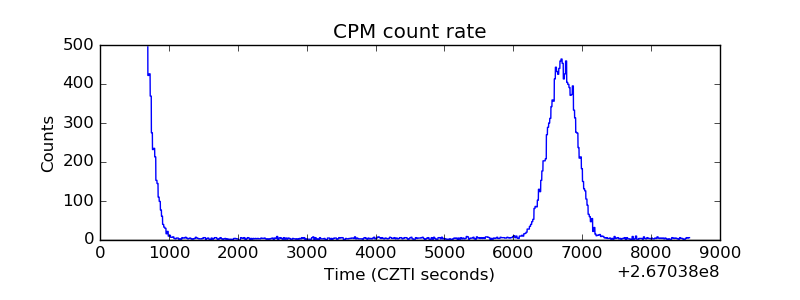

| _CPM_Rate |  |

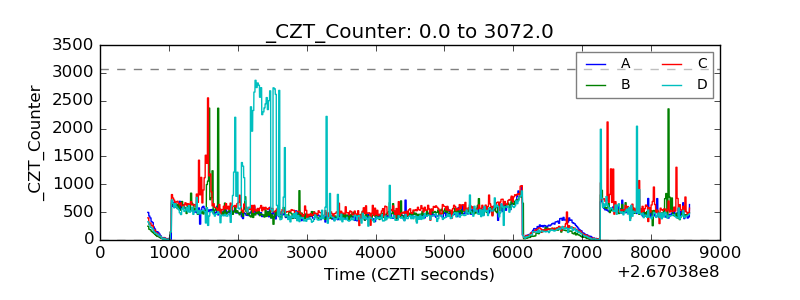

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

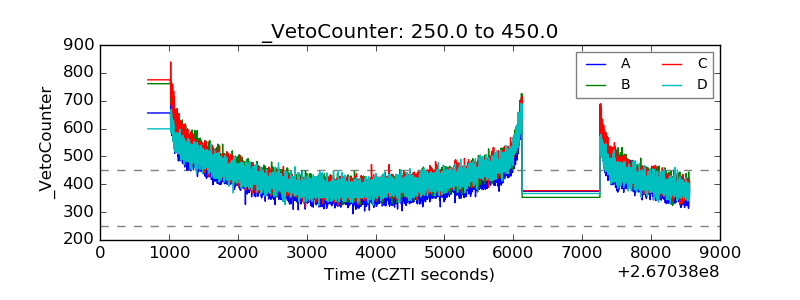

| Veto Counter |  |
