| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_203T01_9000002180_14749cztM0_level2.evt | modeM0/AS1A04_203T01_9000002180_14749cztM0_level2_quad_clean.evt |
| Size (bytes) | 725,425,920 | 69,085,440 |
| Size | 691.8 MB | 65.9 MB |
| Events in quadrant A | 9,795,932 | 369,753 |
| Events in quadrant B | 4,054,978 | 427,309 |
| Events in quadrant C | 4,143,926 | 421,548 |
| Events in quadrant D | 3,534,128 | 417,344 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33685 | 3 |
| B | 0 | 16256 | 2 |
| C | 0 | 16804 | 2 |
| D | 0 | 14366 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6525 | 1989 | 30.482759% |
| B | 6525 | 218 | 3.340996% |
| C | 6525 | 163 | 2.498084% |
| D | 6526 | 150 | 2.298498% |

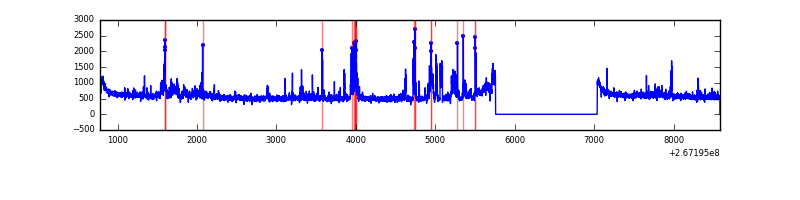

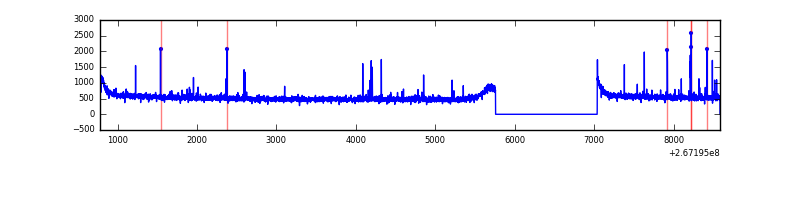

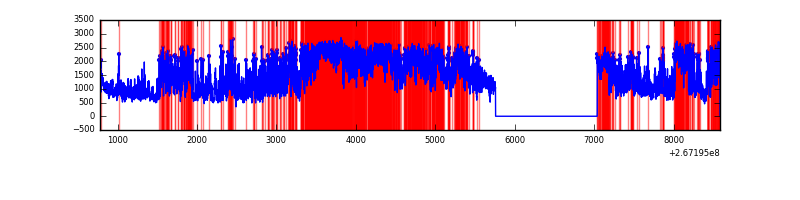

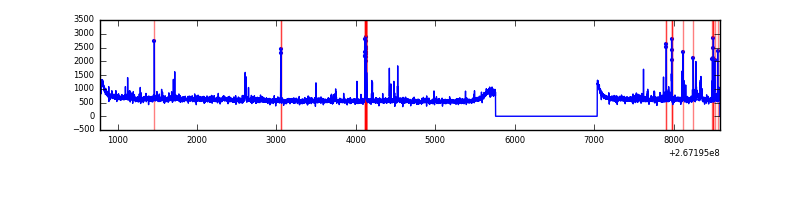

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7806 | 6526 | 1632 | 1632 | 20.91% | 25.01% |  |
| B | 7806 | 6526 | 21 | 21 | 0.27% | 0.32% |  |
| C | 7806 | 6526 | 28 | 28 | 0.36% | 0.43% |  |
| D | 7807 | 6527 | 6 | 6 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 6320364 | 36030.13 | 872 | 855 | 175.4 |
| A | 12 | 189 | 62173 | 349.6 | 872 | 855 | 175.4 |
| A | 3 | 1 | 30992 | 171.82 | 872 | 855 | 175.4 |
| B | 10 | 16 | 284610 | 1664.42 | 915 | 895 | 170.5 |
| B | 4 | 142 | 140957 | 821.68 | 915 | 895 | 170.5 |
| B | 0 | 205 | 36158 | 206.87 | 915 | 895 | 170.5 |
| C | 3 | 233 | 472343 | 2339.32 | 888 | 897 | 201.5 |
| C | 4 | 254 | 182281 | 900.03 | 888 | 897 | 201.5 |
| C | 0 | 207 | 21697 | 103.21 | 888 | 897 | 201.5 |
| D | 2 | 120 | 34812 | 152.34 | 905 | 884 | 222.7 |
| D | 2 | 234 | 33303 | 145.56 | 905 | 884 | 222.7 |
| D | 13 | 172 | 14148 | 59.55 | 905 | 884 | 222.7 |

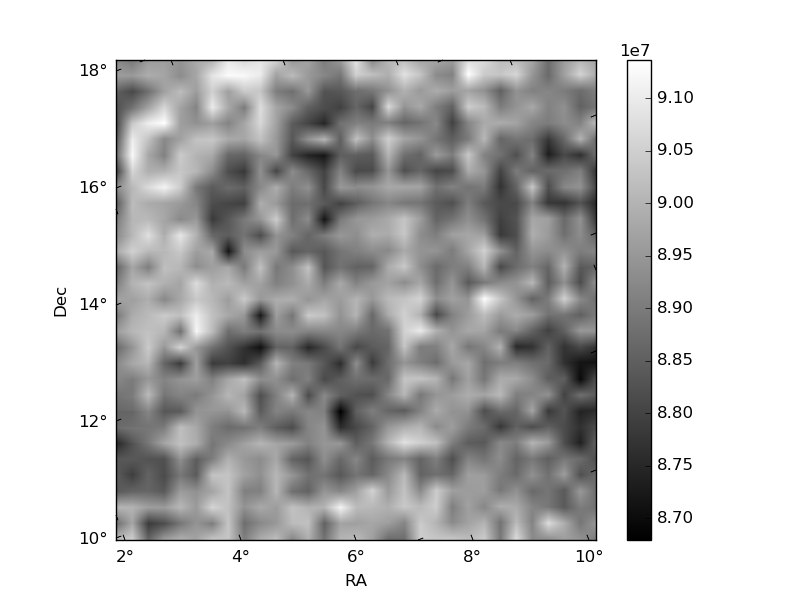

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

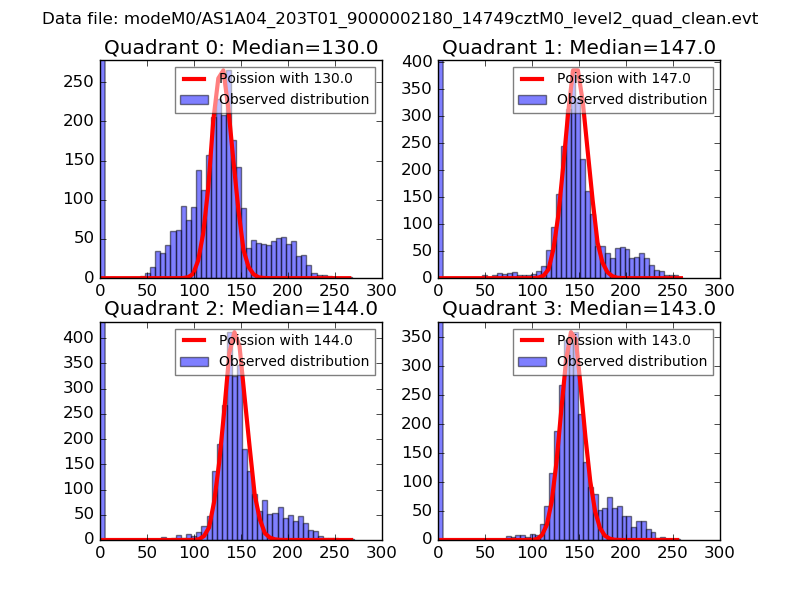

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

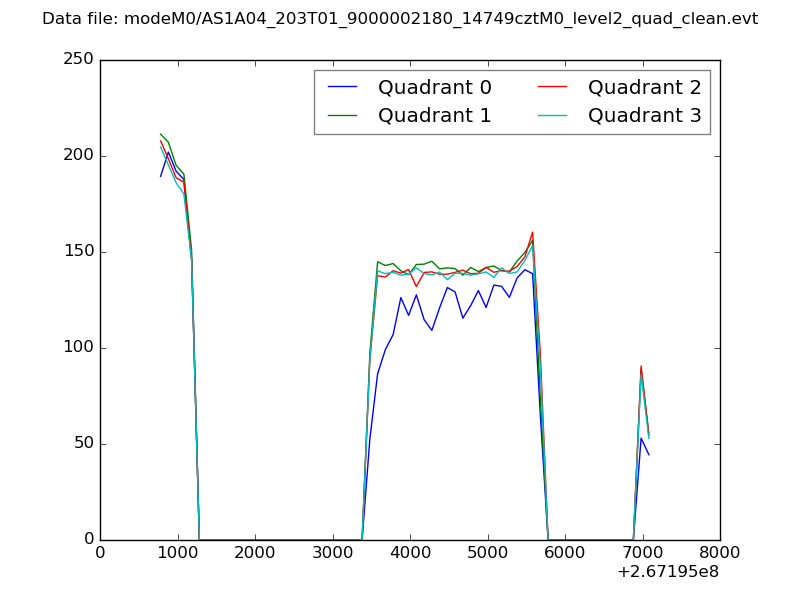

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

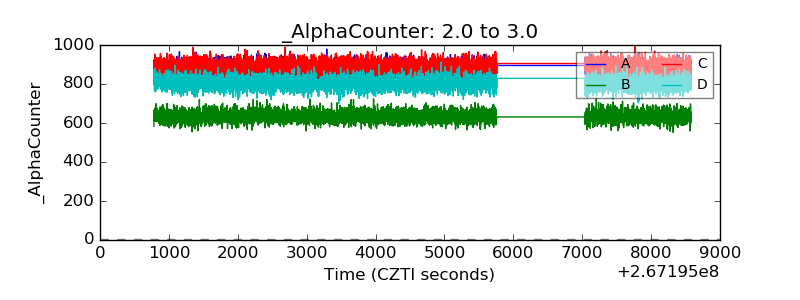

| Alpha Counter |  |

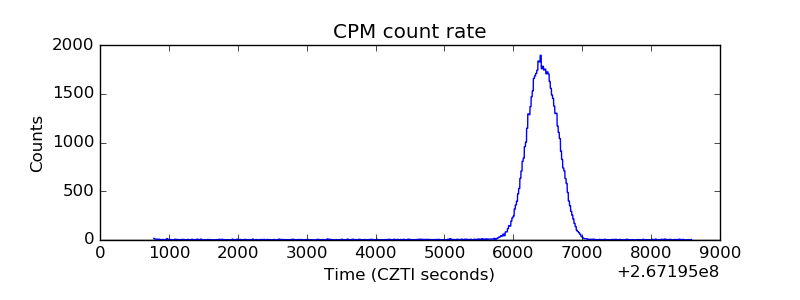

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
