| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_203T01_9000002180_14757cztM0_level2.evt | modeM0/AS1A04_203T01_9000002180_14757cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,449,280 | 66,219,840 |
| Size | 438.2 MB | 63.2 MB |
| Events in quadrant A | 5,247,669 | 403,457 |
| Events in quadrant B | 2,761,769 | 411,519 |
| Events in quadrant C | 2,988,892 | 406,161 |
| Events in quadrant D | 2,540,018 | 396,548 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19485 | 1 |
| B | 0 | 11918 | 1 |
| C | 0 | 12478 | 1 |
| D | 0 | 11615 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5539 | 698 | 12.601553% |
| B | 5539 | 91 | 1.642896% |
| C | 5539 | 56 | 1.011013% |
| D | 5539 | 49 | 0.884636% |

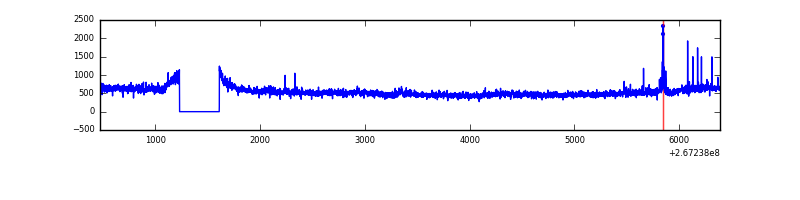

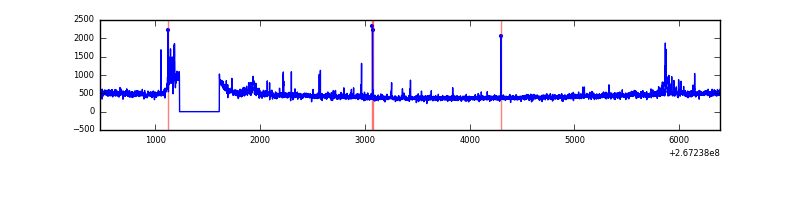

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5919 | 5539 | 337 | 337 | 5.69% | 6.08% |  |
| B | 5919 | 5539 | 7 | 7 | 0.12% | 0.13% |  |
| C | 5919 | 5539 | 2 | 2 | 0.03% | 0.04% |  |
| D | 5919 | 5539 | 4 | 4 | 0.07% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 2513677 | 19020.04 | 641 | 626 | 132.1 |
| A | 0 | 23 | 162695 | 1226.62 | 641 | 626 | 132.1 |
| A | 12 | 189 | 90814 | 682.59 | 641 | 626 | 132.1 |
| B | 10 | 16 | 113540 | 878.36 | 659 | 643 | 128.5 |
| B | 0 | 229 | 25118 | 190.42 | 659 | 643 | 128.5 |
| B | 0 | 205 | 15578 | 116.2 | 659 | 643 | 128.5 |
| C | 3 | 233 | 455903 | 3049.7 | 637 | 640 | 149.3 |
| C | 4 | 254 | 42141 | 278.01 | 637 | 640 | 149.3 |
| C | 13 | 61 | 4656 | 26.9 | 637 | 640 | 149.3 |
| D | 2 | 136 | 36724 | 230.32 | 639 | 619 | 156.8 |
| D | 2 | 120 | 21270 | 131.74 | 639 | 619 | 156.8 |
| D | 2 | 234 | 19815 | 122.46 | 639 | 619 | 156.8 |

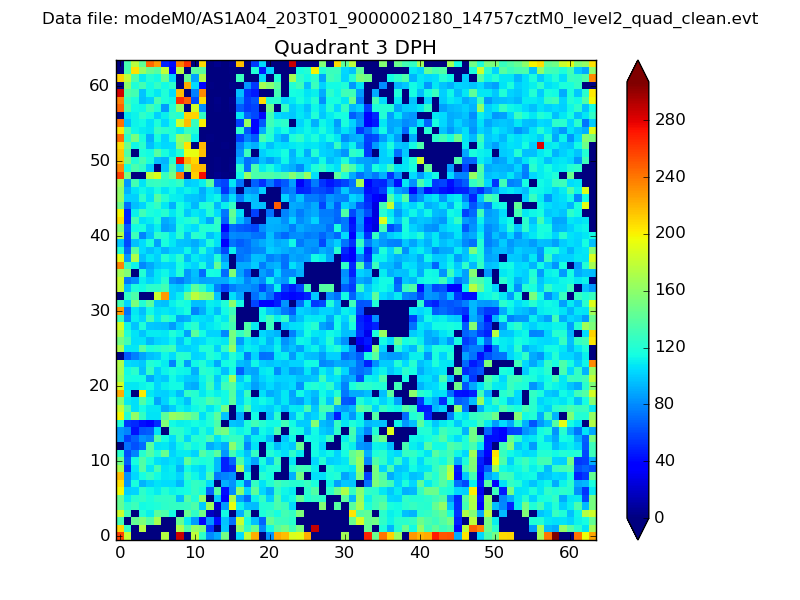

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

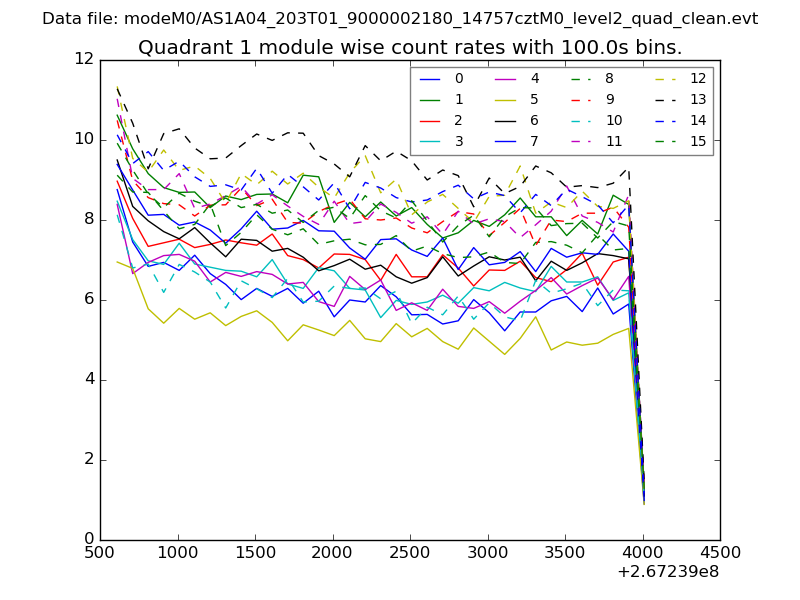

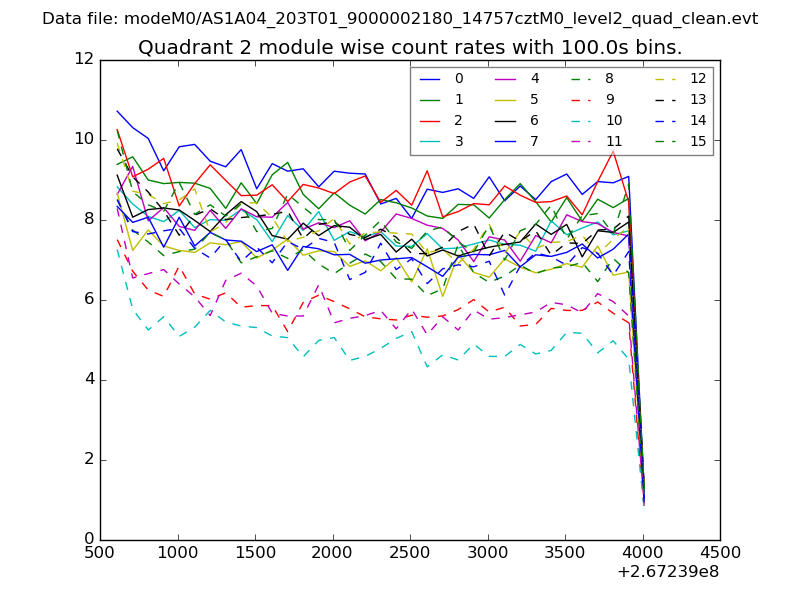

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

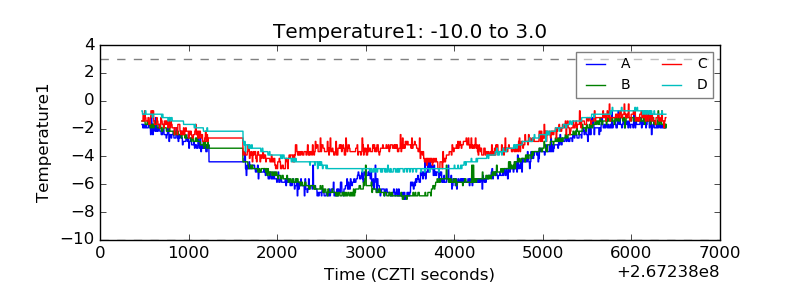

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

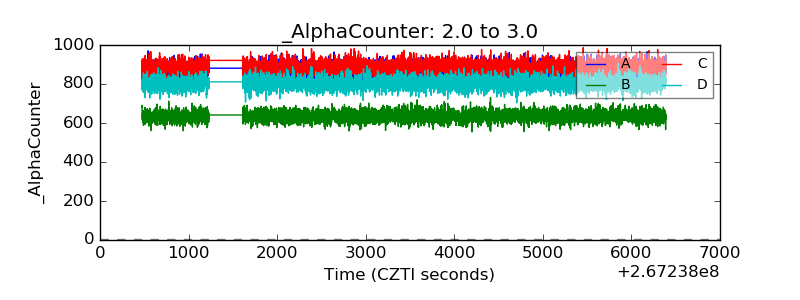

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

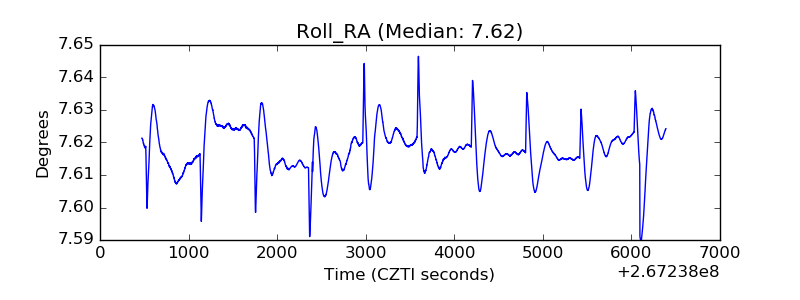

| _Roll_RA |  |
| Veto Counter |  |
