| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_081T01_9000002178_14737cztM0_level2.evt | modeM0/AS1G08_081T01_9000002178_14737cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,856,640 | 100,903,680 |
| Size | 471.0 MB | 96.2 MB |
| Events in quadrant A | 3,510,822 | 655,770 |
| Events in quadrant B | 3,584,760 | 649,843 |
| Events in quadrant C | 3,708,706 | 634,443 |
| Events in quadrant D | 3,683,617 | 635,088 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14880 | 3 |
| B | 0 | 15128 | 2 |
| C | 0 | 15317 | 2 |
| D | 0 | 15736 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6898 | 136 | 1.971586% |
| B | 6898 | 173 | 2.507973% |
| C | 6898 | 126 | 1.826616% |
| D | 6898 | 110 | 1.594665% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9049 | 6899 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9049 | 6899 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9049 | 6899 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9049 | 6900 | 8 | 8 | 0.09% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 76031 | 421.63 | 883 | 864 | 178.3 |
| A | 12 | 189 | 26860 | 145.82 | 883 | 864 | 178.3 |
| A | 0 | 226 | 7718 | 38.45 | 883 | 864 | 178.3 |
| B | 0 | 189 | 74337 | 436.52 | 877 | 856 | 168.3 |
| B | 0 | 229 | 22531 | 128.76 | 877 | 856 | 168.3 |
| B | 12 | 111 | 19525 | 110.91 | 877 | 856 | 168.3 |
| C | 3 | 233 | 336510 | 1693.4 | 859 | 864 | 198.2 |
| C | 6 | 96 | 10100 | 46.6 | 859 | 864 | 198.2 |
| C | 13 | 61 | 6176 | 26.8 | 859 | 864 | 198.2 |
| D | 12 | 16 | 381738 | 1867.26 | 861 | 841 | 204.0 |
| D | 2 | 234 | 22572 | 106.53 | 861 | 841 | 204.0 |
| D | 2 | 120 | 16199 | 75.29 | 861 | 841 | 204.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

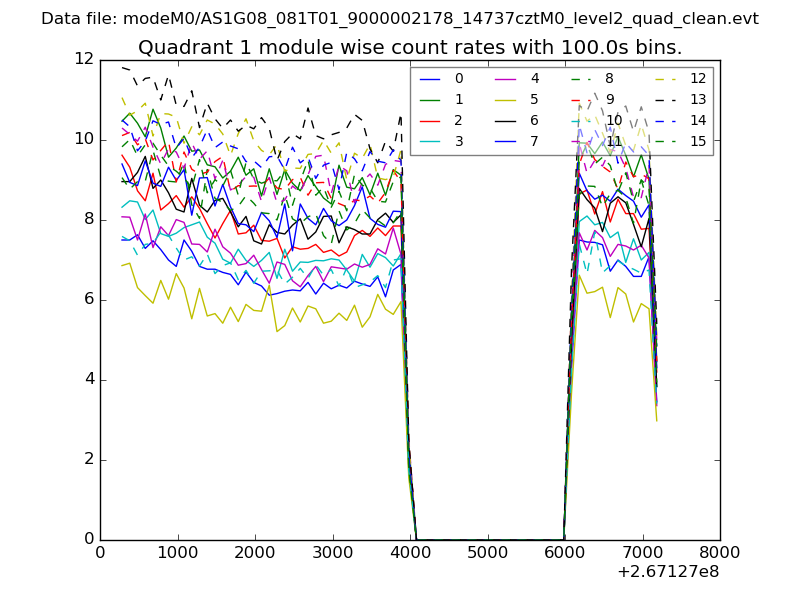

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

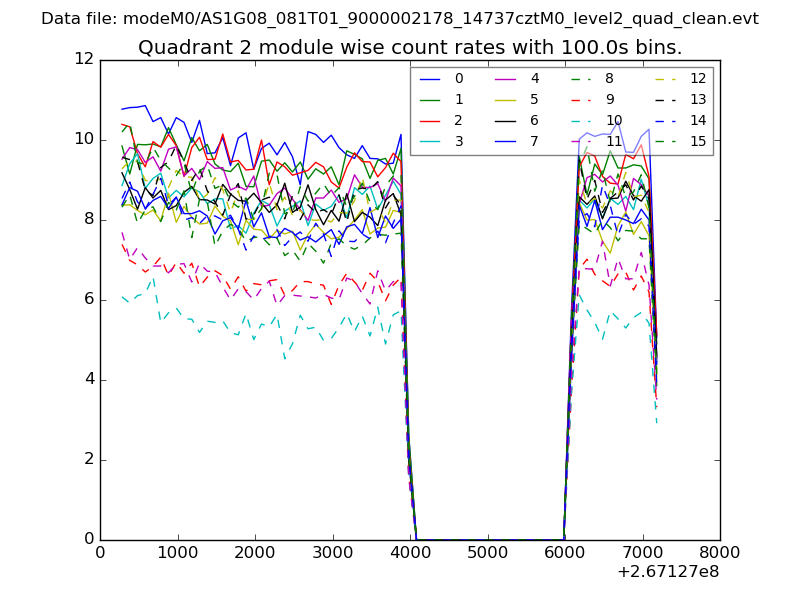

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

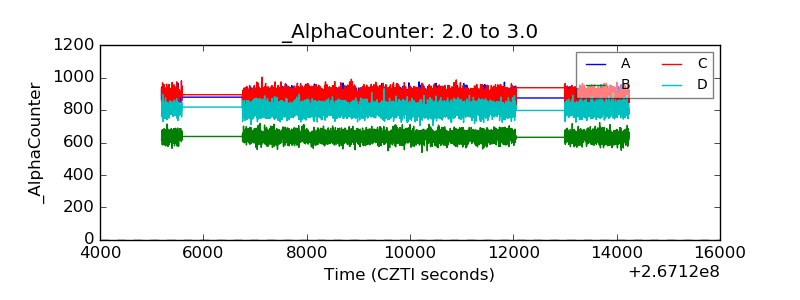

| Alpha Counter |  |

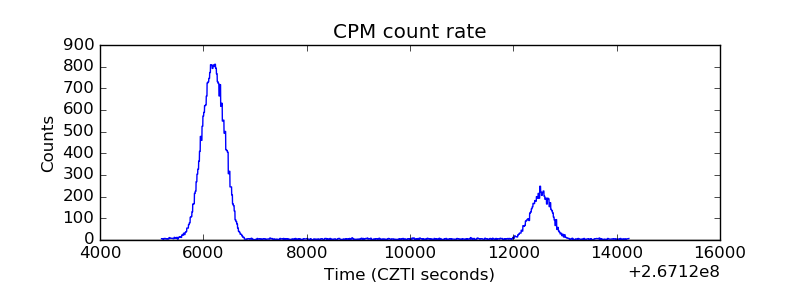

| _CPM_Rate |  |

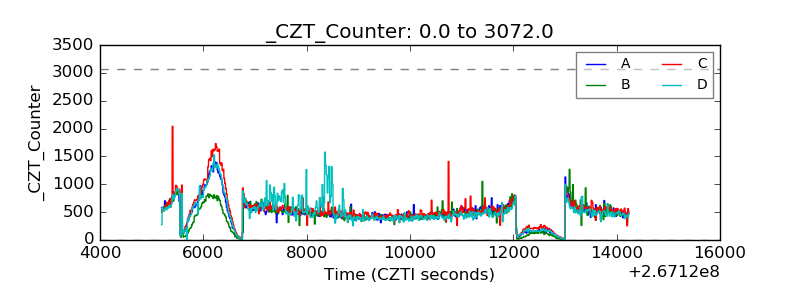

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

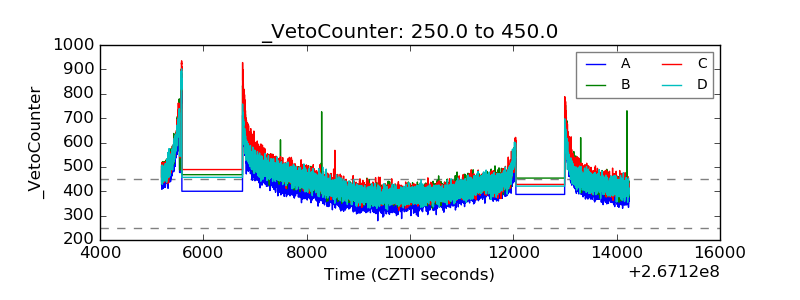

| Veto Counter |  |
