| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T06_9000002182_14762cztM0_level2.evt | modeM0/AS1A04_022T06_9000002182_14762cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,299,520 | 92,116,800 |
| Size | 455.2 MB | 87.8 MB |
| Events in quadrant A | 3,331,023 | 603,391 |
| Events in quadrant B | 3,332,079 | 599,395 |
| Events in quadrant C | 3,755,265 | 581,537 |
| Events in quadrant D | 3,617,939 | 574,505 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13568 | 2 |
| B | 0 | 13511 | 1 |
| C | 0 | 14999 | 1 |
| D | 0 | 14531 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6177 | 88 | 1.424640% |
| B | 6177 | 88 | 1.424640% |
| C | 6177 | 85 | 1.376073% |
| D | 6177 | 106 | 1.716043% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7438 | 6179 | 20 | 20 | 0.27% | 0.32% |  |
| B | 7438 | 6179 | 23 | 23 | 0.31% | 0.37% |  |
| C | 7438 | 6179 | 37 | 37 | 0.50% | 0.60% |  |
| D | 7438 | 6179 | 51 | 51 | 0.69% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 31 | 113847 | 686.56 | 816 | 799 | 164.7 |
| A | 12 | 189 | 61666 | 369.65 | 816 | 799 | 164.7 |
| A | 14 | 237 | 8884 | 49.1 | 816 | 799 | 164.7 |
| B | 0 | 205 | 73541 | 483.92 | 802 | 783 | 150.3 |
| B | 4 | 142 | 34431 | 223.79 | 802 | 783 | 150.3 |
| B | 0 | 229 | 23155 | 148.8 | 802 | 783 | 150.3 |
| C | 3 | 233 | 514619 | 2929.74 | 770 | 776 | 175.4 |
| C | 4 | 254 | 226224 | 1285.42 | 770 | 776 | 175.4 |
| C | 10 | 22 | 6079 | 30.24 | 770 | 776 | 175.4 |
| D | 5 | 222 | 484471 | 2513.98 | 782 | 762 | 192.4 |
| D | 9 | 1 | 50742 | 259.76 | 782 | 762 | 192.4 |
| D | 12 | 16 | 34926 | 177.56 | 782 | 762 | 192.4 |

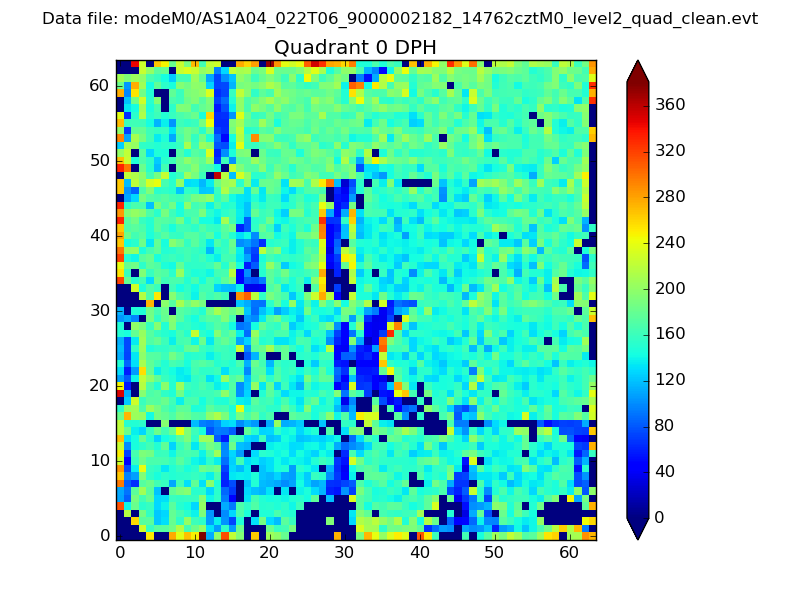

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

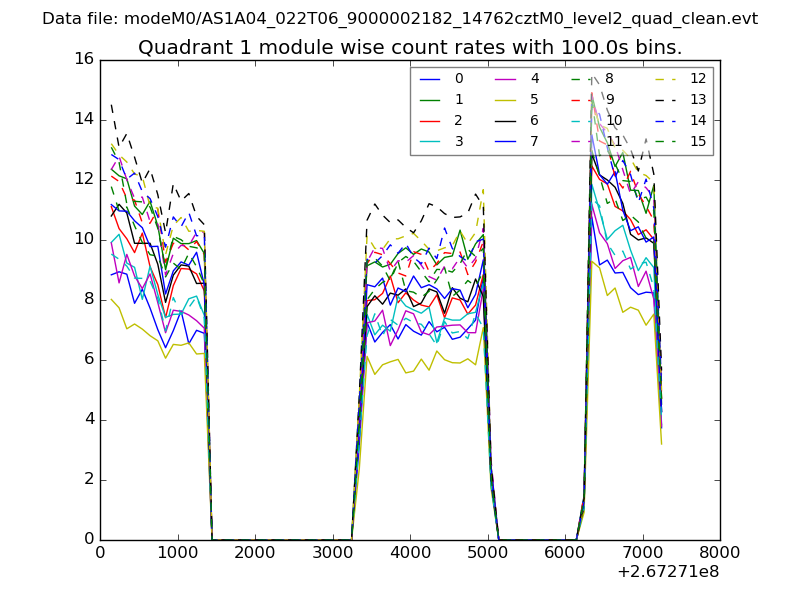

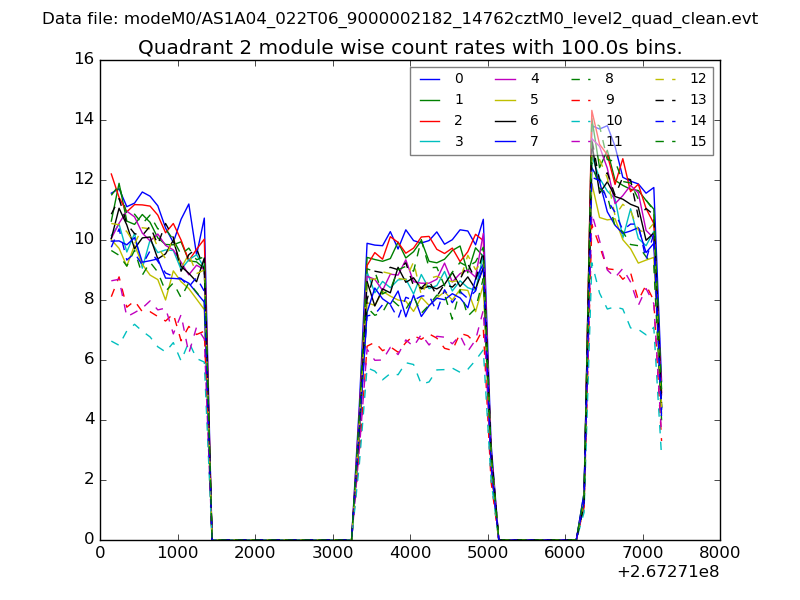

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

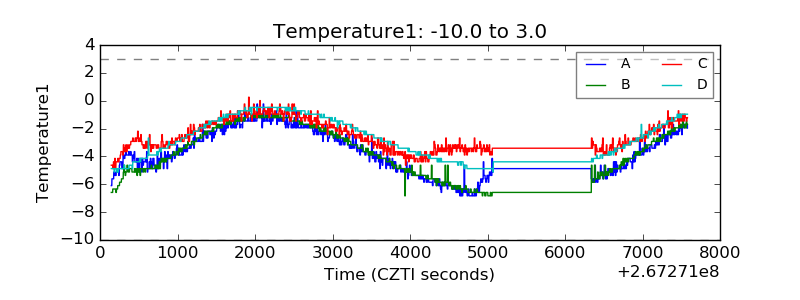

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

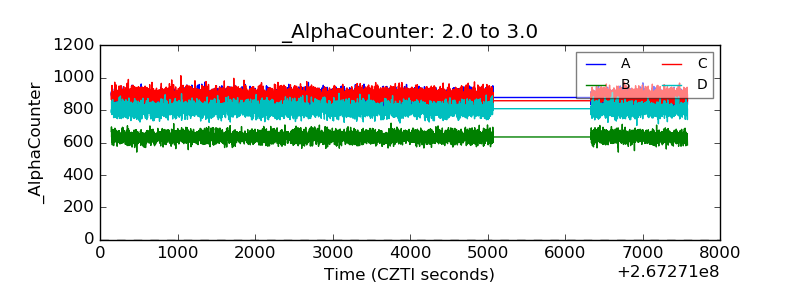

| Alpha Counter |  |

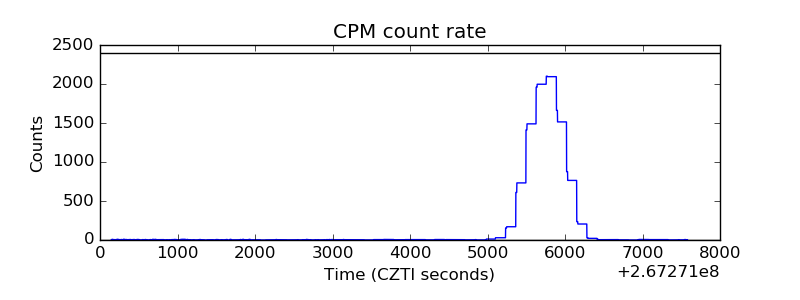

| _CPM_Rate |  |

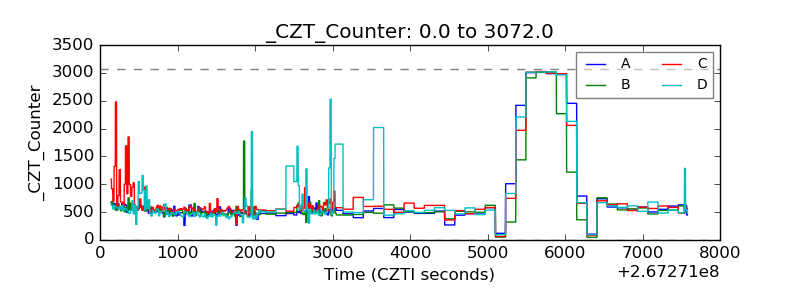

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

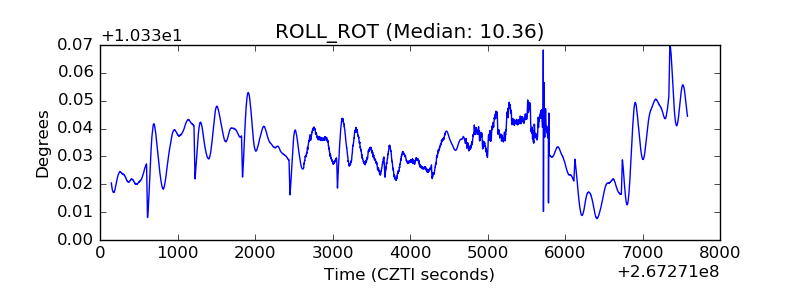

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
