| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T06_9000002182_14768cztM0_level2.evt | modeM0/AS1A04_022T06_9000002182_14768cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,178,240 | 97,439,040 |
| Size | 605.8 MB | 92.9 MB |
| Events in quadrant A | 4,789,628 | 603,347 |
| Events in quadrant B | 4,166,355 | 607,155 |
| Events in quadrant C | 5,209,118 | 590,924 |
| Events in quadrant D | 4,520,623 | 584,573 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19613 | 3 |
| B | 0 | 17663 | 2 |
| C | 0 | 20724 | 2 |
| D | 0 | 19239 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8136 | 319 | 3.920846% |
| B | 8136 | 117 | 1.438053% |
| C | 8136 | 431 | 5.297443% |
| D | 8136 | 111 | 1.364307% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

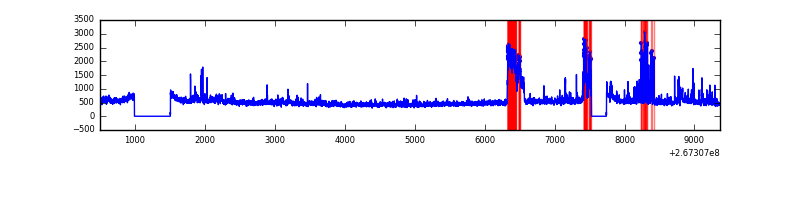

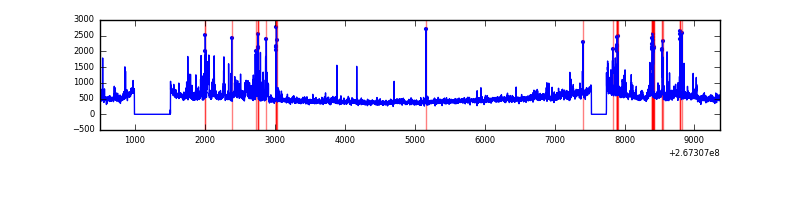

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8867 | 8139 | 151 | 151 | 1.70% | 1.86% |  |
| B | 8867 | 8139 | 4 | 4 | 0.05% | 0.05% |  |
| C | 8867 | 8139 | 232 | 232 | 2.62% | 2.85% |  |
| D | 8867 | 8139 | 43 | 43 | 0.48% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 736171 | 3659.85 | 983 | 959 | 200.9 |
| A | 12 | 189 | 172843 | 855.63 | 983 | 959 | 200.9 |
| A | 0 | 23 | 69064 | 339.02 | 983 | 959 | 200.9 |
| B | 4 | 216 | 36074 | 185.92 | 997 | 971 | 188.8 |
| B | 3 | 209 | 33697 | 173.33 | 997 | 971 | 188.8 |
| B | 0 | 229 | 31747 | 163.0 | 997 | 971 | 188.8 |
| C | 4 | 254 | 1049152 | 4827.15 | 940 | 946 | 217.1 |
| C | 3 | 233 | 374204 | 1718.91 | 940 | 946 | 217.1 |
| C | 0 | 207 | 51615 | 233.34 | 940 | 946 | 217.1 |
| D | 2 | 136 | 330885 | 1320.97 | 962 | 935 | 249.8 |
| D | 8 | 195 | 270674 | 1079.91 | 962 | 935 | 249.8 |
| D | 15 | 0 | 124518 | 494.77 | 962 | 935 | 249.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

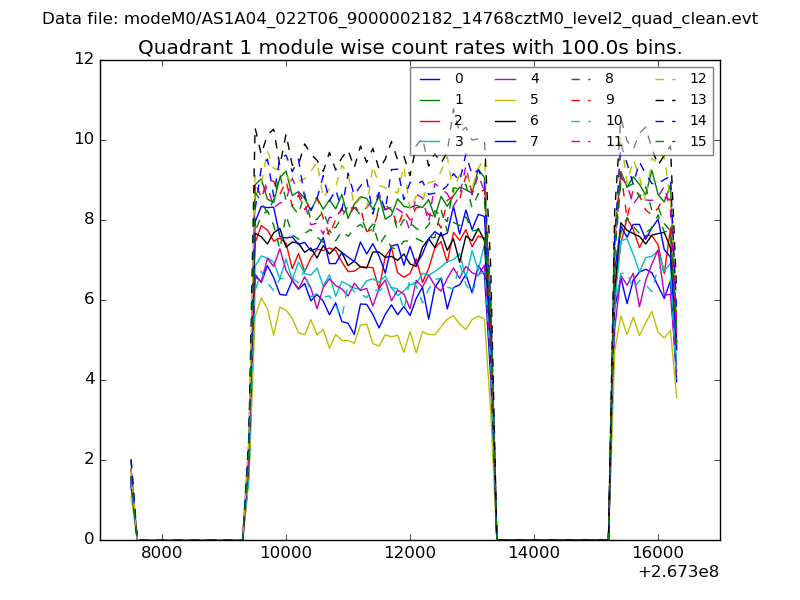

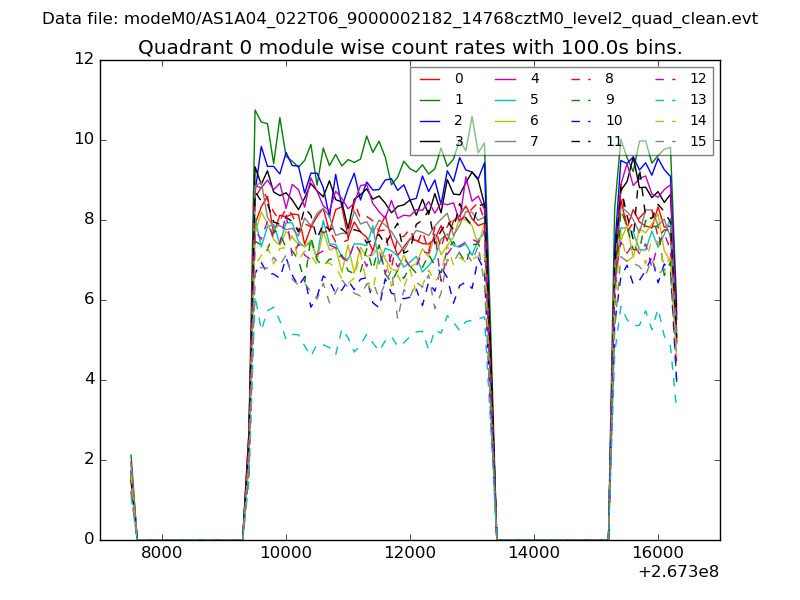

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

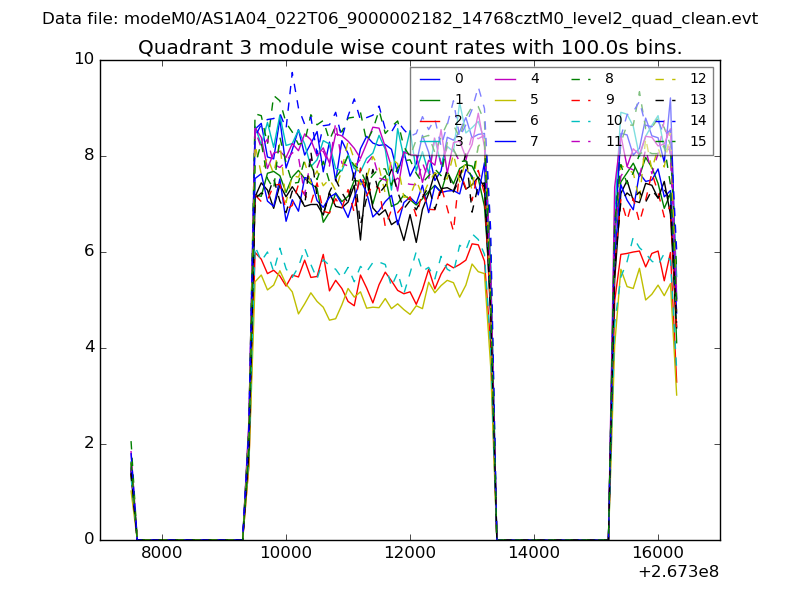

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

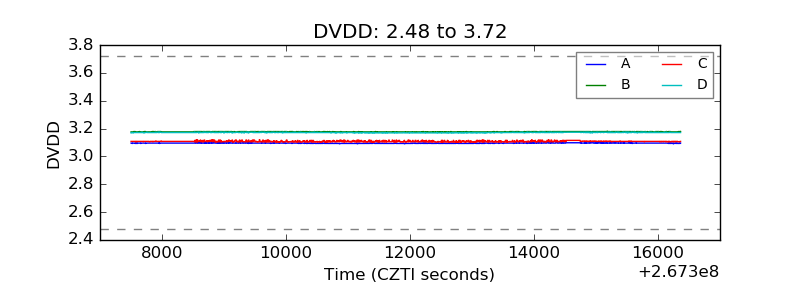

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

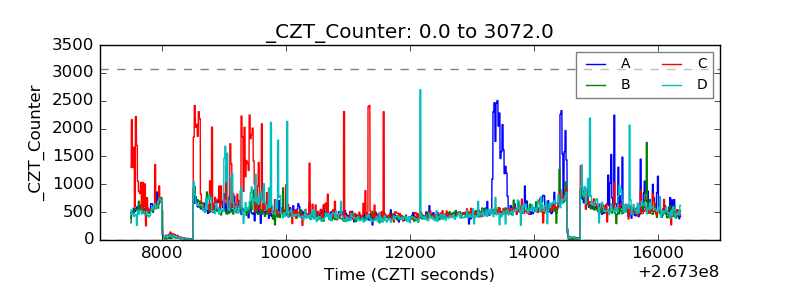

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

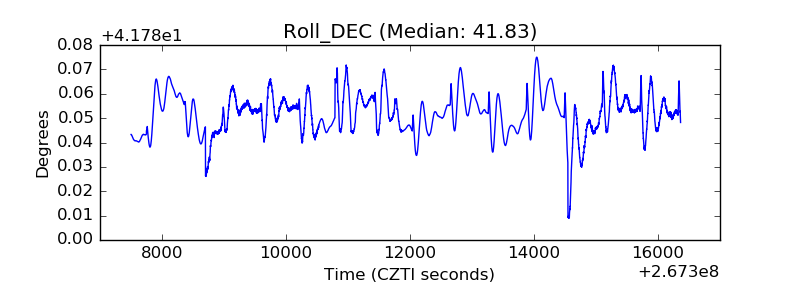

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
