| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T06_9000002182_14778cztM0_level2.evt | modeM0/AS1A04_022T06_9000002182_14778cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,962,388,800 | 339,154,560 |
| Size | 1.8 GB | 323.4 MB |
| Events in quadrant A | 13,241,946 | 2,159,197 |
| Events in quadrant B | 15,051,834 | 2,145,465 |
| Events in quadrant C | 14,344,522 | 2,110,127 |
| Events in quadrant D | 15,021,823 | 2,052,065 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 534 | 0 |
| B | 0 | 534 | 0 |
| C | 0 | 534 | 0 |
| D | 0 | 534 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 55498 | 6 |
| B | 0 | 61593 | 5 |
| C | 0 | 57836 | 5 |
| D | 0 | 61858 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 0 |
| B | 0 | 60 | 0 |
| C | 0 | 60 | 0 |
| D | 0 | 60 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 26256 | 276 | 1.051188% |
| B | 26256 | 585 | 2.228062% |
| C | 26256 | 201 | 0.765539% |
| D | 26256 | 656 | 2.498477% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32237 | 26262 | 7 | 7 | 0.02% | 0.03% |  |
| B | 32237 | 26262 | 175 | 175 | 0.54% | 0.67% |  |
| C | 32237 | 26262 | 21 | 21 | 0.07% | 0.08% |  |
| D | 32237 | 26262 | 452 | 452 | 1.40% | 1.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 341774 | 511.64 | 3326 | 3263 | 661.6 |
| A | 9 | 143 | 37777 | 52.17 | 3326 | 3263 | 661.6 |
| A | 0 | 226 | 29871 | 40.22 | 3326 | 3263 | 661.6 |
| B | 3 | 64 | 782180 | 1288.1 | 3272 | 3200 | 604.8 |
| B | 0 | 219 | 512605 | 842.34 | 3272 | 3200 | 604.8 |
| B | 0 | 228 | 387723 | 635.84 | 3272 | 3200 | 604.8 |
| C | 3 | 233 | 1767423 | 2461.2 | 3167 | 3189 | 716.8 |
| C | 4 | 254 | 153616 | 209.85 | 3167 | 3189 | 716.8 |
| C | 0 | 207 | 79316 | 106.2 | 3167 | 3189 | 716.8 |
| D | 5 | 222 | 2115191 | 2539.76 | 3174 | 3108 | 831.6 |
| D | 15 | 0 | 331012 | 394.3 | 3174 | 3108 | 831.6 |
| D | 2 | 120 | 134801 | 158.36 | 3174 | 3108 | 831.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

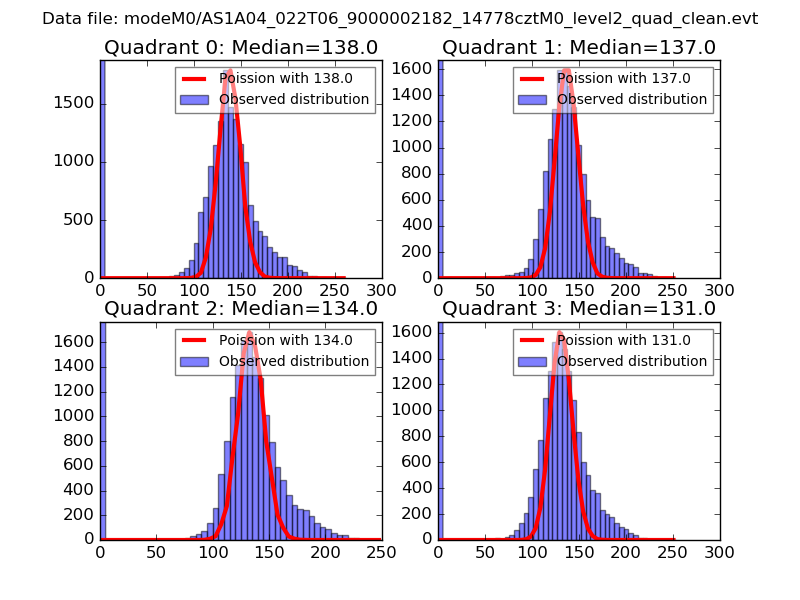

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

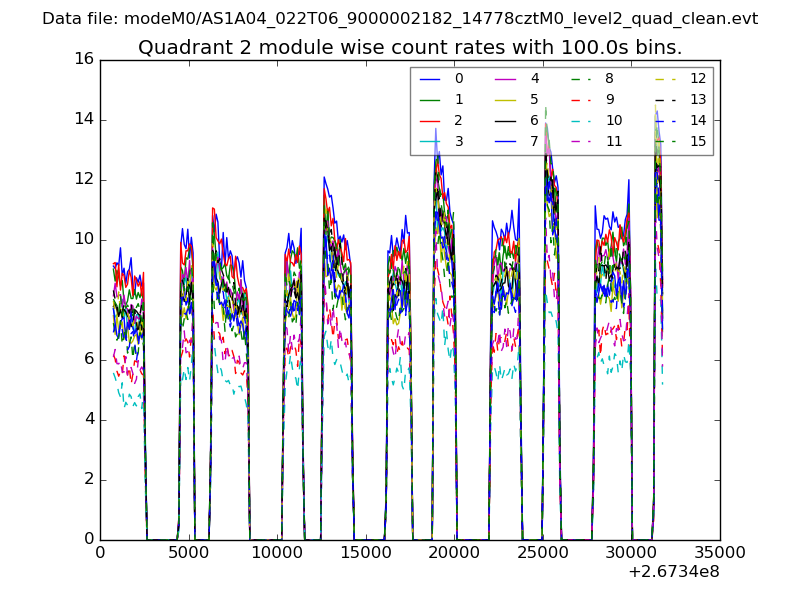

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

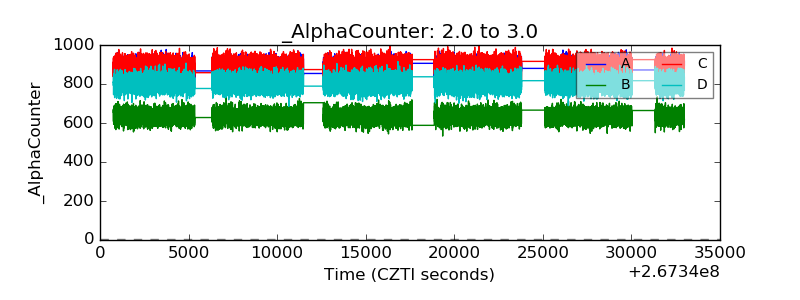

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

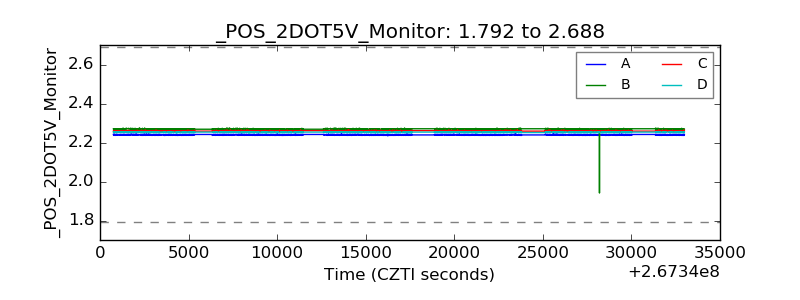

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

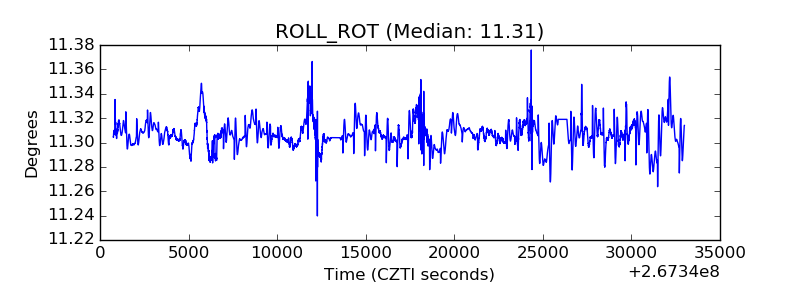

| _ROLL_ROT |  |
| _Roll_DEC |  |

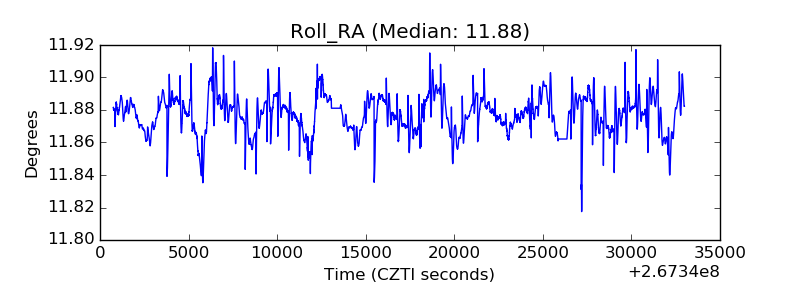

| _Roll_RA |  |
| Veto Counter |  |
