| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T02_9000002184_14784cztM0_level2.evt | modeM0/AS1A04_022T02_9000002184_14784cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,216,960 | 103,409,280 |
| Size | 543.8 MB | 98.6 MB |
| Events in quadrant A | 3,897,373 | 659,868 |
| Events in quadrant B | 4,412,072 | 659,861 |
| Events in quadrant C | 4,823,530 | 649,537 |
| Events in quadrant D | 3,625,520 | 638,472 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16507 | 3 |
| B | 0 | 18123 | 2 |
| C | 0 | 19531 | 2 |
| D | 0 | 16233 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7535 | 49 | 0.650299% |
| B | 7535 | 238 | 3.158593% |
| C | 7535 | 91 | 1.207697% |
| D | 7535 | 65 | 0.862641% |

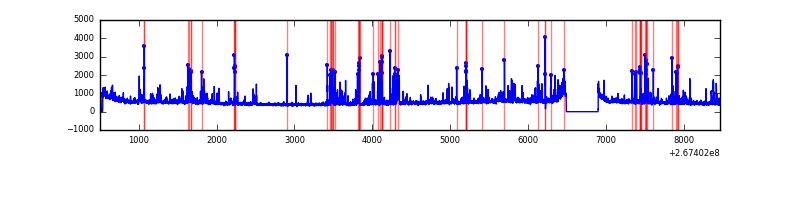

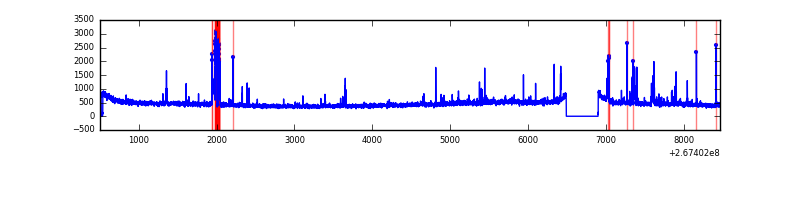

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7966 | 7538 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7966 | 7538 | 69 | 69 | 0.87% | 0.92% |  |
| C | 7966 | 7538 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7966 | 7538 | 36 | 36 | 0.45% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 281616 | 1521.58 | 901 | 880 | 184.5 |
| A | 12 | 189 | 100703 | 541.04 | 901 | 880 | 184.5 |
| A | 0 | 226 | 25607 | 134.02 | 901 | 880 | 184.5 |
| B | 3 | 64 | 490247 | 2850.5 | 899 | 875 | 171.7 |
| B | 10 | 16 | 171379 | 993.15 | 899 | 875 | 171.7 |
| B | 0 | 219 | 47909 | 273.96 | 899 | 875 | 171.7 |
| C | 3 | 233 | 1365726 | 6759.04 | 874 | 880 | 201.9 |
| C | 3 | 232 | 22674 | 107.93 | 874 | 880 | 201.9 |
| C | 3 | 234 | 15644 | 73.11 | 874 | 880 | 201.9 |
| D | 15 | 0 | 196427 | 909.15 | 878 | 852 | 215.1 |
| D | 2 | 234 | 30391 | 137.32 | 878 | 852 | 215.1 |
| D | 9 | 85 | 27547 | 124.09 | 878 | 852 | 215.1 |

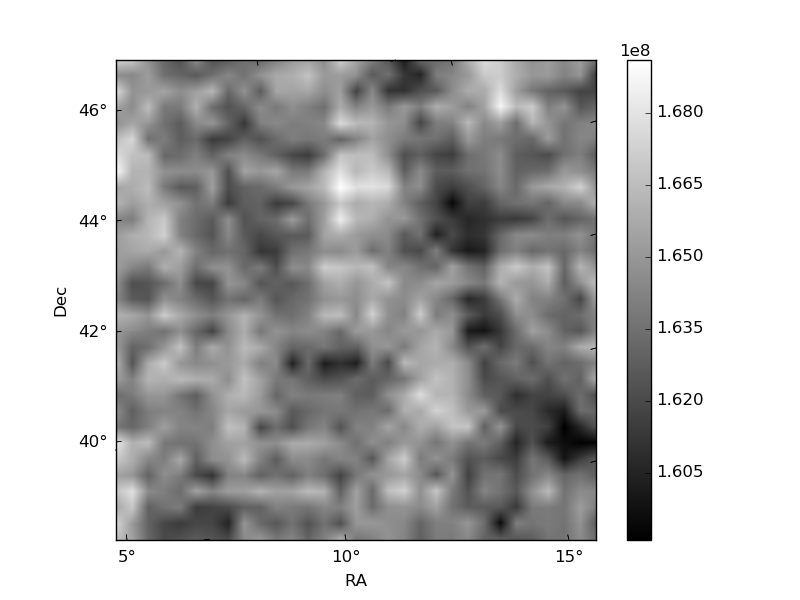

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

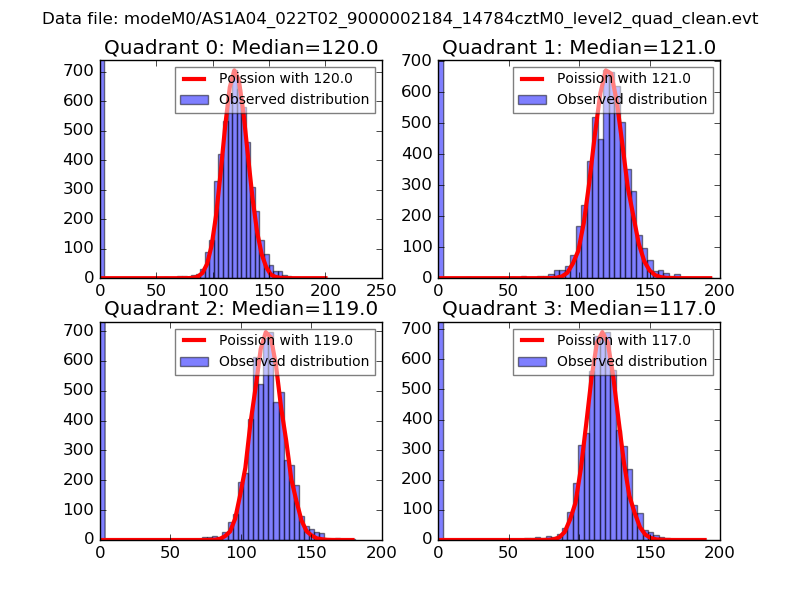

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

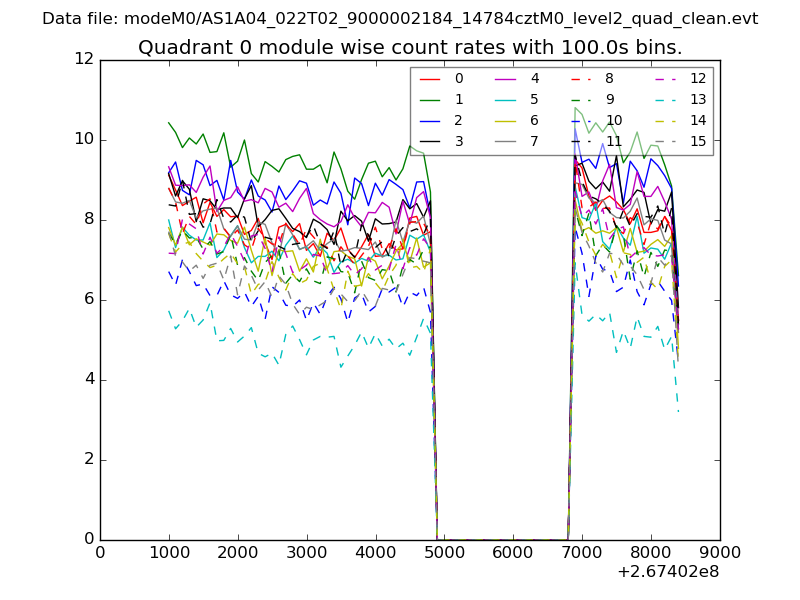

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

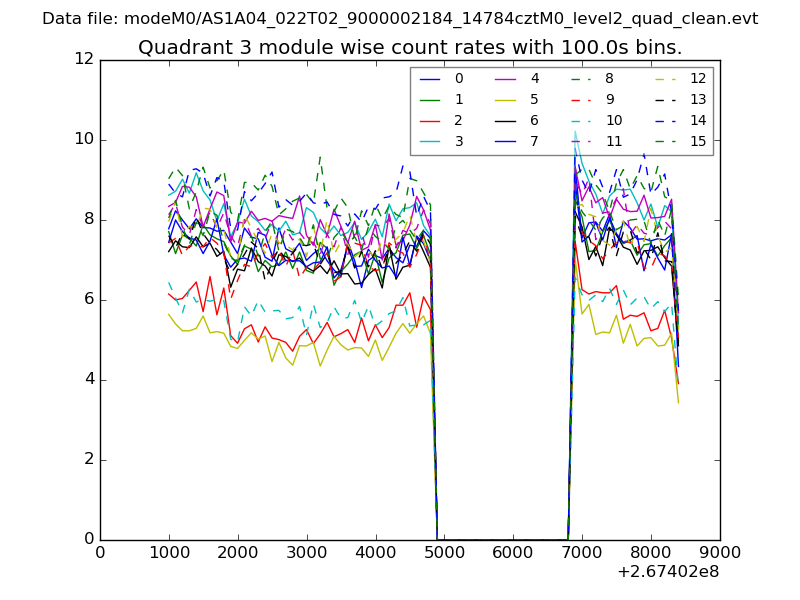

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

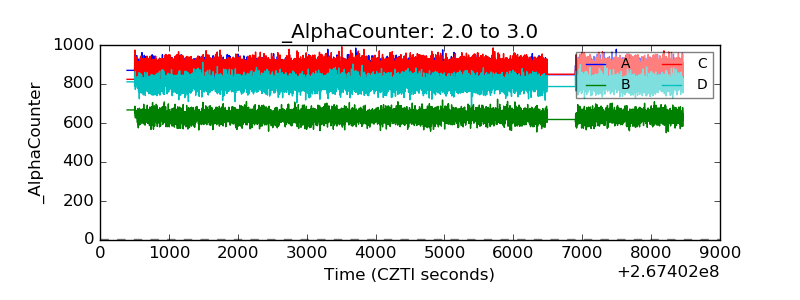

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

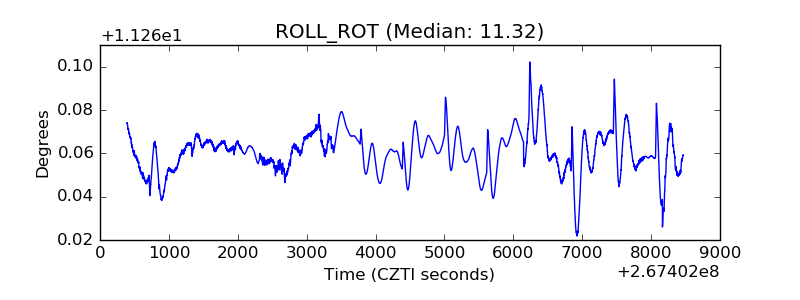

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
