| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T02_9000002184_14798cztM0_level2.evt | modeM0/AS1A04_022T02_9000002184_14798cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,354,880 | 100,431,360 |
| Size | 540.1 MB | 95.8 MB |
| Events in quadrant A | 3,854,610 | 631,594 |
| Events in quadrant B | 4,001,509 | 630,325 |
| Events in quadrant C | 4,804,069 | 614,296 |
| Events in quadrant D | 3,946,828 | 606,796 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16867 | 3 |
| B | 0 | 17104 | 2 |
| C | 0 | 19557 | 2 |
| D | 0 | 17380 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8029 | 68 | 0.846930% |
| B | 8029 | 91 | 1.133391% |
| C | 8029 | 138 | 1.718769% |
| D | 8029 | 88 | 1.096027% |

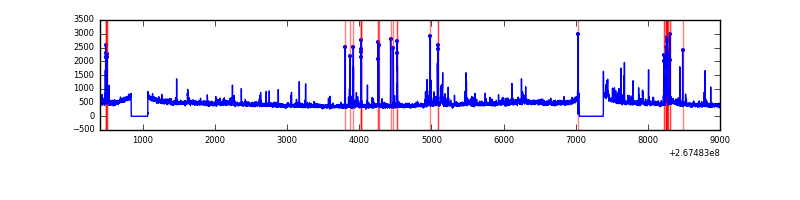

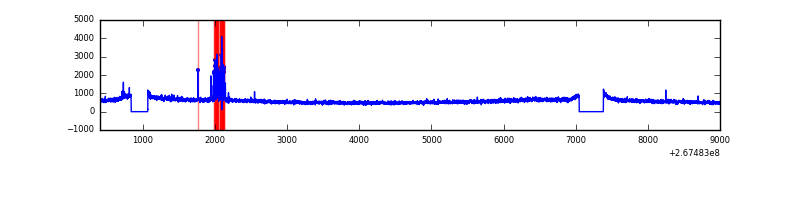

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8595 | 8032 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8595 | 8032 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8595 | 8032 | 47 | 47 | 0.55% | 0.59% |  |
| D | 8595 | 8032 | 42 | 42 | 0.49% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 67477 | 336.77 | 969 | 947 | 197.6 |
| A | 9 | 143 | 14781 | 70.03 | 969 | 947 | 197.6 |
| A | 15 | 223 | 14319 | 67.69 | 969 | 947 | 197.6 |
| B | 0 | 219 | 33926 | 180.34 | 967 | 940 | 182.9 |
| B | 0 | 229 | 31565 | 167.44 | 967 | 940 | 182.9 |
| B | 0 | 228 | 30322 | 160.64 | 967 | 940 | 182.9 |
| C | 3 | 233 | 950860 | 4380.86 | 933 | 936 | 216.8 |
| C | 4 | 254 | 179343 | 822.78 | 933 | 936 | 216.8 |
| C | 3 | 232 | 11036 | 46.58 | 933 | 936 | 216.8 |
| D | 10 | 70 | 154515 | 615.9 | 933 | 912 | 249.4 |
| D | 15 | 0 | 115709 | 460.3 | 933 | 912 | 249.4 |
| D | 2 | 234 | 36669 | 143.37 | 933 | 912 | 249.4 |

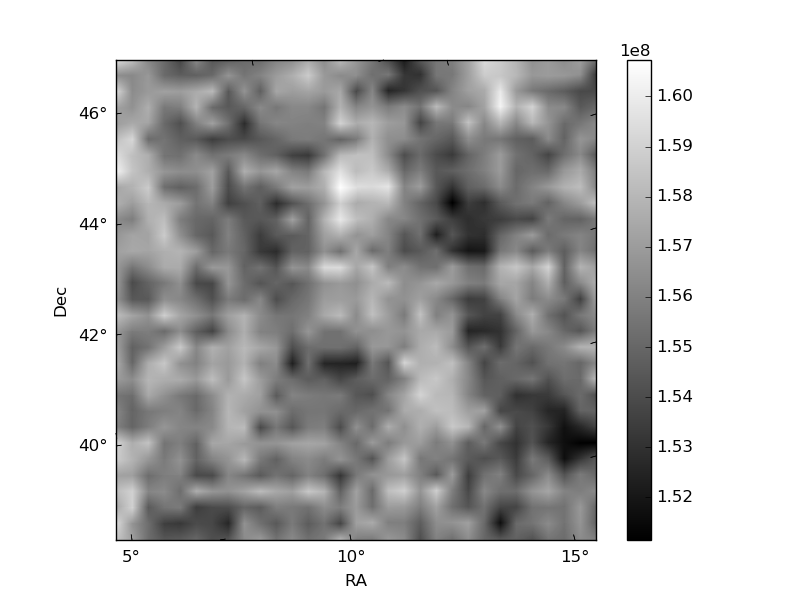

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

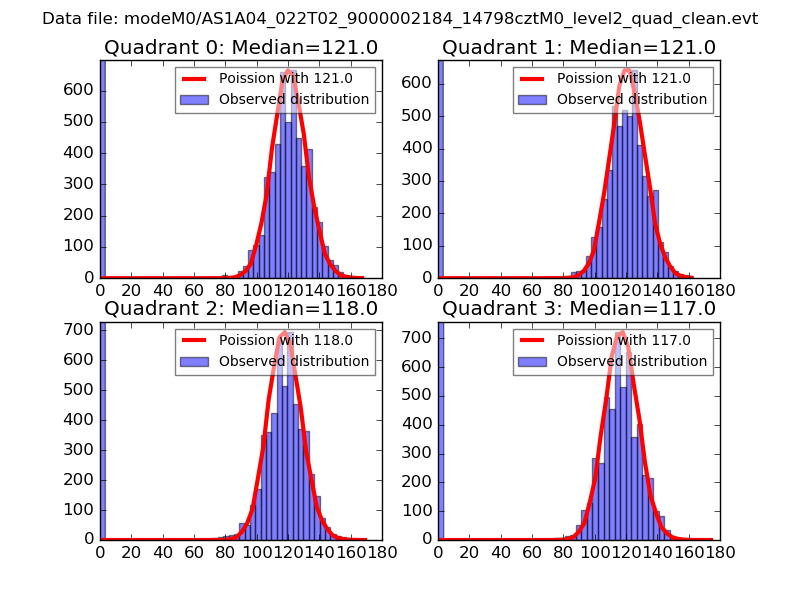

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

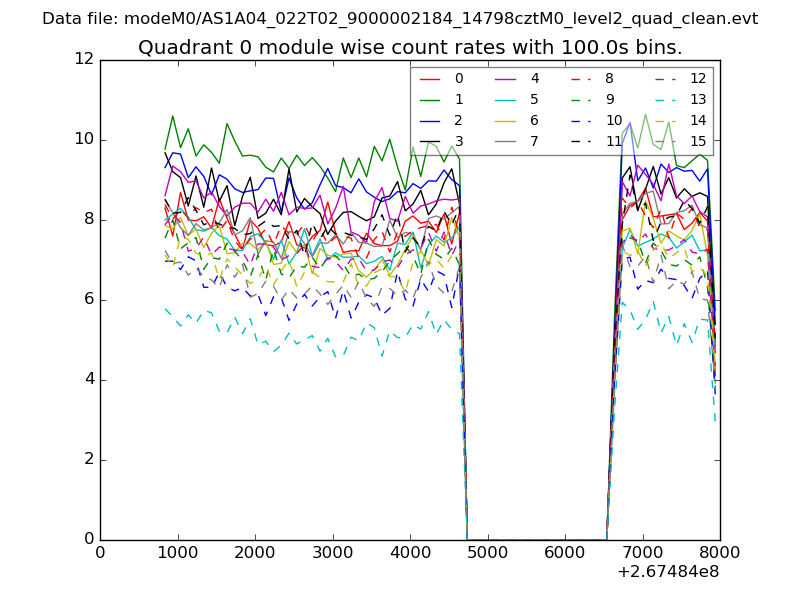

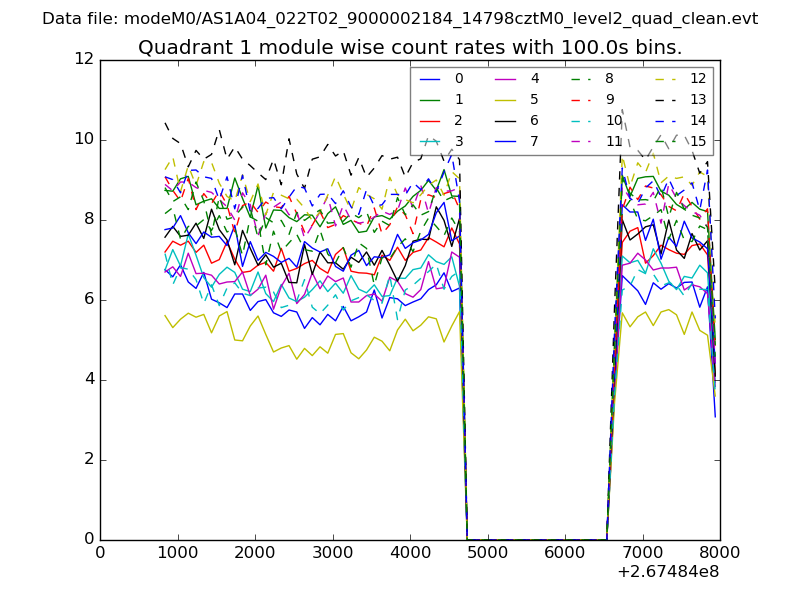

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

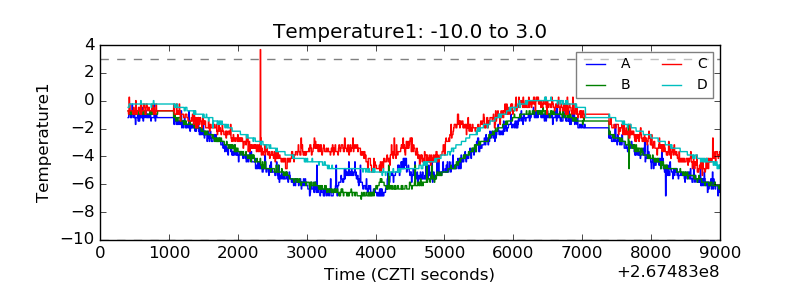

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

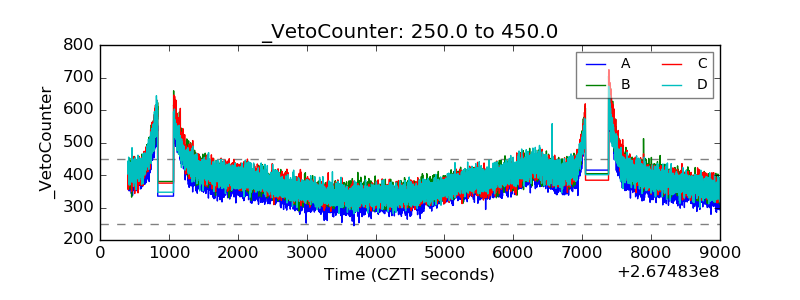

| Veto Counter |  |
