| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T03_9000002186_14807cztM0_level2.evt | modeM0/AS1A04_130T03_9000002186_14807cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,978,240 | 66,052,800 |
| Size | 478.7 MB | 63.0 MB |
| Events in quadrant A | 3,550,577 | 401,629 |
| Events in quadrant B | 3,759,168 | 393,454 |
| Events in quadrant C | 3,985,337 | 377,655 |
| Events in quadrant D | 3,474,149 | 381,326 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14507 | 3 |
| B | 0 | 15296 | 2 |
| C | 0 | 16333 | 2 |
| D | 0 | 14245 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6382 | 105 | 1.645252% |
| B | 6382 | 127 | 1.989972% |
| C | 6382 | 80 | 1.253526% |
| D | 6382 | 98 | 1.535569% |

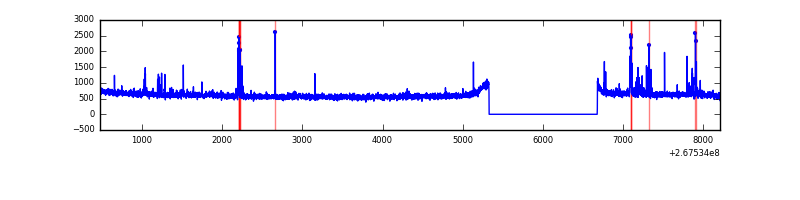

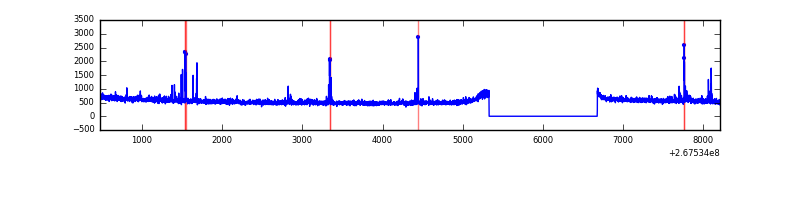

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7733 | 6384 | 8 | 8 | 0.10% | 0.13% |  |
| B | 7733 | 6384 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7733 | 6384 | 13 | 13 | 0.17% | 0.20% |  |
| D | 7733 | 6384 | 19 | 19 | 0.25% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 56731 | 315.24 | 886 | 869 | 177.2 |
| A | 14 | 237 | 48437 | 268.44 | 886 | 869 | 177.2 |
| A | 4 | 2 | 29354 | 160.75 | 886 | 869 | 177.2 |
| B | 0 | 219 | 129555 | 793.65 | 874 | 855 | 162.2 |
| B | 3 | 64 | 91333 | 557.95 | 874 | 855 | 162.2 |
| B | 0 | 229 | 39304 | 237.1 | 874 | 855 | 162.2 |
| C | 3 | 233 | 595678 | 3121.77 | 836 | 841 | 190.5 |
| C | 0 | 207 | 124347 | 648.17 | 836 | 841 | 190.5 |
| C | 14 | 234 | 6285 | 28.57 | 836 | 841 | 190.5 |
| D | 12 | 110 | 54567 | 270.61 | 849 | 832 | 198.6 |
| D | 10 | 199 | 39671 | 195.59 | 849 | 832 | 198.6 |
| D | 13 | 249 | 37911 | 186.73 | 849 | 832 | 198.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

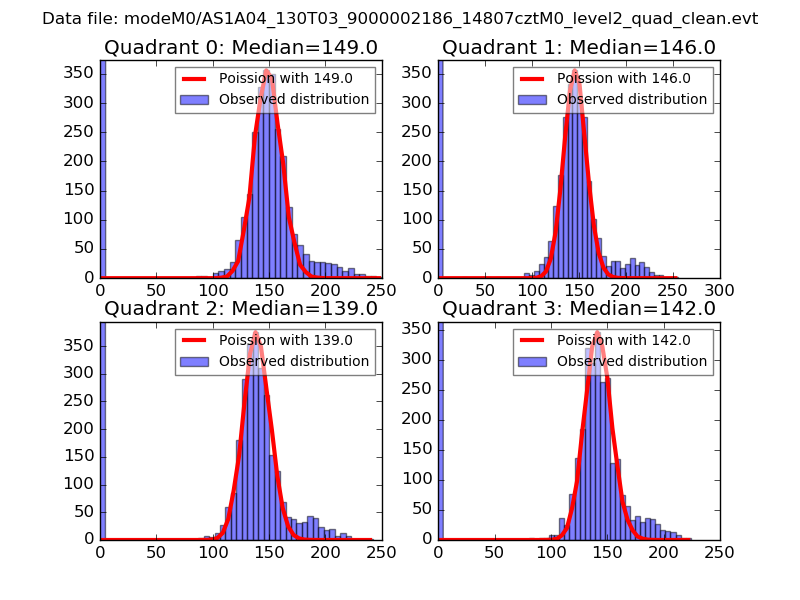

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

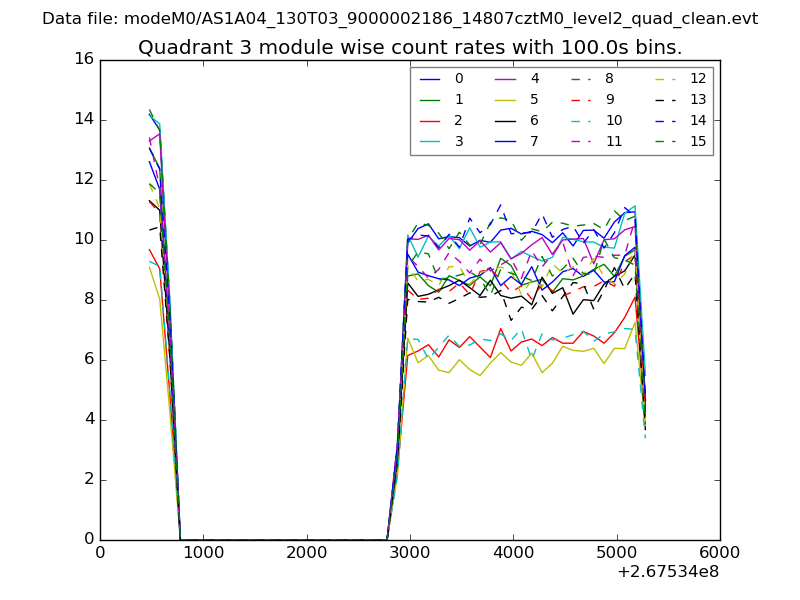

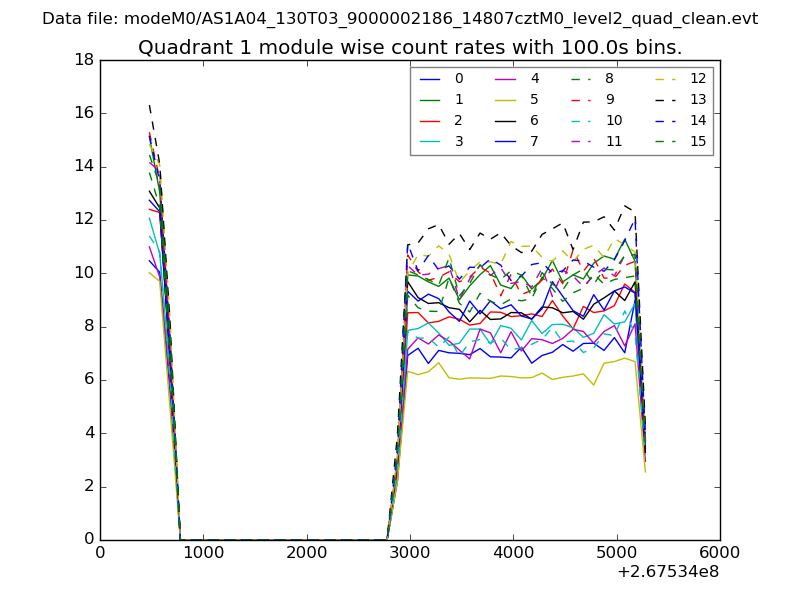

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

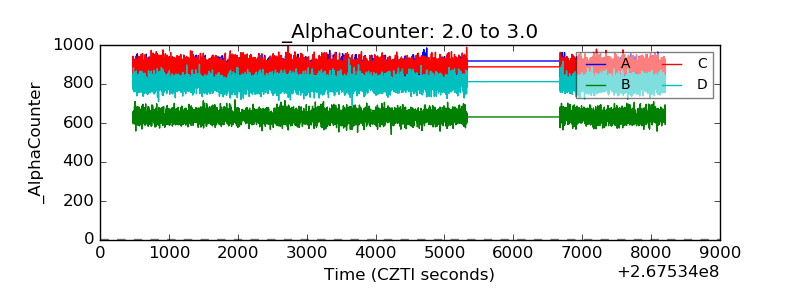

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

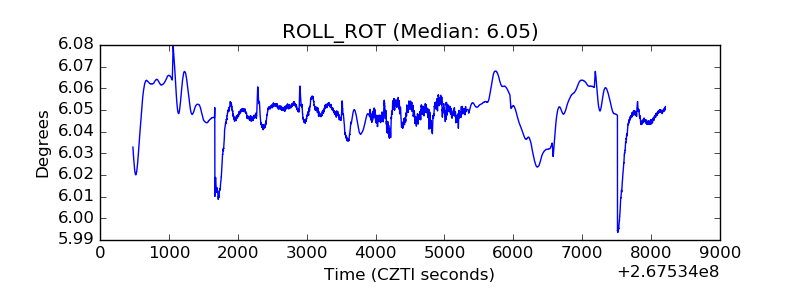

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

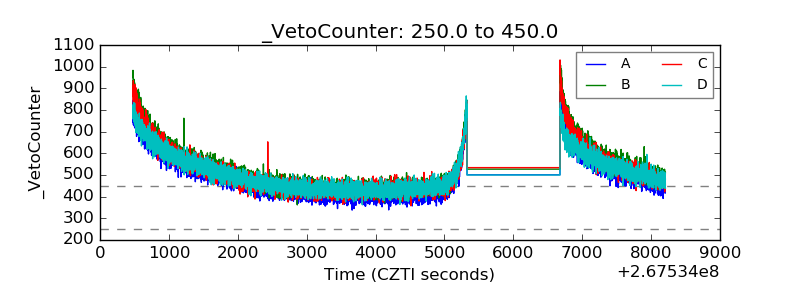

| Veto Counter |  |
