| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T03_9000002186_14808cztM0_level2.evt | modeM0/AS1A04_130T03_9000002186_14808cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,354,880 | 67,677,120 |
| Size | 462.9 MB | 64.5 MB |
| Events in quadrant A | 3,414,291 | 414,932 |
| Events in quadrant B | 3,592,680 | 409,905 |
| Events in quadrant C | 3,867,903 | 391,426 |
| Events in quadrant D | 3,395,369 | 392,010 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13937 | 3 |
| B | 0 | 14502 | 2 |
| C | 0 | 15833 | 2 |
| D | 0 | 14043 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6317 | 122 | 1.931297% |
| B | 6317 | 159 | 2.517018% |
| C | 6317 | 104 | 1.646351% |
| D | 6317 | 117 | 1.852145% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7603 | 6319 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7603 | 6319 | 15 | 15 | 0.20% | 0.24% |  |
| C | 7603 | 6319 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7603 | 6319 | 27 | 27 | 0.36% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 44870 | 252.94 | 864 | 847 | 174.0 |
| A | 4 | 2 | 39949 | 224.66 | 864 | 847 | 174.0 |
| A | 0 | 226 | 7881 | 40.41 | 864 | 847 | 174.0 |
| B | 3 | 64 | 82517 | 512.05 | 856 | 837 | 159.5 |
| B | 15 | 35 | 30796 | 187.81 | 856 | 837 | 159.5 |
| B | 4 | 173 | 29814 | 181.66 | 856 | 837 | 159.5 |
| C | 3 | 233 | 596821 | 3221.1 | 816 | 823 | 185.0 |
| C | 0 | 207 | 80276 | 429.41 | 816 | 823 | 185.0 |
| C | 13 | 61 | 5830 | 27.06 | 816 | 823 | 185.0 |
| D | 10 | 199 | 79984 | 403.42 | 827 | 808 | 196.3 |
| D | 12 | 110 | 50698 | 254.2 | 827 | 808 | 196.3 |
| D | 10 | 70 | 40852 | 204.03 | 827 | 808 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

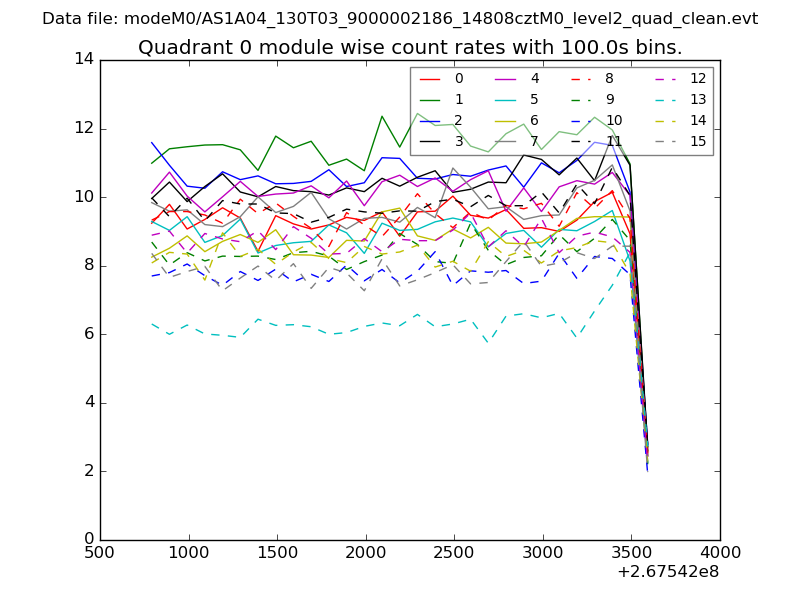

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

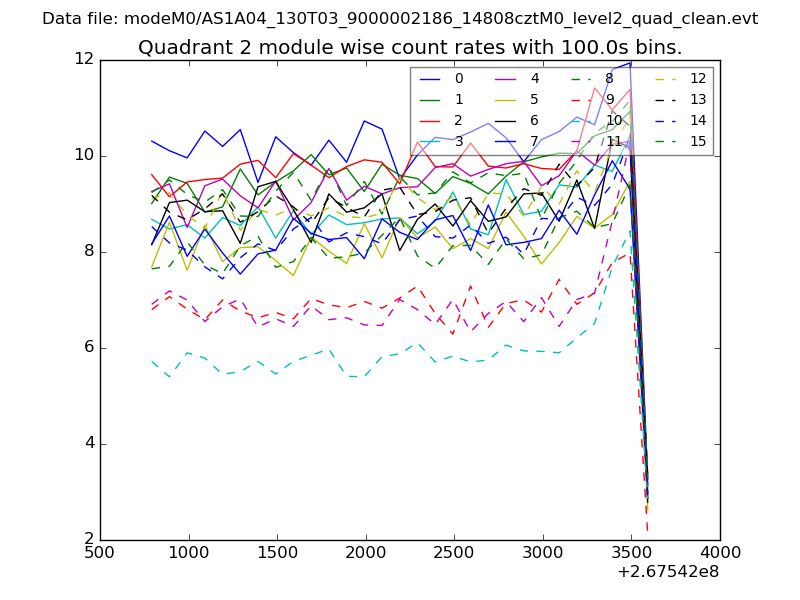

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

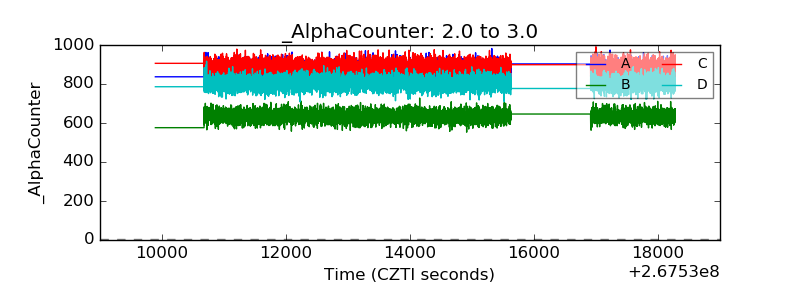

| Alpha Counter |  |
| _CPM_Rate |  |

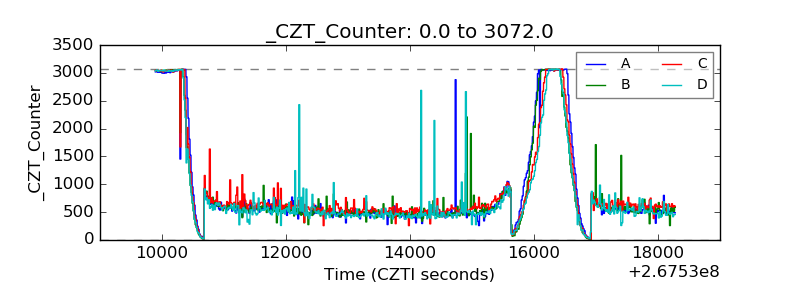

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

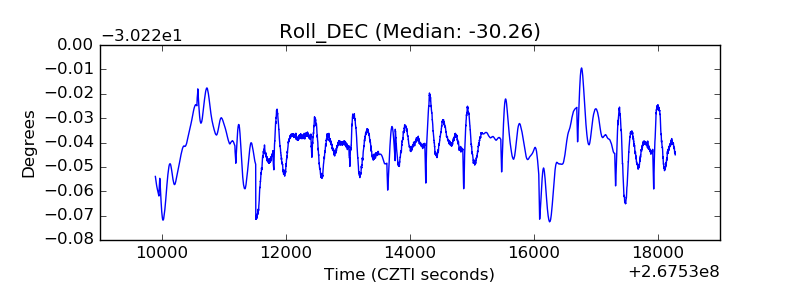

| _Roll_DEC |  |

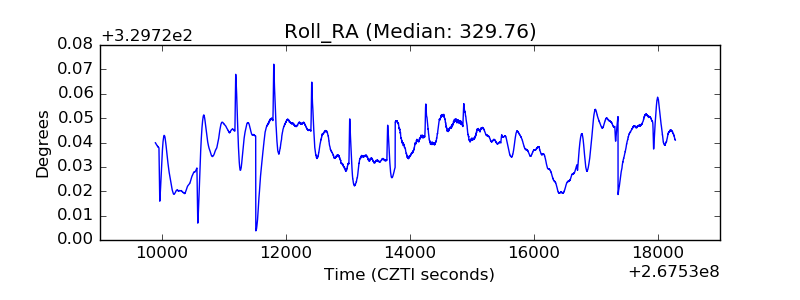

| _Roll_RA |  |
| Veto Counter |  |
