| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_010T02_9000002188_14820cztM0_level2.evt | modeM0/AS1G08_010T02_9000002188_14820cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,183,040 | 96,560,640 |
| Size | 499.9 MB | 92.1 MB |
| Events in quadrant A | 3,537,610 | 644,436 |
| Events in quadrant B | 3,684,721 | 637,011 |
| Events in quadrant C | 3,476,320 | 621,558 |
| Events in quadrant D | 4,746,073 | 578,520 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14581 | 3 |
| B | 0 | 15093 | 2 |
| C | 0 | 14390 | 2 |
| D | 0 | 18226 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6345 | 98 | 1.544523% |
| B | 6345 | 145 | 2.285264% |
| C | 6345 | 81 | 1.276596% |
| D | 6345 | 636 | 10.023641% |

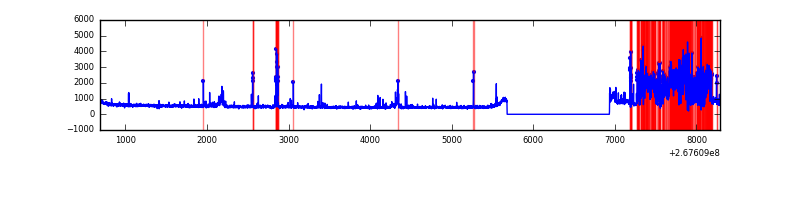

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7601 | 6347 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7601 | 6347 | 28 | 28 | 0.37% | 0.44% |  |
| C | 7601 | 6347 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7601 | 6347 | 435 | 435 | 5.72% | 6.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 139241 | 783.01 | 882 | 865 | 176.7 |
| A | 9 | 143 | 11097 | 57.9 | 882 | 865 | 176.7 |
| A | 0 | 226 | 8024 | 40.51 | 882 | 865 | 176.7 |
| B | 3 | 64 | 93989 | 574.8 | 861 | 845 | 162.0 |
| B | 0 | 189 | 87067 | 532.08 | 861 | 845 | 162.0 |
| B | 0 | 229 | 30590 | 183.56 | 861 | 845 | 162.0 |
| C | 3 | 233 | 201001 | 1039.39 | 840 | 847 | 192.6 |
| C | 13 | 61 | 5980 | 26.66 | 840 | 847 | 192.6 |
| C | 7 | 247 | 2267 | 7.37 | 840 | 847 | 192.6 |
| D | 7 | 254 | 1489889 | 7544.54 | 818 | 799 | 197.4 |
| D | 10 | 70 | 48264 | 240.48 | 818 | 799 | 197.4 |
| D | 13 | 104 | 34041 | 168.42 | 818 | 799 | 197.4 |

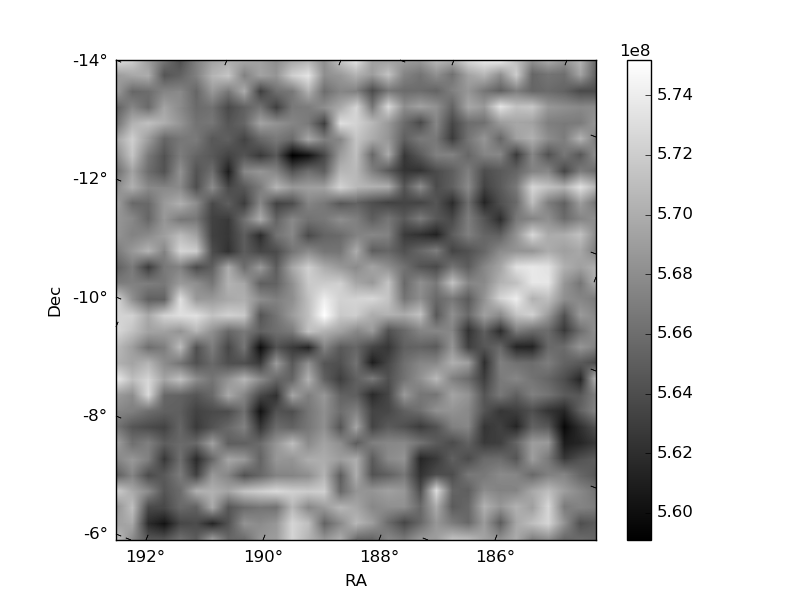

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

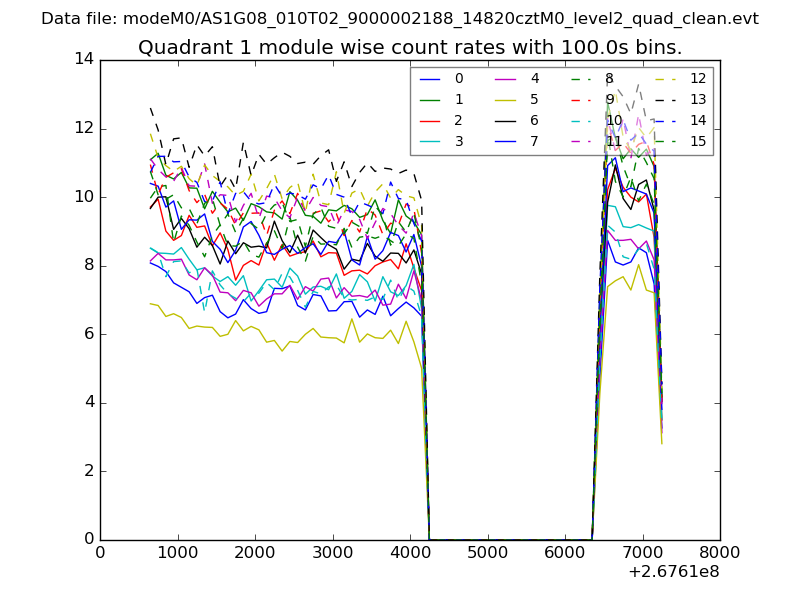

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

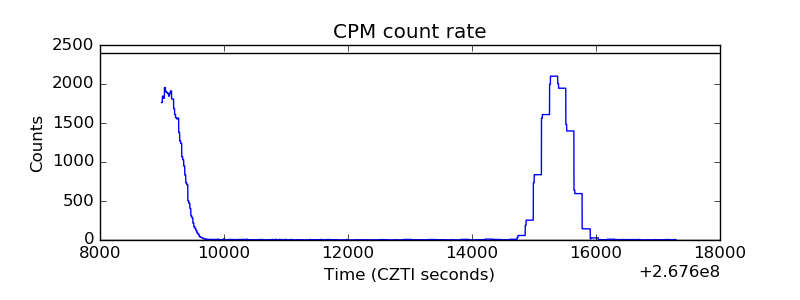

| _CPM_Rate |  |

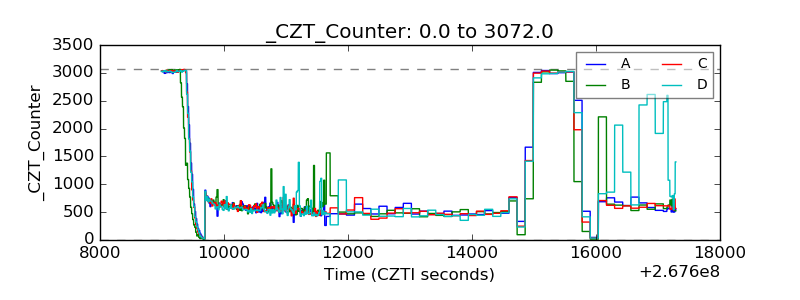

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

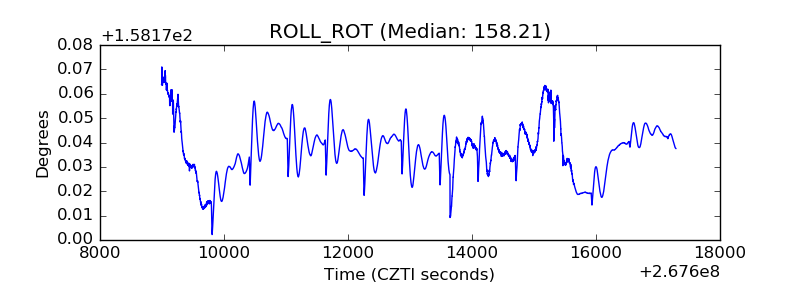

| _ROLL_ROT |  |
| _Roll_DEC |  |

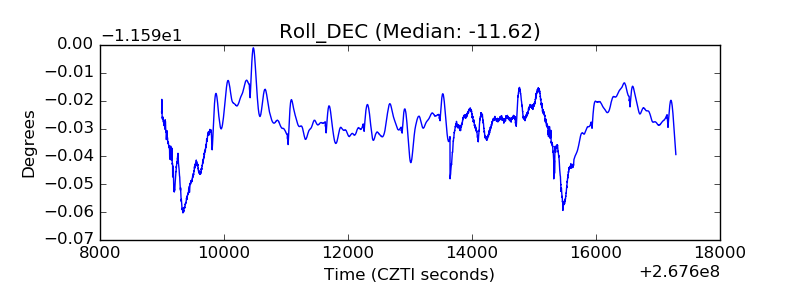

| _Roll_RA |  |

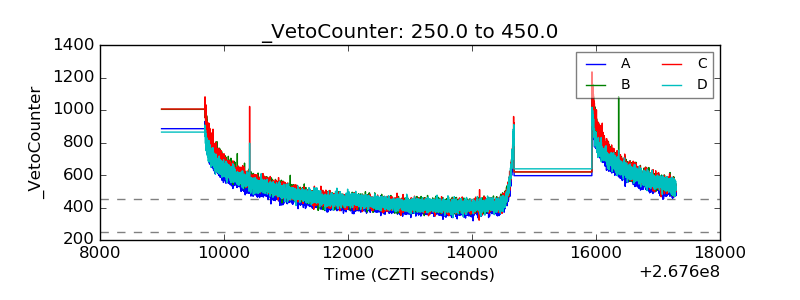

| Veto Counter |  |
