| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_005T02_9000002192_14837cztM0_level2.evt | modeM0/AS1C03_005T02_9000002192_14837cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,439,040 | 101,473,920 |
| Size | 444.8 MB | 96.8 MB |
| Events in quadrant A | 3,202,298 | 671,667 |
| Events in quadrant B | 3,487,565 | 668,529 |
| Events in quadrant C | 3,268,249 | 654,337 |
| Events in quadrant D | 3,742,238 | 640,903 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13327 | 2 |
| B | 0 | 14241 | 1 |
| C | 0 | 13338 | 1 |
| D | 0 | 15240 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6278 | 60 | 0.955718% |
| B | 6278 | 81 | 1.290220% |
| C | 6278 | 28 | 0.446002% |
| D | 6278 | 178 | 2.835298% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7584 | 6280 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7584 | 6280 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7584 | 6280 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7584 | 6280 | 116 | 116 | 1.53% | 1.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 63903 | 396.83 | 806 | 790 | 159.0 |
| A | 9 | 143 | 26610 | 162.35 | 806 | 790 | 159.0 |
| A | 13 | 248 | 11384 | 66.61 | 806 | 790 | 159.0 |
| B | 3 | 64 | 135592 | 915.78 | 792 | 774 | 147.2 |
| B | 0 | 189 | 56670 | 379.68 | 792 | 774 | 147.2 |
| B | 0 | 245 | 52357 | 350.39 | 792 | 774 | 147.2 |
| C | 3 | 233 | 254695 | 1453.87 | 767 | 769 | 174.7 |
| C | 8 | 128 | 9969 | 52.67 | 767 | 769 | 174.7 |
| C | 7 | 220 | 7387 | 37.89 | 767 | 769 | 174.7 |
| D | 7 | 254 | 323457 | 1685.71 | 767 | 747 | 191.4 |
| D | 13 | 104 | 245322 | 1277.56 | 767 | 747 | 191.4 |
| D | 2 | 120 | 99766 | 517.24 | 767 | 747 | 191.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

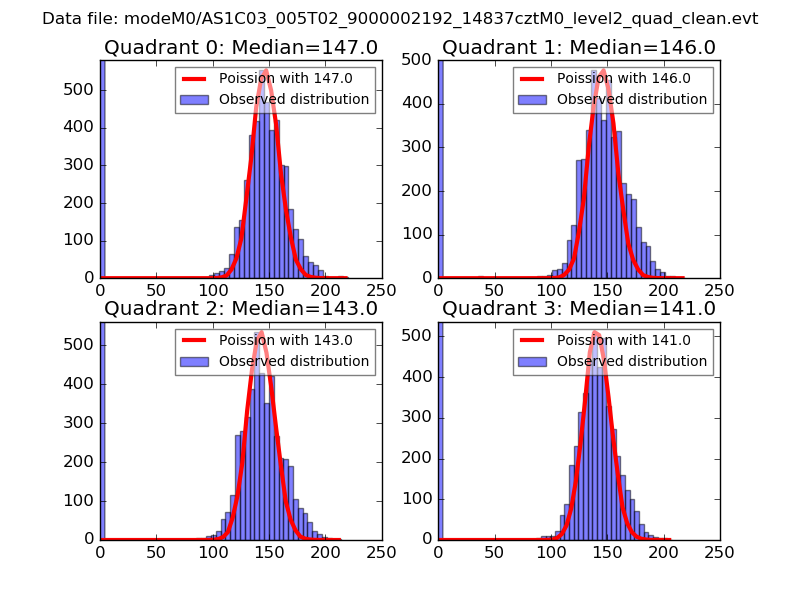

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

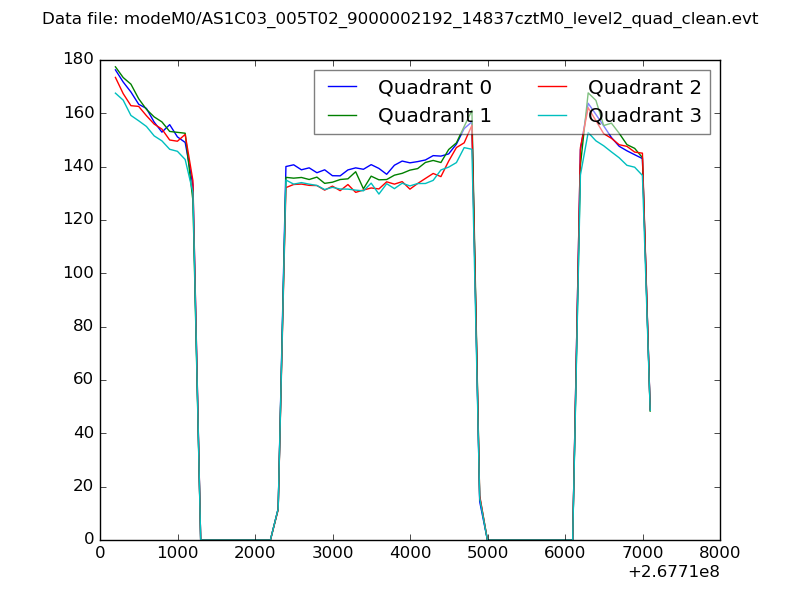

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

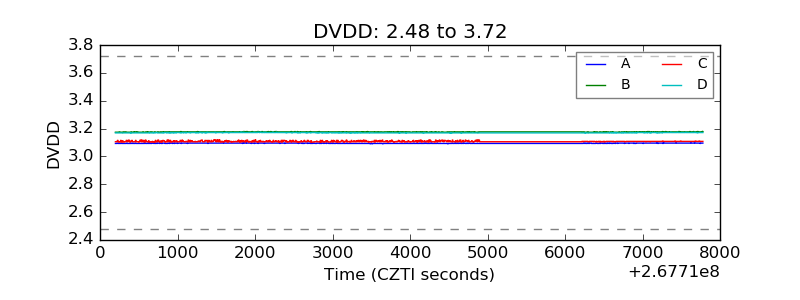

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

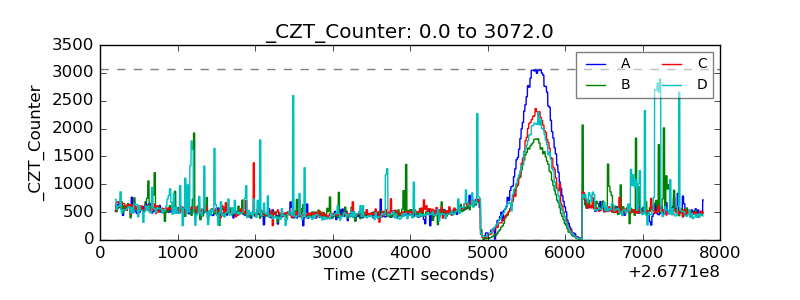

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

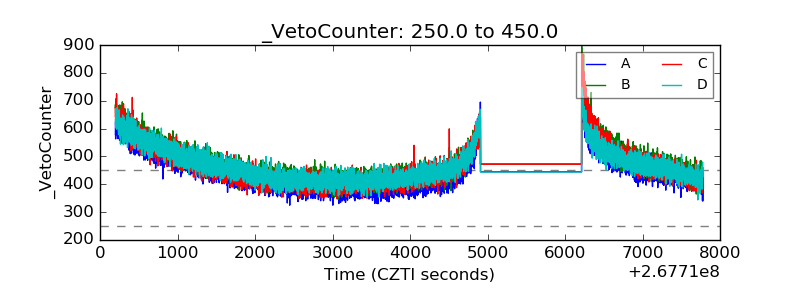

| Veto Counter |  |
