| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_005T02_9000002192_14840cztM0_level2.evt | modeM0/AS1C03_005T02_9000002192_14840cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,855,360 | 103,795,200 |
| Size | 472.9 MB | 99.0 MB |
| Events in quadrant A | 3,417,426 | 668,492 |
| Events in quadrant B | 3,838,873 | 658,174 |
| Events in quadrant C | 3,718,544 | 657,349 |
| Events in quadrant D | 3,546,047 | 651,058 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15085 | 2 |
| B | 0 | 16201 | 1 |
| C | 0 | 15427 | 1 |
| D | 0 | 15662 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7302 | 101 | 1.383183% |
| B | 7302 | 207 | 2.834840% |
| C | 7302 | 41 | 0.561490% |
| D | 7302 | 82 | 1.122980% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7563 | 7304 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7563 | 7304 | 70 | 70 | 0.93% | 0.96% |  |
| C | 7563 | 7304 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7563 | 7304 | 24 | 24 | 0.32% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 23996 | 132.36 | 870 | 851 | 174.9 |
| A | 12 | 189 | 20643 | 113.19 | 870 | 851 | 174.9 |
| A | 3 | 1 | 19922 | 109.07 | 870 | 851 | 174.9 |
| B | 3 | 64 | 225653 | 1395.6 | 855 | 832 | 161.1 |
| B | 0 | 189 | 77420 | 475.43 | 855 | 832 | 161.1 |
| B | 0 | 197 | 53873 | 329.26 | 855 | 832 | 161.1 |
| C | 3 | 233 | 414689 | 2154.99 | 834 | 836 | 192.0 |
| C | 7 | 247 | 33706 | 171.16 | 834 | 836 | 192.0 |
| C | 15 | 176 | 10123 | 48.36 | 834 | 836 | 192.0 |
| D | 7 | 38 | 123905 | 584.19 | 836 | 813 | 210.7 |
| D | 7 | 254 | 123393 | 581.76 | 836 | 813 | 210.7 |
| D | 13 | 249 | 46234 | 215.57 | 836 | 813 | 210.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

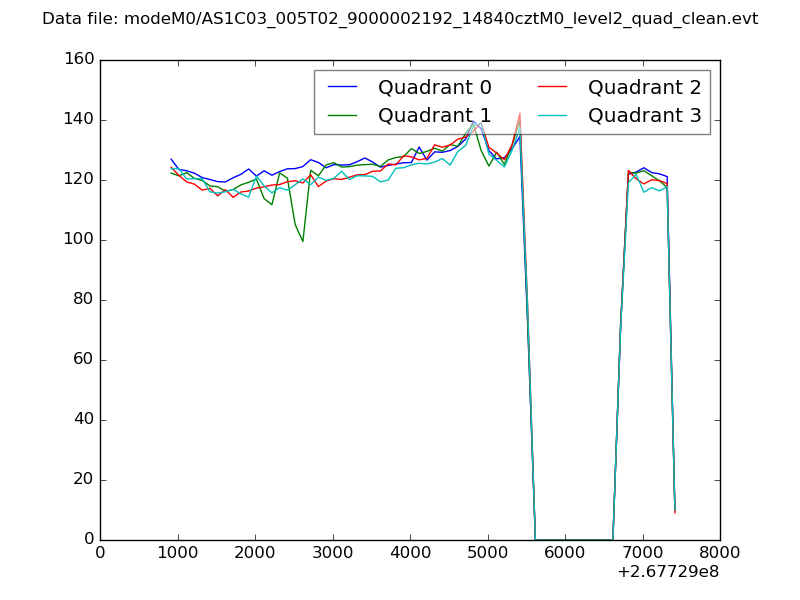

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

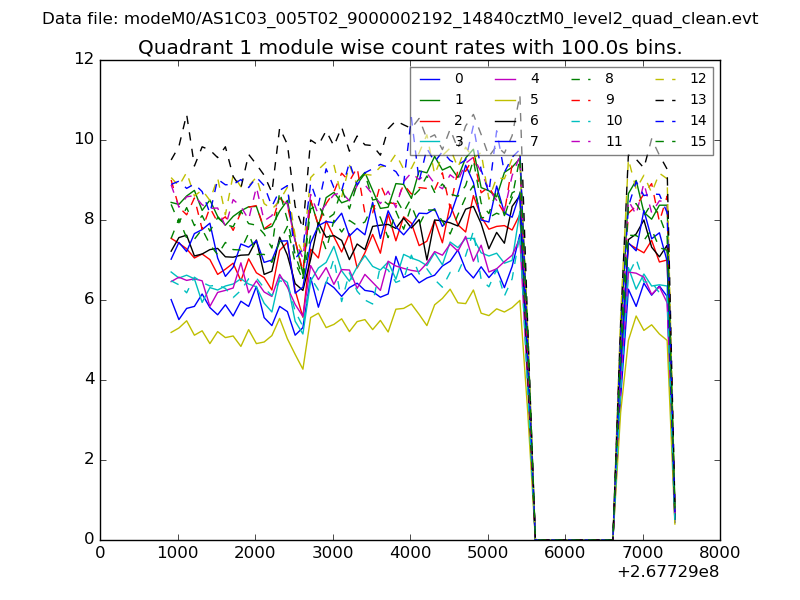

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

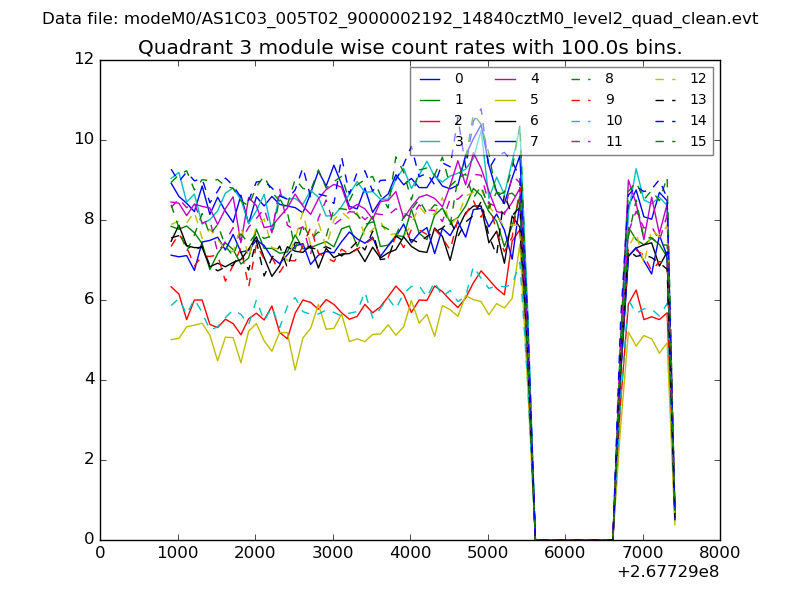

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
