| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_005T02_9000002192_14846cztM0_level2.evt | modeM0/AS1C03_005T02_9000002192_14846cztM0_level2_quad_clean.evt |
| Size (bytes) | 853,372,800 | 191,332,800 |
| Size | 813.8 MB | 182.5 MB |
| Events in quadrant A | 5,797,230 | 1,247,802 |
| Events in quadrant B | 5,978,508 | 1,255,118 |
| Events in quadrant C | 6,212,537 | 1,251,975 |
| Events in quadrant D | 7,046,095 | 1,212,452 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24927 | 4 |
| B | 0 | 25479 | 3 |
| C | 0 | 25188 | 3 |
| D | 0 | 29067 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 242 | 0 |
| B | 0 | 242 | 0 |
| C | 0 | 242 | 0 |
| D | 0 | 242 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11978 | 49 | 0.409083% |
| B | 11978 | 114 | 0.951745% |
| C | 11978 | 66 | 0.551010% |
| D | 11978 | 109 | 0.910002% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13929 | 11981 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13929 | 11981 | 33 | 33 | 0.24% | 0.28% |  |
| C | 13929 | 11981 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13929 | 11981 | 38 | 38 | 0.27% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 281142 | 978.03 | 1422 | 1390 | 286.0 |
| A | 3 | 1 | 12918 | 40.3 | 1422 | 1390 | 286.0 |
| A | 0 | 226 | 12460 | 38.7 | 1422 | 1390 | 286.0 |
| B | 0 | 189 | 112722 | 421.59 | 1411 | 1374 | 264.1 |
| B | 0 | 229 | 105414 | 393.92 | 1411 | 1374 | 264.1 |
| B | 3 | 64 | 71721 | 266.35 | 1411 | 1374 | 264.1 |
| C | 3 | 233 | 743220 | 2333.05 | 1392 | 1399 | 318.0 |
| C | 7 | 247 | 15303 | 43.73 | 1392 | 1399 | 318.0 |
| C | 8 | 128 | 11235 | 30.93 | 1392 | 1399 | 318.0 |
| D | 12 | 110 | 1430016 | 4331.28 | 1389 | 1359 | 329.8 |
| D | 7 | 254 | 141369 | 424.47 | 1389 | 1359 | 329.8 |
| D | 10 | 70 | 60140 | 178.21 | 1389 | 1359 | 329.8 |

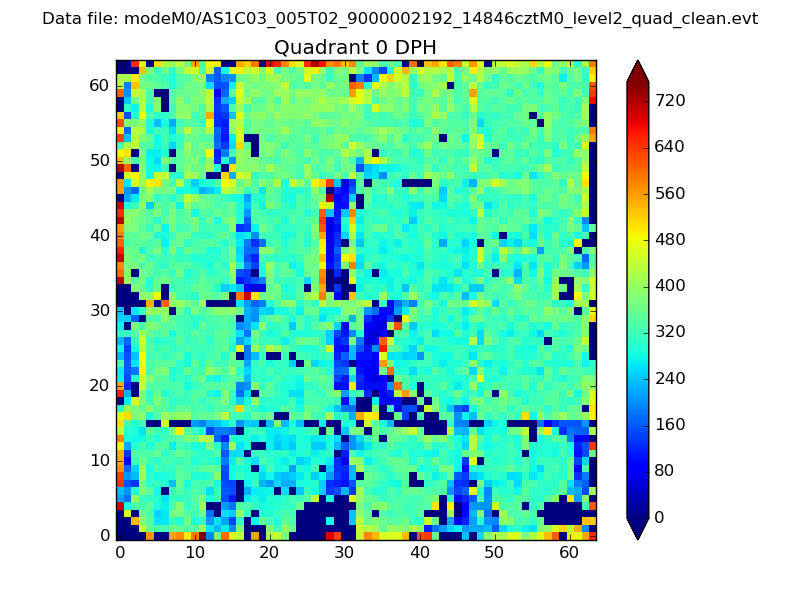

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

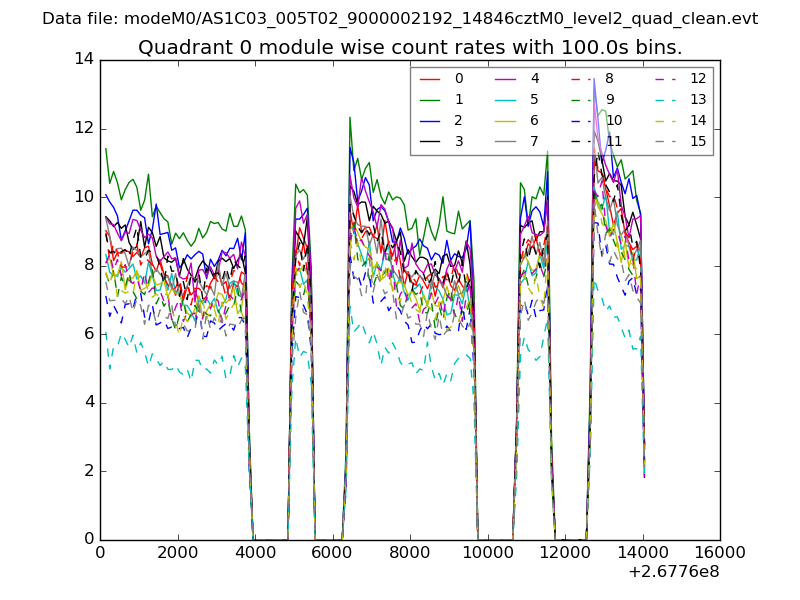

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

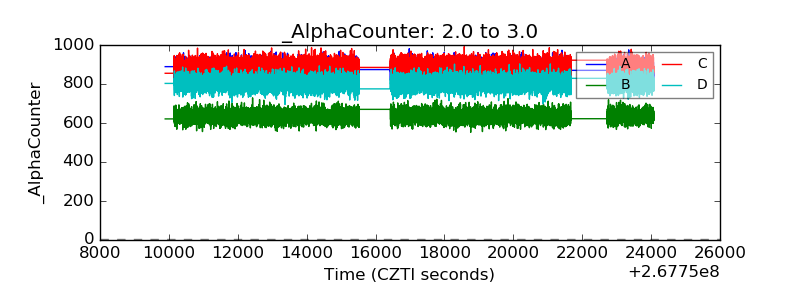

| Alpha Counter |  |
| _CPM_Rate |  |

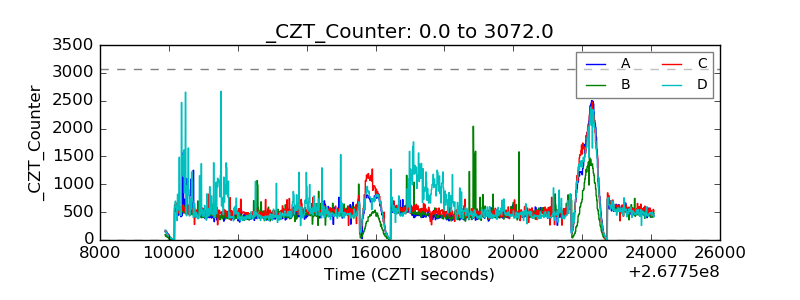

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

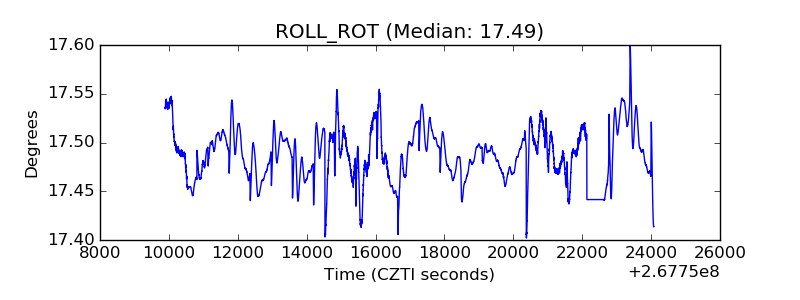

| _ROLL_ROT |  |
| _Roll_DEC |  |

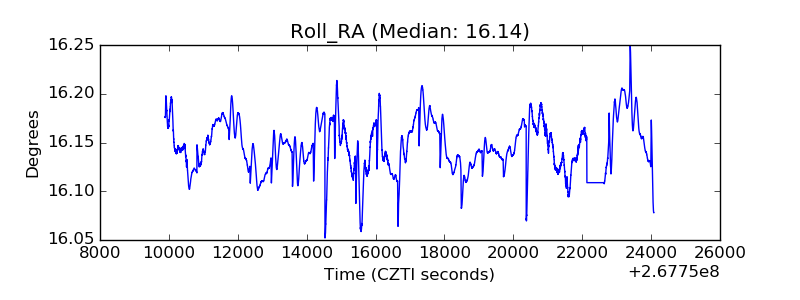

| _Roll_RA |  |

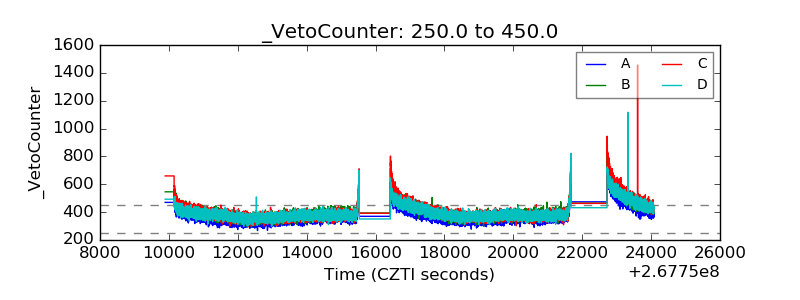

| Veto Counter |  |
