| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_005T02_9000002192_14848cztM0_level2.evt | modeM0/AS1C03_005T02_9000002192_14848cztM0_level2_quad_clean.evt |
| Size (bytes) | 328,276,800 | 76,691,520 |
| Size | 313.1 MB | 73.1 MB |
| Events in quadrant A | 2,298,827 | 496,247 |
| Events in quadrant B | 2,585,374 | 498,543 |
| Events in quadrant C | 2,486,841 | 500,736 |
| Events in quadrant D | 2,243,715 | 490,084 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9855 | 1 |
| B | 0 | 10701 | 1 |
| C | 0 | 10151 | 1 |
| D | 0 | 9954 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 96 | 0 |
| B | 0 | 96 | 0 |
| C | 0 | 96 | 0 |
| D | 0 | 96 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4797 | 7 | 0.145925% |
| B | 4797 | 39 | 0.813008% |
| C | 4797 | 7 | 0.145925% |
| D | 4797 | 10 | 0.208464% |

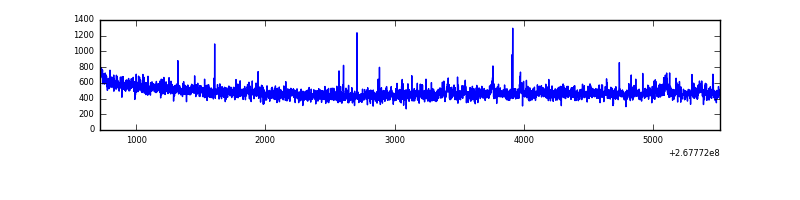

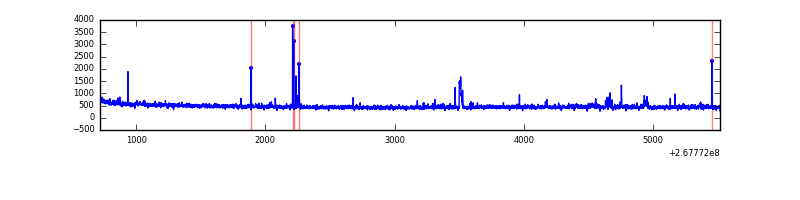

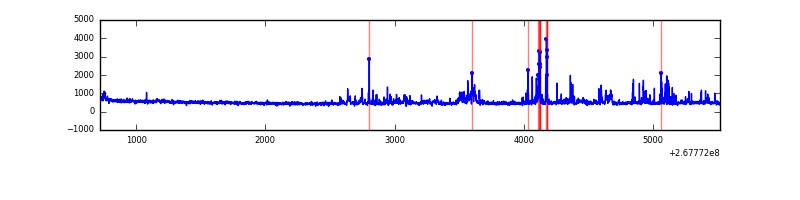

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

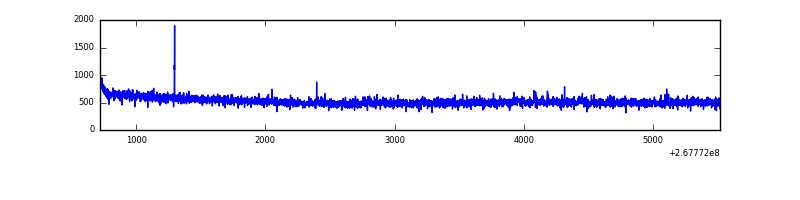

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4798 | 4798 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4798 | 4798 | 14 | 14 | 0.29% | 0.29% |  |
| C | 4798 | 4798 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4798 | 4798 | 5 | 5 | 0.10% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 68981 | 586.41 | 576 | 566 | 116.7 |
| A | 0 | 226 | 5231 | 39.99 | 576 | 566 | 116.7 |
| A | 9 | 143 | 4776 | 36.09 | 576 | 566 | 116.7 |
| B | 0 | 229 | 138854 | 1279.44 | 569 | 555 | 108.1 |
| B | 3 | 64 | 72142 | 662.27 | 569 | 555 | 108.1 |
| B | 0 | 189 | 66212 | 607.41 | 569 | 555 | 108.1 |
| C | 3 | 233 | 280177 | 2159.02 | 562 | 565 | 129.5 |
| C | 13 | 61 | 4001 | 26.53 | 562 | 565 | 129.5 |
| C | 5 | 96 | 3386 | 21.78 | 562 | 565 | 129.5 |
| D | 7 | 254 | 40700 | 296.79 | 566 | 553 | 135.3 |
| D | 15 | 0 | 17748 | 127.12 | 566 | 553 | 135.3 |
| D | 2 | 234 | 17488 | 125.19 | 566 | 553 | 135.3 |

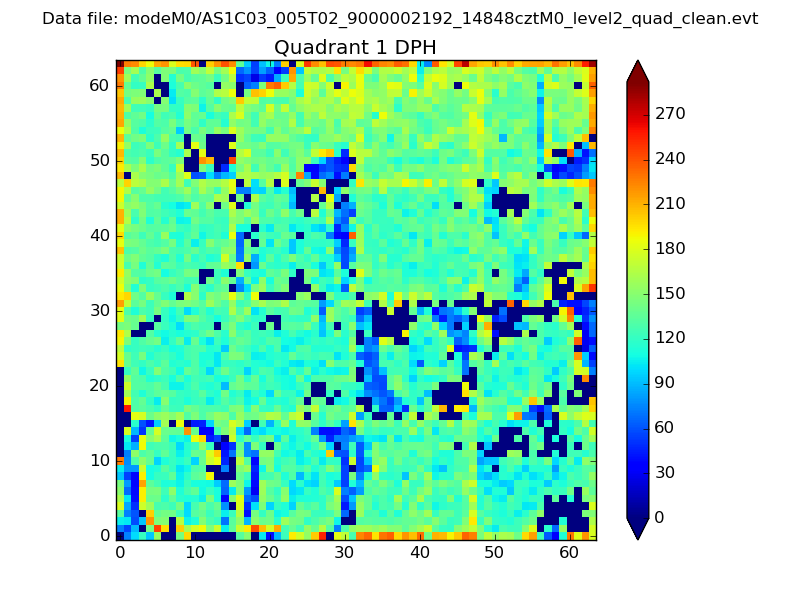

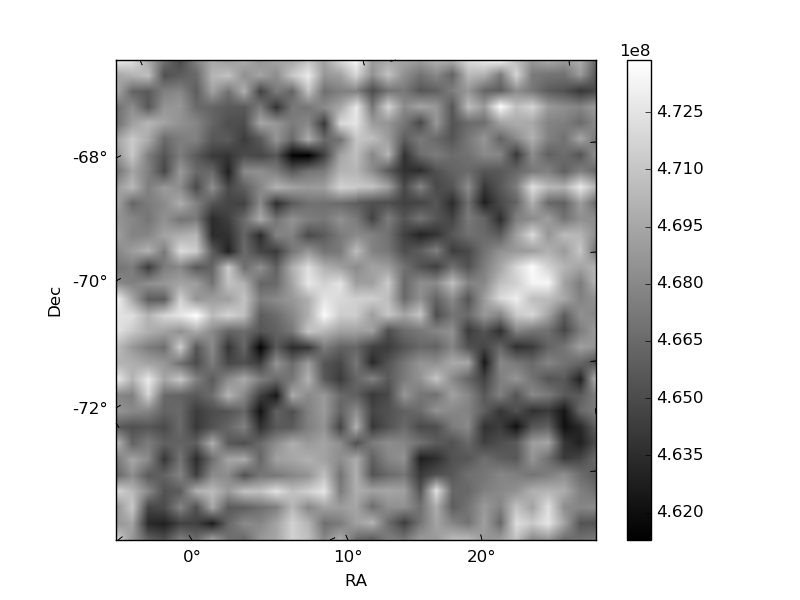

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

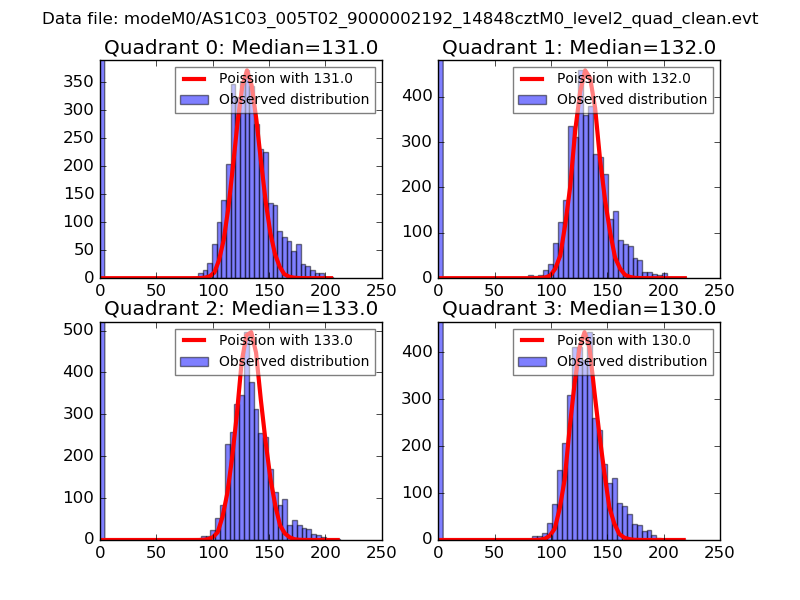

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

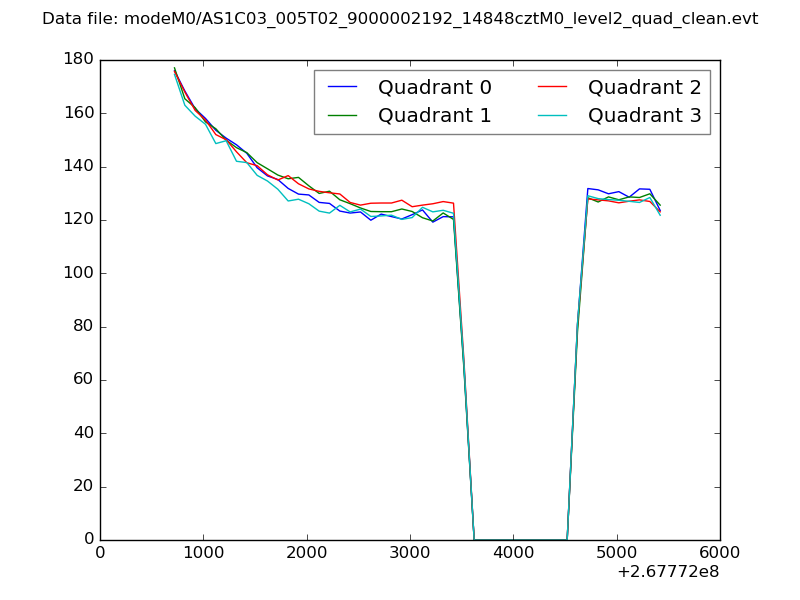

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

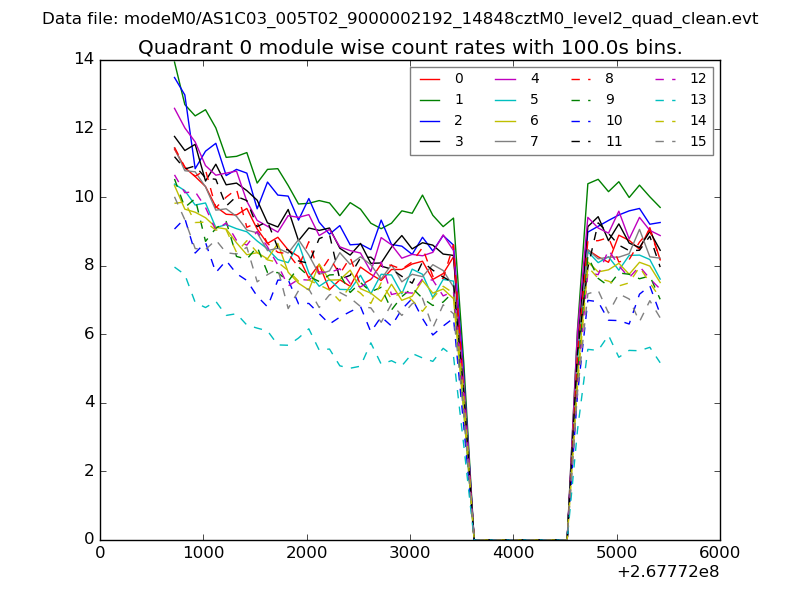

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

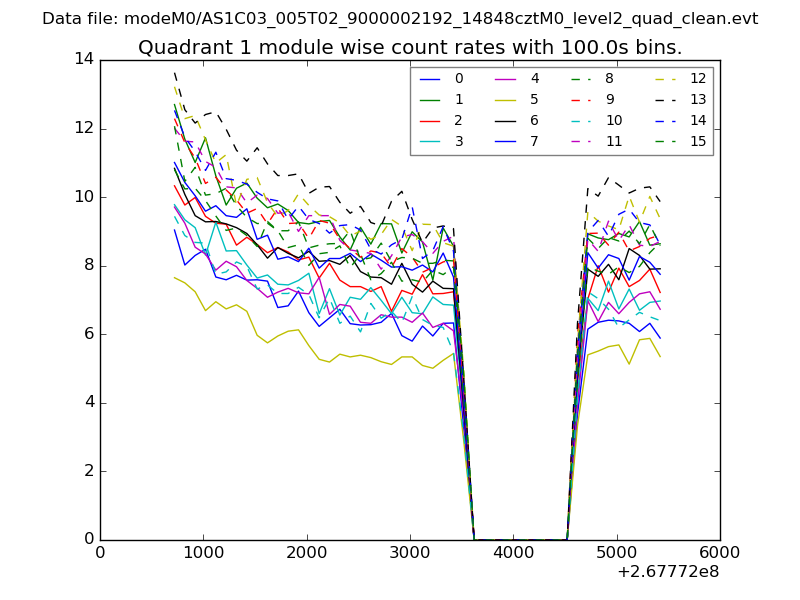

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

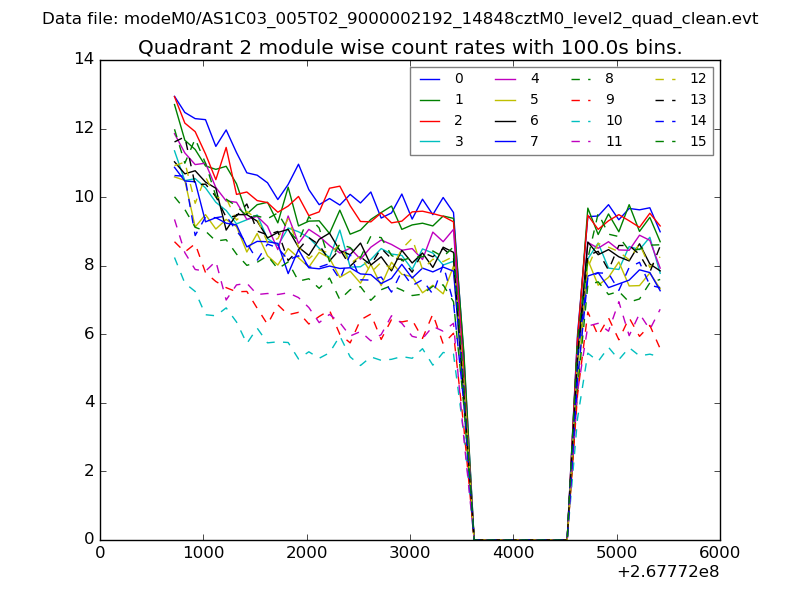

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

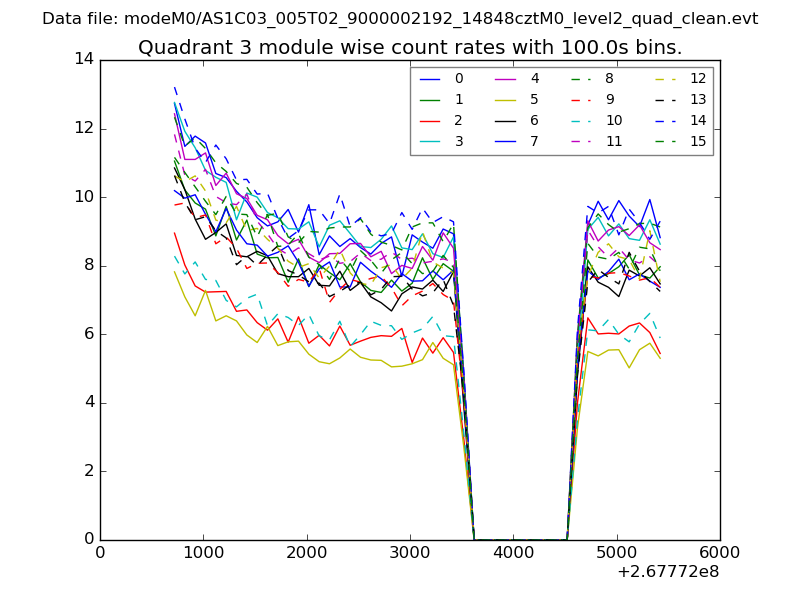

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

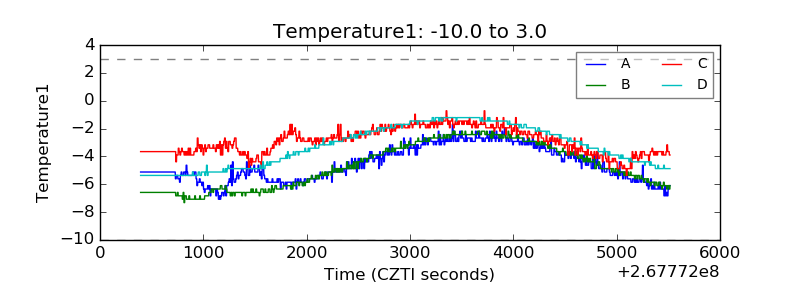

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

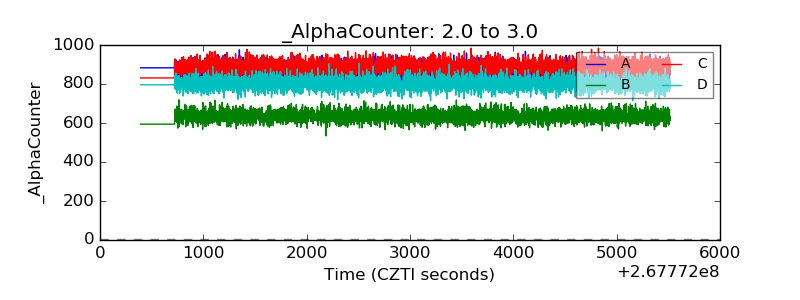

| Alpha Counter |  |

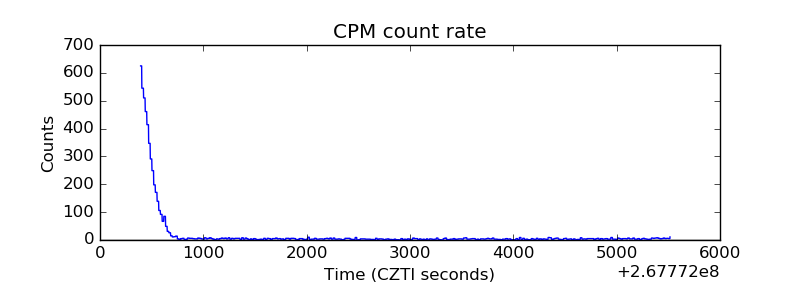

| _CPM_Rate |  |

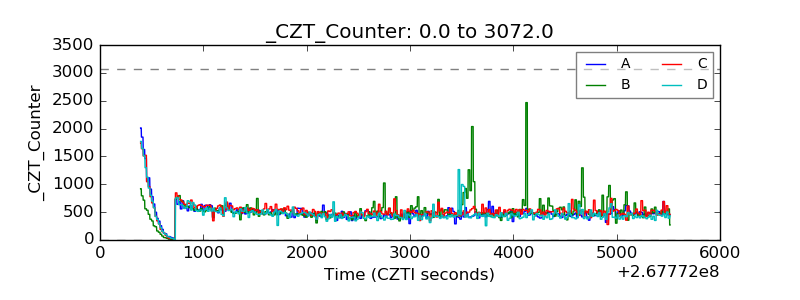

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

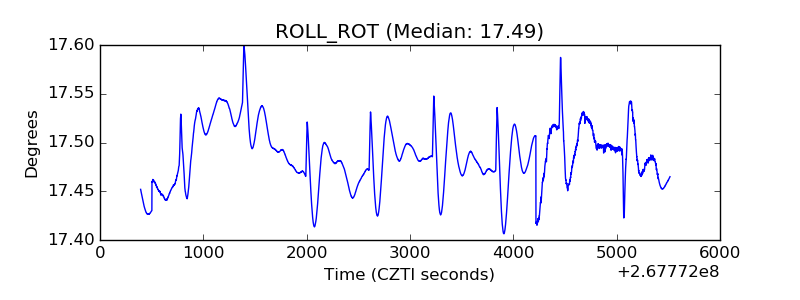

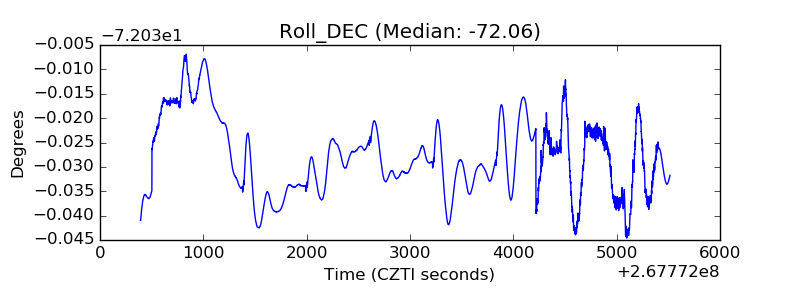

| _ROLL_ROT |  |
| _Roll_DEC |  |

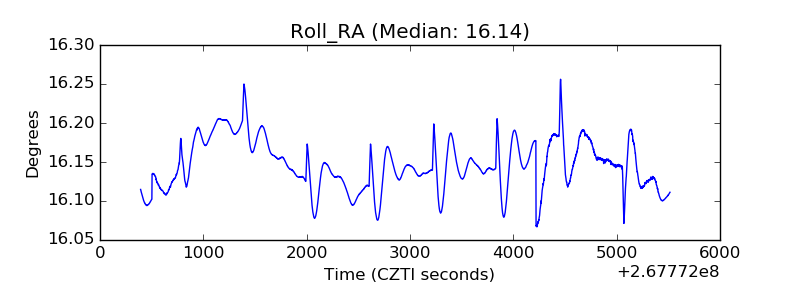

| _Roll_RA |  |

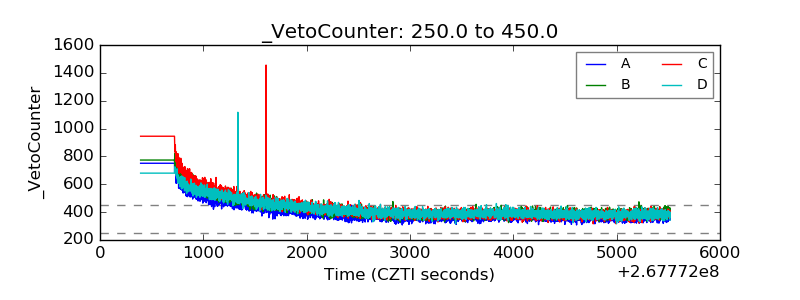

| Veto Counter |  |
