| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T01_9000002194_14849cztM0_level2.evt | modeM0/AS1A04_218T01_9000002194_14849cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,198,720 | 85,475,520 |
| Size | 446.5 MB | 81.5 MB |
| Events in quadrant A | 3,335,556 | 544,703 |
| Events in quadrant B | 3,564,549 | 542,023 |
| Events in quadrant C | 3,586,261 | 536,377 |
| Events in quadrant D | 3,267,689 | 527,916 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13747 | 3 |
| B | 0 | 14581 | 2 |
| C | 0 | 14520 | 2 |
| D | 0 | 13762 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6272 | 66 | 1.052296% |
| B | 6272 | 85 | 1.355230% |
| C | 6272 | 61 | 0.972577% |
| D | 6272 | 61 | 0.972577% |

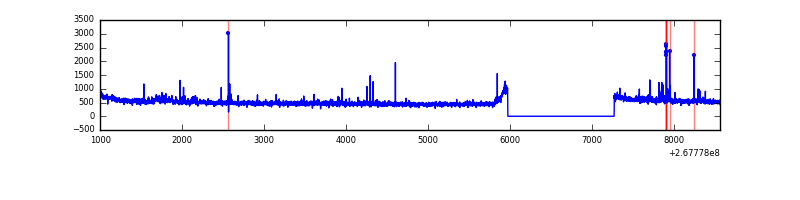

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7573 | 6274 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7573 | 6274 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7573 | 6274 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7573 | 6274 | 8 | 8 | 0.11% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 28453 | 162.7 | 854 | 838 | 169.7 |
| A | 9 | 143 | 16339 | 91.32 | 854 | 838 | 169.7 |
| A | 0 | 226 | 7712 | 40.5 | 854 | 838 | 169.7 |
| B | 4 | 173 | 65609 | 416.56 | 841 | 823 | 155.5 |
| B | 0 | 189 | 62562 | 396.97 | 841 | 823 | 155.5 |
| B | 0 | 205 | 40060 | 252.29 | 841 | 823 | 155.5 |
| C | 3 | 233 | 360343 | 1916.58 | 824 | 832 | 187.6 |
| C | 7 | 247 | 8885 | 42.93 | 824 | 832 | 187.6 |
| C | 13 | 61 | 6033 | 27.73 | 824 | 832 | 187.6 |
| D | 7 | 254 | 54812 | 272.77 | 829 | 810 | 198.0 |
| D | 12 | 110 | 33130 | 163.25 | 829 | 810 | 198.0 |
| D | 2 | 234 | 22104 | 107.56 | 829 | 810 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

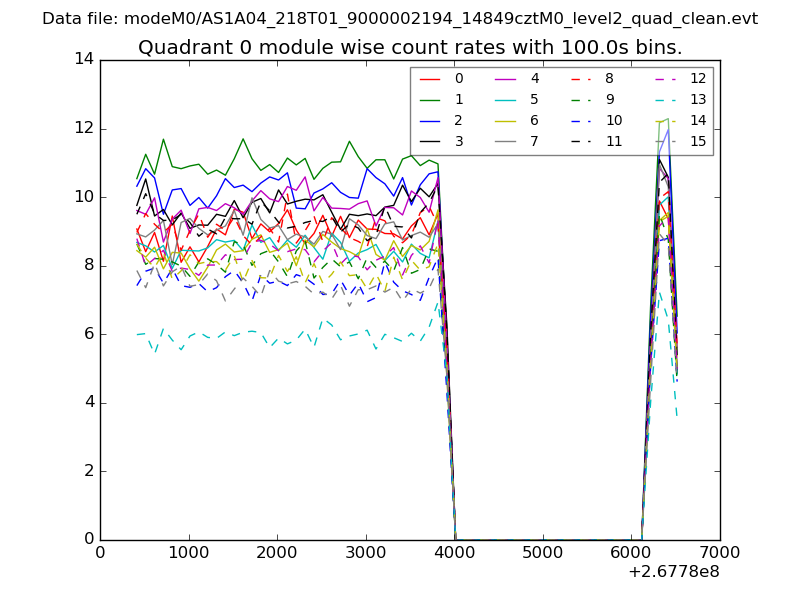

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

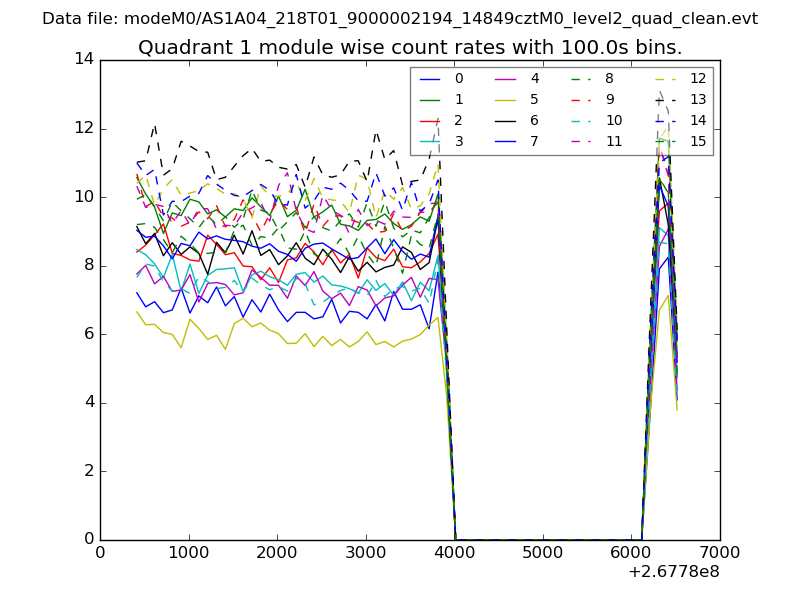

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

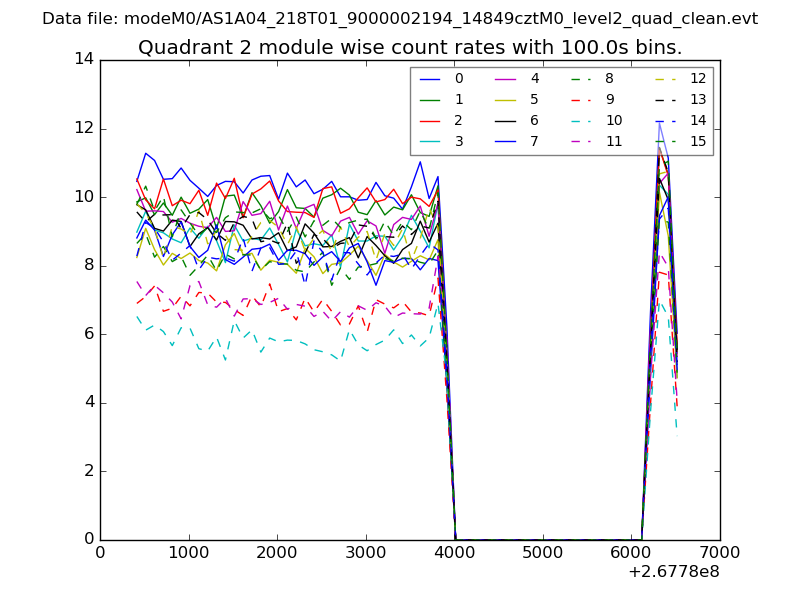

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

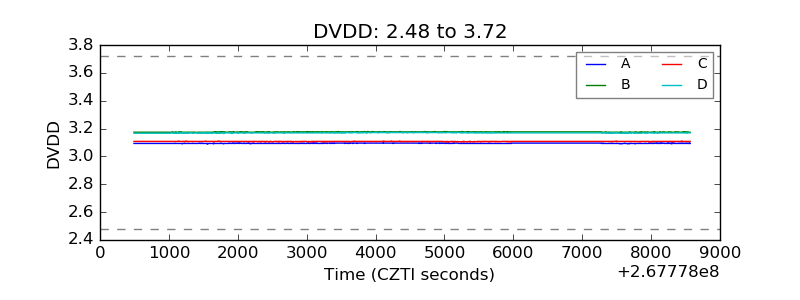

| D_VDD |  |

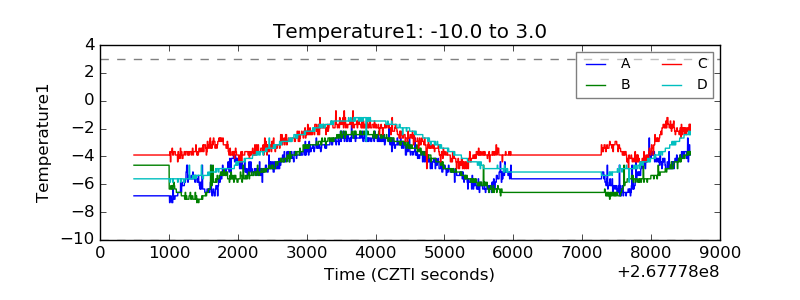

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

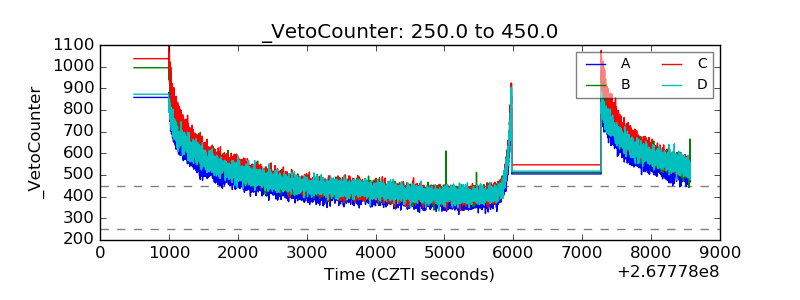

| Veto Counter |  |
