| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T01_9000002194_14851cztM0_level2.evt | modeM0/AS1A04_218T01_9000002194_14851cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,665,600 | 107,591,040 |
| Size | 459.4 MB | 102.6 MB |
| Events in quadrant A | 3,429,079 | 720,411 |
| Events in quadrant B | 3,623,237 | 714,176 |
| Events in quadrant C | 3,603,643 | 696,682 |
| Events in quadrant D | 3,507,115 | 691,157 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14089 | 4 |
| B | 0 | 14854 | 3 |
| C | 0 | 14707 | 3 |
| D | 0 | 14419 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6254 | 141 | 2.254557% |
| B | 6254 | 160 | 2.558363% |
| C | 6254 | 108 | 1.726895% |
| D | 6254 | 151 | 2.414455% |

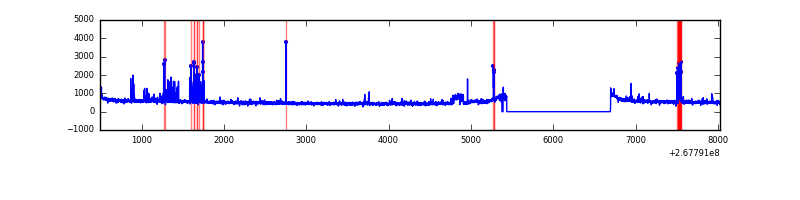

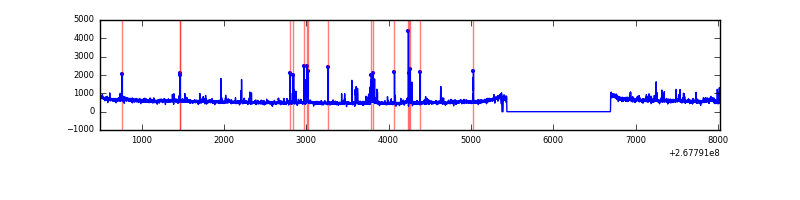

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7530 | 6256 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7530 | 6256 | 17 | 17 | 0.23% | 0.27% |  |
| C | 7530 | 6256 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7530 | 6256 | 37 | 37 | 0.49% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 87611 | 502.52 | 865 | 849 | 172.7 |
| A | 9 | 143 | 14268 | 77.72 | 865 | 849 | 172.7 |
| A | 0 | 226 | 7843 | 40.51 | 865 | 849 | 172.7 |
| B | 3 | 64 | 58146 | 365.2 | 845 | 827 | 157.0 |
| B | 0 | 189 | 55673 | 349.44 | 845 | 827 | 157.0 |
| B | 0 | 229 | 52755 | 330.85 | 845 | 827 | 157.0 |
| C | 3 | 233 | 380217 | 2011.26 | 825 | 830 | 188.6 |
| C | 13 | 61 | 5968 | 27.24 | 825 | 830 | 188.6 |
| C | 6 | 96 | 5239 | 23.37 | 825 | 830 | 188.6 |
| D | 7 | 254 | 284397 | 1435.1 | 836 | 818 | 197.6 |
| D | 2 | 234 | 22955 | 112.03 | 836 | 818 | 197.6 |
| D | 2 | 120 | 15470 | 74.15 | 836 | 818 | 197.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

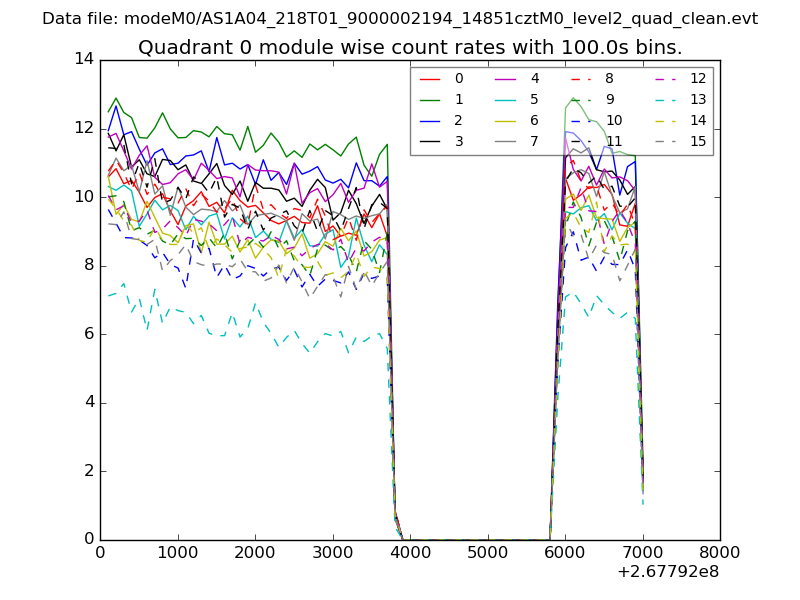

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

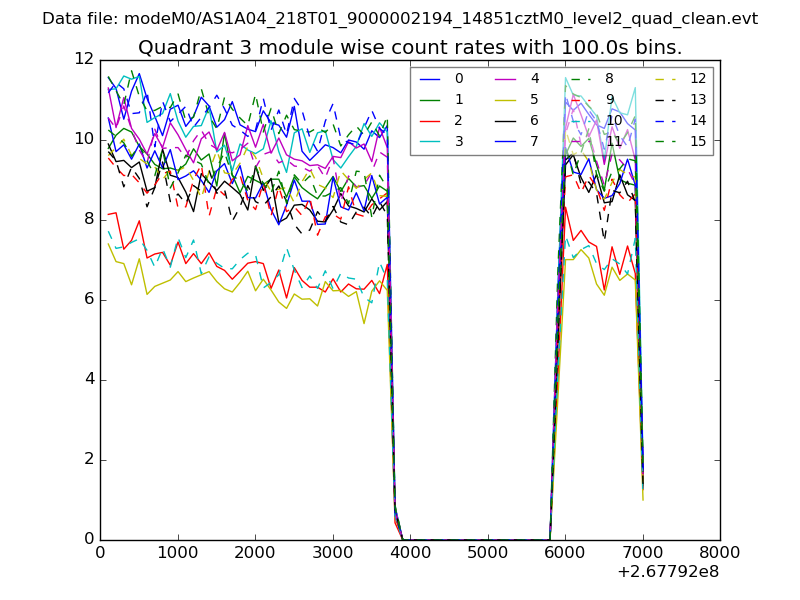

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

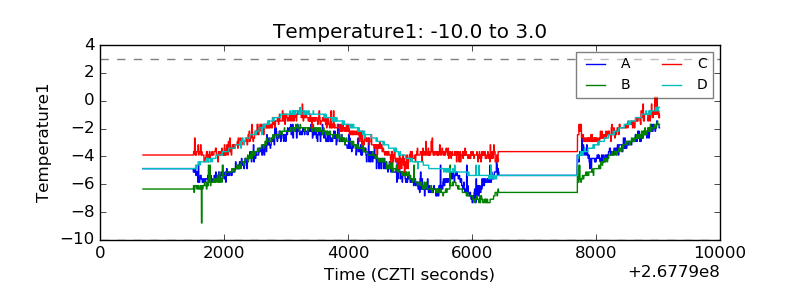

| Temperature 1 |  |
| Veto HV Monitor |  |

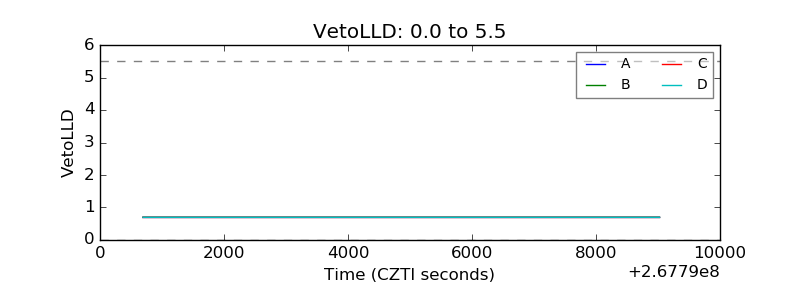

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

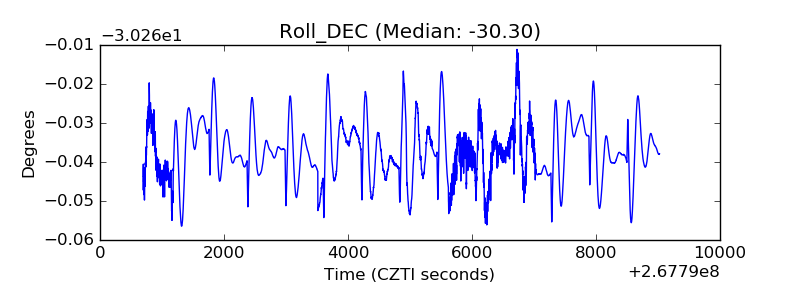

| _Roll_DEC |  |
| _Roll_RA |  |

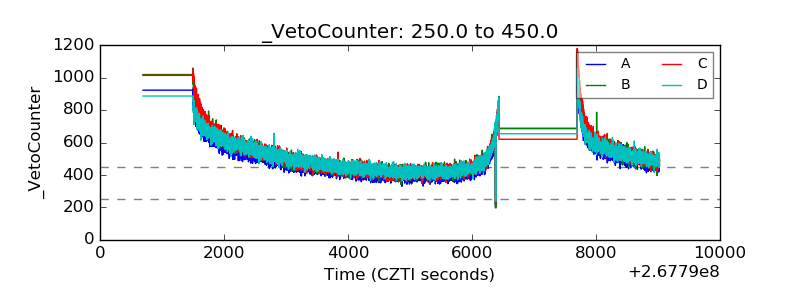

| Veto Counter |  |
