| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T01_9000002194_14853cztM0_level2.evt | modeM0/AS1A04_218T01_9000002194_14853cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,482,560 | 90,552,960 |
| Size | 414.4 MB | 86.4 MB |
| Events in quadrant A | 3,090,672 | 593,740 |
| Events in quadrant B | 3,362,195 | 578,605 |
| Events in quadrant C | 3,294,439 | 567,993 |
| Events in quadrant D | 2,988,552 | 568,141 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13004 | 2 |
| B | 0 | 13883 | 1 |
| C | 0 | 13450 | 1 |
| D | 0 | 13096 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6216 | 102 | 1.640927% |
| B | 6216 | 126 | 2.027027% |
| C | 6216 | 65 | 1.045689% |
| D | 6216 | 93 | 1.496139% |

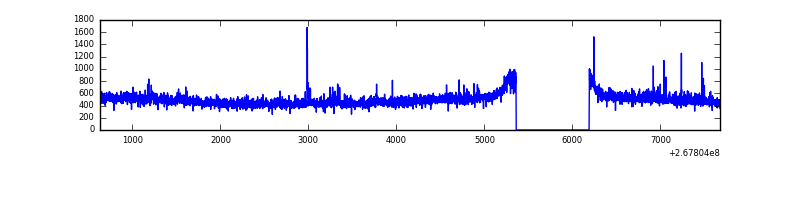

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7047 | 6217 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7047 | 6217 | 23 | 23 | 0.33% | 0.37% |  |
| C | 7047 | 6217 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7047 | 6217 | 12 | 12 | 0.17% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 65480 | 412.74 | 777 | 760 | 156.8 |
| A | 9 | 143 | 15126 | 91.62 | 777 | 760 | 156.8 |
| A | 1 | 162 | 8087 | 46.73 | 777 | 760 | 156.8 |
| B | 3 | 64 | 161943 | 1113.05 | 762 | 743 | 144.8 |
| B | 0 | 189 | 69042 | 471.59 | 762 | 743 | 144.8 |
| B | 0 | 219 | 65754 | 448.89 | 762 | 743 | 144.8 |
| C | 3 | 233 | 367743 | 2158.26 | 737 | 741 | 170.0 |
| C | 6 | 96 | 24659 | 140.66 | 737 | 741 | 170.0 |
| C | 7 | 247 | 21578 | 122.54 | 737 | 741 | 170.0 |
| D | 7 | 38 | 88343 | 488.17 | 746 | 728 | 179.5 |
| D | 2 | 234 | 23369 | 126.15 | 746 | 728 | 179.5 |
| D | 7 | 254 | 22479 | 121.19 | 746 | 728 | 179.5 |

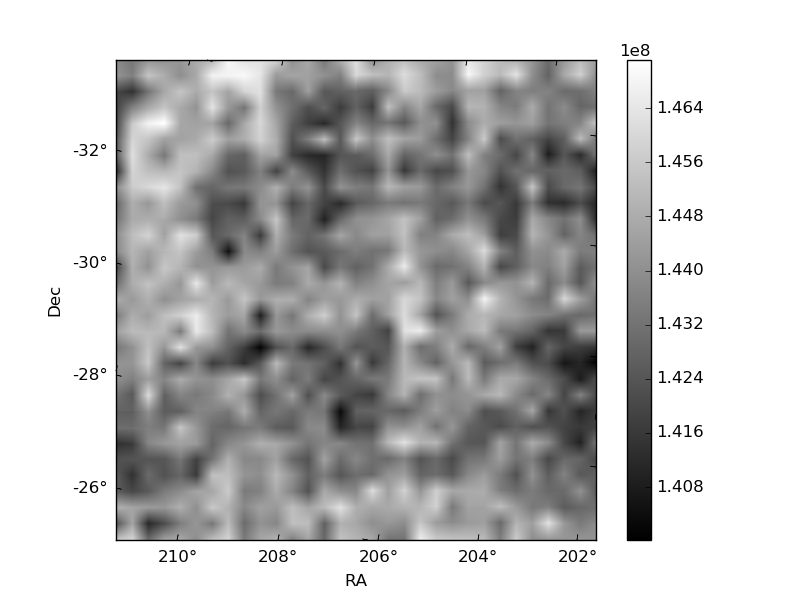

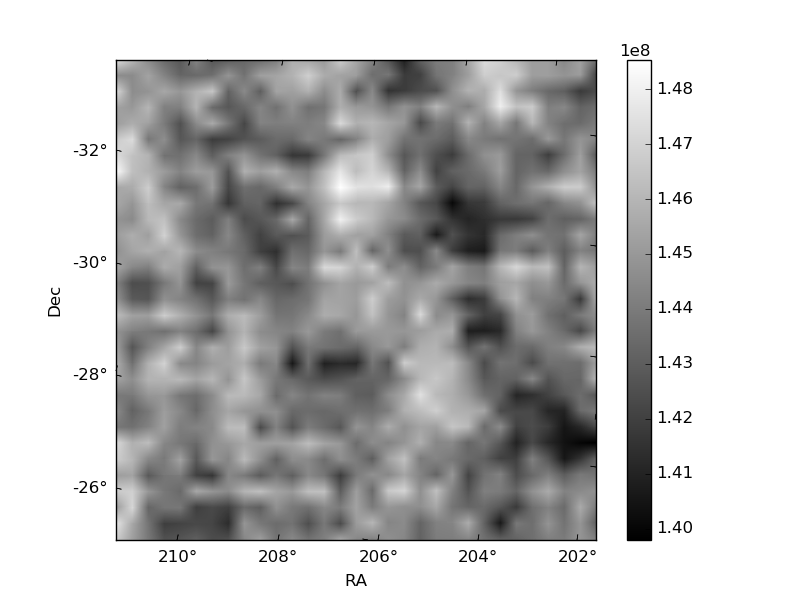

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

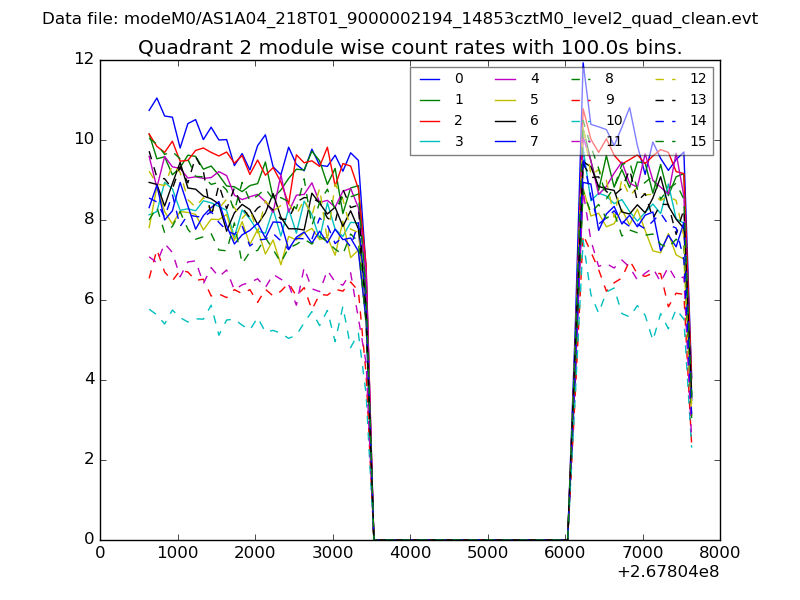

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

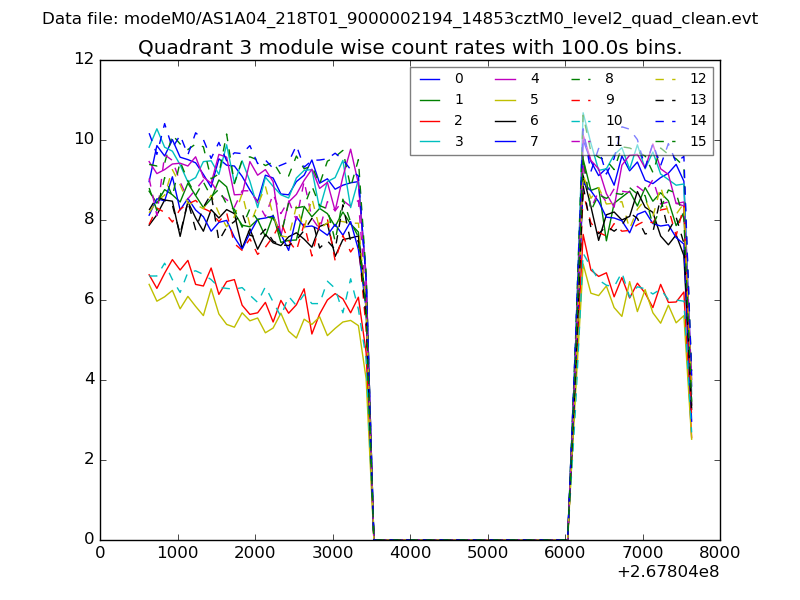

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

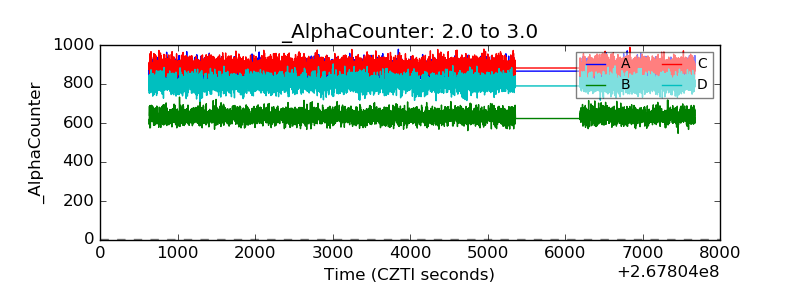

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

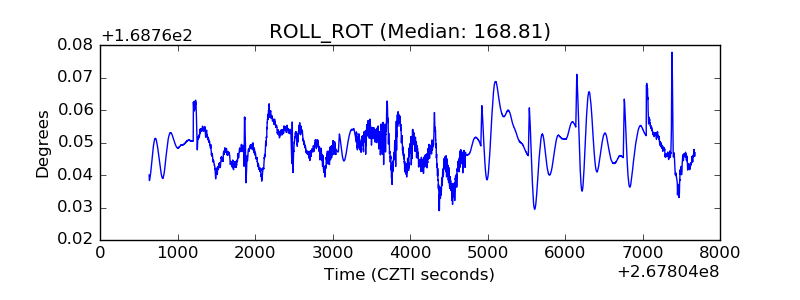

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

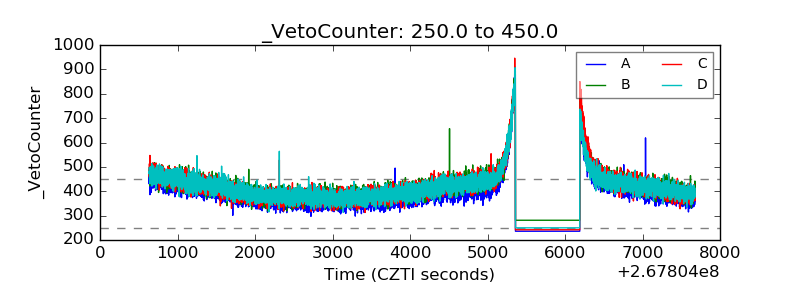

| Veto Counter |  |
