| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T01_9000002194_14855cztM0_level2.evt | modeM0/AS1A04_218T01_9000002194_14855cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,542,400 | 113,258,880 |
| Size | 509.8 MB | 108.0 MB |
| Events in quadrant A | 3,881,600 | 738,643 |
| Events in quadrant B | 4,078,624 | 728,511 |
| Events in quadrant C | 4,077,491 | 718,485 |
| Events in quadrant D | 3,632,199 | 712,863 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16690 | 139 |
| B | 0 | 17227 | 135 |
| C | 0 | 16926 | 154 |
| D | 0 | 16350 | 113 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7643 | 146 | 1.910245% |
| B | 7641 | 176 | 2.303363% |
| C | 7645 | 44 | 0.575540% |
| D | 7650 | 87 | 1.137255% |

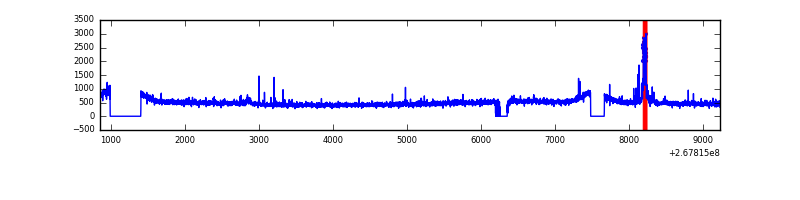

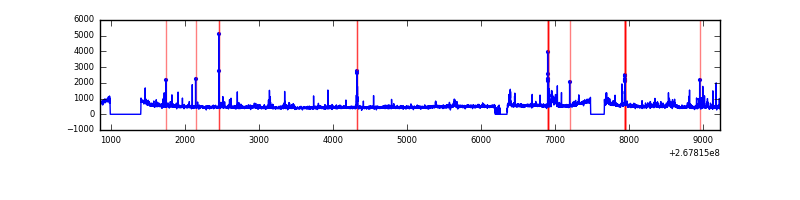

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8382 | 7664 | 24 | 24 | 0.29% | 0.31% |  |
| B | 8382 | 7661 | 19 | 19 | 0.23% | 0.25% |  |
| C | 8382 | 7665 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8382 | 7665 | 6 | 6 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 98092 | 502.47 | 952 | 931 | 193.4 |
| A | 12 | 189 | 76961 | 393.19 | 952 | 931 | 193.4 |
| A | 9 | 143 | 22951 | 113.88 | 952 | 931 | 193.4 |
| B | 0 | 189 | 85009 | 466.38 | 939 | 915 | 180.3 |
| B | 3 | 64 | 73867 | 404.58 | 939 | 915 | 180.3 |
| B | 3 | 209 | 52022 | 283.43 | 939 | 915 | 180.3 |
| C | 3 | 233 | 492279 | 2320.29 | 910 | 915 | 211.8 |
| C | 7 | 247 | 30789 | 141.07 | 910 | 915 | 211.8 |
| C | 13 | 61 | 6721 | 27.42 | 910 | 915 | 211.8 |
| D | 15 | 0 | 70915 | 303.41 | 915 | 891 | 230.8 |
| D | 7 | 38 | 34230 | 144.46 | 915 | 891 | 230.8 |
| D | 2 | 234 | 29365 | 123.38 | 915 | 891 | 230.8 |

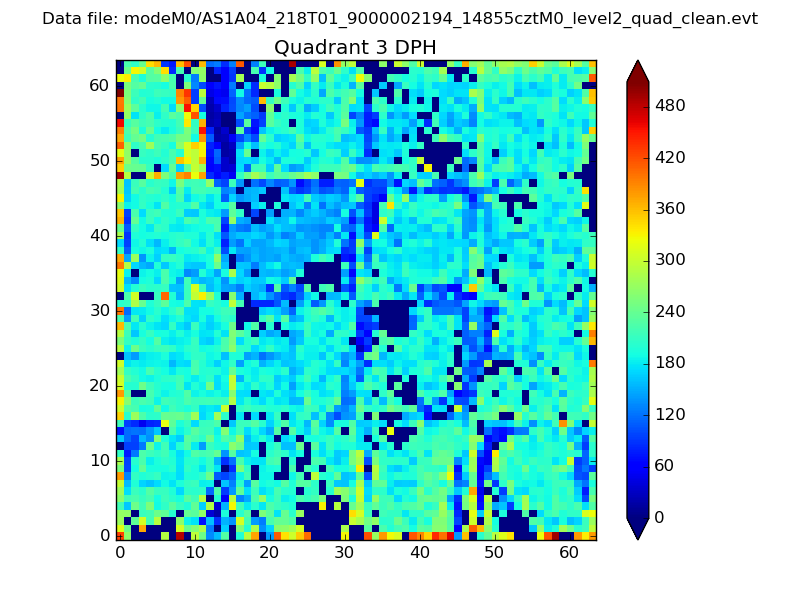

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

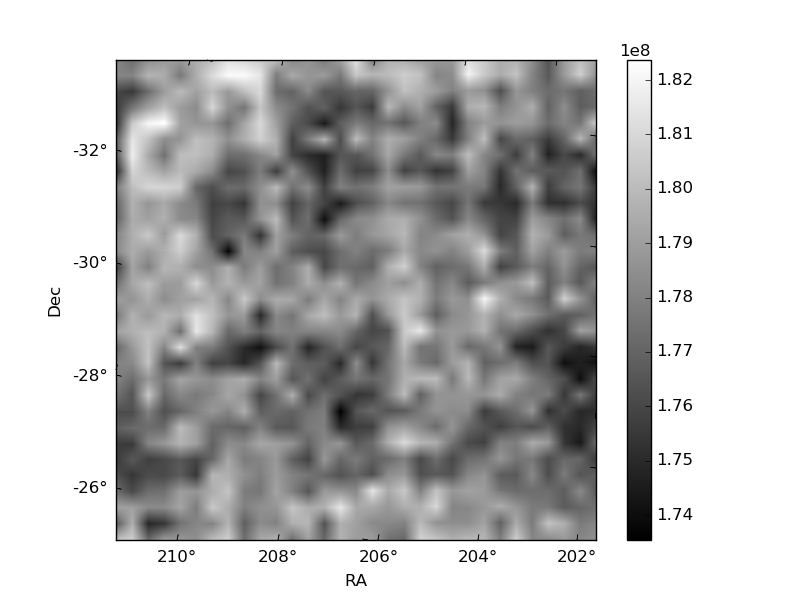

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

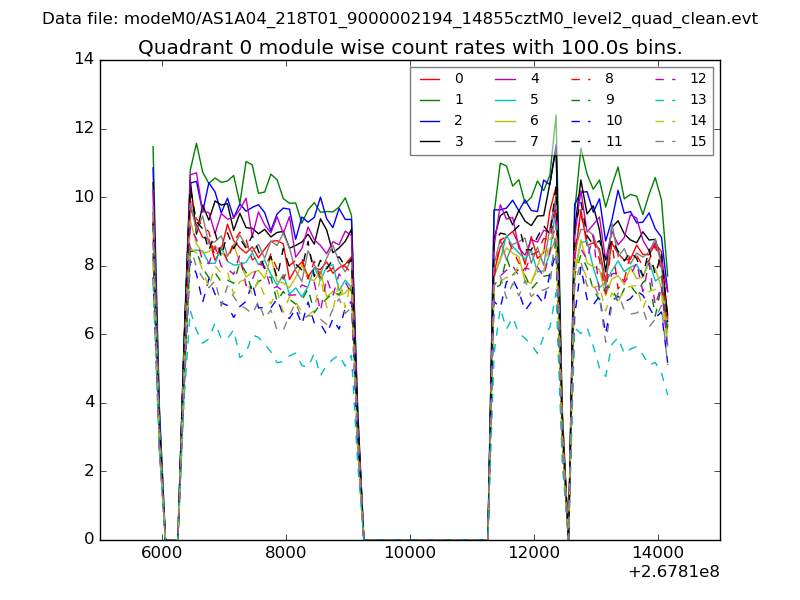

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

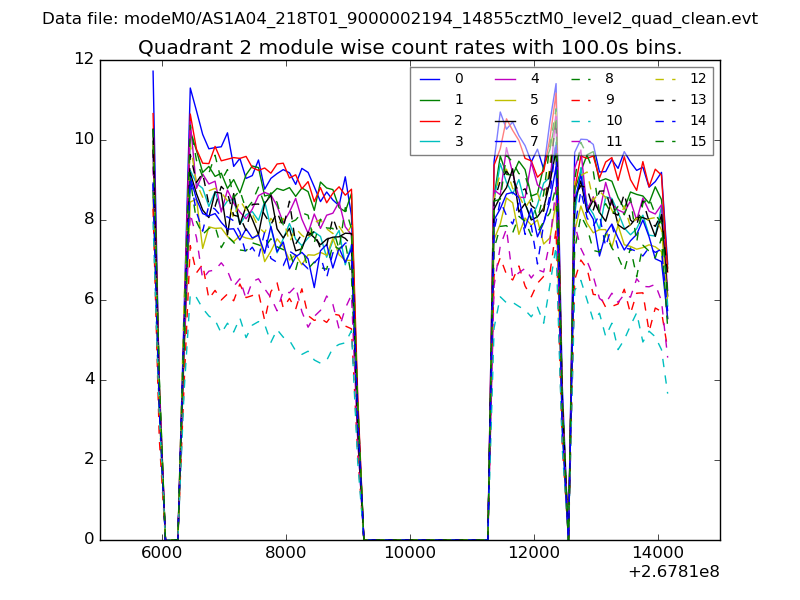

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

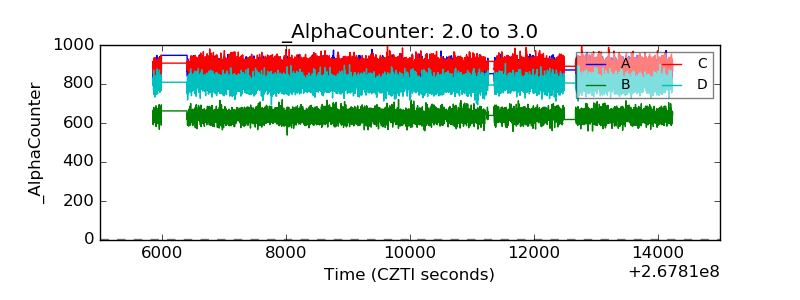

| Alpha Counter |  |
| _CPM_Rate |  |

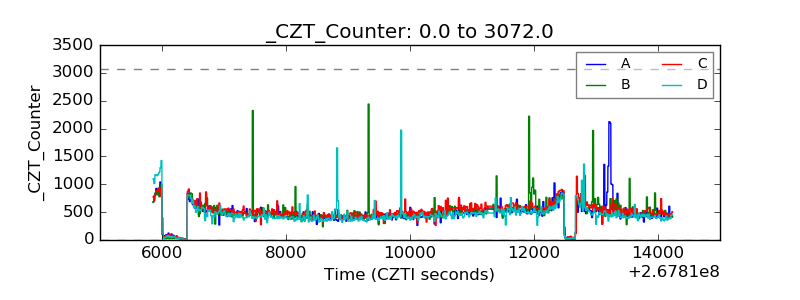

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
