| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T01_9000002194_14856cztM0_level2.evt | modeM0/AS1A04_218T01_9000002194_14856cztM0_level2_quad_clean.evt |
| Size (bytes) | 598,576,320 | 109,725,120 |
| Size | 570.8 MB | 104.6 MB |
| Events in quadrant A | 3,805,841 | 715,718 |
| Events in quadrant B | 4,484,473 | 696,009 |
| Events in quadrant C | 3,989,252 | 694,611 |
| Events in quadrant D | 5,328,836 | 683,328 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16354 | 3 |
| B | 0 | 18374 | 2 |
| C | 0 | 16606 | 2 |
| D | 0 | 21386 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7665 | 69 | 0.900196% |
| B | 7665 | 226 | 2.948467% |
| C | 7665 | 23 | 0.300065% |
| D | 7666 | 340 | 4.435168% |

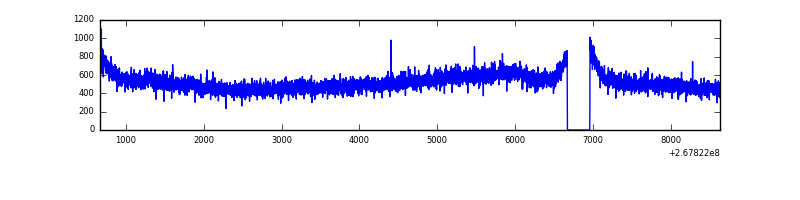

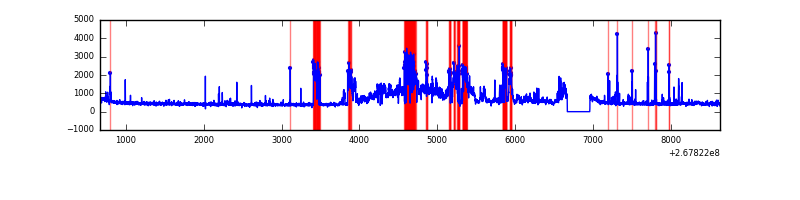

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7956 | 7667 | 24 | 24 | 0.30% | 0.31% |  |
| B | 7956 | 7667 | 119 | 119 | 1.50% | 1.55% |  |
| C | 7956 | 7667 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7957 | 7668 | 261 | 261 | 3.28% | 3.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 98028 | 519.31 | 922 | 900 | 187.0 |
| A | 12 | 189 | 73000 | 385.49 | 922 | 900 | 187.0 |
| A | 9 | 143 | 56621 | 297.92 | 922 | 900 | 187.0 |
| B | 3 | 64 | 583584 | 3363.93 | 908 | 885 | 173.2 |
| B | 0 | 189 | 70507 | 401.93 | 908 | 885 | 173.2 |
| B | 3 | 209 | 54281 | 308.26 | 908 | 885 | 173.2 |
| C | 3 | 233 | 532233 | 2584.0 | 882 | 885 | 205.6 |
| C | 7 | 247 | 8703 | 38.02 | 882 | 885 | 205.6 |
| C | 13 | 61 | 6578 | 27.69 | 882 | 885 | 205.6 |
| D | 13 | 104 | 1807668 | 8186.13 | 875 | 853 | 220.7 |
| D | 7 | 38 | 104031 | 467.47 | 875 | 853 | 220.7 |
| D | 10 | 70 | 40804 | 181.01 | 875 | 853 | 220.7 |

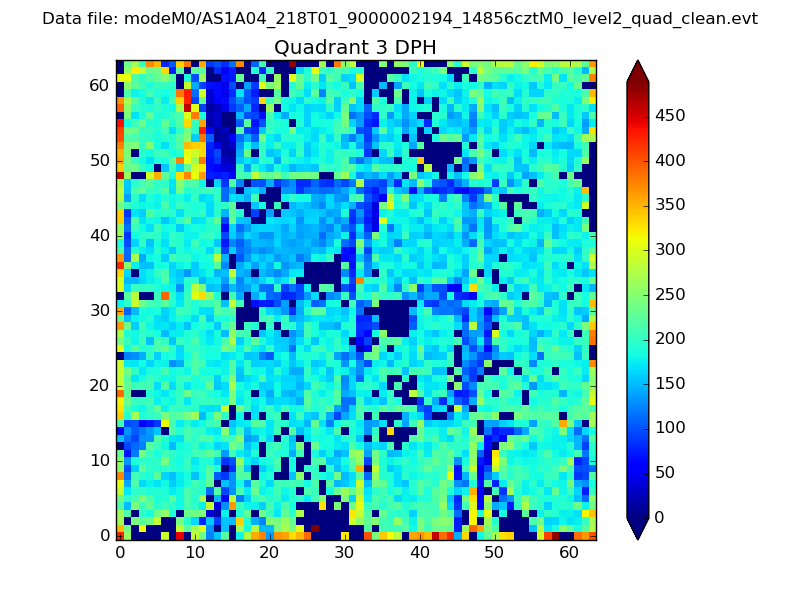

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

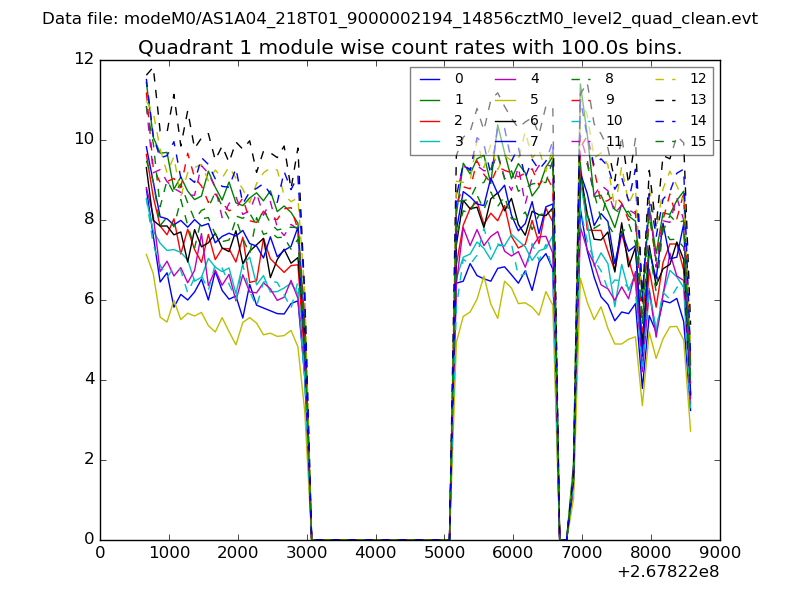

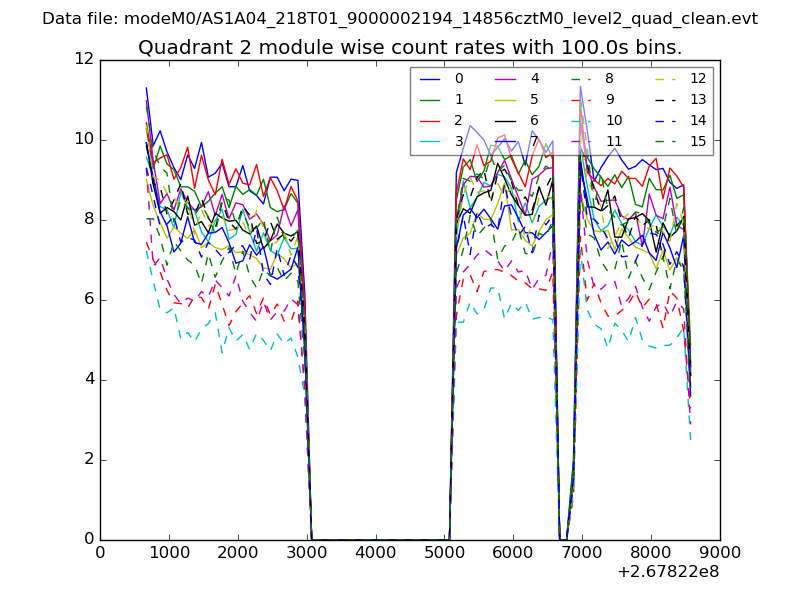

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

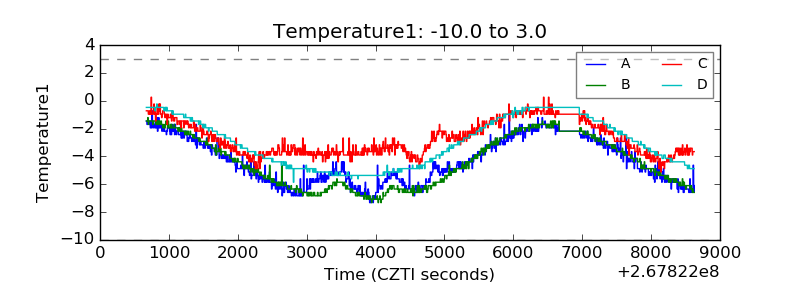

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

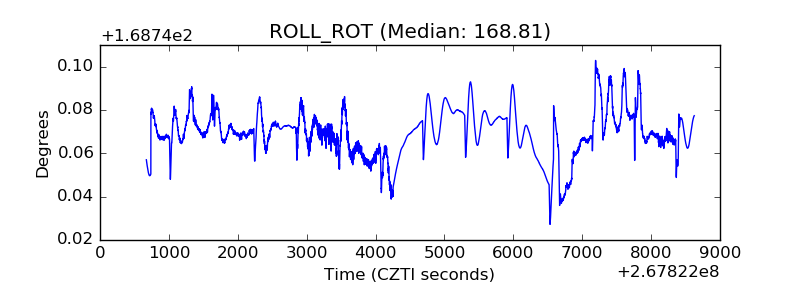

| _ROLL_ROT |  |

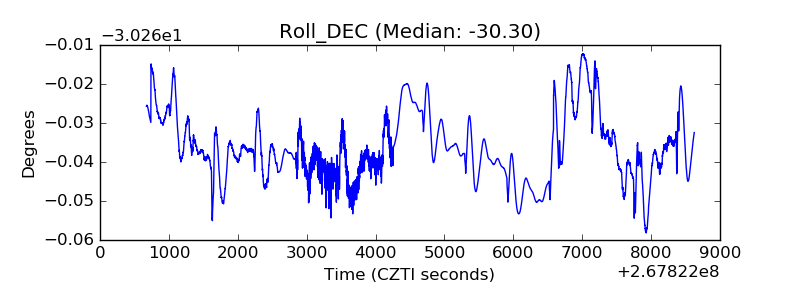

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
