| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T01_9000002194_14858cztM0_level2.evt | modeM0/AS1A04_218T01_9000002194_14858cztM0_level2_quad_clean.evt |
| Size (bytes) | 960,511,680 | 149,397,120 |
| Size | 916.0 MB | 142.5 MB |
| Events in quadrant A | 5,527,456 | 958,852 |
| Events in quadrant B | 6,710,295 | 928,163 |
| Events in quadrant C | 5,835,016 | 930,220 |
| Events in quadrant D | 10,230,454 | 902,472 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 236 | 0 |
| B | 0 | 236 | 0 |
| C | 0 | 236 | 0 |
| D | 0 | 236 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23988 | 3 |
| B | 0 | 27512 | 2 |
| C | 0 | 24379 | 2 |
| D | 0 | 38437 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11636 | 53 | 0.455483% |
| B | 11636 | 331 | 2.844620% |
| C | 11636 | 24 | 0.206256% |
| D | 11636 | 1068 | 9.178412% |

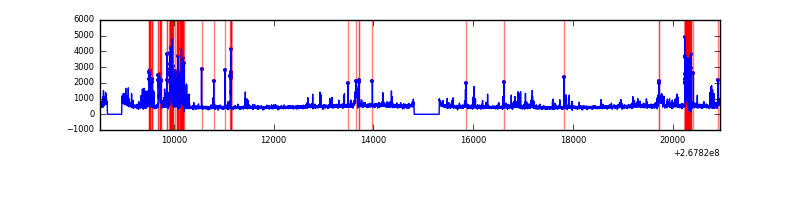

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12432 | 11639 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12432 | 11639 | 169 | 169 | 1.36% | 1.45% |  |
| C | 12432 | 11639 | 0 | 0 | 0.00% | 0.00% |  |
| D | 12432 | 11639 | 1024 | 1024 | 8.24% | 8.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 124644 | 440.57 | 1391 | 1360 | 279.8 |
| A | 9 | 143 | 19442 | 64.62 | 1391 | 1360 | 279.8 |
| A | 0 | 226 | 12229 | 38.84 | 1391 | 1360 | 279.8 |
| B | 3 | 64 | 858237 | 3292.03 | 1367 | 1334 | 260.3 |
| B | 0 | 189 | 185484 | 707.46 | 1367 | 1334 | 260.3 |
| B | 0 | 230 | 61564 | 231.39 | 1367 | 1334 | 260.3 |
| C | 3 | 233 | 616779 | 1983.64 | 1332 | 1337 | 310.3 |
| C | 8 | 128 | 11545 | 32.9 | 1332 | 1337 | 310.3 |
| C | 13 | 61 | 9645 | 26.78 | 1332 | 1337 | 310.3 |
| D | 13 | 104 | 4394409 | 13793.83 | 1307 | 1273 | 318.5 |
| D | 15 | 0 | 433674 | 1357.68 | 1307 | 1273 | 318.5 |
| D | 7 | 38 | 195210 | 608.93 | 1307 | 1273 | 318.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

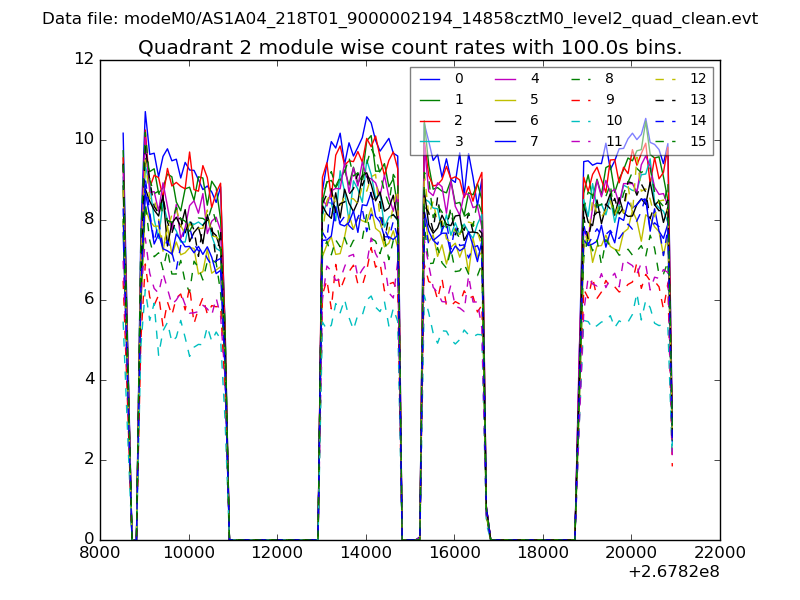

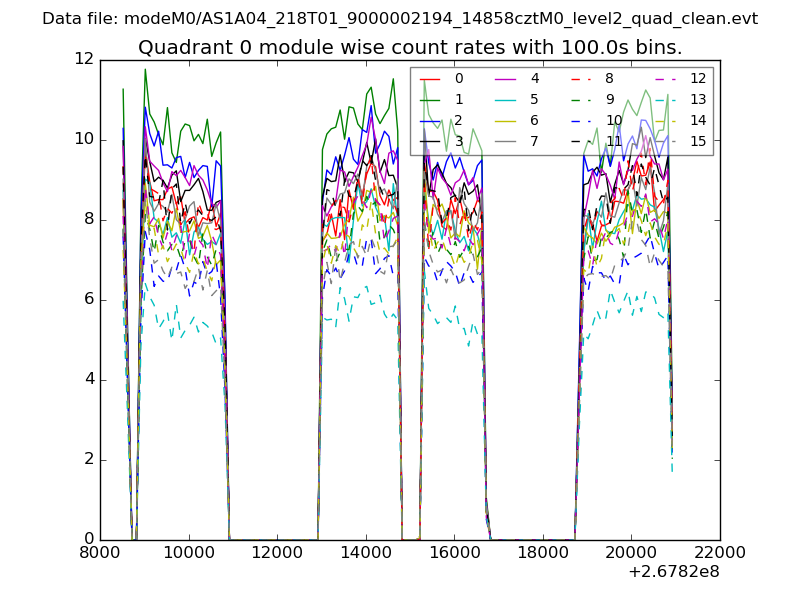

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

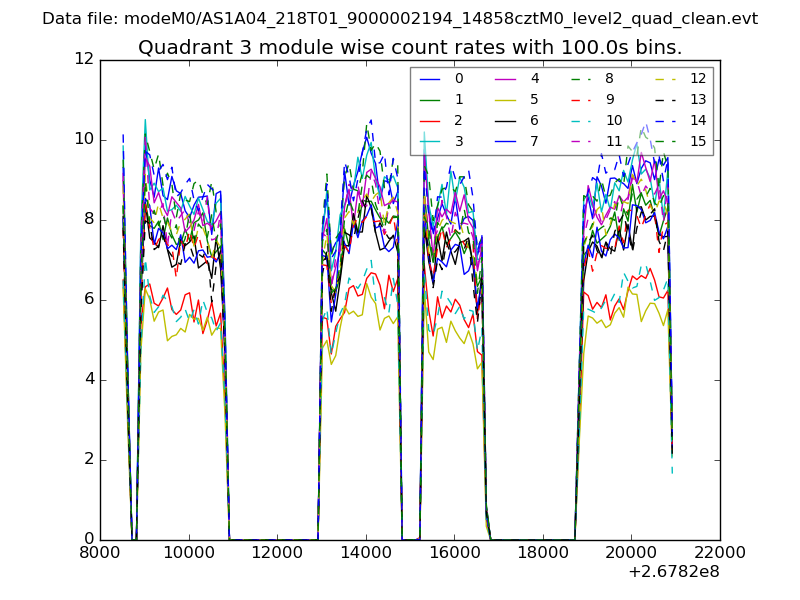

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

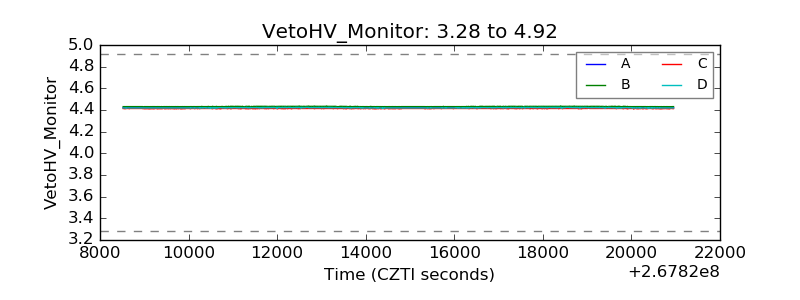

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

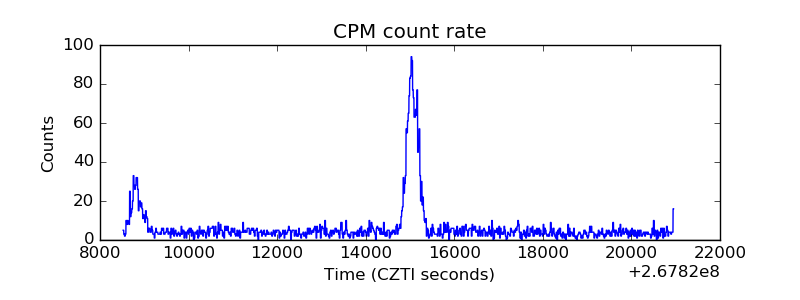

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

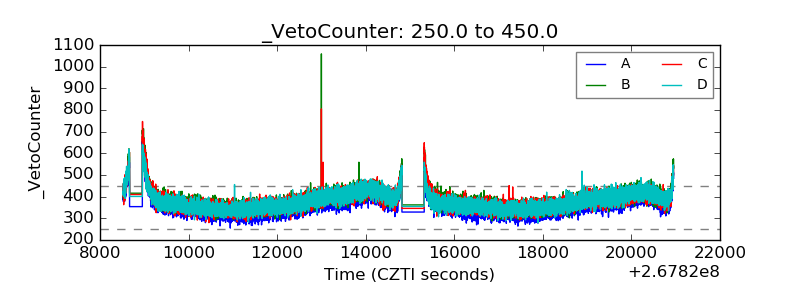

| Veto Counter |  |
