| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_218T01_9000002194_14863cztM0_level2.evt | modeM0/AS1A04_218T01_9000002194_14863cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,070,080 | 72,624,960 |
| Size | 440.7 MB | 69.3 MB |
| Events in quadrant A | 3,344,009 | 446,774 |
| Events in quadrant B | 3,644,768 | 441,044 |
| Events in quadrant C | 3,361,594 | 437,857 |
| Events in quadrant D | 3,214,056 | 431,927 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13709 | 3 |
| B | 0 | 14713 | 2 |
| C | 0 | 13750 | 2 |
| D | 0 | 13560 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6325 | 69 | 1.090909% |
| B | 6325 | 106 | 1.675889% |
| C | 6325 | 57 | 0.901186% |
| D | 6325 | 53 | 0.837945% |

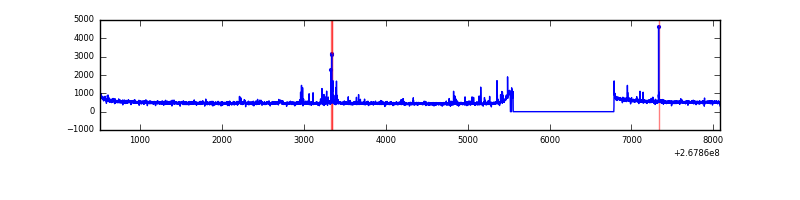

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7571 | 6328 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7571 | 6328 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7571 | 6328 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7571 | 6328 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 69323 | 409.31 | 841 | 824 | 167.4 |
| A | 3 | 1 | 23268 | 134.11 | 841 | 824 | 167.4 |
| A | 4 | 2 | 12691 | 70.91 | 841 | 824 | 167.4 |
| B | 0 | 219 | 134165 | 863.74 | 832 | 814 | 154.4 |
| B | 0 | 189 | 68983 | 441.54 | 832 | 814 | 154.4 |
| B | 3 | 64 | 55408 | 353.61 | 832 | 814 | 154.4 |
| C | 3 | 233 | 175107 | 942.12 | 813 | 820 | 185.0 |
| C | 6 | 96 | 9441 | 46.6 | 813 | 820 | 185.0 |
| C | 14 | 234 | 8441 | 41.2 | 813 | 820 | 185.0 |
| D | 10 | 70 | 58127 | 289.67 | 812 | 792 | 197.9 |
| D | 7 | 254 | 25696 | 125.82 | 812 | 792 | 197.9 |
| D | 2 | 234 | 22175 | 108.03 | 812 | 792 | 197.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

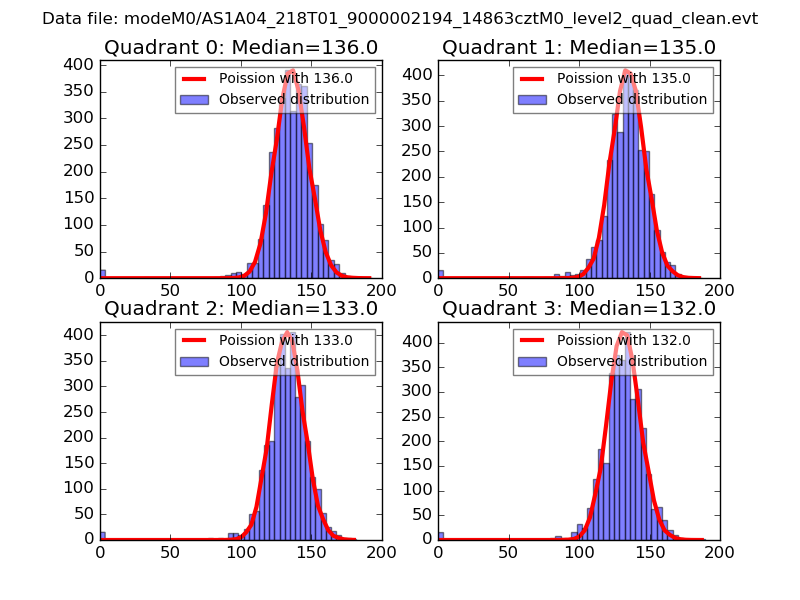

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

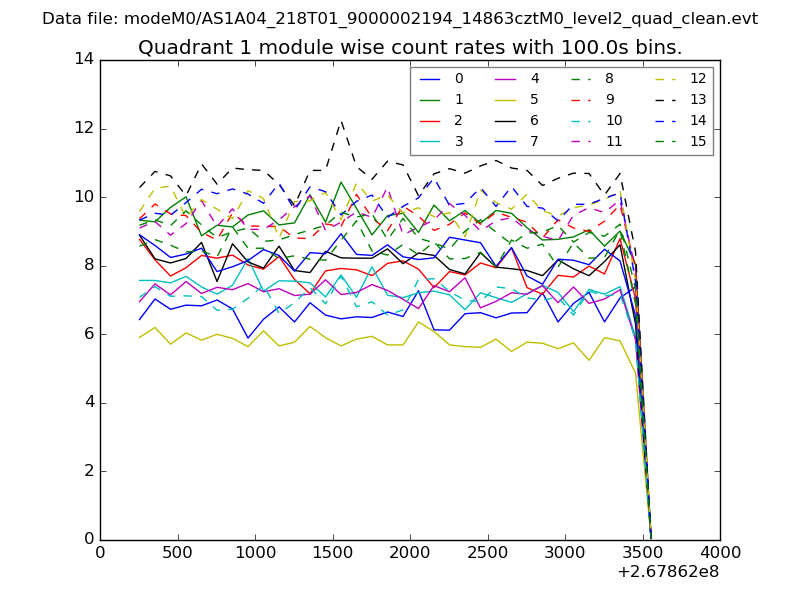

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

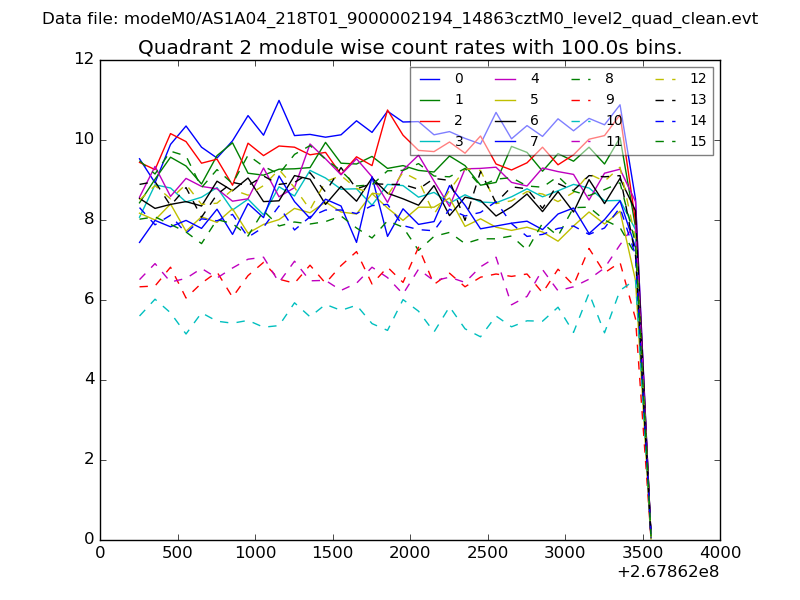

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

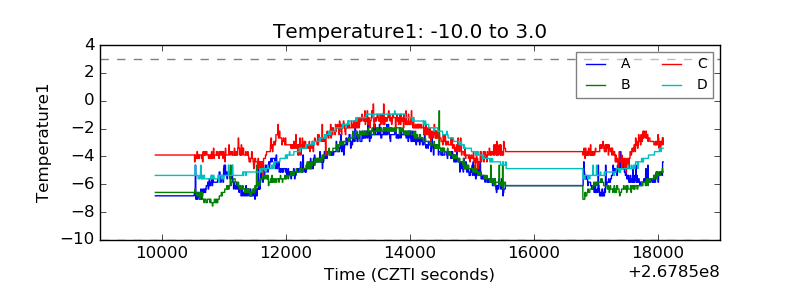

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

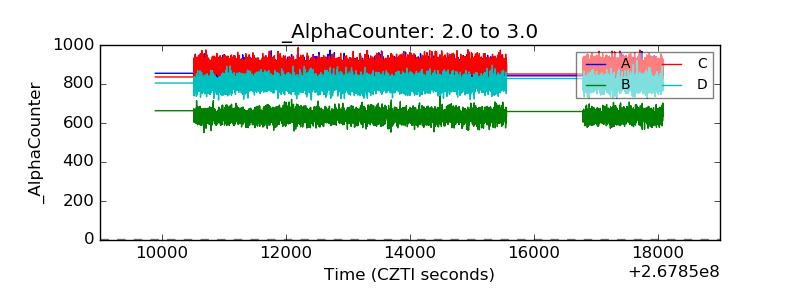

| Alpha Counter |  |
| _CPM_Rate |  |

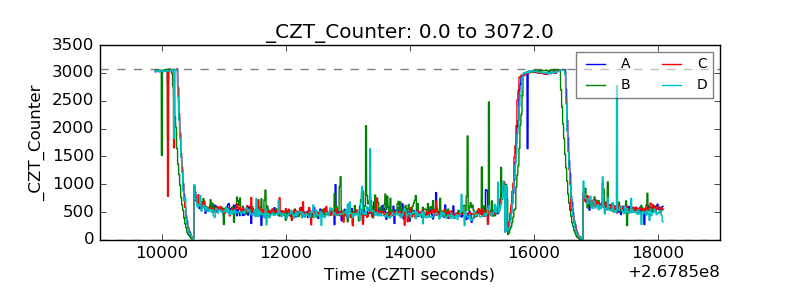

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

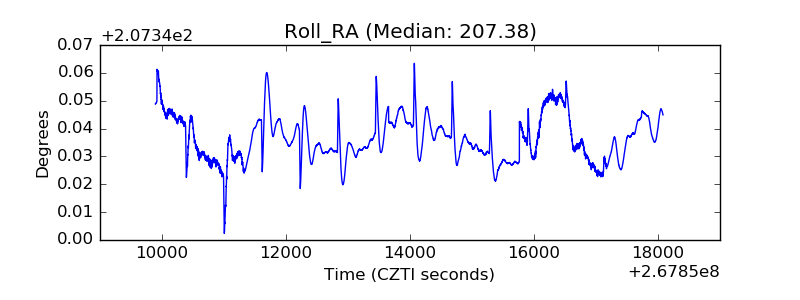

| _Roll_RA |  |
| Veto Counter |  |
