| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_054T01_9000002200_14885cztM0_level2.evt | modeM0/AS1T02_054T01_9000002200_14885cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,359,680 | 112,129,920 |
| Size | 511.5 MB | 106.9 MB |
| Events in quadrant A | 3,511,580 | 736,213 |
| Events in quadrant B | 3,887,003 | 729,300 |
| Events in quadrant C | 3,538,772 | 728,531 |
| Events in quadrant D | 4,797,534 | 680,484 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15478 | 0 |
| B | 0 | 16502 | 0 |
| C | 0 | 15433 | 0 |
| D | 0 | 19604 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7492 | 89 | 1.187934% |
| B | 7492 | 184 | 2.455953% |
| C | 7492 | 37 | 0.493860% |
| D | 7492 | 518 | 6.914042% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7857 | 7494 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7857 | 7494 | 19 | 19 | 0.24% | 0.25% |  |
| C | 7857 | 7494 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7857 | 7494 | 382 | 382 | 4.86% | 5.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 54829 | 304.07 | 883 | 863 | 177.5 |
| A | 3 | 1 | 27686 | 151.13 | 883 | 863 | 177.5 |
| A | 4 | 2 | 18579 | 99.82 | 883 | 863 | 177.5 |
| B | 3 | 64 | 145666 | 865.07 | 876 | 856 | 167.4 |
| B | 0 | 189 | 73516 | 434.06 | 876 | 856 | 167.4 |
| B | 0 | 219 | 54381 | 319.75 | 876 | 856 | 167.4 |
| C | 3 | 233 | 159275 | 804.26 | 851 | 855 | 197.0 |
| C | 0 | 207 | 58409 | 292.19 | 851 | 855 | 197.0 |
| C | 13 | 61 | 6199 | 27.13 | 851 | 855 | 197.0 |
| D | 7 | 254 | 1547246 | 7882.23 | 821 | 801 | 196.2 |
| D | 13 | 172 | 43475 | 217.51 | 821 | 801 | 196.2 |
| D | 7 | 38 | 33931 | 168.86 | 821 | 801 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

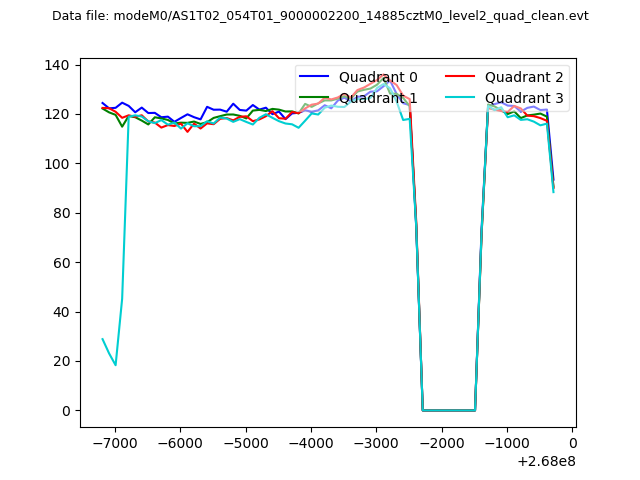

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

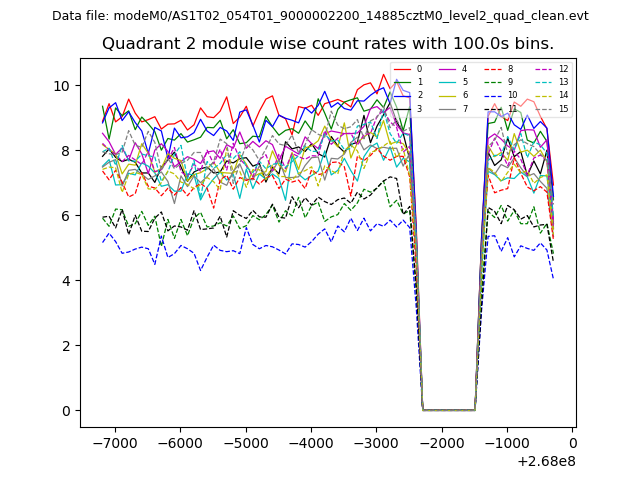

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

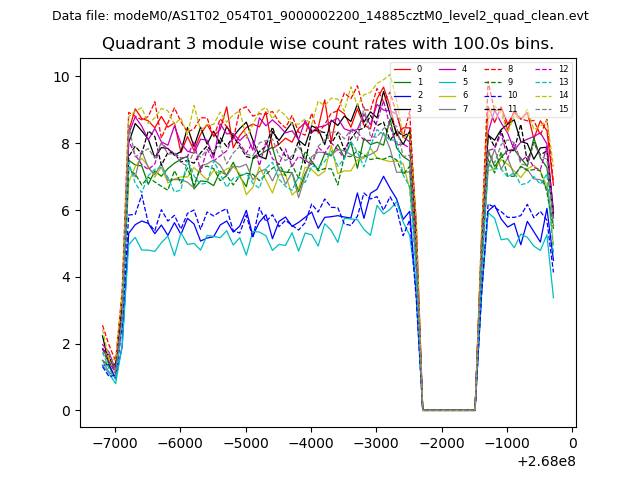

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

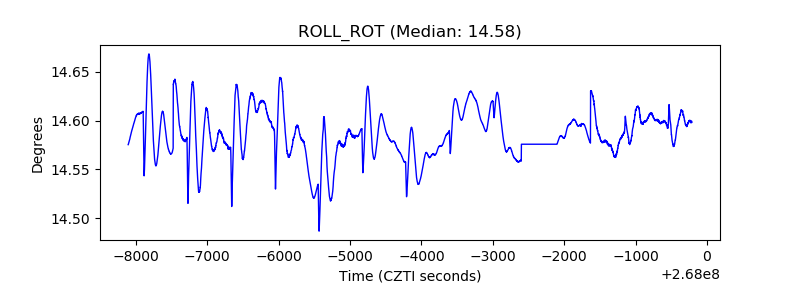

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

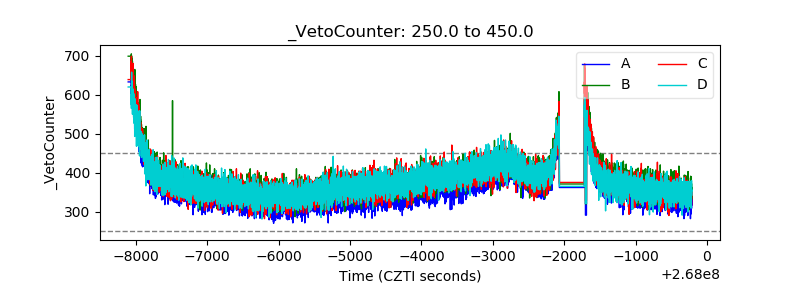

| Veto Counter |  |
