| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_011T09_9000002202_14902cztM0_level2.evt | modeM0/AS1A04_011T09_9000002202_14902cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,269,780,480 | 248,964,480 |
| Size | 1.2 GB | 237.4 MB |
| Events in quadrant A | 8,677,350 | 1,618,548 |
| Events in quadrant B | 11,278,329 | 1,520,783 |
| Events in quadrant C | 8,686,446 | 1,553,990 |
| Events in quadrant D | 8,559,103 | 1,569,175 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38388 | 4 |
| B | 0 | 45845 | 3 |
| C | 0 | 38061 | 3 |
| D | 0 | 38746 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18550 | 86 | 0.463612% |
| B | 18550 | 711 | 3.832884% |
| C | 18550 | 47 | 0.253369% |
| D | 18550 | 55 | 0.296496% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20391 | 18554 | 1 | 1 | 0.00% | 0.01% |  |
| B | 20391 | 18554 | 381 | 381 | 1.87% | 2.05% |  |
| C | 20391 | 18554 | 3 | 3 | 0.01% | 0.02% |  |
| D | 20391 | 18554 | 15 | 15 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 181145 | 412.15 | 2175 | 2128 | 434.3 |
| A | 3 | 1 | 65938 | 146.91 | 2175 | 2128 | 434.3 |
| A | 11 | 29 | 29929 | 64.01 | 2175 | 2128 | 434.3 |
| B | 10 | 16 | 2159126 | 5382.39 | 2116 | 2060 | 400.8 |
| B | 0 | 229 | 490931 | 1219.85 | 2116 | 2060 | 400.8 |
| B | 0 | 189 | 128189 | 314.72 | 2116 | 2060 | 400.8 |
| C | 3 | 233 | 436932 | 894.88 | 2109 | 2118 | 485.9 |
| C | 13 | 61 | 15131 | 26.78 | 2109 | 2118 | 485.9 |
| C | 10 | 22 | 12328 | 21.01 | 2109 | 2118 | 485.9 |
| D | 7 | 254 | 188787 | 374.06 | 2115 | 2063 | 499.2 |
| D | 13 | 104 | 91612 | 179.39 | 2115 | 2063 | 499.2 |
| D | 13 | 122 | 89112 | 174.38 | 2115 | 2063 | 499.2 |

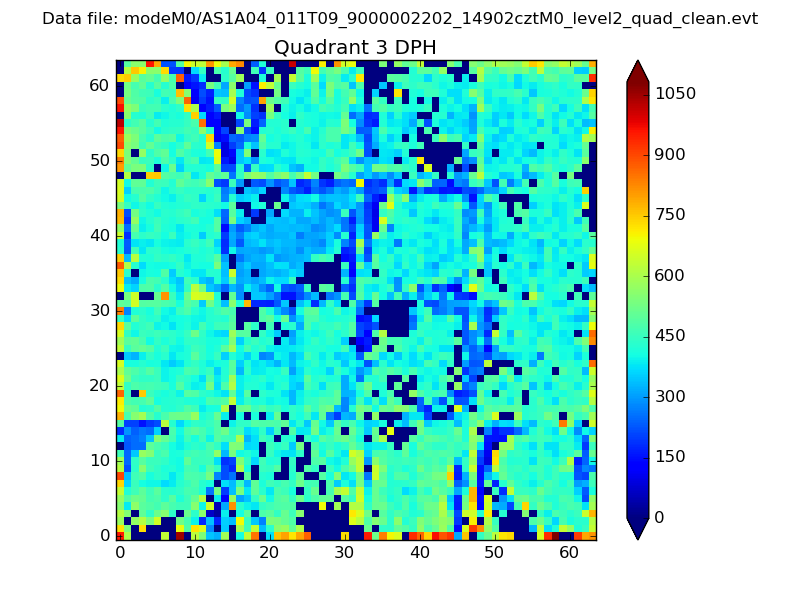

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

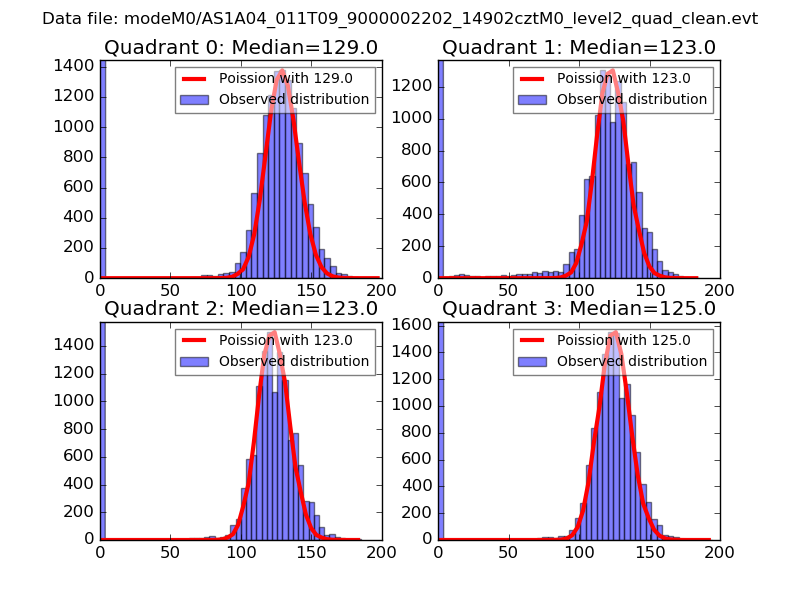

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

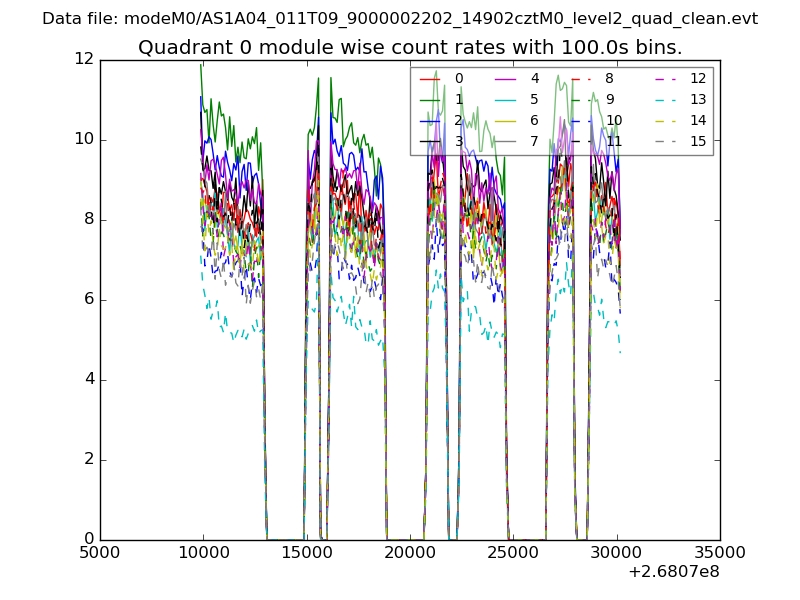

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

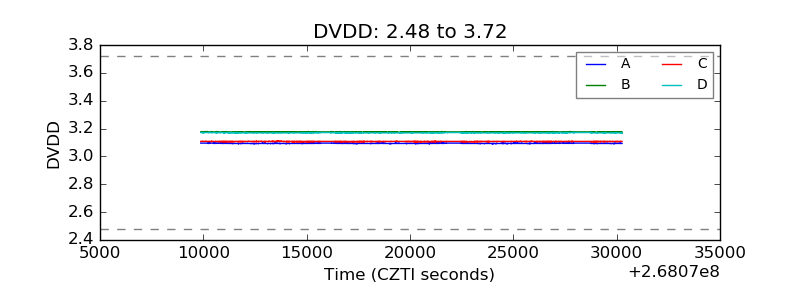

| CZT HV Monitor |  |
| D_VDD |  |

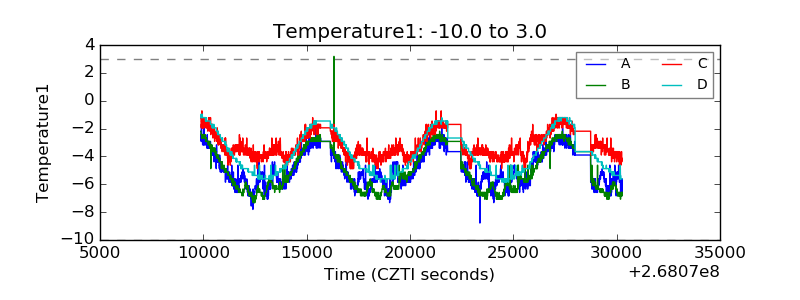

| Temperature 1 |  |

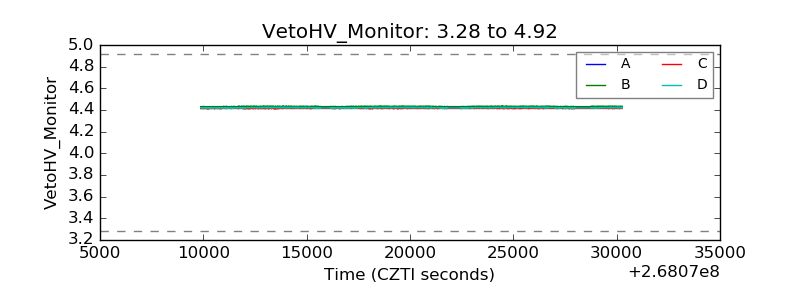

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
