| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_099T01_9000002204_14908cztM0_level2.evt | modeM0/AS1A04_099T01_9000002204_14908cztM0_level2_quad_clean.evt |
| Size (bytes) | 121,985,280 | 7,214,400 |
| Size | 116.3 MB | 6.9 MB |
| Events in quadrant A | 819,597 | 29,791 |
| Events in quadrant B | 1,118,002 | 25,378 |
| Events in quadrant C | 809,989 | 31,569 |
| Events in quadrant D | 851,880 | 29,749 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3234 | 2 |
| B | 0 | 4192 | 1 |
| C | 0 | 3215 | 1 |
| D | 0 | 3342 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1351 | 82 | 6.069578% |
| B | 1351 | 250 | 18.504811% |
| C | 1351 | 56 | 4.145078% |
| D | 1351 | 86 | 6.365655% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

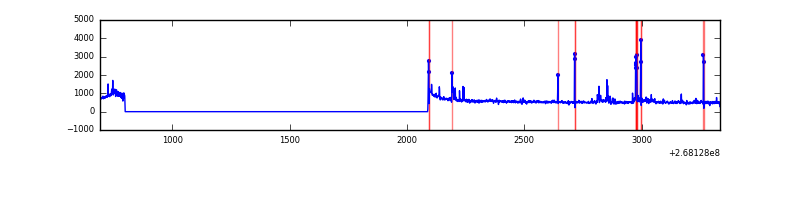

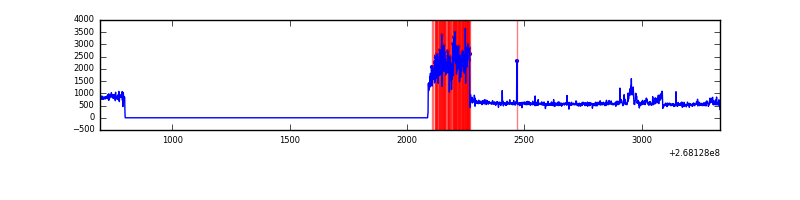

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2642 | 1353 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2642 | 1353 | 110 | 110 | 4.16% | 8.13% |  |
| C | 2642 | 1353 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2642 | 1353 | 16 | 16 | 0.61% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 4446 | 97.26 | 210 | 206 | 43.6 |
| A | 12 | 96 | 3720 | 80.61 | 210 | 206 | 43.6 |
| A | 12 | 189 | 3672 | 79.51 | 210 | 206 | 43.6 |
| B | 3 | 64 | 335512 | 8552.53 | 196 | 192 | 39.2 |
| B | 0 | 229 | 10494 | 262.76 | 196 | 192 | 39.2 |
| B | 10 | 16 | 5618 | 138.39 | 196 | 192 | 39.2 |
| C | 3 | 233 | 36934 | 772.83 | 198 | 199 | 47.5 |
| C | 13 | 61 | 1438 | 26.07 | 198 | 199 | 47.5 |
| C | 3 | 203 | 496 | 6.25 | 198 | 199 | 47.5 |
| D | 7 | 254 | 56592 | 1160.9 | 197 | 192 | 48.6 |
| D | 7 | 223 | 43759 | 896.75 | 197 | 192 | 48.6 |
| D | 2 | 234 | 3398 | 65.99 | 197 | 192 | 48.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

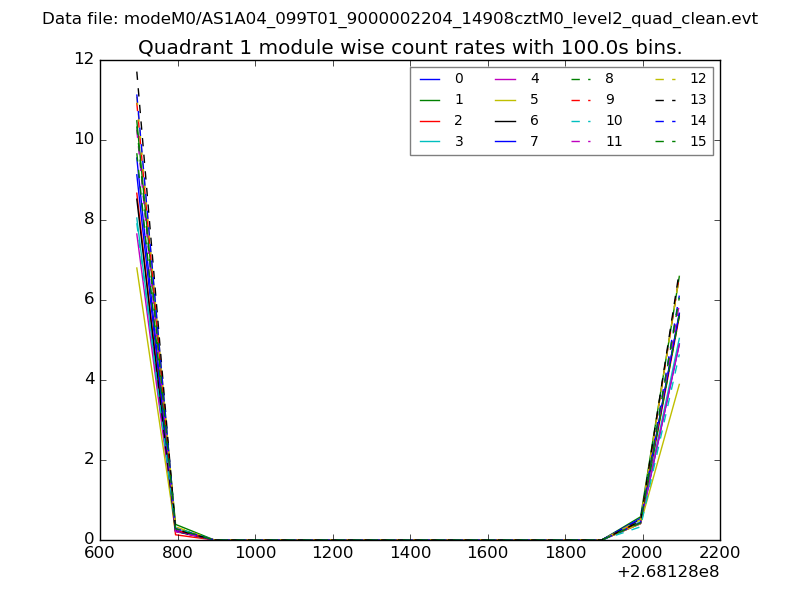

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

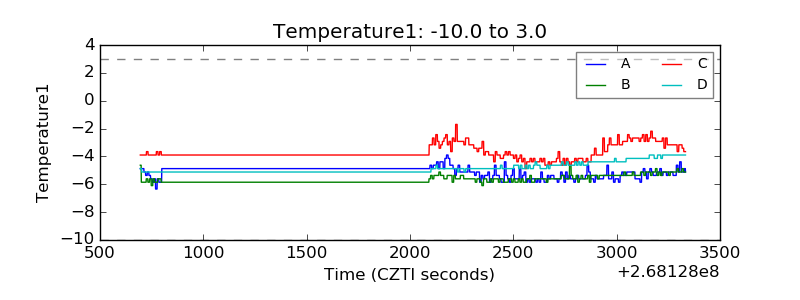

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

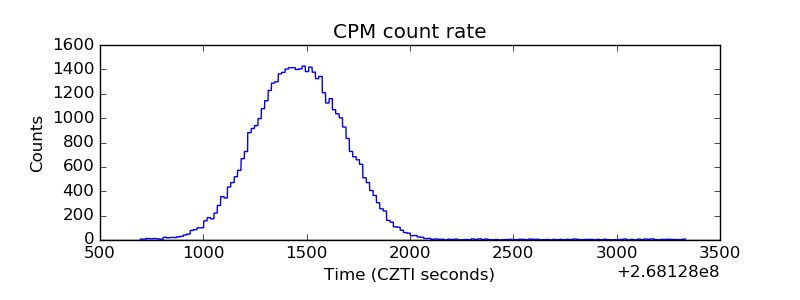

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

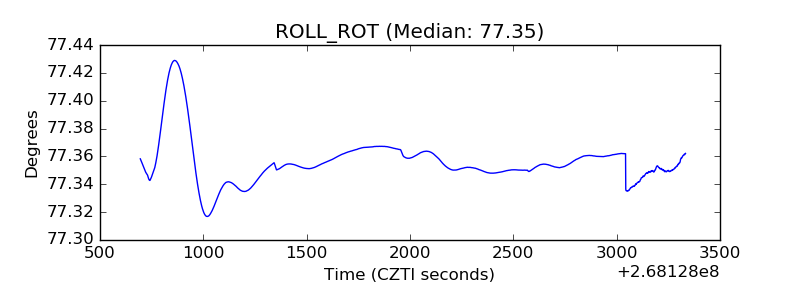

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
