| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_099T01_9000002204_14914cztM0_level2.evt | modeM0/AS1A04_099T01_9000002204_14914cztM0_level2_quad_clean.evt |
| Size (bytes) | 615,127,680 | 100,995,840 |
| Size | 586.6 MB | 96.3 MB |
| Events in quadrant A | 3,815,598 | 651,938 |
| Events in quadrant B | 4,706,290 | 644,653 |
| Events in quadrant C | 3,823,615 | 629,628 |
| Events in quadrant D | 5,773,214 | 608,289 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16157 | 4 |
| B | 0 | 18828 | 3 |
| C | 0 | 15928 | 3 |
| D | 0 | 22527 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7532 | 146 | 1.938396% |
| B | 7532 | 358 | 4.753054% |
| C | 7532 | 125 | 1.659586% |
| D | 7533 | 587 | 7.792380% |

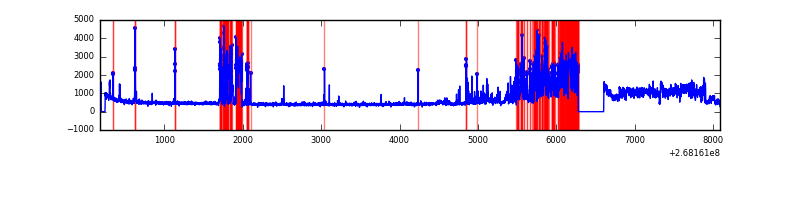

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7908 | 7535 | 13 | 13 | 0.16% | 0.17% |  |
| B | 7908 | 7535 | 102 | 102 | 1.29% | 1.35% |  |
| C | 7908 | 7535 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7909 | 7535 | 380 | 380 | 4.80% | 5.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 127960 | 664.72 | 940 | 920 | 191.1 |
| A | 12 | 189 | 65136 | 336.0 | 940 | 920 | 191.1 |
| A | 12 | 96 | 9166 | 43.15 | 940 | 920 | 191.1 |
| B | 10 | 16 | 1084191 | 5970.5 | 926 | 906 | 181.4 |
| B | 12 | 111 | 22552 | 119.3 | 926 | 906 | 181.4 |
| B | 11 | 111 | 19432 | 102.11 | 926 | 906 | 181.4 |
| C | 3 | 233 | 196084 | 923.04 | 913 | 917 | 211.4 |
| C | 7 | 247 | 57327 | 266.79 | 913 | 917 | 211.4 |
| C | 13 | 61 | 6487 | 26.34 | 913 | 917 | 211.4 |
| D | 7 | 254 | 1888056 | 8933.28 | 879 | 859 | 211.3 |
| D | 10 | 70 | 440389 | 2080.57 | 879 | 859 | 211.3 |
| D | 7 | 223 | 75275 | 352.26 | 879 | 859 | 211.3 |

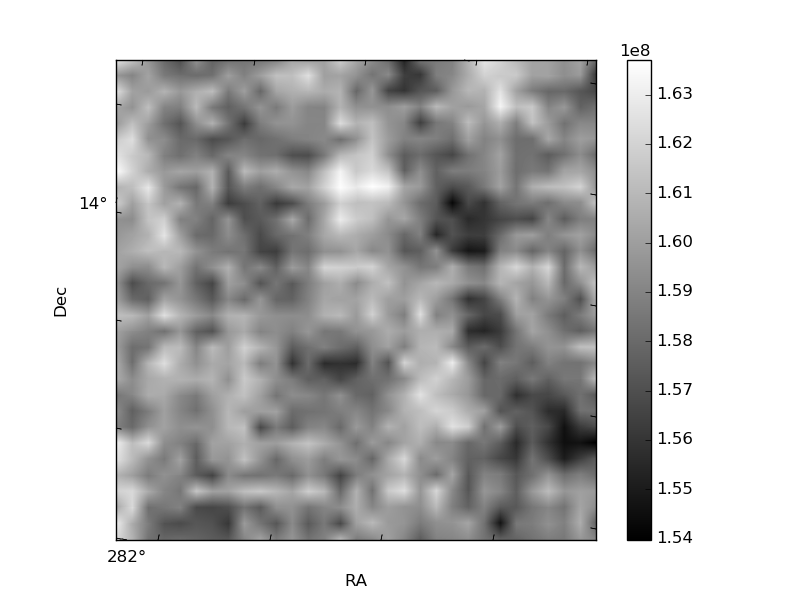

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

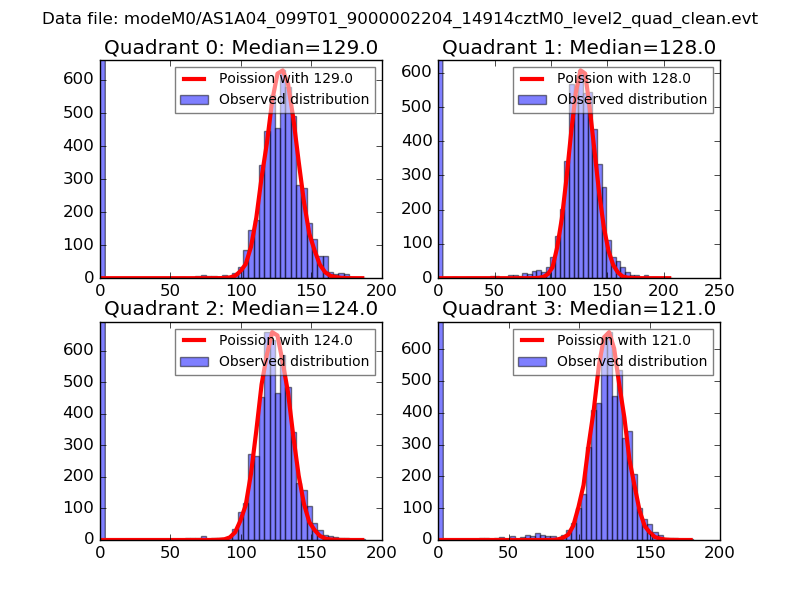

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

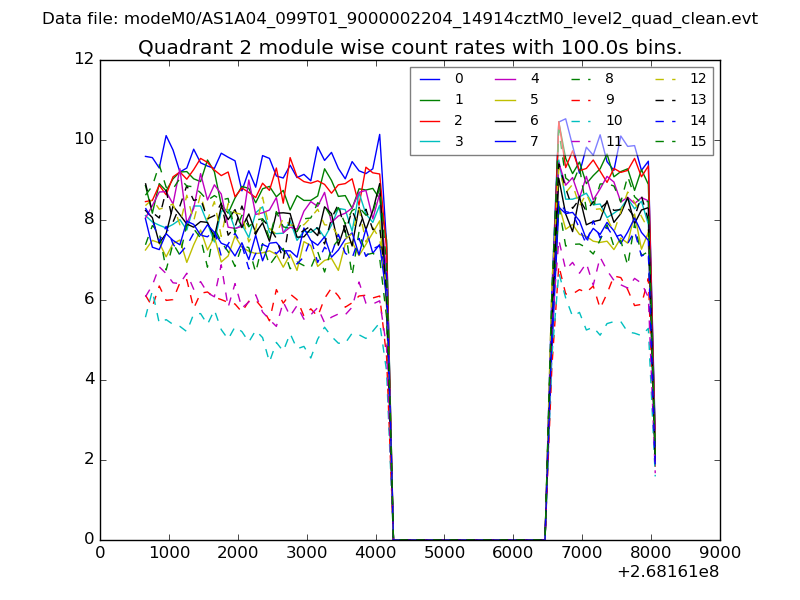

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

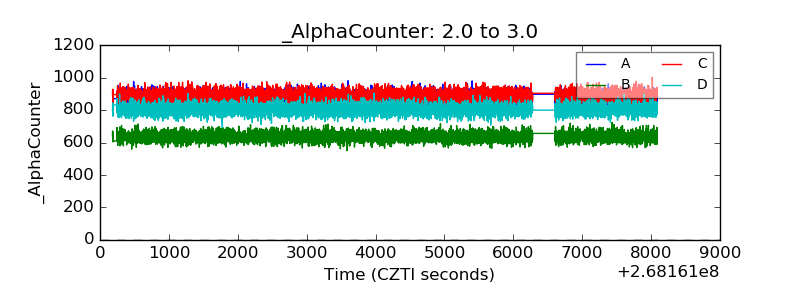

| Alpha Counter |  |

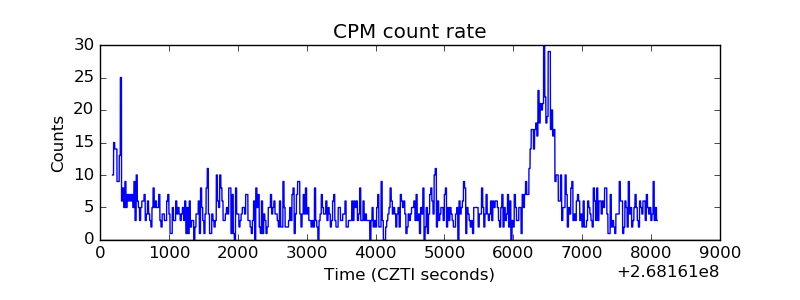

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

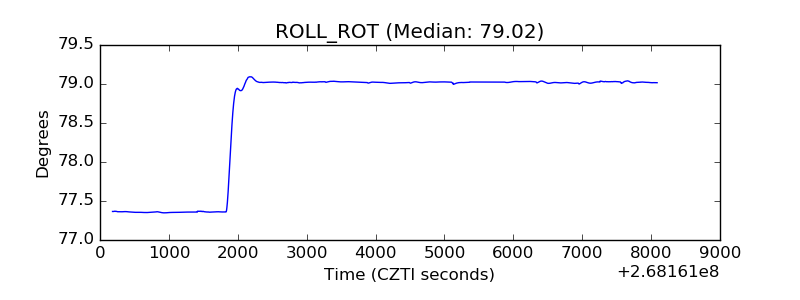

| _ROLL_ROT |  |

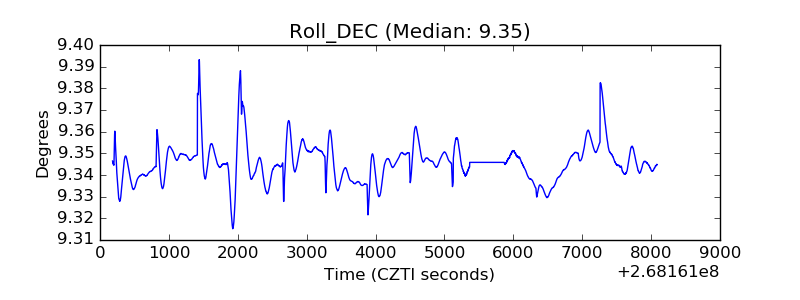

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
