| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_099T01_9000002204_14917cztM0_level2.evt | modeM0/AS1A04_099T01_9000002204_14917cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,334,400 | 95,987,520 |
| Size | 441.9 MB | 91.5 MB |
| Events in quadrant A | 3,257,392 | 614,739 |
| Events in quadrant B | 3,283,702 | 618,775 |
| Events in quadrant C | 3,826,391 | 597,608 |
| Events in quadrant D | 3,190,271 | 589,672 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14321 | 3 |
| B | 0 | 14343 | 2 |
| C | 0 | 16051 | 2 |
| D | 0 | 14521 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6977 | 60 | 0.859968% |
| B | 6977 | 67 | 0.960298% |
| C | 6977 | 103 | 1.476279% |
| D | 6977 | 56 | 0.802637% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8433 | 6980 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8433 | 6979 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8433 | 6980 | 30 | 30 | 0.36% | 0.43% |  |
| D | 8433 | 6980 | 13 | 13 | 0.15% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 23802 | 135.22 | 837 | 820 | 170.0 |
| A | 3 | 1 | 9291 | 49.84 | 837 | 820 | 170.0 |
| A | 0 | 226 | 7408 | 38.76 | 837 | 820 | 170.0 |
| B | 12 | 111 | 19917 | 118.53 | 833 | 811 | 161.2 |
| B | 11 | 111 | 17256 | 102.02 | 833 | 811 | 161.2 |
| B | 3 | 64 | 16975 | 100.28 | 833 | 811 | 161.2 |
| C | 9 | 236 | 487875 | 2575.6 | 811 | 815 | 189.1 |
| C | 3 | 233 | 174356 | 917.69 | 811 | 815 | 189.1 |
| C | 13 | 61 | 5770 | 26.2 | 811 | 815 | 189.1 |
| D | 13 | 104 | 84834 | 432.61 | 810 | 790 | 194.3 |
| D | 2 | 234 | 27668 | 138.35 | 810 | 790 | 194.3 |
| D | 2 | 120 | 21816 | 108.23 | 810 | 790 | 194.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

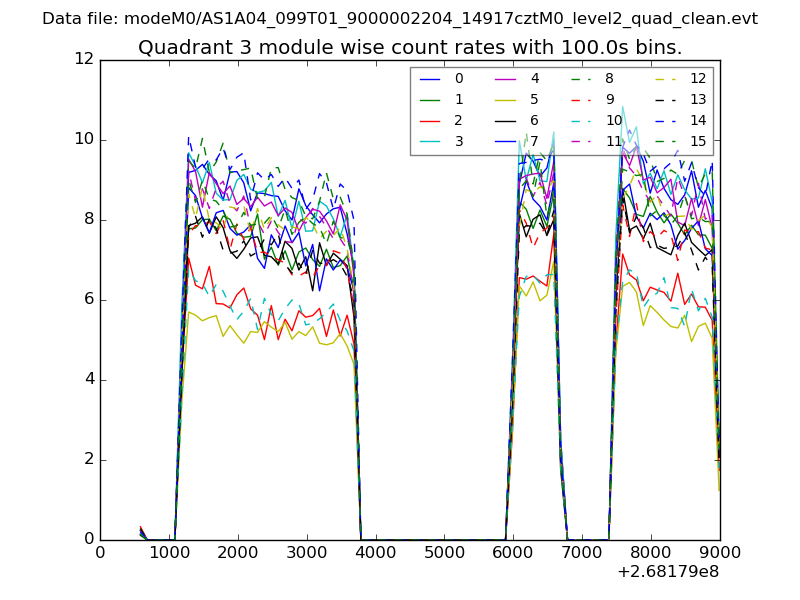

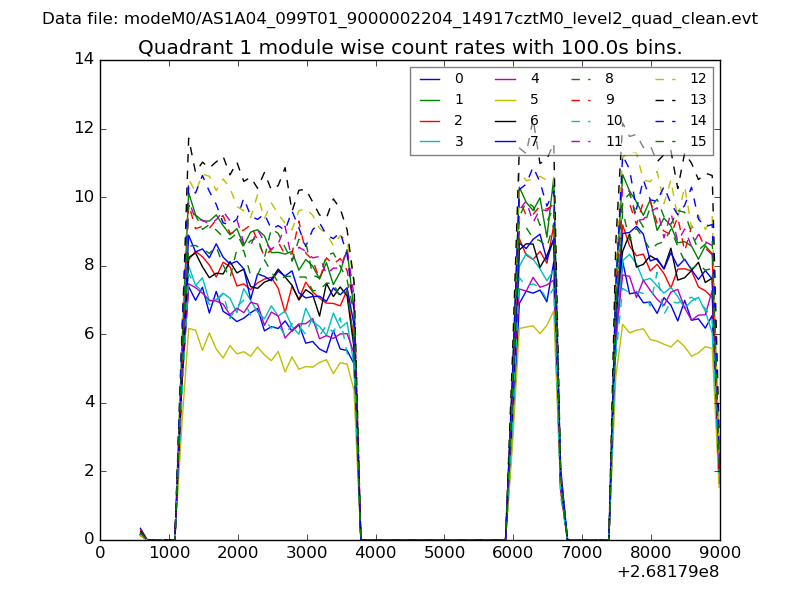

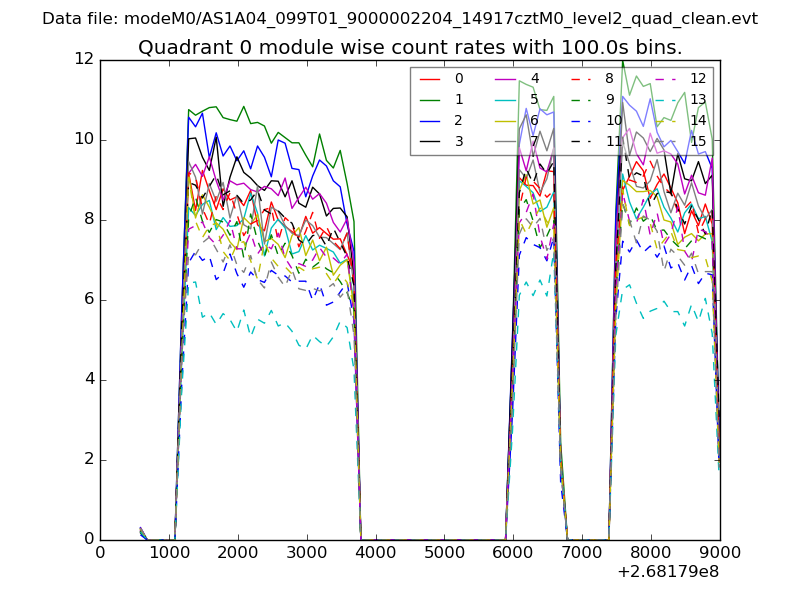

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

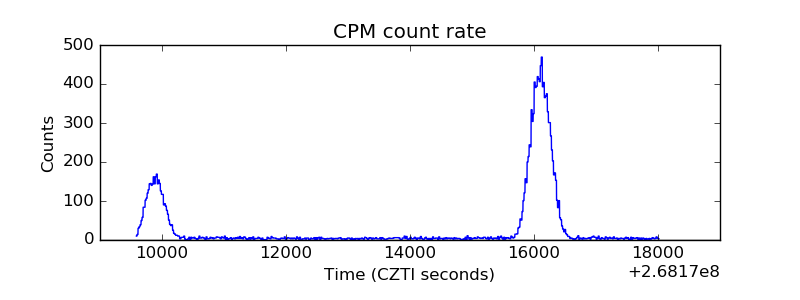

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

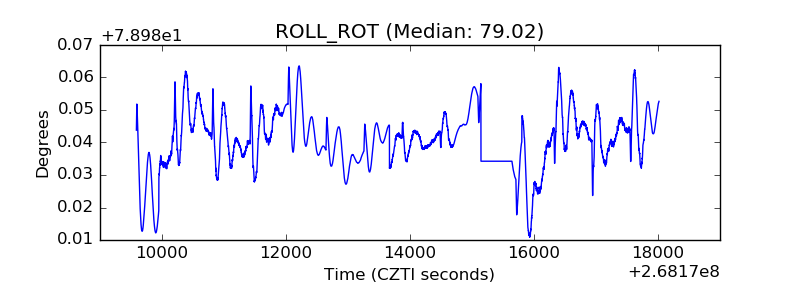

| _ROLL_ROT |  |

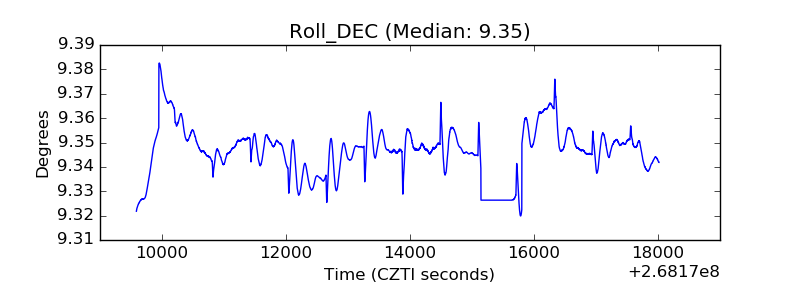

| _Roll_DEC |  |

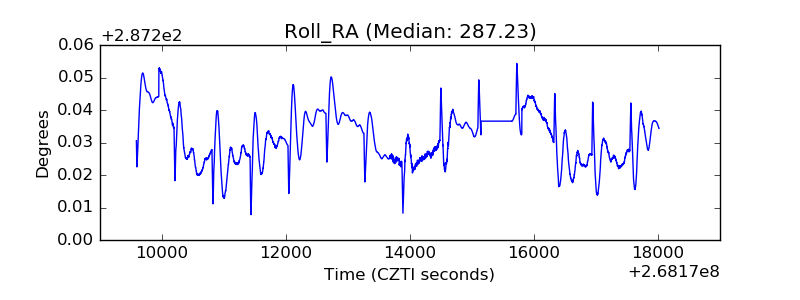

| _Roll_RA |  |
| Veto Counter |  |
