| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_055T01_9000002206_14928cztM0_level2.evt | modeM0/AS1T02_055T01_9000002206_14928cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,871,360 | 107,360,640 |
| Size | 543.5 MB | 102.4 MB |
| Events in quadrant A | 3,504,540 | 709,544 |
| Events in quadrant B | 5,669,874 | 674,104 |
| Events in quadrant C | 3,504,890 | 681,492 |
| Events in quadrant D | 4,076,633 | 670,395 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15212 | 2 |
| B | 0 | 21883 | 1 |
| C | 0 | 15103 | 1 |
| D | 0 | 17335 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7410 | 47 | 0.634278% |
| B | 7410 | 532 | 7.179487% |
| C | 7410 | 50 | 0.674764% |
| D | 7410 | 235 | 3.171390% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7741 | 7413 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7741 | 7413 | 278 | 278 | 3.59% | 3.75% |  |
| C | 7741 | 7413 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7741 | 7413 | 164 | 164 | 2.12% | 2.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 62409 | 343.83 | 881 | 862 | 179.0 |
| A | 1 | 162 | 15447 | 81.48 | 881 | 862 | 179.0 |
| A | 3 | 1 | 12605 | 65.6 | 881 | 862 | 179.0 |
| B | 10 | 16 | 2081659 | 12813.92 | 857 | 836 | 162.4 |
| B | 0 | 189 | 65794 | 400.02 | 857 | 836 | 162.4 |
| B | 0 | 245 | 55953 | 339.42 | 857 | 836 | 162.4 |
| C | 3 | 233 | 200856 | 1025.71 | 846 | 850 | 195.0 |
| C | 13 | 61 | 6094 | 26.89 | 846 | 850 | 195.0 |
| C | 8 | 222 | 3894 | 15.61 | 846 | 850 | 195.0 |
| D | 2 | 33 | 707740 | 3521.85 | 842 | 821 | 200.7 |
| D | 13 | 249 | 71350 | 351.37 | 842 | 821 | 200.7 |
| D | 10 | 70 | 50015 | 245.08 | 842 | 821 | 200.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

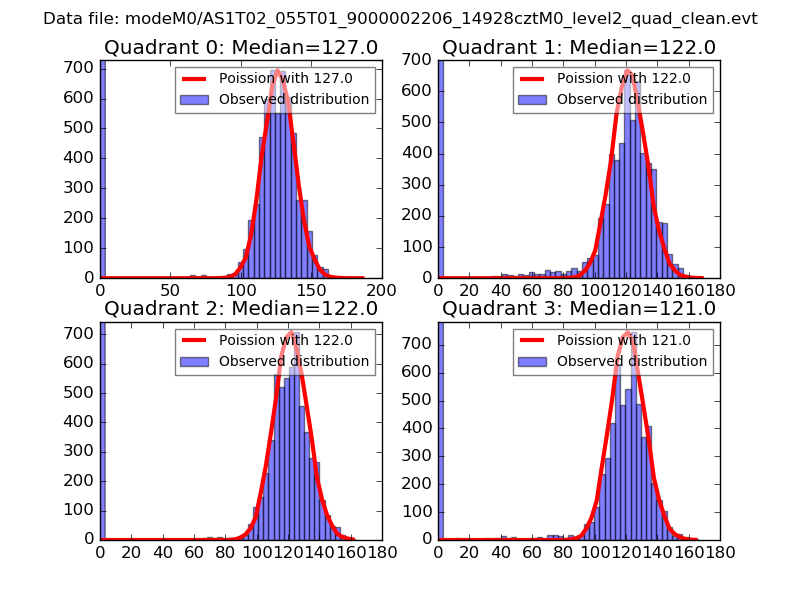

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

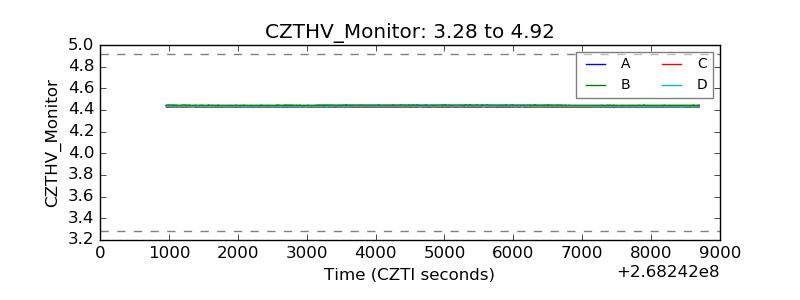

| CZT HV Monitor |  |
| D_VDD |  |

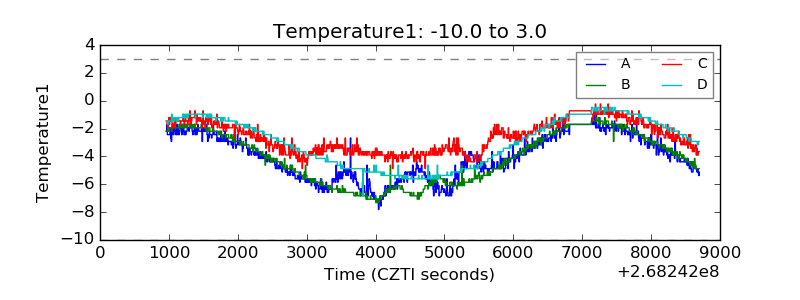

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

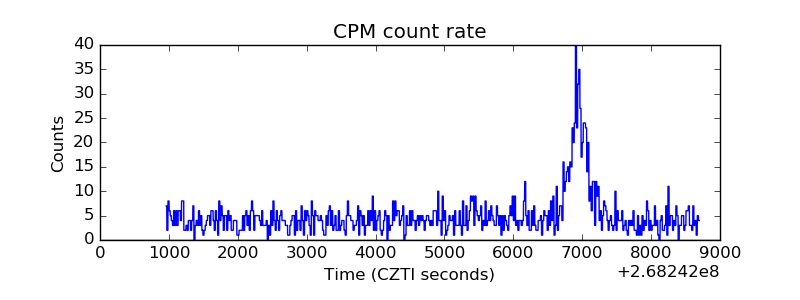

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

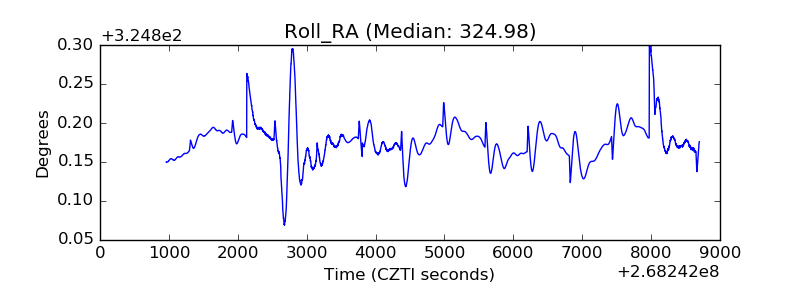

| _Roll_RA |  |
| Veto Counter |  |
