| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_055T01_9000002206_14935cztM0_level2.evt | modeM0/AS1T02_055T01_9000002206_14935cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,581,120 | 107,997,120 |
| Size | 482.2 MB | 103.0 MB |
| Events in quadrant A | 3,145,510 | 723,793 |
| Events in quadrant B | 5,499,831 | 689,407 |
| Events in quadrant C | 3,127,701 | 703,679 |
| Events in quadrant D | 3,090,326 | 693,555 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13632 | 3 |
| B | 0 | 20603 | 2 |
| C | 0 | 13524 | 2 |
| D | 0 | 13856 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6600 | 10 | 0.151515% |
| B | 6600 | 743 | 11.257576% |
| C | 6600 | 11 | 0.166667% |
| D | 6600 | 27 | 0.409091% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7786 | 6602 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7786 | 6602 | 469 | 469 | 6.02% | 7.10% |  |
| C | 7786 | 6602 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7786 | 6602 | 14 | 14 | 0.18% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 189 | 49772 | 308.37 | 794 | 779 | 158.9 |
| A | 4 | 2 | 13524 | 80.22 | 794 | 779 | 158.9 |
| A | 1 | 162 | 11055 | 64.68 | 794 | 779 | 158.9 |
| B | 10 | 16 | 2093992 | 14669.73 | 765 | 746 | 142.7 |
| B | 0 | 229 | 260106 | 1817.63 | 765 | 746 | 142.7 |
| B | 0 | 219 | 93801 | 652.14 | 765 | 746 | 142.7 |
| C | 3 | 233 | 163618 | 937.3 | 760 | 766 | 173.7 |
| C | 13 | 61 | 5498 | 27.24 | 760 | 766 | 173.7 |
| C | 3 | 202 | 1729 | 5.54 | 760 | 766 | 173.7 |
| D | 7 | 254 | 134850 | 749.07 | 757 | 739 | 179.0 |
| D | 2 | 152 | 34749 | 189.96 | 757 | 739 | 179.0 |
| D | 2 | 234 | 23356 | 126.33 | 757 | 739 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

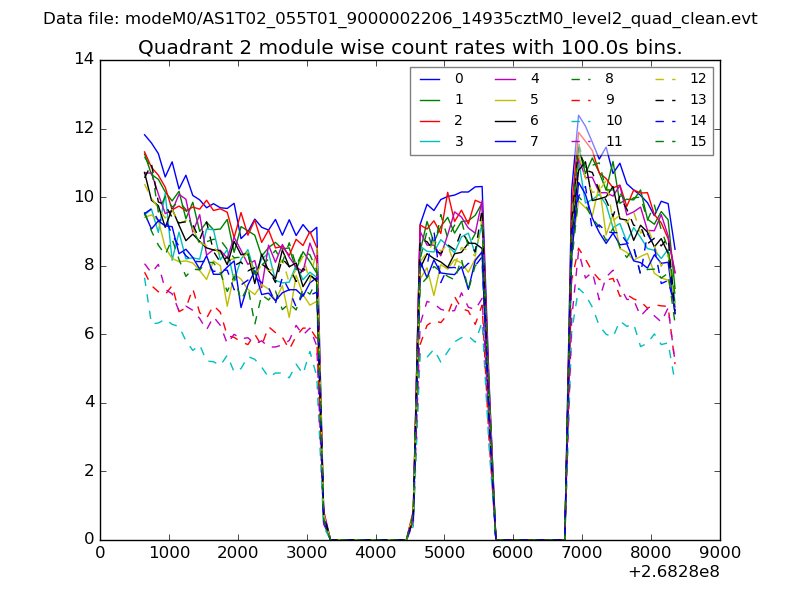

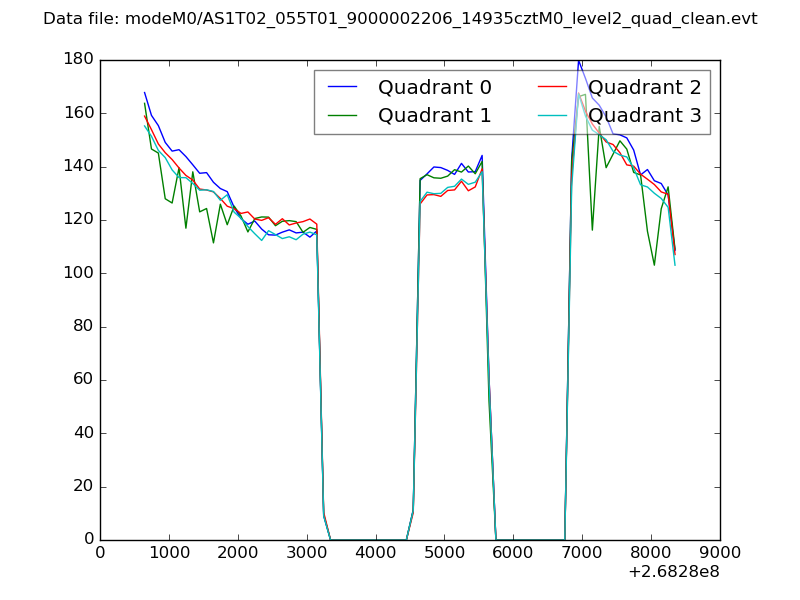

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

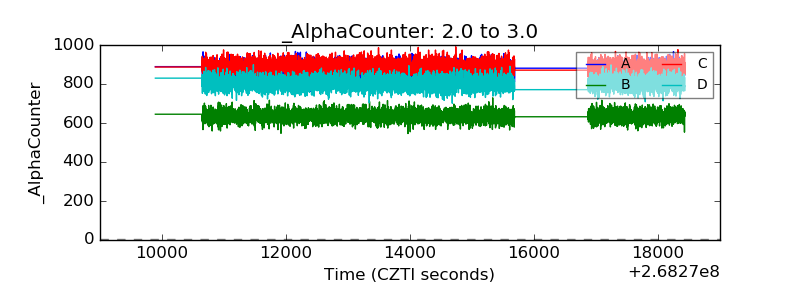

| Alpha Counter |  |

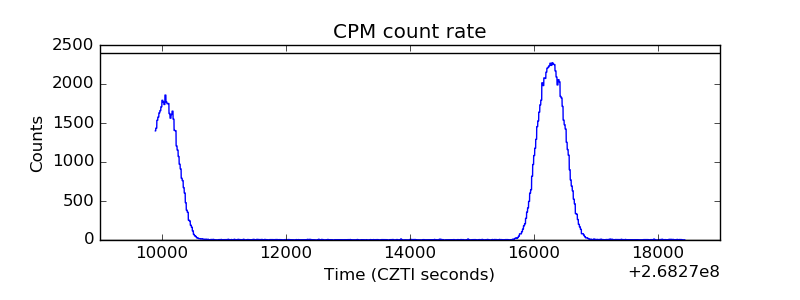

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
